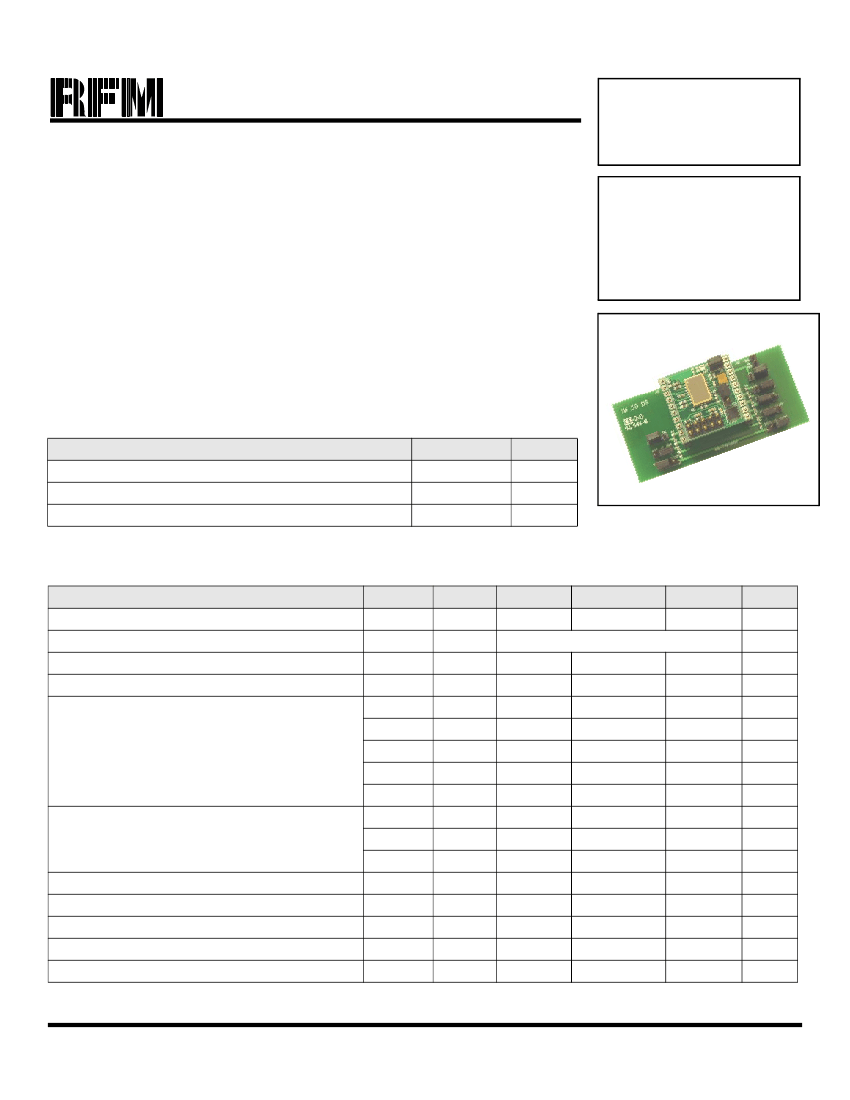

RF modules and development tools 3G transceiver eval module 916.50 MHz

Preview

Download Datasheet

View All

•

4.8Designed for Short-Range Wireless Data Communications

Supports RF Data Transmission Rates Up to 115.2 kbps

3 V, Low Current Operation plus Sleep Mode

Up to 10 mW Transmitter Power

DR8000-EV

916.50 MHz

Transceiver

Evaluation

Module

The DR8000-EV hybrid transceiver module is ideal for short-range wireless data applications

where robust operation, small size, low power consumption and low cost are required. The

DR8000-EV utilizes RFM’s TR8000 amplifier-sequenced hybrid (ASH) architecture to achieve this

unique blend of characteristics. All critical RF functions are contained in the hybrid, simplifying

and speeding design-in. The receiver section of the DR8000-EV is sensitive and stable. A wide

dynamic range log detector, in combination with digital AGC and a compound data slicer, provide

robust performance in the presence of on-channel interference or noise. Two stages of SAW fil-

tering provide excellent receiver out-of-band rejection. The transmitter includes provisions for

both on-off keyed (OOK) and amplitude-shift keyed (ASK) modulation. The transmitter employs

SAW filtering to suppress output harmonics, facilitating compliance with FCC and similar regula-

tions.

Absolute Maximum Ratings

Rating

Power Supply and All Input/Output Pins

Non-Operating Case Temperature

Soldering Temperature (10 seconds, 5 cycles maximum)

Value

-0.3 to +4.0

-50 to +100

260

Units

°C

Electrical Characteristics

Characteristic

Operating Frequency

Data Modulation Type

OOK Data Rate

ASK Data Rate

Receiver Performance (OOK @ 4.8kbps)

Sensitivity, 4.8 kbps, 10-3 BER, AM Test Method

Input Current, 4.8 kbps, 3.0V Supply

Sensitivity, 19.2 kbps, 10-3 BER, AM Test Method

Input Current, 19.2 kbps, 3.0V Supply

Transmitter Performance (OOK @ 4.8kbps)

Peak RF Output Power, 315 µA TXMOD Current

Peak Current, 315 µA TXMOD Current

OOK Turn On/Turn Off Times

ASK Output Rise/Fall Times

Power Supply Voltage Range (including I/O)

Operating Ambient Temperature

Power Supply Voltage Ripple

TPL

OFF

Vcc

2.2

-40

12/6

1.1/1.1

3.7

+85

dBm

µs

Vdc

°C

mVp-p

-108

4.2

-104

4.25

dBm

Sym

Notes

Minimum

916.30

OOK/ASK

115.2

kb/s

Typical

Maximum

916.70

Units

MHz

RF Monolithics, Inc.

Phone: (972) 233-2903

Fax: (972) 387-8148

RFM Europe

Phone: 44 1963 251383

Fax: 44 1963 251510

E-mail: info@rfm.com

http://www.rfm.com

DR8000EV-071107

Page 1 of 8

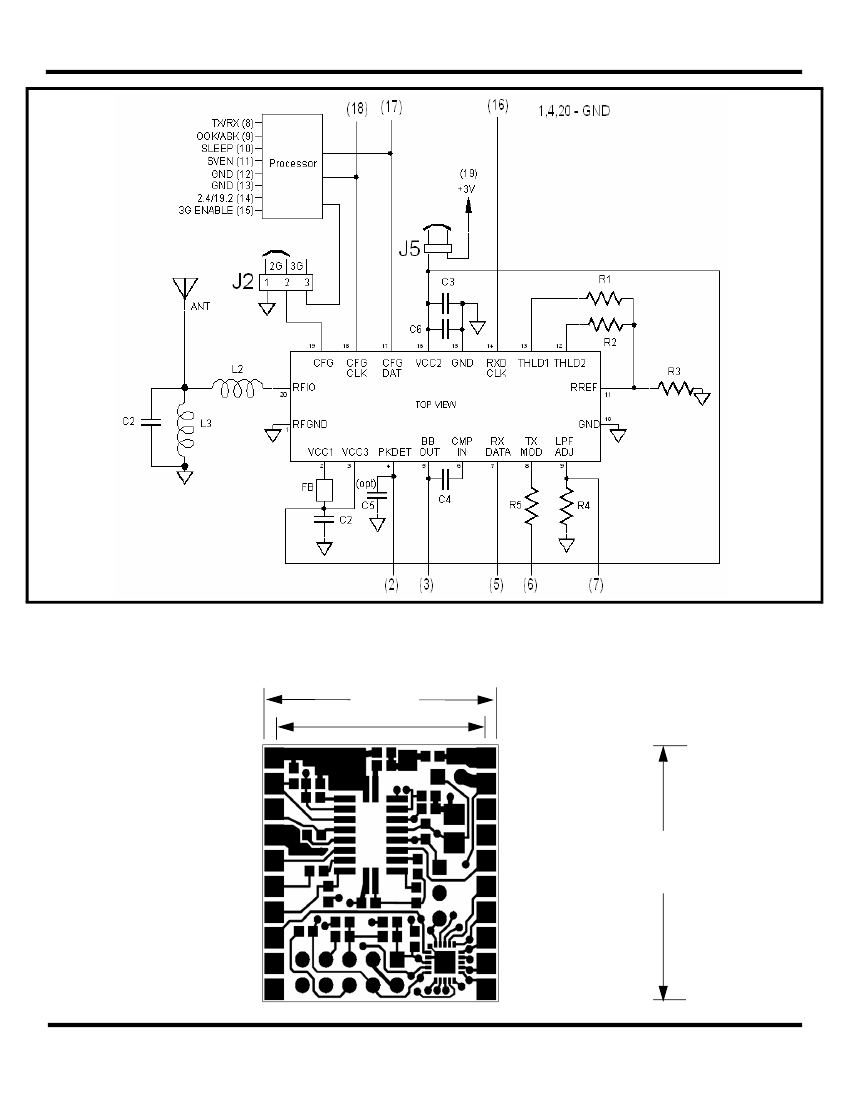

916.50 MHz

1,4,20

Name

GND

VCC

In/Out

Transceiver Module

Description

GND is the ground pin.

VCC is a positive supply voltage pin.

This pin is the peak detector output. A 0.022uF capacitor to ground (C5) sets the peak detector attack and

decay times, which have a fixed 1:1000 ratio. For most applications, these time constants should be coordi-

nated with the base-band time constant. For a given base-band capacitor C

BBO

, the capacitor value C

PKD

is:

PKD

= 2.0* C

BBO

, where C

BBO

and C

PKD

are in pF

PKDET

Out

A ±10% ceramic capacitor should be used at this pin. This time constant will vary between t

PKA

and 1.5* t

PKA

with variations in supply voltage, temperature, etc. The capacitor is driven from a 200 ohm “attack” source,

and decays through a 200 K load. The peak detector is used to drive the “dB-below-peak” data slicer and the

AGC release function. The peak detector capacitor is discharged in the receiver power-down (sleep) mode

and in the transmit modes. See the description of Pin 3 below for further information.

A 0.022uF capacitor is

installed for operation at 4.8kbps.

This pin is connected directly to the transceiver BBOUT pin. This pin drives the CMPIN pin through a coupling

capacitor, C

BBO

= 0.01uF (C4), for internal data slicer operation at 4.8kbps.

BBO

= 11.2*SP

MAX

, where SP

MAX

is the maximum signal pulse width in µs and C

BBO

is in pF

The nominal output impedance of this pin is 1 K.The BBOUT signal changes about 10 mV/dB, with a peak-to-

peak signal level of up to 450 mV. The signal at BBOUT is riding on a 1.5 Vdc value that varies somewhat with

supply voltage and temperature, so it should be coupled through a capacitor to an external load. When an

external data recovery process is used with AGC, BBOUT must be coupled to the external data recovery pro-

cess and CMPIN by separate series coupling capacitors. The output impedance of this pin becomes very

high in sleep mode, preserving the charge on the coupling capacitor.

The value of C3 on the circuit board has been chosen to match typical data encoding schemes at 4.8 kbps. If

C4 is modified to support higher data rates and/or different data encoding schemes and PK DET is being

used, make the value of the peak detector capacitor C5 about 2x the value of C

BBO

RXDATA is the receiver data output pin. It is a CMOS output. The signal on this pin can come from one of two

sources. The default source is directly from the output of the data slicer circuit. The alternate source is from

the radio’s internal data and clock recovery circuit. When the internal data and clock recovery circuit is used,

the signal on RXDATA is switched from the output of the data slicer to the output of the data and clock recov-

ery circuit when a packet start symbol is detected. Each recovered data bit is then output on the rising edge of

a RXDCLK pulse (Pin 16), and is stable for reading on the falling edge of the RXDCLK pulse.

The transmitter RF output voltage is proportional to the input current to this pin. A resistor in series with the

TXMOD input is normally used to adjust the peak transmitter output. Full transmitter power (10 mW) requires

about 315 µA of drive current. The transmitter output power P

for a 3 Vdc supply voltage is approximately:

BBOUT

Out

RXDATA

Out

TXMOD

PO = 101*(I

TXM

)

, where PO is in mW and the modulation current I

TXM

is in mA

The practical power control range is 10 to -50 dBm. A ±5% TXMOD resistor value is recommended. Internally,

this pin is connected to the base of a bipolar transistor with a small emitter resistor. The voltage at the TXMOD

input pin is about 0.87 volt with 315 uA of drive current. This pin accepts analog modulation and can be driven

with either logic level data pulses (unshaped) or shaped data pulses.

A series 6.2 kilohm resistor is installed to provide +10dBm average output power with a +3Vdc input.

This pin is the receiver low-pass filter bandwidth adjust. The filter bandwidth is set by a resistor R

LPF

(R4)

between this pin and ground. The resistor value can range from 510 K to 3 K, providing a filter 3 dB bandwidth

LPF

from 5 to 600 kHz. The resistor value is determined by:

LPFADJ

LPF

= (0.0006*f

LPF

)

-1.069

where R

LPF

is in kilohms, and f

LPF

is in kHz

A ±5% resistor should be used to set the filter bandwidth. This will provide a 3 dB filter bandwidth between

LPF

and 1.3* f

LPF

with variations in supply voltage, temperature, etc. The filter provides a three-pole, 0.05

degree equiripple phase response.

A 470 kilohm resistor to GND is installed to provide a 3dB filter band-

width of 5.275kHz. Connect an external ±1%, 243kilohm resistor to GND for 19.2kbps operation.

RF Monolithics, Inc.

Phone: (972) 233-2903

Fax: (972) 387-8148

RFM Europe

Phone: 44 1963 251383

Fax: 44 1963 251510

E-mail: info@rfm.com

http://www.rfm.com

DR8000EV-071107

Page 3 of 8

916.50 MHz

Name

TX/RX

In/Out

Transceiver Module

Description

Logic Input (CMOS compatible). This pin, in 3G mode, selects the operation of the TR8000 . Pull this pin

‘High’ for Transmit Mode. Pull this pin ‘Low’ for Receive mode.

Do not allow this pin to float.

Logic Input (CMOS compatible). This pin, in 3G mode, selects the operation of the TR8000. Pull this pin

‘High’ for OOK Transmit/Receive mode. Pull this pin ‘Low’ for ASK Transmit/Receive mode.

Do not allow this

pin to float.

Logic Input (CMOS compatible). This pin, in 3G mode, puts the TR8000 into Sleep mode. Pull this pin ‘High’

for Sleep Mode. Pull this pin ‘Low’ for operation mode.

Do not allow this pin to float.

Logic Input (CMOS compatible). This pin, in 3G mode, enables the Start Vector Recognition circuit. The

TR8000 will not output a recovered clock on RXDCLK (pin 16) until the start vector, 0xE2E2, has been recog-

nized. Pull this pin ‘High’ to enable Start Vector Recognition. Pull this pin ‘Low’ then ‘High’ to reset the Start

Vector Recognition circuit.

Do not allow this pin to float.

Keep this pin pulled ‘Low’.

Logic Input (CMOS compatible). This pin, in 3G mode, selects the receive data rate of the DR8000-EV. Pull

this pin ‘High’ to select 4.8kbps. Pull this pin ‘Low’ to select 19.2kbps.

Do not allow this pin to float.

NOTE: Operating at 19.2kbps will require the value of C4, C5 and R4 to change to accommodate the

higher data rate. See the TR8000 datasheet for recommended component values.

Logic Input (CMOS compatible). This pin sets the processor to operate in 3G mode. The power-up operating

configuration of the TR8000 device is controlled by the J2 jumper setting. When DC power is applied to the

DR8000-EV with J2 installed across 2-3, this pin should be pulled ‘High’ immediately after power-up to initiate

3G mode. Failure to pull pin 15 ‘High’ after power-up will cause the processor to remain inactive. Pulling this

pin ‘High’ wakes the processor for 3G mode operation. When DC power is applied to the DR8000-EV with J2

installed across 1-2, this pin should be held ‘Low’ to operate in 2G mode.

Do not allow this pin to float.

RXDCLK is the clock output from the data and clock recovery circuit. RXDCLK is a CMOS output. When the

radio’s internal data and clock recovery circuit is not used, RXDCLK is a steady low value. When the internal

data and clock recovery is used, RXDCLK is low until a packet start symbol is detected at the output of the

data slicer. Each bit following the start symbol is output at RXDATA on the rising edge of a RXDCLK pulse,

and is stable for reading on the falling edge of the RXDCLK pulse. Once RXDCLK is activated by the detec-

tion of a start symbol, it remains active until SVEN (pin 11) is reset. See Pin 11 description.

In 3G control mode, CFGDAT is a bi-directional CMOS logic pin. When CFG (Pin 19) is set to a logic 1, con-

figuration data can be clocked into or out of the radio’s configuration registers through CFGDAT using CFG-

CLK (Pin 18). Data clocked into CFGDAT is transferred to a control register each time a group of 8 bits is

received. Pulses on CFGCLK are used to clock configuration data into and out of the radio through CFGDAT.

When writing through CFGDAT, a data bit is clocked into the radio on the rising edge of a CFGCLK pulse.

When reading through CFGDAT, data is output on the rising edge of the CFGCLK pulse and is stable for read-

ing on the falling edge of the CFGCLK. Refer to the TR8000 datasheet for detailed timing. This pin is a high

impedance input (CMOS compatible) in 2G mode. This pin must be held at a logic level.

Do not allow this pin

to float.

In 3G control mode, pulses on CFGCLK are used to clock configuration data into and out of the radio through

CFGDAT (Pin 17). When writing to CFGDAT, a data bit is clocked into the radio on the rising edge of a CFG-

CLK pulse. When reading through CFGDAT, data is stable for reading on the falling edge of the CFGCLK.

Refer to the TR8000 datasheet for detailed timing. This pin is a high impedance input (CMOS compatible) in

2G mode.

Do not allow this pin to float.

OOK/ASK

SLEEP

SVEN

Not Used

4.8KBPS/

19.2KBPS

3G SEL

RXDCLK

Out

CFGDAT

In/Out

CFGCLK

In/Out

RF Monolithics, Inc.

Phone: (972) 233-2903

Fax: (972) 387-8148

RFM Europe

Phone: 44 1963 251383

Fax: 44 1963 251510

E-mail: info@rfm.com

http://www.rfm.com

DR8000EV-071107

Page 4 of 8

916.50 MHz

Theory of Operation

Transceiver Module

The DR8000-EV evaluation module is centered around the TR8000 ASH Transceiver. The DR8000-EV may operate in

backward compatible 2G mode, or in the enhanced 3G mode. Since 3G mode requires the use of a serial I/O port to configure

internal registers, the module includes an on-board Silicon Labs C8051F330 microcontroller to control access to the serial

port. When 2G mode is enabled the microcontroller serves no function. When 3G mode is enabled the microcontroller

constantly scans pins 8-15 for a change of logic state. When a state change is detected on one or more of these pins, the

microcontroller automatically updates the internal configuration registers via the serial port of the TR8000. The microcontroller

assumes full control of the CFG pin, CFGCLK pin, and CFGDAT pin in 3G mode to continuously update the internal registers.

The DR8000-EV module is designed to demonstrate the performance of the TR8000 ASH Transceiver at 4.8kbps, although

other data rates are possible with changes in on-board component values. See pin descriptions and refer to the TR8000

datasheet.

The DR8000-EV module may be mounted on a prototype assembly using standard 0.1” spacing, 10-pin headers spaced 0.9”

apart.

2G Mode Operation

The DR8000-EV may operate in 2G mode. See pin 15 description and Power-up Mode Select (J2) section for mode select

details. In 2G mode, the CFGCLK pin (18) and CFGDAT pin (17) operate as CTRL0 and CTRL1, respectively, just as for

second-generation devices. The CFGCLK and CFGDAT pins are a high impedance input allowing external control for 2G

configuration. The logic levels on CFGCLK (CTRL0) and CFGDAT (CTRL1) control the default 2G operation as shown

below:

CFGCLK (CNTRL0)

CFGDAT (CNTRL1)

MODE

SLEEP

TX OOK

TX ASK

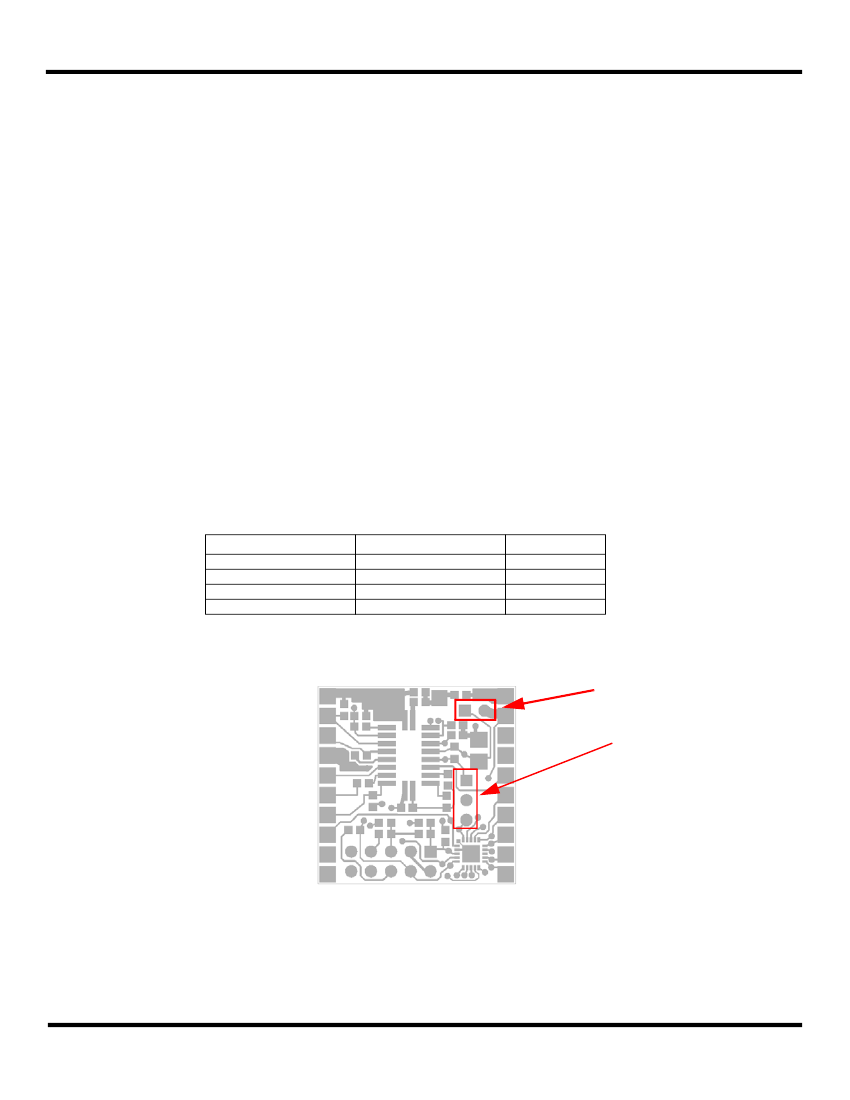

J5 Header

J2 Header

Current Consumption Monitor (J5)

The current consumption of the TR8000 device may be monitored by removing J5 and connecting an ammeter across the terminals. When

J5 is removed it isolates the TR8000 from VCC powering the on-board processor to give a true reading of the current consumption of only

the TR8000 without the additional current usage of the processor. J5 must be installed to power the TR8000 if not using the header for current

measurement.

RF Monolithics, Inc.

Phone: (972) 233-2903

Fax: (972) 387-8148

RFM Europe

Phone: 44 1963 251383

Fax: 44 1963 251510

E-mail: info@rfm.com

http://www.rfm.com

DR8000EV-071107

Page 5 of 8

DR8000-EV Related Products

	DR8000-EV
Description	RF modules and development tools 3G transceiver eval module 916.50 MHz

Recommended Resources

Switching power supply driver PM4040F application circuit diagram

Centralized control of the rescue alarm circuit

Anti-stop vibration circuit

Charging circuit diagram using power MOSFET

STK0040 power amplifier circuit

Heterodyne remote control receiving circuit (TDA5200)

I'm begging for technical documentation. How do I use an old-style LCD display?: [img]http://www.taobao.com/view_image.php?pic=Wx0GGlFDXA1VUwMHWx0SCwkNGRFcVxxQW1UcCxMFRBkDCFdVV1cRRhpRRDhHLW1VUWtYb0IDBiAJPB40WmsDC0BbQF1FBgYV&title=TUFERSBJTiBKQVBBTiBMQ0TG wSC49sjLz9DWww==&pCodeYjNl...; mcm Embedded System

Serial port printing problem after BLUENRG-1 wakes up from sleep: The BLUENRG-1 broadcast interval is set to 1S. The wake-up reason is printed after each wake-up from sleep mode. However, the wake-up reason is printed twice each time. I don’t know why?...; sunzhilei888 ST - Low Power RF

When is the CANTA register set in CAN communication?: The data says that if the message in the corresponding mailbox is sent successfully, it will be set. Is it set only after the mailbox message of other nodes is received successfully?...; ixupeng DSP and ARM Processors

【I-Prober 520】Test Summary: [i=s]This post was last edited by nemo1991 on 2019-9-30 14:11[/i]It is a great honor to participate in the evaluation of I-Prober 520 probe. Thanks to AIM-TTI and EE.After a period of evaluation, the ...; nemo1991 Test/Measurement

I would like to ask, is power saving the only advantage of MSP430?: It seems that the low-end 8-bit ones include cheap stc and atmel, and the high-end stm32 and arm, with all kinds of cool built-in features. It seems that MSP430 is stuck at 16-bit, neither high nor lo...; hgmmym Microcontroller MCU

Just finished answering the question, share your thoughts: I just did the 430 test paper, and I felt that the questions were good and basic. I decided to give up AVR and focus on 430! :loveliness:...; myzone Microcontroller MCU

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
