China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
25MHz Bandwidth
Part Number: LBN14047
www. sipatsaw.com
SIPAT Co., Ltd.
Features
For IF SAW filter
High attenuation
Single-ended operation
Dual In-line Package
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
2 dB Bandwidth
3 dB Bandwidth
20 dB Bandwidth
30 dB Bandwidth
40 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection(f0±MHz)
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
DC Voltage
Input Power
ESD Class
Package Size
Notes:
1.
2.
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB
usec
dB
KHz/°C
-
°C
°C
°C
V
dBm
-
Minimum
139.875
-
25
-
-
-
-
-
-
40
Typical
140
24.7
25.12
25.21
25.79
25.93
26.14
1.8
2.69
43
-13.16
YZ LN
25
Maximum
140.125
28
-
-
26
26.2
26.8
2
2.75
-
-40
-45
-
-
0
+85
+105
-
-
1A
10
DIP2712 (27.0x12.8x4.7mm3)
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN14047
2008-05-23
1.1
Page
1/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
25MHz Bandwidth
Part Number: LBN14047
www. sipatsaw.com
SIPAT Co., Ltd.

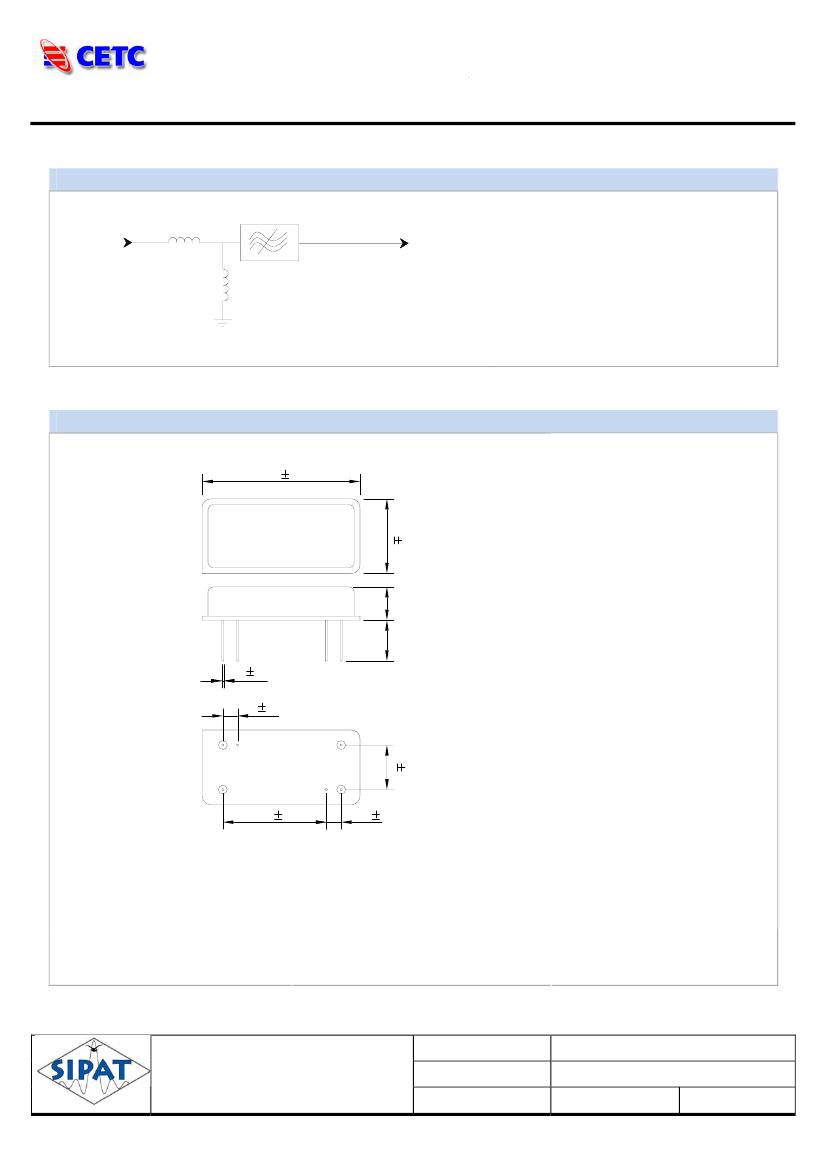

Matching Configuration
INPUT
50
Ω
L1
OUTPUT
50
Ω
L2
L1=56nH
L2=68nH
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
Package Dimension
27.00 0.5
Pad Configuration:
SIPAT
LBN14047
XXYYZZ
Input
Output
1
5
12.80 0.5
4.7
4.5
Ground All Others
Marking Configuration:
1) SIPAT: Manufacturer Name
2) LBN14047: Part Number
3) XXYY: Date(Year/month)
4) ZZ: Identified Code
7.62 0.2
0.45 0.05
2.54 0.2
3
6
Package: DIP2712
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
2
1
4
5
17.70 0.2
2.54 0.2
Unit: mm
Part Number
Rev. Date
Ver.
LBN14047
2008-05-23
1.1
Page
2/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
25MHz Bandwidth
Part Number: LBN14047
www. sipatsaw.com
SIPAT Co., Ltd.

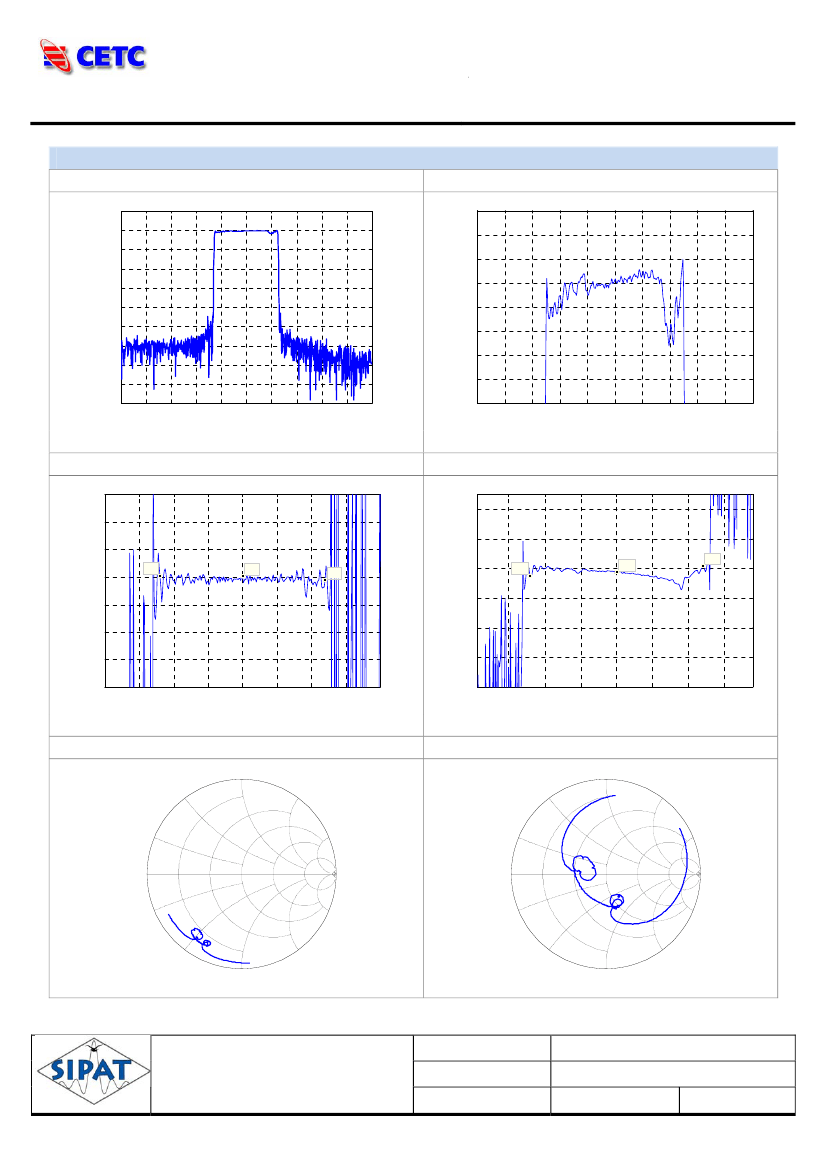

Typical Performance
Frequency Respond
Type Performance
-14.6891
-24.6891
-34.6891
-24.6891
-23.6891
Passband Respond
-24.1891
-44.6891
Magnitude(dB)
-54.6891
-64.6891
-74.6891
-84.6891
-26.6891
-25.1891
-25.6891
-26.1891
-94.6891
-104.6891
-114.6891
90
-27.1891
100
110
120
130
140
150
Frequency(MHz)
160
170
180
190
115
120
125
130
135
140
145
150
155
160
165
Horizontal: 10MHz/Div
Vertical: 10dB/Div
Horizontal: 5MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±12MHz)
Type Performance
3000
Phase Linearity(f0±12MHz)
Type Performance
40
2900
20
2800
X: 140
Y: -2.528
X: 152
Y: 1.627
Group Delay Time(ns)
X: 128
Y: 2705
X: 140
Y: 2703
2700
X: 152
Y: 2688
0
Degree(deg)
X: 128
Y: -4.867
-20
2600
-40
2500
2400
-60
2300
120
125
130
135
140
Frequency(MHz)
145
150
155
160
-80
125
130
135
140
Frequency(MHz)
145
150
155
Horizontal: 5MHz/Div
Vertical: 100ns/Div
Horizontal: 5MHz/Div
Vertical: 20deg/Div
Smith Chart S11
+j1.0
+j0.5
+j2.0
Smith Chart S22
+j1.0
+j0.5
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
5.0
0.2
0.5
1.0
2.0
0.0
∞
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN14047
2008-05-23
1.1
Page
3/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
