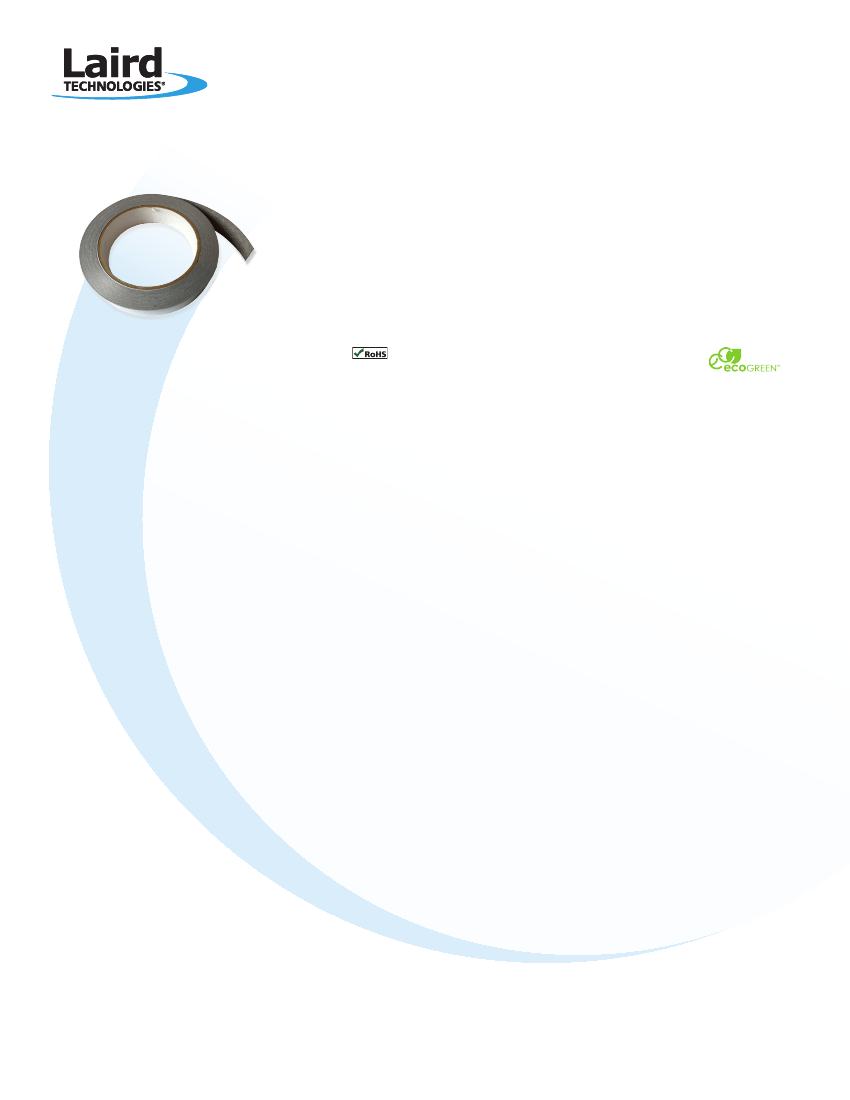

86749 Nickel/Copper
Innovative
Technology
for a
Connected
World
Fabric Tape
NI/CU POLYESTER CONDUCTIVE FABRIC TAPE
Laird Technologies’ Conductive Fabric Tape 86749 offers exceptional conformability and
conductivity for dynamic flex applications. It is constructed of nickel/copper metallized fabric with
a conductive pressure sensitive adhesive (PSA). This reliable tape design provides outstanding
shielding performance while offering superior abrasion and corrosion resistance under high
dynamic flex conditions. The 86749 is a halogen free product and can be supplied in tape or
further customized to application by die-cutting or hole punching.
FEATURES
• RoHS compliant
• Halogen-free per IEC-61249-2-21 standard
• Low surface resistivity of < 0.06 Ω/□
provides excellent conductivity
• Shielding effectiveness of >62 dB across
a wide spectrum of frequencies
MARKETS
• Cabinet applications
• LCD and Plasma TV
• Medical equipment
• Servers
• Printers
• Laptop computers
global
solutions:
local
support
USA: +1.866.928.8181
Europe: +49.0.8031.2460.0
Asia: +86.755.2714.1166
TM
www.lairdtech.com
86749 Nickel/Copper
Fabric Tape
Test Method
-
PSTC 101*
PSTC 107
#
PSTC 107
#
Innovative
Technology
for a
Connected
World
Item
Thickness
Peel Adhesion
Shear Adhesion
at R.T.
at 80°C
Tensile Strength
Operation Temperature
Surface Resistivity (Fabric Side)
Z-axial Resistance
Shielding Effectiveness
+
at 100 MHz
at 1GHz
Package Dimensions
(Max. Width: 1000 mm)
Shelf Life (Under 23°C/65% R.H.)
dB
dB
M
62
68
W: Dimension by Customer Spec
L: Standard Length of 20 M
Six Months
Hrs
Hrs
Kgf / 25 mm
°C
Ω/□
Ω
>72
>5
>7
0-80
<0.06
<0.04
ASTM D4935
ASTM F390
Unit
mm
Kgf / 25 mm
Value
0.060 mm ± 0.01
>0.8
*:Test Method A, dwell time 30 min. #:Contact area 25 mm by 25 mm +:Typical value
COMPOSITION OF PRODUCT
Conductive layer (metallized fabric)
Adhesive layer (acrylic conductive pressure sensitive adhesive)
Release paper
APPLICATION TECHNIQUES
1. Bond strength is dependent upon the amount of adhesive-to-surface contact developed.
Firm application pressure develops better adhesive contact & thus improves bond strength.
2. To obtain optimum adhesion, the bonding surfaces must be clean, dry and well unified.
A typical surface cleaning solvent is isopropyl alcohol. Use proper safety precautions for
handling solvents.
3. Ideal tape application temperature range is 21°C to 38°C. Initial tape application to surfaces
at temperatures below 10°C is not recommended because the adhesive becomes too firm to
adhere readily. However, once properly applied, low temperature holding is generally satisfactory.
EMI-DS-FOF-86749 1112
