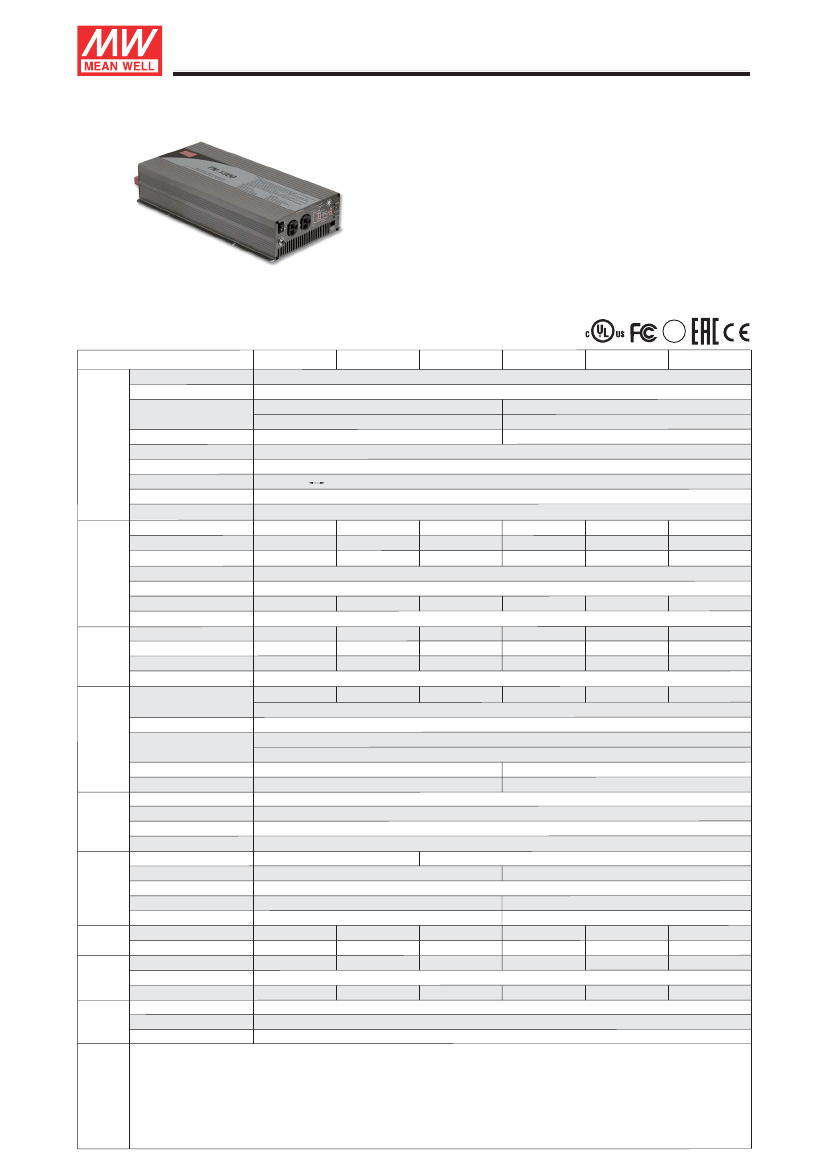

1500W True Sine Wave DC-AC Inverter with Solar Charger
TN-1500
series
■
Features :
True sine wave output (THD<3%)
High surge power up to 3000W
U.P.S. mode and energy saving mode (selectable)
High efficiency up to 91%
Power ON-OFF switch
Standby saving mode can be selectable
Front panel indicator for operation status
Thermostatically controlled cooling fan
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp.
/ Output short / Input polarity reverse / Overload / AC circuit breaker
Application : Home appliance, power tools, office and portable
equipment, vehicle and yacht ...etc.
Built-in solar / AC charger
Computer-based monitoring software (Note.7)
3 years warranty
SPECIFICATION
MODEL
RATED POWER (Typ.)
TN-1500-112□
1500W
TN-1500-124□
TN-1500-148□
TN-1500-212□
TN-1500-224□
E
13
TN-1500-248□
MAXIMUM OUTPUT POWER (Typ.)
1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles
AC VOLTAGE
FREQUENCY
OUTPUT
WAVEFORM
TRANSFER TIME (Typ.)
SAVING MODE (Typ.)
FRONT PANEL INDICATOR
BAT. VOLTAGE
DC CURRENT (Typ.)
INPUT
AC REGULATION (Typ.)
Factory setting set at 110VAC
100 / 110 / 115 / 120VAC selectable by setting button S.W
Factory setting set at 230VAC
200 / 220 / 230 / 240VAC selectable by setting button S.W
60
±
0.1Hz
±3.0%
50/60Hz selectable by setting button S.W
50
±
0.1Hz
50/60Hz selectable by setting button S.W
Note.2
True sine wave (THD<3%)
10ms inverter
by pass
Default disabled. Load
≦
5W will be changed to standby mode
Battery voltage level, output load level, saving mode, fault and operation status
12V
Note.5
150A
24V
48V
42 ~ 60VDC
37.5A
12V
10.5 ~ 15VDC
150A
24V
21 ~ 30VDC
75A
48V
42 ~ 60VDC
37.5A
VOLTAGE RANGE (Typ.)
Note.3,6
10.5 ~ 15VDC
21 ~ 30VDC
75A
NO LOAD DISSIPATION (Typ.)
≦18W
@ standby saving mode
OFF MODE CURRENT DRAW
≦1mA
EFFICIENCY (Typ.)
BATTERY TYPES
Note.2
87%
89%
Open & sealed Lead Acid
30A*3
22.5
±
4%
21
±
4%
82
℃±
5
℃
89%
30A*2
45
±
4%
42
±
4%
96
℃±
5
℃
88%
40A*5
11.3
±
4%
10.5
±
4%
68
℃±
5
℃
90%
30A*3
22.5
±
4%
21
±
4%
68
℃±
5
℃
91%
30A*2
45
±
4%
42
±
4%
68
℃±
5
℃
FUSE
BATTERY BAT. LOW ALARM
INPUT
PROTECTION
BAT. LOW SHUTDOWN
REVERSE POLARITY
40A*5
11.3
±
4%
10.5
±
4%
By internal fuse open
82
℃±
5
℃
OVER TEMPERATURE
OUTPUT SHORT
OUTPUT
PROTECTION OVER LOAD (Typ.)
CIRCUIT BREAKER
GFCI PROCTECTION
WORKING TEMP.
ENVIRONMENT
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
LVD
WITHSTAND VOLTAGE
EMC EMISSION
EMC IMMUNITY
CHARGE CURRENT (Typ.)
CHARGE VOLTAGE
CHARGE CURRENT (max.)
CHARGE VOLTAGE
CONTROL WIRING
DIMENSION
PACKING
Protection type : Shut down o/p voltage, re-power on to recover ; by internal RTH3 detect on heatsink of power transistor
Protection type : Shut down o/p voltage, re-power on to recover
105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec.
Protection type : Shut down o/p voltage, re-power on to recover
15A
Optional (Only type F)
Note.1
0 ~ +40
℃
@ 100% load ; 60
℃
@ 50% load
10A
None
20% ~ 90% RH non-condensing
-30 ~ +70
℃
/ -22 ~ +158 F, 10 ~ 95% RH non-condensing
o
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004 EAC TP TC 004
None
Bat I/P - AC I/P:3.0KVAC
Bat I/P - AC O/P:3.0KVAC
Compliance to FCC class A,
EAC TP TC 020
Compliance to
EAC TP TC 020
EN60950-1
AC O/P - FG:1.5KVAC
Compliance to EN55032 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark,
EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11,
EAC TP TC 020
AC
CHARGER
SOLAR
CHARGER
5.5A
14.3V
±
4
%
30A
14.3V
±
4
%
2.7A
28.5V
±
4
%
45V
28.5V
±
4
%
1.35A
57V
±
4
%
75V
57V
±
4%
5.5A
14.3V
±
4
%
25V
14.3V
±
4
%
2.7A
28.5V
±
4
%
45V
28.5V
±
4
%
1.35A
57V
±
4
%
75V
57V
±
4
%
MAX OPEN CIRCUIT VOLTAGE
25V
Note.7
RJ11 -RS232
OTHERS
NOTE
420*220*88mm (L*W*H)
6.85Kg; 2pcs/15.7Kg/1.61CUFT

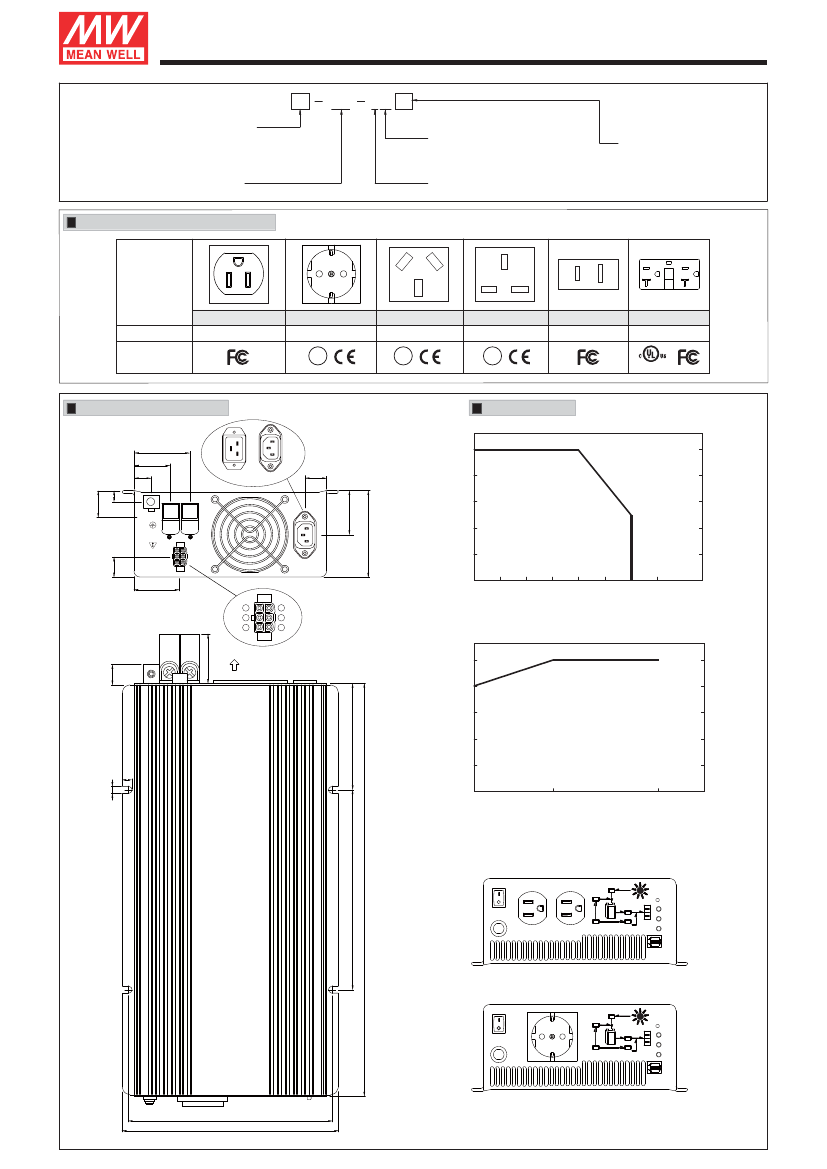

1.Output derating capacity referenced by curve 1.
2.THD and Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage.
3.Input derating capacity referenced by curve 2.
4.All parameters not specified above are measured at rated load, 25
℃
of ambient temperature and set to factory setting.
5.DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage.
6.The tolerance of each voltage value by models is:112/212
→±
0.5V;124/224
→±
1V;148/248
→±
2V.
7.The cable is enclosed for the connection between TN-1500 and computer for software monitoring.
8.Please
do not turn on the inverter before start the engine if inverter connect to vehicle’s battery directly.
9.The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:TN-1500-SPEC
2018-
01-15
1500W True Sine Wave DC-AC Inverter with Solar Charger
TN-1500
series
Instructions for TN-1500 monitoring software
1. The monitoring software can be downloaded from product section (with TN-1500 specification) on MEAN WELL’s official website,
http://www.meanwell.com
2.The monitoring software can run on Windows 7 English version, Windows 7 Chinese (Traditional, Taiwan) version, Windows 8 English version
and Windows 8 Chinese (Traditional, Taiwan) version

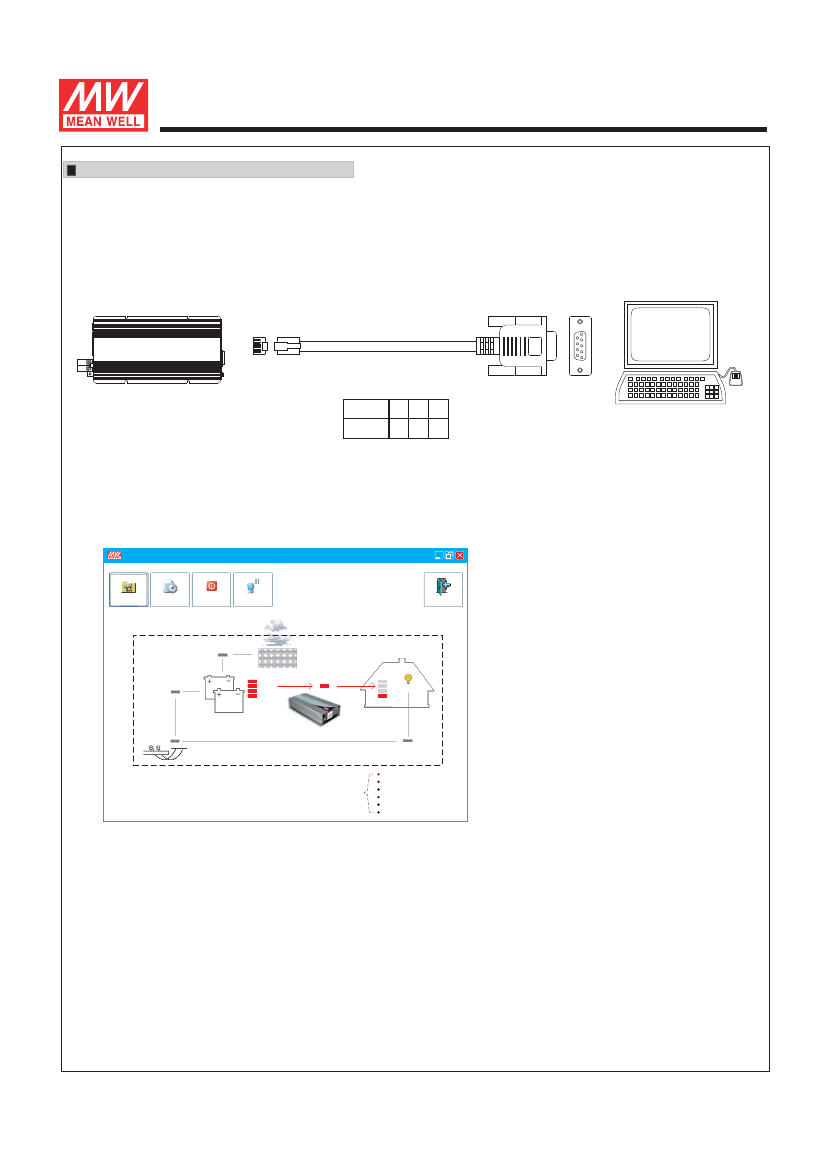

3. Installation of TN-1500 unit and PC
1
6
Phone Jack
RJ11
DB9 FEMALE
RJ11
PIN NO.
DB9
PIN NO.
2
3
3
5
4
2
9
8
7
6
5
4
3
2
1
Figure 1
4. Explanation of Monitoring Manu
4.1 Main Page
Inverter TN V.1.1
Setting
Statistics
R.C. Power off
Pause
Exit
1
2
3
4
Solar Charge
AC Charge
100
0
Battery
Battery Voltage
54.1
V
INVERTER
100
0
Loading
O/P Voltage
110
V
O/P Frequency
60.0
Hz
5
AC In
Utility Voltage
0.0
V
Internal Temperature
10.0
℃
By pass
TN-1500-143
Start Date
2007/12/07 03:13:33 PM
Reset Date
2007/12/21 01:40:56 PM
6
Power on
Remote off
Battery low
Battery used up
Stand by saving mode
Abnormal Shutdown
Figure 2
1. Setting: Adjustment for output voltage, charging related voltage, frequency, and operation mode. Please refer to Figure 3 for details.
2. Statistics: Calculate for the percentage of operating period for each operation mode. Please refer to Figure 4 for details.
3. R.C. Power off: Power can be turned ON or OFF at the remote location.
4. Pause: Stop refreshing the page of monitoring software.
5. Status of unit: Indicating current operating status of TN-1500.
6. Signals that display current condition of the unit.
File Name:TN-1500-SPEC
2018-
01-15
1500W True Sine Wave DC-AC Inverter with Solar Charger
TN-1500
series
4.2 Setting Page
Inverter Setting
File Name
D:\TN_110RR\20071205\REV\TN_110RR\TNF\TN_1K5_512.TNF
Model name TN-1500-212
Manufacture MeanWell
Revision REV:1.10
I/O Type
Voltage
Frequency
Stand-by saving mode
UPS mode
Energy saving mode
212
230
50
On
On
On
1
Lead
Hz
Off
V
Series Number
Date Of Manu.
Equalization Volt.
Floating Volt.
Alarm Volt.
Shutdown Volt.
LOC-1234567890
06/23/2007
14.3
13.3
11.3
10.5
V
V
V
V
13.5 ~ 15.0V
13.0 ~ 13.5V
1
11.0 ~ 11.5V
10.0 ~ 11.0V
Comm Ports
Read
Write
Bauds Rate
9600
Exit
Read OK!!
2
3
4
Figure 3
1. User can adjust the settings based on the characteristics of batteries been used: Equalization Voltage, Floating Voltage, Alarm Voltage,
and Shut-down Voltage. UPS Mode / Energy Saving Mode selection and AC output voltage and frequency can also be set in this page.
2. Read: Read current settings of the unit.
3. Write: Write the revised setting into the unit.
4. Load: Load in factory default settings.
4.3 Statistic Page
Inverter Setting
Start Date
2007/12/07 03:13:33 PM
91.2
%
Inverter time rate
0.0
%
Bypass time rate
8.8
%
Shut Down rate
0.0
%
Solar time rate
24.7
%
Loading average
Start Date
2007/12/21 01:40:56 PM
31.9
%
Inverter time rate
0.0
%
Bypass time rate
68.1
%
Shut Down rate
0.0
%
Solar time rate
63.7
%
Loading average
RESET
Exit
Figure 4
1. Start Date: Date that installing the monitoring software.
2. Reset Date: Date that resetting the statistics. The Start Date will not be influenced by resetting the statistics or turning off the unit.
3 .Inverter time rate: Operating period of "Inverter Mode" represents how many percent of the whole operating period.
4. Bypass time rate: Operating period of "Bypass Mode" (energy provides directly by the utility) represents how many percent of the whole
operating period.
5. Shut down rate: Percentage of time period that the unit is under the condition of shut down.
* Inverter time rate + Bypass time rate + Shut down rate = 100%
6. Solar time rate: Percentage of time period that the solar charger is functioning after turning on the TN-1500 unit.
7. Loading average: Average loading after turning on the TN-1500 unit.
File Name:TN-1500-SPEC
2018-
01-15
