BX7211PM: Description30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX7211PM Overview

30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX7211PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

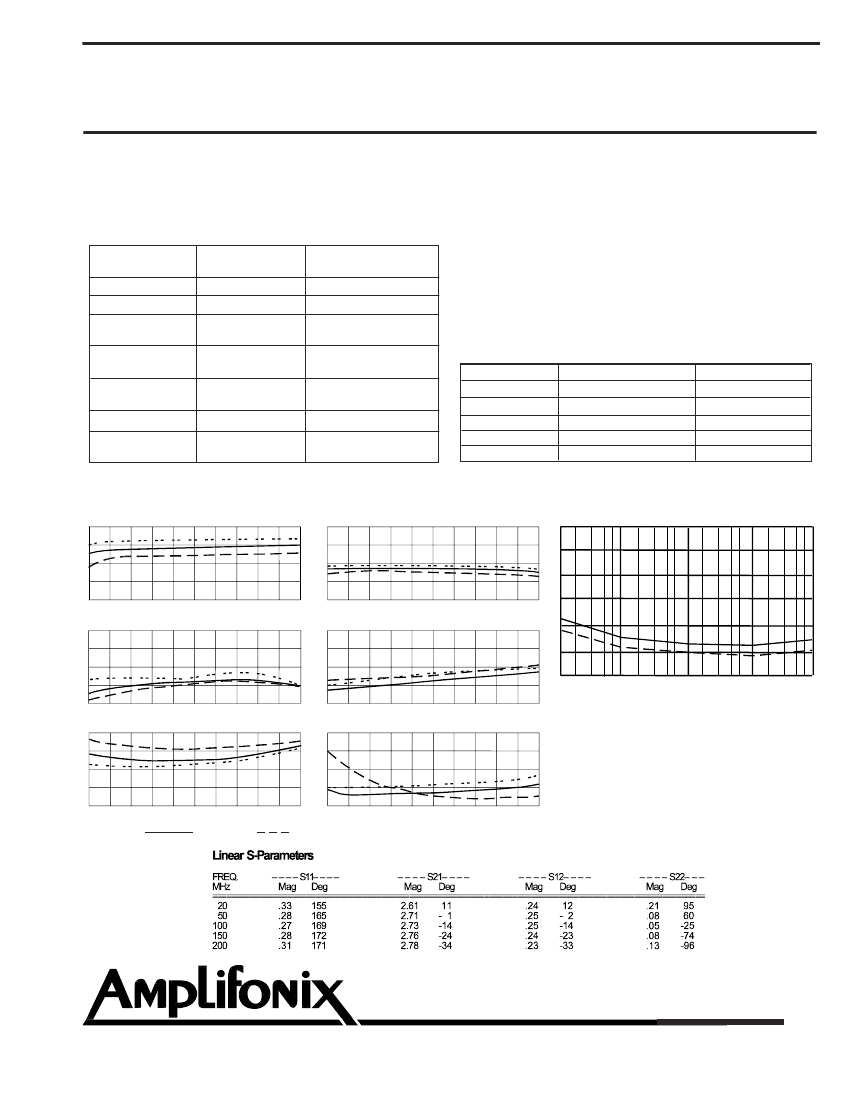

RF AMPLIFIER

MODEL

TM7211PM

Features

!

Superior Phase Noise Performance

Low Noise Figure: 1.8 dB Typical

High Output Power: +20 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

10 - 200 MHz

8.5

+20

-12

<1.75:1

<1.35:1

1.8

+15

30

MIN/MAX

Ta = -55 ºC to +85 ºC

30 - 200 MHz

7.5 Min.

+19 Min.

-11 Max.

2.0:1 Max.

3.0 Max.

+15

33 Max.

Available as:

TM7211PM, 4 Pin TO-8 (T4)

TN7211PM, 4 Pin Surface Mount (SM3)

FP7211PM, 4 Pin Flatpack (FP4)

BX7211PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +61 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 15 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-172

-178

-180

-181

-179

Guarantee (Min.)

-168

-174

-176

-177

-175

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise figure (dB)

Power

Vdc

mA

VSWR

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

10

9

8

7

6

Start 30 MHz

Stop 200 MHz

Gain (dB)

0

-5

-10

-15

-20

Reverse Isolation (dB)

-130

-140

-150

-160

Start 30 MHz

Stop 200 MHz

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 30 MHz

Noise Figure (dB)

3

2

1

-170

-180

-190

100

1K

10K

100K

1M

_________Guarantee __ __ __ __Typical

Start 30 MHz

Stop 200 MHz

2.0

1.5

1.0

Start 30 MHz

Input VSWR

Stop 200 MHz

2.0

1.5

1.0

Stop 200 MHz

Start 30 MHz

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 100 MHz

Power Output: +20 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

3/31/04

BX7211PM Related Products

	BX7211PM	TN7211PM	TM7211PM	FP7211PM
Description	30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	30 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	30 MHz	30 MHz	30 MHz	30 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave
