P15D2415D

Description
15W DC-DC Converter P15D-Series
File Size203KB,2 Pages
ManufacturerETC
Download Datasheet View All

P15D2415D Overview

15W DC-DC Converter P15D-Series

15W DC-DC Converter P15D-Series
Efficiency up to 92 %
Wide 2:1 input range
1500 V
DC
isolation
Continuous short circuit protection
Five – sided continuous shield
Standard package 2” x 1” x 0.4”
Model selection guide
Typ
Single output
P15D123R3S
P15D1205S
P15D127R2S
P15D1209S
P15D1212S
P15D1215S
P15D1218S
P15D1224S
P15D243R3S
P15D2405S
P15D247R2S
P15D2409S
P15D2412S
P15D2415S
P15D2418S
P15D2424S
P15D483R3S
P15D4805S
P15D487R2S
P15D4809S
P15D4812S
P15D4815S
P15D4818S
P15D4824S
Dual output
P15D123R3D
P15D1205D
P15D127R2D
P15D1209D
P15D1212D
P15D1215D
P15D1218D
P15D1224D
P15D243R3D
P15D2405D
P15D247R2D
P15D2409D
P15D2412D
P15D2415D
P15D2418D
P15D2424D
P15D483R3D
P15D4805D
P15D487R2D
P15D4809D
P15D4812D
P15D4815D
P15D4818D
P15D4824D
Input nominal voltage
[V
DC
]
9...18
9...18
9...18
9...18
9...18
9...18
9...18
9...18
18...36
18...36
18...36
18...36
18...36
18...36
18...36
18...36
36...72
36...72
36...72
36...72
36...72
36...72
36...72
36...72
9...18
9...18
9...18
9...18
9...18
9...18
9...18
9...18
18...36
18...36
18...36
18...36
18...36
18...36
18...36
18...36
36...72
36...72
36...72
36...72
36...72
36...72
36...72
36...72
Output voltage
[V
DC
]
3.3
5.0
7.2
9.0
12.0
15.0
18.0
24.0
3.3
5.0
7.2
9.0
12.0
15.0
18.0
24.0
3.3
5.0
7.2
9.0
12.0
15.0
18.0
24.0
±3.3
±5.0
±7.2
±9.0
±12.0
±15.0
±18.0
±24.0
±3.3
±5.0
±7.2
±9.0
±12.0
±15.0
±18.0
±24.0
±3.3
±5.0
±7.2
±9.0
±12.0
±15.0
±18.0
±24.0
Output current
[mA]
3000
3000
2083
1667
1250
1000
833
625
3000
3000
2083
1667
1250
1000
833
625
3000
3000
2083
1667
1250
1000
833
625
±1500
±1500
±1042
±833
±625
±500
±417
±312
±1500
±1500
±1042
±833
±625
±500
±417
±312
±1500
±1500
±1042
±833
±625
±500
±417
±312
Efficiency typ.
[%]
83
83
83
84
85
85
86
86
84
85
86
87
88
88
89
90
85
86
86
87
89
89
90
92
83
83
83
84
85
85
86
86
83
85
86
87
88
88
89
90
84
86
86
87
89
89
89
90

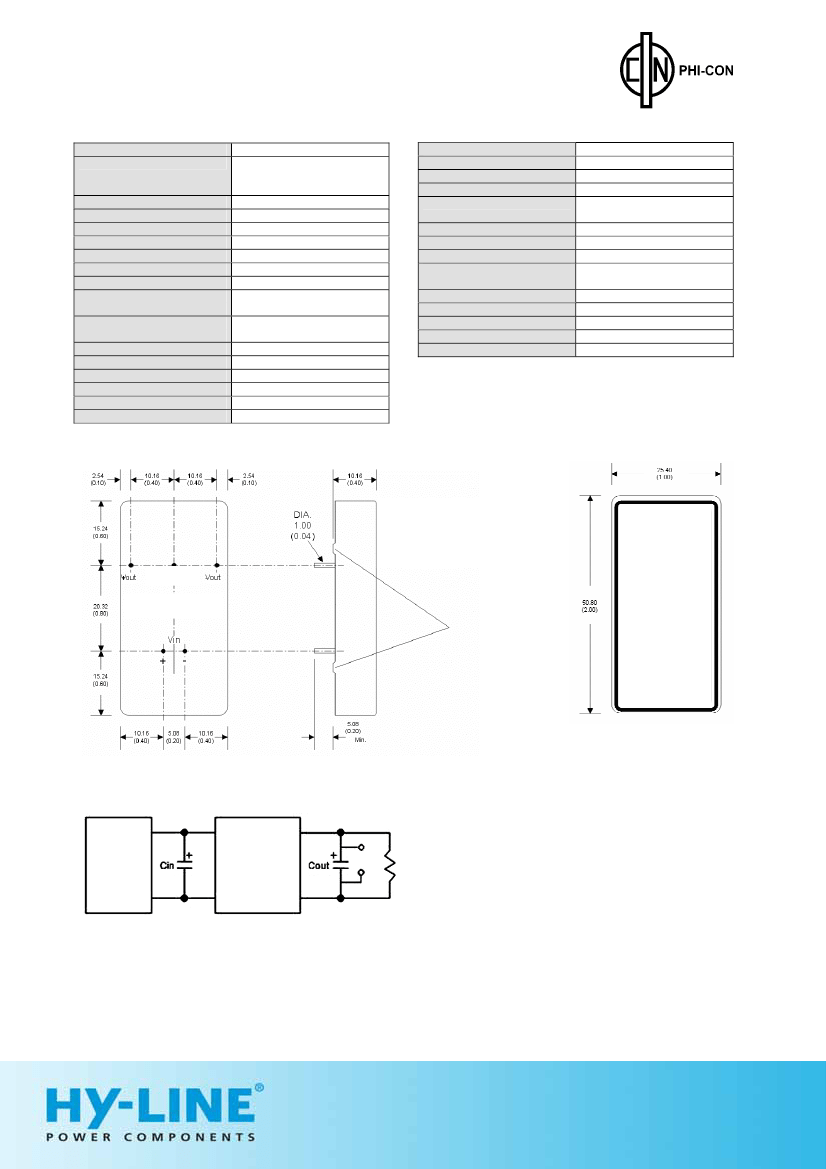

Page 1 of 2
