DSM-590-B-25-S-S-T2-MJ-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DSM-590-B-25-S-S-T2-MJ-R

Preview

DSM-590-B-25-S-S-T2-MJ-R: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size399KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

DSM-590-B-25-S-S-T2-MJ-R Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, ROHS COMPLIANT

DSM-590-B-25-S-S-T2-MJ-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DSM
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

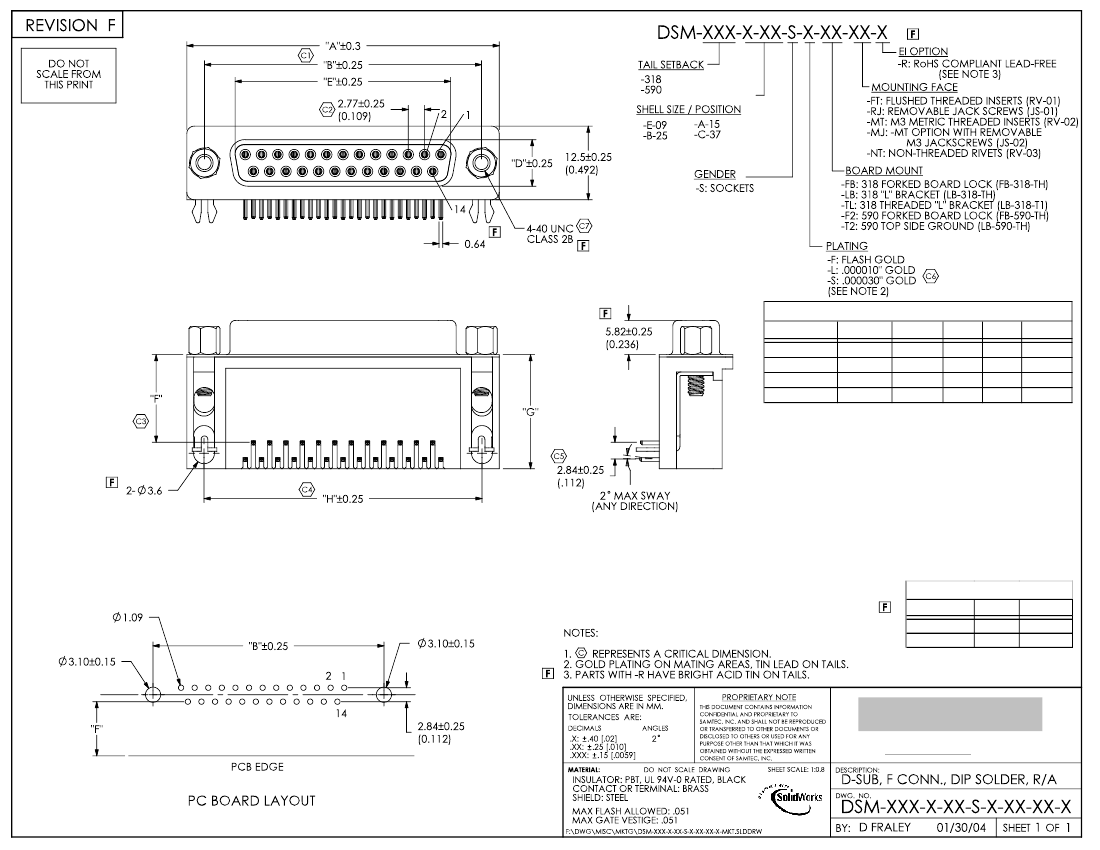

TABLE 1

POSITION

E-09

A-15

B-25

C-37

"A"

"B"

"E"

"D"

"H"

30.81

39.14

53.04

69.32

24.99

33.32

47.04

63.50

16.33

24.66

38.38

45.84

7.90

24.99

33.32

47.04

63.50

TABLE 2

SETBACK

-318

-590

"F"

"G"

8.08

15.00

12.50

19.41

S A M TE C

*

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
