P05G-LR-PC datasheet, PDF - EEWORLD Datasheet

P05G-LR-PC: Description1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK; CategoryThe connector The connector; File Size85KB，4 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

P05G-LR-PC Overview

1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	P05G
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	PHOSPHOR BRONZE
Total number of contacts	1
UL Flammability Code	94-HB

PO5G Series

— 5.8 GHz Mobile Coaxial Connectors —

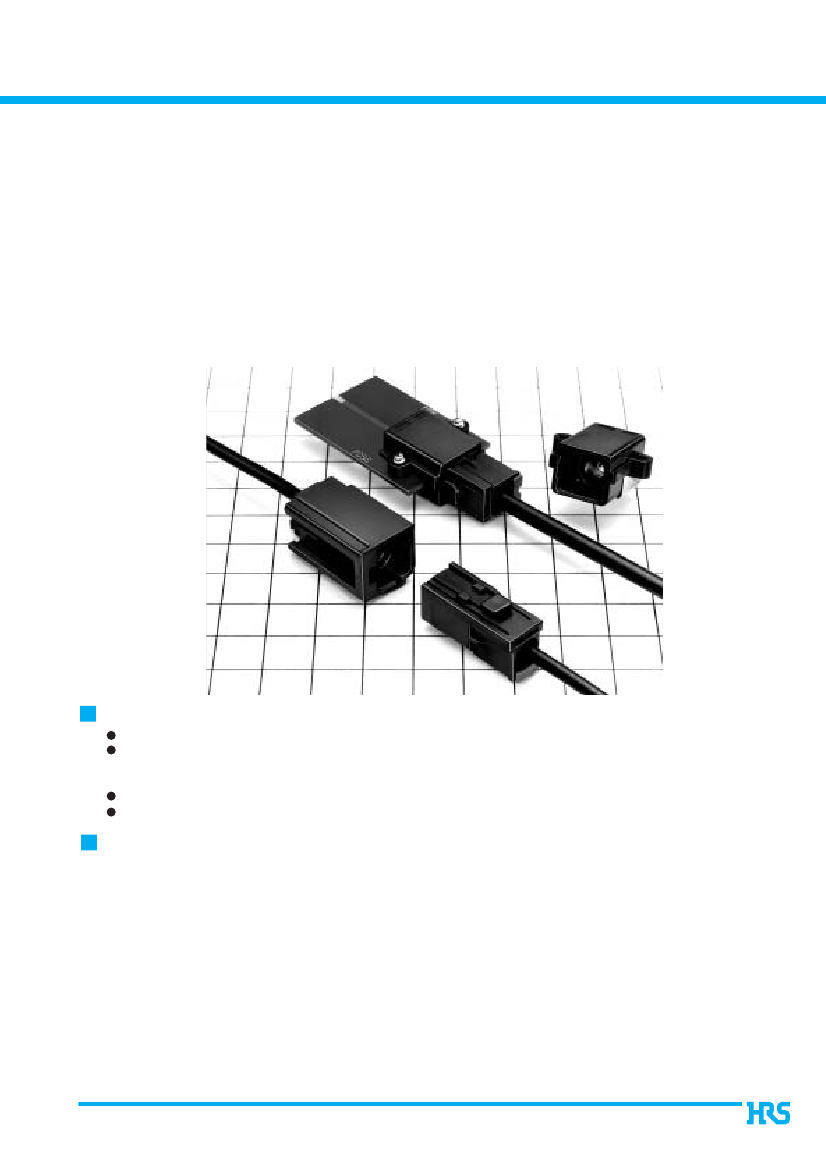

Features

Lock-release latching system

Excellent High Frequency Performance

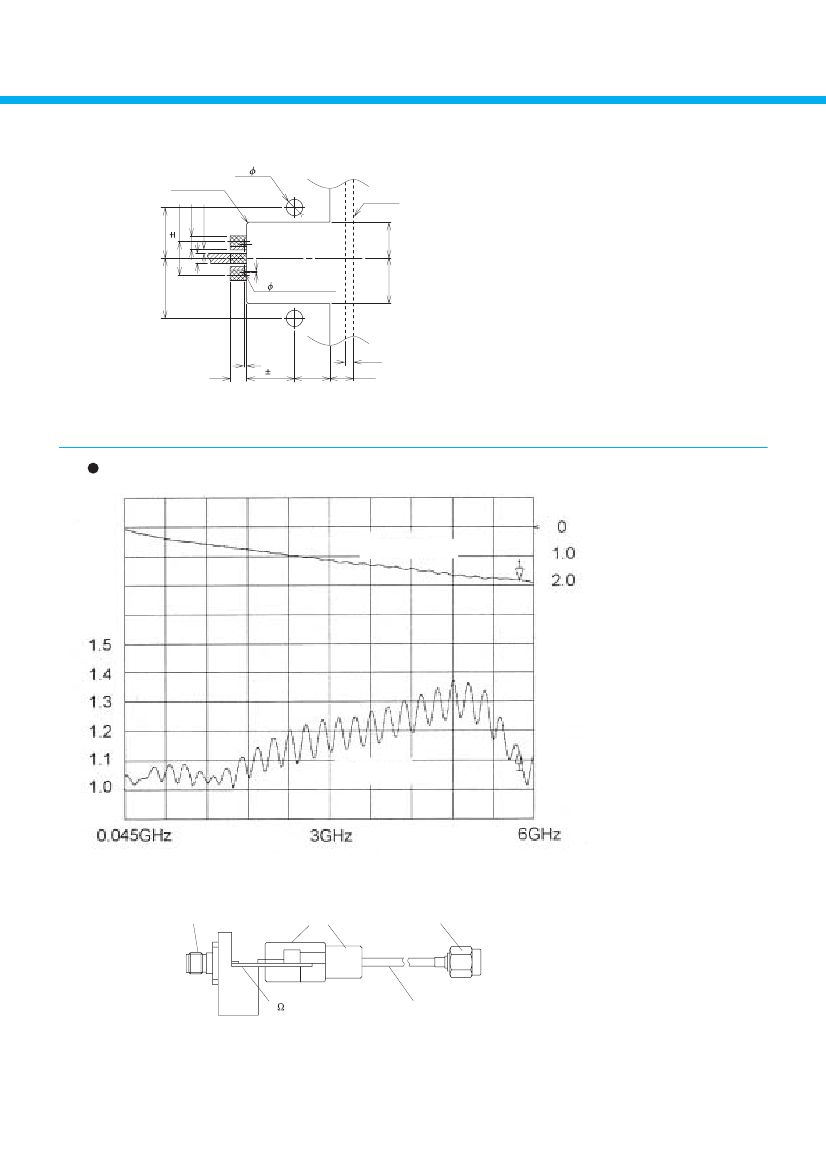

DC to 3 GHz: VSWR of 1.3 max.

3 to 6 GHz: VSWR of 1.5 max.

Suits 50 ohms polyethylene foam insulated coaxial cable.

The board-side connector is of the board cut-out type.

Applications

ETC, GPS, and VICS.

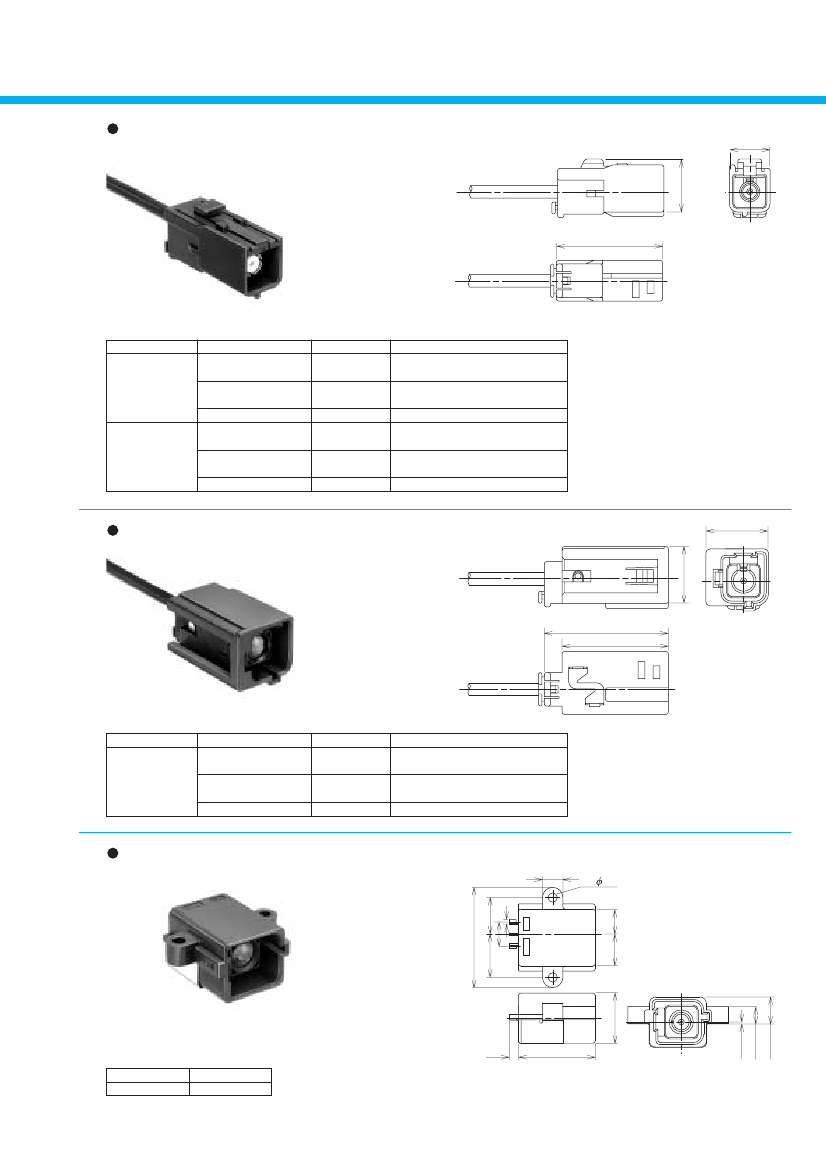

	P05G-LR-PC	P05G-P-2.5GXC	P05G-P-1.5DHQS	P05G-J-1.5DHQS
Description	1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK	1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK	1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK	1 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, JACK
Maker	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknow	unknow	unknow	unknow
Body/casing type	RECEPTACLE	PLUG	PLUG	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	P05G	P05G	P05G	P05G
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Total number of contacts	1	1	1	1
UL Flammability Code	94-HB	94-HB	94-HB	94-HB
Other features	-	COMPATIBLE CONTACTS: P05G-CONTACT/F2.5	COMPATIBLE CONTACTS: P05G-CONTACT/F1.5	COMPATIBLE CONTACTS: P05G-CONTACT/M1.5
