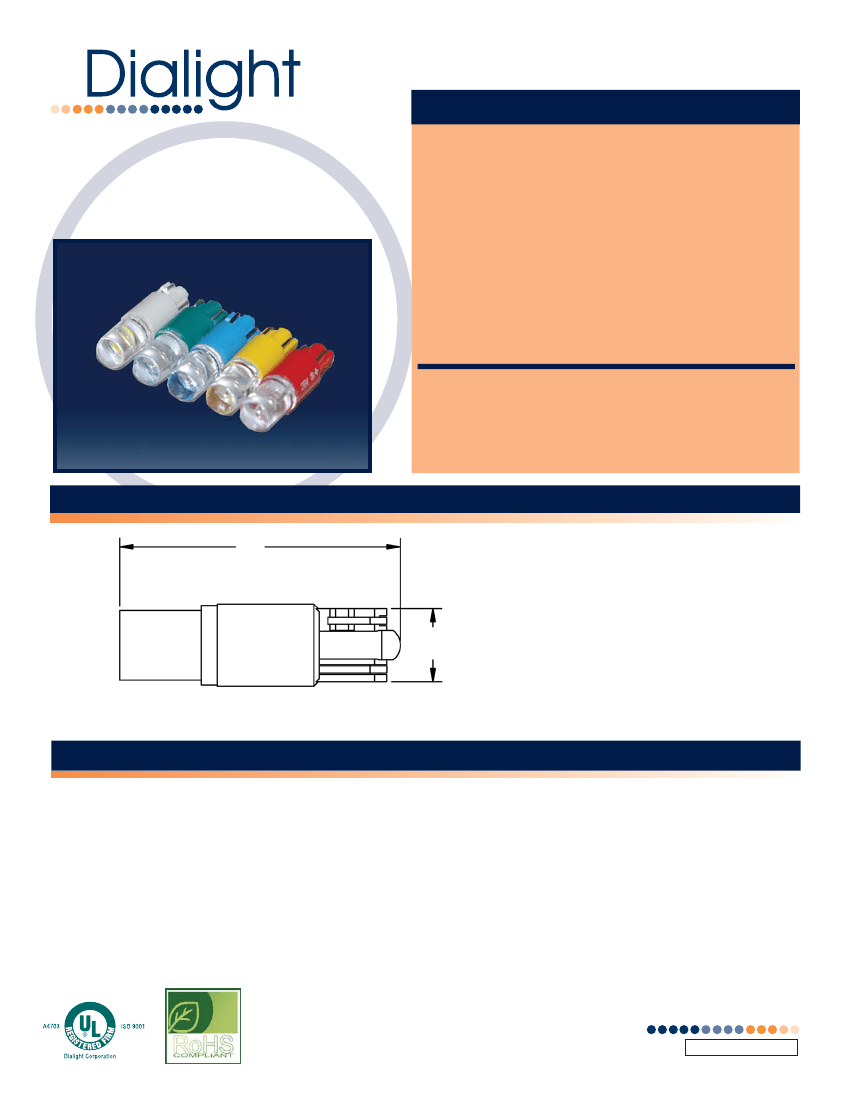

FEATURES / BENEFITS
586 Series
SINGLE CHIP BASED LED
T1 3/4 WEDGE (T5)
RoHS Compliant
High brightness with low current draw - uses up to 90% less
energy than incandescent
Long Life - up to 100K hours
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
Incorporating
AlInGaP
and
InGaN
technology
Wide 100 degree viewing angle
Colors include red, green, yellow, blue, and white
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
.80
[20.2]
Operating Voltages: 6, 14 and 28 VDC
Operating temperature: -40
o
C
to +
80
o
C
Storage temperature: -40
o
C
to +
100
o
C
Replaces incandescent lamp numbers*: 79, 16,
84, 86, 18, 37, 70, 73, 74, 17, 85
*
See Dialight’s Incandescent lamp/based LED
cross reference guide for a complete listing
.21
[5.3]
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.
If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses
which will optimize the light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586T5001_C
586 Series
SINGLE CHIP BASED LED
T1 3/4 WEDGE (T5)
T1 3/4 WEDGE (T5) POLARIZED
Part Number
586-1A01-101F
586-1A02-101F
586-1A03-101F
586-1A04-101F
586-1A05-101F
586-1A06-101F
586-1A01-103F
586-1A02-103F
586-1A03-103F
586-1A04-103F
586-1A05-103F
586-1A06-103F
586-1A01-105F
586-1A02-105F
586-1A03-105F
586-1A04-105F
586-1A05-105F
586-1A06-105F
Color
Red
Green
Yellow
Orange
Blue
White
Red
Green
Yellow
Orange
Blue
White
Red
Green
Yellow
Orange
Blue
White
Dominant Wavelength
(TYP- nm)
630
526
592
615
472
*
630
526
592
615
472
*
630
526
592
615
472
*
Nominal Voltage
(VDC)
6
6
6
6
6
6
14
14
14
14
14
14
28
28
28
28
28
28
Forward Current
TYP-(mA)
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
Intensity
TYP.-(mcd)
775
600
775
775
165
460
775
600
775
775
165
460
775
600
775
775
165
460
RoHS
Compliant
* Color Coordinates: x = 0.32, y = 0.32
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T3 1/4 Miniature Bayonet (BA9s)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
T2 Telephone Slide
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586T5001_C
