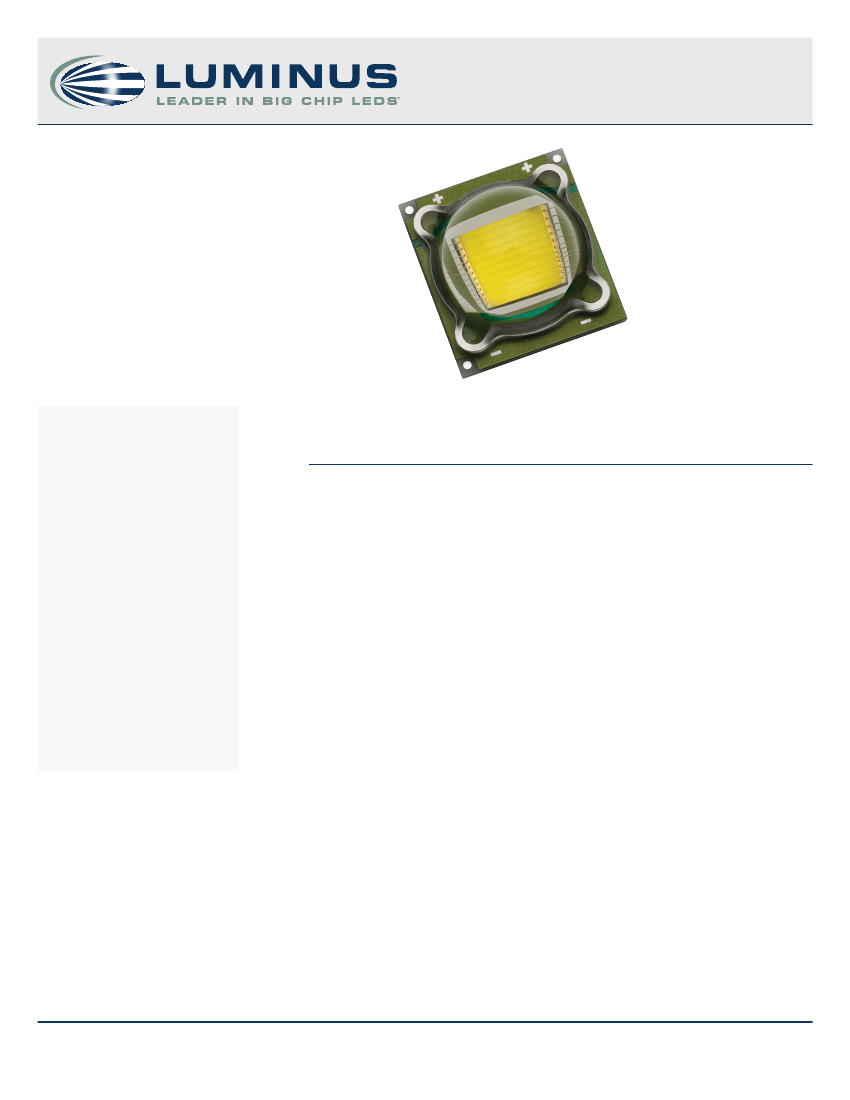

Introduction:
This document describes the binning and labeling nomenclature for SST-90
Big Chip
LED™
product as well as the orderable bin kits for each part.
With each build of parts, there is a distribution of performance in both flux and wave
length or chromaticity. In order to guarantee specific performance for customers, each
device is measured and subsequently grouped into flux and wavelength or chromaticity
bins. Each individual package or reel of parts contains only one combination of flux and
wavelength or chromaticity bin. Furthermore, bins are combined into orderable bin kits
comprising of a selection of flux and wavelength or chromaticity bins to ease the
ordering process.
1
PDS-001692 Rev 07
© 2011 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SST-90 Binning and Labeling
(Part #)
Product Datasheet
Table of Products
Products
SST-90-W65S
SST-90-W57S
SST-90-WDLS
SST-90-W45S
SST-90-W40S
SST-90-WCLS
SST-90-W30M
SST-90-WWRM
SST-90-R
SST-90-G
SST-90-B
SSR-90-W65S
SSR-90-W57S
SSR-90-WDLS
SSR-90-W45S
SSR-90-W40S
SSR-90-WCLS
SSR-90-W30M
SSR-90-WWRM
SSR-90-R
SSR-90-G
SSR-90-B
Ordering Part Number
SST-90-W65S-F11/T11-
xx123
SST-90-W57S-F11/T11-
xx123
SST-90-WDLS-F11/T11-
xx123
SST-90-W45S-F11/T11-
xx123
SST-90-W40S-F11/T11-
xx123
SST-90-WCLS-F11/T11-
xx123
SST-90-W30M-F11/T11-
xx123
SST-90-WWRM-F11/T11-
xx123
SST-90-R-F11/T11-
xx123
SST-90-G-F11/T11-
xx123
SST-90-B-F11/T11-
xx123
SSR-90-W65S-R11-
xx123
SSR-90-W57S-R11-
xx123
SSR-90-WDLS-R11-
xx123
SSR-90-W45S-R11-
xx123
SSR-90-W40S-R11-
xx123
SSR-90-WCLS-R11-
xx123
SSR-90-W30M-R11-
xx123
SSR-90-WWRM-R11-
xx123
SSR-90-R-R11-
xx123
SSR-90-G-R11-
xx123
SSR-90-B-R11-
xx123
SSR-90 evaluation module consisting of a SST-90 surface mount device
mounted on an aluminum star board
White Big Chip LED™ SST-90 surface mount device consisting of a 9mm
2
LED on ceramic substrate,
F11- tray pack,
T11- Tape & Reel
Description
2
PDS-001692 Rev 07
© 2011 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SST-90 Binning and Labeling
SST-90 Shipping and Labeling Nomenclature
All SST-90 products are packaged and labeled with their respective bin as outlined in the following pages. Each package or reel will only
contain one bin. The part number designation is as follows:
ABC
Product Family
123
Chip Area
D45E
Color
F67
Package Configuration
GH
Flux Bin
I8
Chromaticity Bin/
Wavelength
A
- Package type: “S” denotes surface mount
B
- Lens type: “S” denotes dome
C
- Chip quantity: “T” denotes single chip and “R” denotes prototyping board
Chip Area
Package
Config.
Flux Bin
Chromaticity
Bin/
Wavelength
Color
Product
Family
1 2 3
-
Total LED chip area (mm
2
) x 10: “90” denotes 9mm
2
D
-
Color: “W” denotes white , “R” denotes red, “G” denotes Green, “B” denotes blue
4 5
- Color temperature: “65” denotes 6500K , “DL” denotes daylight white (6500K through 5700K) etc., not applicable for
monochrome parts
E
- Color rendering: “S” (standard) denotes a typical CRI of 70 , “M” (moderate) denotes a typical CRI of 83, not applicable
for monochrome part
s
F 6 7
-
Package configuration (for internal use)
G H
-
Flux bin
I 8
-
Wavelength / Chromaticity bin
Example:
The part number SST-90-W65S-F11-N1-G4 refers to a 6500K standard CRI white, SST-90 emitter, with a flux range from 850 to 900
lumens and a chromaticity value within the box defined by the four points (0.313, 0.338), (0.321, 0.348), (0.322, 0.336), (0.312, 0.328).
3
PDS-001692 Rev 07
© 2011 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SST-90 Binning and Labeling
SST-90 Bin Kit Ordering Nomenclature
All SST-90 products are sold in sets of flux and chromaticity bins called bin kits. Each bin kit specifies a minimum flux bin and a specific
selection of chromaticity bins. The ordering part number designation is as follows:
ABC
Product Family
123
Chip Area
D45E
Color
F67
Package Configuration
GH890
Bin Kit Code
A
- Package type: “S” denotes surface mount
B
- Lens type: “S” denotes dome
C
- Chip quantity: “T” denotes single chip and “R” denotes prototyping board
Chip Area
Package
Config.
Bin Kit Code
Color
Product
Family
1 2 3
-
Total LED chip area (mm
2
) x 10: “90” denotes 9mm
2
D
-
Color: “W” denotes white , “R” denotes red, “G” denotes Green, “B” denotes blue
4 5
- Color temperature: “65” denotes 6500K , “DL” denotes daylight white (6500K through 5700K) etc., not applicable for
monochrome parts
E
- Color rendering: “S” (standard) denotes a typical CRI of 70 , “M” (moderate) denotes a typical CRI of 83, not applicable
for monochrome part
s
F 6 7
-
Package configuration (for internal use)
G H
-
Flux bin
8 9 0
- Wavelength/ Chromaticity bin kit code
Example:
The ordering part number SST-90-W65S-F11-M1101 refers to a 6500K standard CRI white, SST-90 emitter, with a minimum flux value of
700 lumens and falling in the F4, F3, G4, G3, EF, and DG chromaticity bins.
4
PDS-001692 Rev 07
© 2011 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
SST-90 Binning and Labeling
SST-90 White Binning Structure
SST-90 LEDs are tested for luminous flux and chromaticity at a drive current of 3.15 A (350 mA/mm
2
) and placed into one of the following
luminous flux (FF) and chromaticity (WW) bins:
Flux Bin (FF)
L2
L3
M
M2
M3
N
N2
N3
Minimum Flux (lm) @ 3.15A
630
665
700
750
800
850
900
950
Maximum Flux (lm) @ 3.15A
665
700
850
800
850
1,000
950
1,000
*Note: Luminus maintains a +/- 6% tolerance on flux measurements.

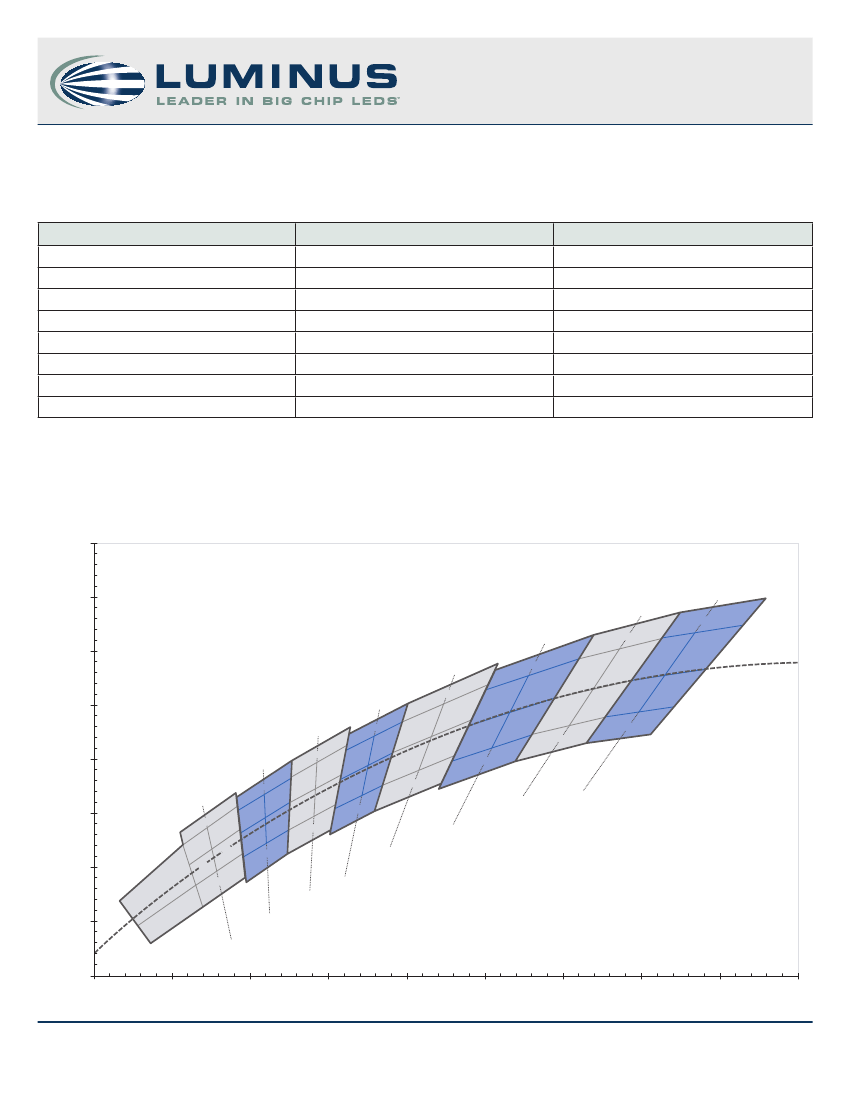

Chromaticity Bins
Luminus’ Standard Chromaticity Bins: 1931 CIE Curve
0.470
0.445
3500K
2700K
3000K
EU
V4
W4
Y4
EW
0.420
4000K
ES
T4
S4
R4
Q4
R3
Q3
P3
N3
M3
K3
J3
H3
G3
DJ
DM
DP
DR
DT
T3
S3
DV
U3
V3
U4
BB Locus
0.395
5000K
4500K
EN
P4
N4
M4
K4
J4
H4
G4
EQ
W3
Y3
DY
CIEy
0.370
6500K
5700K
EH
EK
0.345
F4
EF
0.320
DE
F3
DG
0.295
DF
0.270
0.275
0.300
0.325
0.350
0.375
CIEx
0.400
0.425
0.450
0.475
0.500
5
PDS-001692 Rev 07
© 2011 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
1100 Technology Park Drive • Billerica, MA 01821
