3.0x2.0mm RIGHT ANGLE SMD LED
Part Number: APBVDA3020SURKCGKC
Hyper Red
Green
Features
3.0mmx2.0mm SMT LED,2.8mm thickness.
Low power consumption.
Ideal for back light and indicator
Package : 2000pcs / reel.
When soldered in the sideview configuration, the maximum
shear tolerance of the epoxy lens is 300g.
Tinned pads for improved solderability.
Moisture sensitivity level : level 3.
RoHS compliant.
Descriptions
The Hyper Red source color devices are made with Al
GaInP on GaAs substrate Light Emitting Diode.
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.

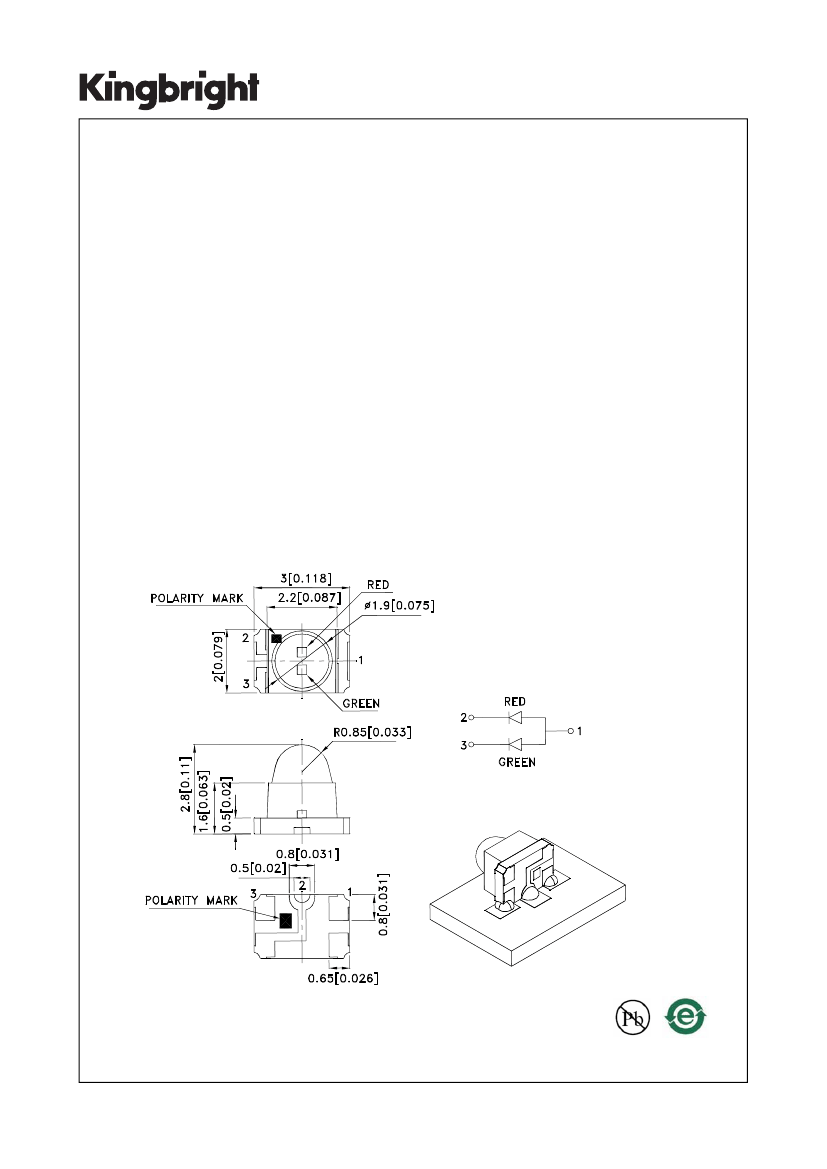

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAJ2424
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: MAY/11/2015
DRAWN: Q.M.Chen
PAGE: 1 OF 6
ERP: 1203009099
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
APBVDA3020SURKCGKC
Hyper Red (AlGaInP)
Green (AlGaInP)
Notes:
1.
θ1
/ 2 is the angle from optical centerline where the luminous intensity is 1 / 2 of the optical peak value.
2. Luminous intensity / luminous Flux: +/-15%.
Viewing
Angle [1]
2θ1/2
15
°
Typ.
900
300
Water Clear
480
110
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Typ.
645
574
630
570
28
20
35
15
1.95
2.1
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1. Wavelength: + / -1nm.
2. Forward Voltage: + / -0.1V.
3. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1 / 10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
75
30
185
5
Green
75
30
150
Units
mW
mA
mA
V
-40°C To +85°C
-40°C To +85°C
SPEC NO: DSAJ2424
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: MAY/11/2015
DRAWN: Q.M.Chen
PAGE: 2 OF 6
ERP: 1203009099

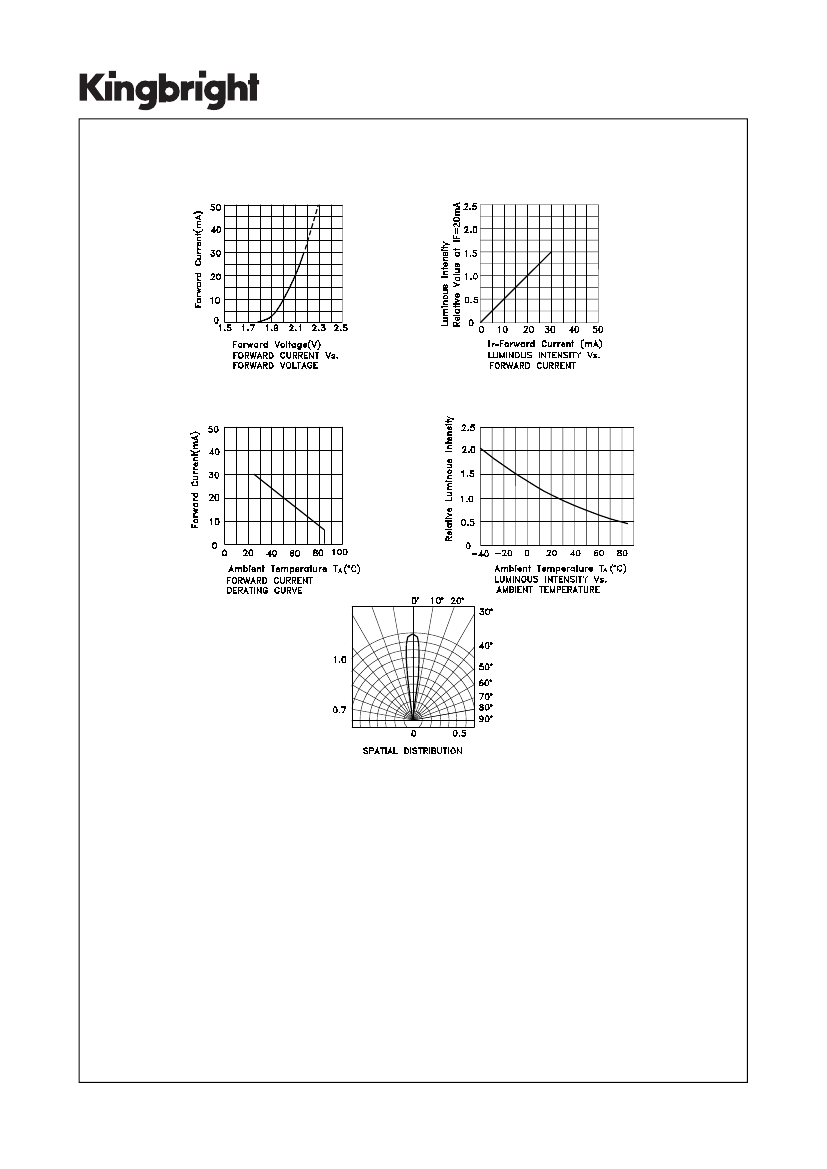

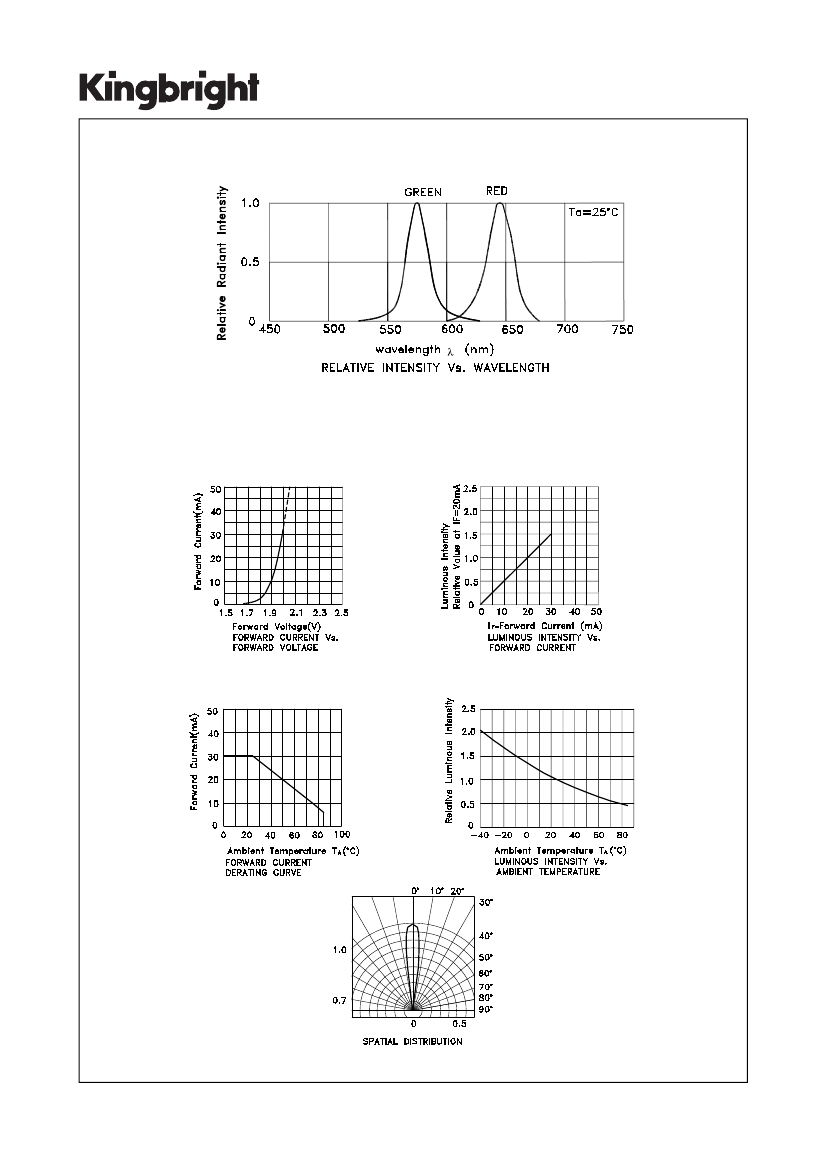

APBVDA3020SURKCGKC

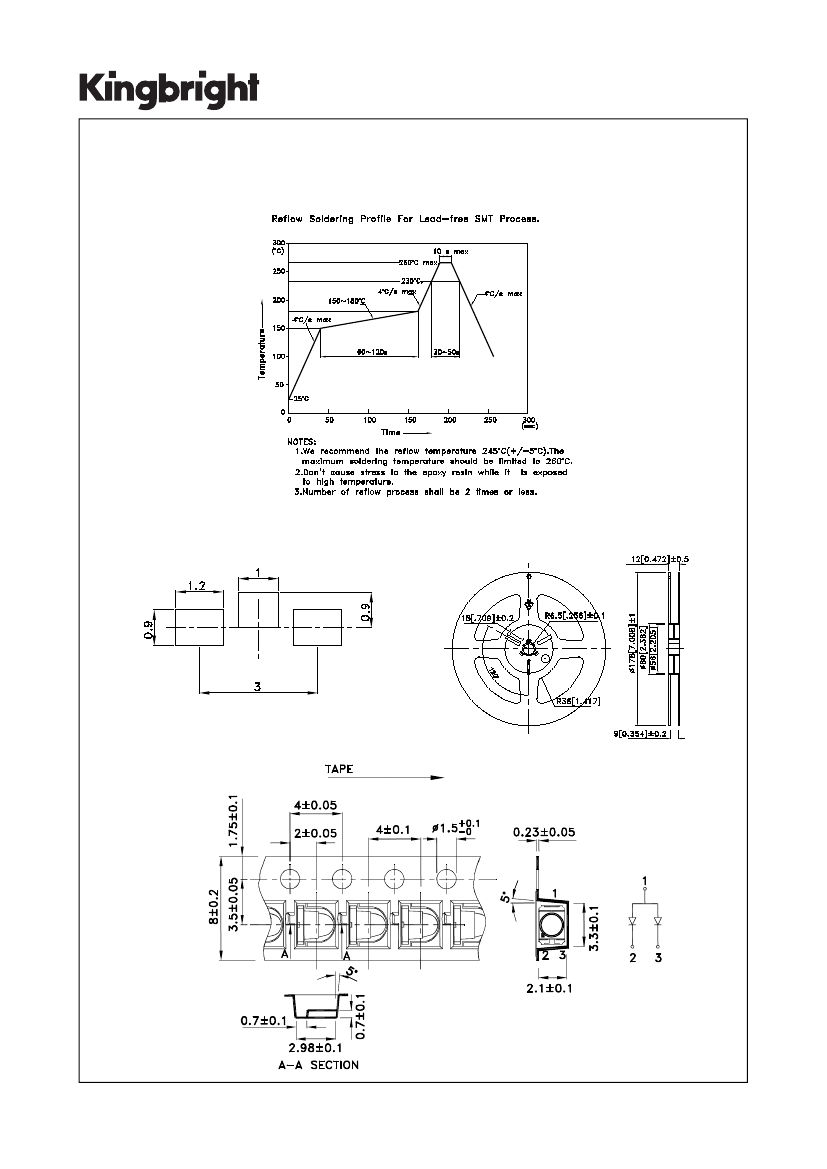

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAJ2424
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: MAY/11/2015
DRAWN: Q.M.Chen
PAGE: 5 OF 6
ERP: 1203009099
