Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 553-0201-200F

Preview

553-0201-200F: DescriptionLED Circuit Board Indicators Bi-Level CBI; CategoryLED optoelectronic/LED photoelectric; File Size156KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

553-0201-200F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	553-0201-200F	-	-	View	Buy Now

553-0201-200F Overview

LED Circuit Board Indicators Bi-Level CBI

553-0201-200F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Is Samacsys	N
color	RED
Configuration	SINGLE
JESD-609 code	e4
Lens type	DIFFUSED
Nominal luminous intensity	10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED
total height	9.65 mm
method of packing	BAG
peak wavelength	635 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

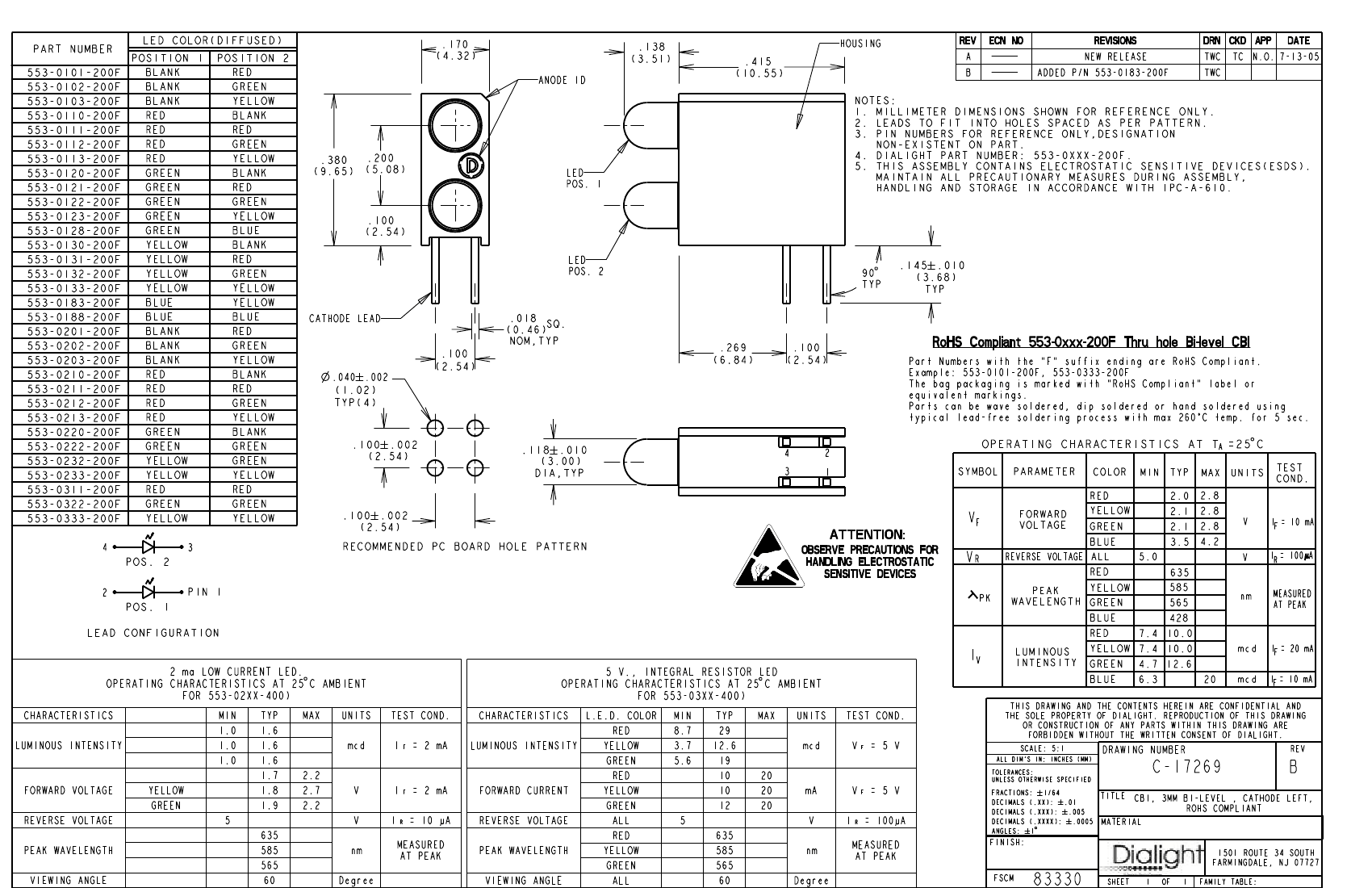

Preview

Download Datasheet

View All

553-0201-200F Related Products

	553-0201-200F	553-0110-200F	553-0188-200F	553-0183-200F	553-0132-200F	553-0311-200F	553-0130-200F	553-0333-200F	553-0220-200F
Description	LED Circuit Board Indicators Bi-Level CBI	LED Circuit Board Indicators Bi-Level CBI	USB Interface IC USB to UART Bdg Chip			LED Circuit Board Indicators Bi-Level CBI	LED Circuit Board Indicators Bi-Level CBI	LED Circuit Board Indicators Bi-Level CBI	LED Circuit Board Indicators Bi-Level CBI
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	RED	RED	BLUE	YELLOW/BLUE	YELLOW/GREEN	RED	YELLOW	YELLOW	GREEN
Configuration	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SINGLE	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SINGLE
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	10.0 mcd	10.0 mcd	13.2 mcd	10.0/13.2 mcd	10.0/12.6 mcd	10.0 mcd	10.0 mcd	10.0 mcd	12.6 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	2	2	2	2	1	2	1
Number of terminals	4	4	4	4	4	4	4	4	4
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED	SINGLE COLOR LED ARRAY	SINGLE COLOR LED
total height	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm
method of packing	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG
peak wavelength	635 nm	635 nm	428 nm	585/428 nm	585/565 nm	635 nm	585 nm	585 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free	Lead free	Lead free
JESD-609 code	e4	e4	e2	-	e4	e4	e4	e4	e4
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Tin/Silver/Nickel (Sn/Ag/Ni)	-	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)
perspective	60 deg	-	70 deg	-	-	60 deg	-	60 deg	60 deg
Base Number Matches	1	1	1	-	1	1	1	1	1
