Application
Dialight's 559 series LED panel mount indicator is available with a variety
of LEDs including AlInGaP and InGaN technology for high brightness
applications, bicolor and integral resistors. These indicators are designed
for a variety of applications such as:
•
•
•
•
•
•
•
•
•
Fan tray assemblies
Datacenter Infrastructure (Servers and Storage)
Next-Gen Wireless Infrastructure
Electronic Test & Measurement Instruments
Communications Testing Equipment
Process controls
Automation
Medical Equipment
Handheld devices
559 Series
Snap-in LED - .250” Mounting Hole
Panel Mount Indicators
Features & Benefits
•
RoHS compliant
•
Long life - typically 100K hours
•
Low power consumption - uses up to 90% less energy
than an incandescent indicator
Mechanical Information
Mounting Hole Size:
Panel Thickness:
0.249 - 0.252" (6.32 - 6.40 mm)
0.031 - 0.062" (.787 - 1.57 mm)
Electrical Specifications
Operating Voltage:
1.6 - 2.3 VDC typical (current limiting resistor
required)
5 VDC typical (resistor not required)
12 VDC typical (resistor not required)
24 VDC typical (resistor not required)
See table
(-67°F to +212°F) -55°C to +100°C
•
Front panel snap-in mounting requires no additional hardware
•
No heat generated
•
Resistant to shock and vibration
•
Available in both 2 or 3 bicolor leaded versions
•
Termination - straight terminals for wire wrapping or
lead wire for soldering or optional terminals
Operating Temp:
Storage Temp:
•
T
hree leaded bicolor version allows for additional color variations
•
Available with PVC-free lead wires
Electrical connection:
Straight terminals for wire wrapping or either
6 or 14 inch 24 AWG lead wire
Leads:
Straight leads
2 leads
3 leads - common cathode
Construction
Housing:
Black housing material meets:
UL94V-0 and enhances LED contrast

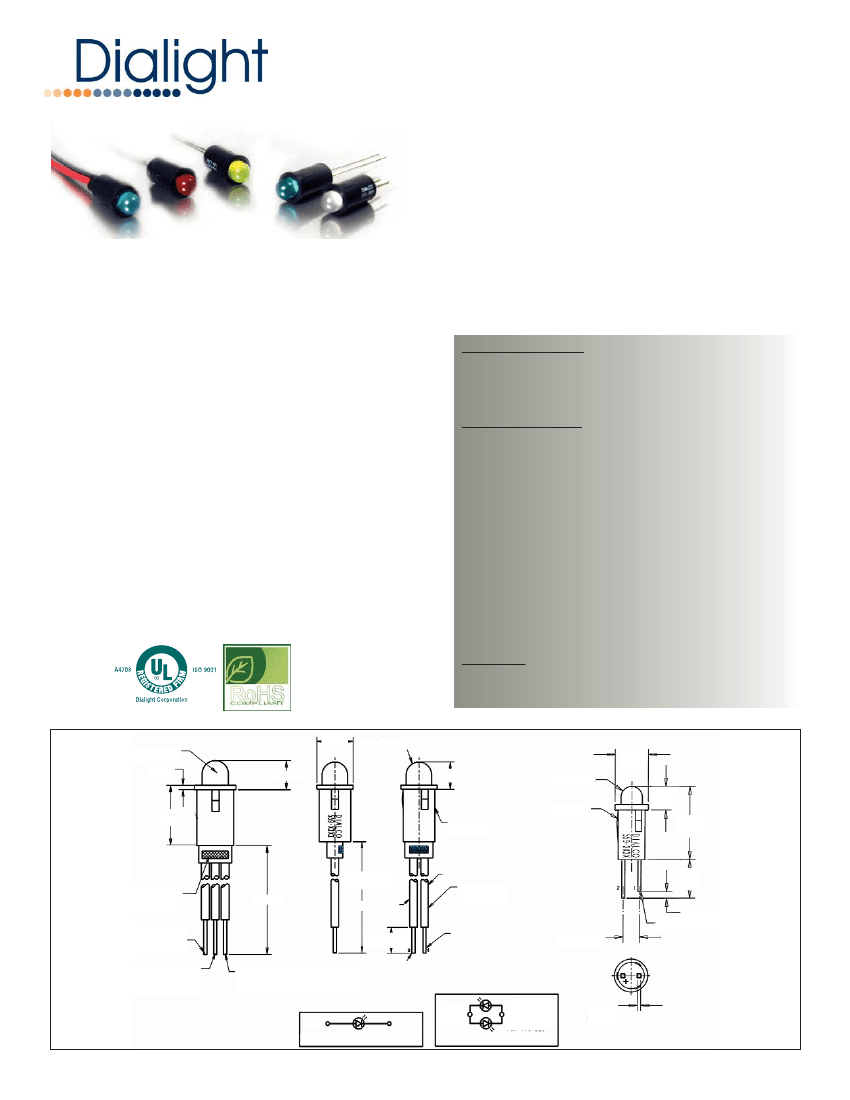

LED 3 LEADED
BI-COLOR
.032
NOM.
ø.281
(7,14)
.212 MAX
ø5mm LED
.210 (5,33) MAX
ø.281
(7,14)
REF
ø5mm LED
HOUSING
(VALOX)
.210
(5,33)
Max
.625
(15,88)
Max
.438
NOM.
HOUSING
(VALOX)
ULTRASONIC CRIMP
OR EPOXY ON ALL
3 LEADS.
(SIDE OPTIONAL)
GREEN WIRE IS
GREEN ANODE
FOR
BOTH R/G AND Y/G
BI-COLOR LEDS
COMMON CATHODE
& BLACK WIRE LEAD
FOR BOTH R/G AND Y/G
BI-COLOR LEDS
See
Termination
A±.109
RED WIRE
.50±.03
(12,7±0,76)
BLACK WIRE
.50±.005
(1,47±0,127)
TYP
.
.300
(7,62)
MIN
.050 REF (1,27)
CATHODE LEAD (-)
CATHODE LEAD (-)
.125±.005
(3,17±0,12)
RED WIRE IS RED ANODE FOR
R/G BI-COLOR LEDS
RED WIRE IS YELLOW ANODE
FOR Y/G BI-COLOR LED
PIN 2
ANODE LEAD (+)
PIN 1
CATHODE
PIN 2
GREEN
CATHODE
PIN 1
RED CATHODE
FOR R/G LED
YELLOW CATHODE
FOR Y/G LED
.025 SQ
(0,64)
REF
SINGLE COLOR LED SCHEMATIC
BI-COLOR LED SCHEMATIC
www.dialight.com
559 Series Snap-in LED - .250” Mounting Hole Panel Mount Indicators
Ordering Information
5 5 9 -
X X X X -
0
X X F
LED Code
Wire Code
RoHS Compliant
Termination
Code
Wire
Wire Type
Code
0
2
Standard
PVC Free
Termination
Code
1
3
7
Termination
Type
Straight Terminals
24 AWG 6" wire leads
24 AWG 14" wire leads
Peak
Wavelength
(nm)
635
565
583
605
592
470
635
525
609
X=.31
Y=.32
635
583
565
650
563
585
600
650
563
585
610
635
565
583
635
565
583
592
635
525
660/565
660/565
585/565
635/565
583/565
Max DC
Forward
Current (mA)
30
30
20
50
50
30
50
30
50
30
7
7
7
20
25
20
30
25
25
25
25
7.5
7.5
7.5
15
15
15
50
50
50
40/30
40/30
20/30
30
30
LED Code
5501
5601
5701
5801
5901
6001
6101
6201
6301
6401
1101
1201
1301
2101
2201
2301
2501
5101
5201
5301
5401
0102
0202
0302
0103
0203
0303
5904
6104
6204
3001
3101
3201
3501
3601
Color
Red
Green
Yellow
Orange
Yellow
Blue
Red
Green
Orange
White
Red
Yellow
Green
Red
Green
Yellow
Orange
Red
Green
Yellow
Orange
Red
Green
Yellow
Red
Green
Yellow
Yellow
Red
Green
Red/Green
Red/Green
Yellow/Green
Red/Green
Yellow/Green
Intensity
Typ. (mcd)
125
120
140
90
3100
1500
2100
5000
4000
2500
2.3
1.8
1.8
6.3
10
29 @10
7
34
34
34
34
8
8
8
8
8
8
3100
2100
5000
90/40
90/40
12.6/19
5.0/8.0
20/20
If Typ.
(mA)
20
20
20
20
20
20
20
20
20
20
2
2
2
Vf Typ.
(V)
2.2
2.3
2.1
2.2
2
3.6
1.9
3.5
1.9
3.5
1.7
1.9
1.8
Viewing
Angle
24
24
24
20
15
30
15
30
15
50
50
50
50
50
65
50
60
50
50
50
50
60
60
60
60
60
60
15
15
30
60
60
50
65
65
Type
Non-Tinted Non-Diffused
Non-Tinted Non-Diffused
Non-Tinted Non-Diffused
Non-Tinted
Non-Tinted
Non-Tinted
Non-Tinted
Non-Tinted
Non-Tinted
Non-Diffused
Non-Diffused
Non-Diffused
Non-Diffused
Non-Diffused
Non-Diffused
Operating Temp
-55°C to +100°C
-20°C to +100°C
-55°C to +100°C
-30°C
-40°C
-30°C
-40°C
-30°C
-40°C
to
to
to
to
to
to
+85°C
+100°C
+85°C
+100°C
+85°C
+100°C
Non-Tinted Non-Diffused
Low current Diffused
Low current Diffused
Low current Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
5V Integral Resistor
5V Integral Resistor
5V Integral Resistor
12V Integral Resistor
12V Integral Resistor
12V Integral Resistor
24V External Resistor
24V External Resistor
24V External Resistor
2
2
2
3
leaded
leaded
leaded
leaded
Bi-color
Bi-color
Bi-color
Bi-color
-30°C to +85°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-25°C to +85°C
-25°C to +85°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-20°C to +85°C
-40°C to +85°C
-20°C to +85°C
-40°C to +85°C
-55°C to +100°C
-20°C to +85°C
-40°C to +85°C
-30°C to +85°C
-30°C to +85°C
-30°C to +85°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-20°C to +85°C
-20°C to +85°C
10
2.2
10
2.1
10/20 2.1 @20
10
1.9
20
2.1
20
2.2
20
2.2
20
10
12
10
13
13
13
20
20
20
20
20
20
10
10
2.2
5
5
5
12
12
12
2
20
3.5
1.8/2.1
1.8/2.1
2.1/2.1
2.1/2.3
1.6/1.6
3 leaded Bi-color
