CXB1507-0000-000N0HH235H

Description
High Power LEDs - White White, 900lm
CategoryLED optoelectronic/LED
File Size3MB，33 Pages
ManufacturerCree
Websitehttp://www.cree.com/
Download Datasheet Parametric View All

CXB1507-0000-000N0HH235H Online Shopping

Suppliers Part Number Price MOQ In stock
CXB1507-0000-000N0HH235H - - View Buy Now

CXB1507-0000-000N0HH235H Overview

High Power LEDs - White White, 900lm

CXB1507-0000-000N0HH235H Parametric

Parameter NameAttribute value
Product CategoryHigh Power LEDs - White
ManufacturerCree
RoHSDetails
Package / CaseCOB - Chip-on-Board
Illumination ColorWhite (Warm White)
Wavelength/Color Temperature3500 K
Luminous Intensity-
Luminous Flux/Radiant Flux900 lm
Color Rendering Index - CRI80
Viewing Angle115 deg
Lens Color/StyleTinted, Clear
If - Forward Current200 mA
Vf - Forward Voltage36 V
Power Rating14 W
Mounting StyleSMD/SMT
Length15.85 mm
Width15.85 mm
Height1.7 mm
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 40 C
PackagingTray
Color Temperature3500 K
Features-
LED Size15.85 mm x 15.85 mm x 1.7 mm
Lens Dimensions8.9 mm
Lens ShapeRound Flat
Factory Pack Quantity100
TypeHigh Power LEDs
Vr - Reverse Voltage-

Preview

Download Datasheet
CLD-DS117 Rev 5A
Product family data sheet
Cree
®
XLamp
®

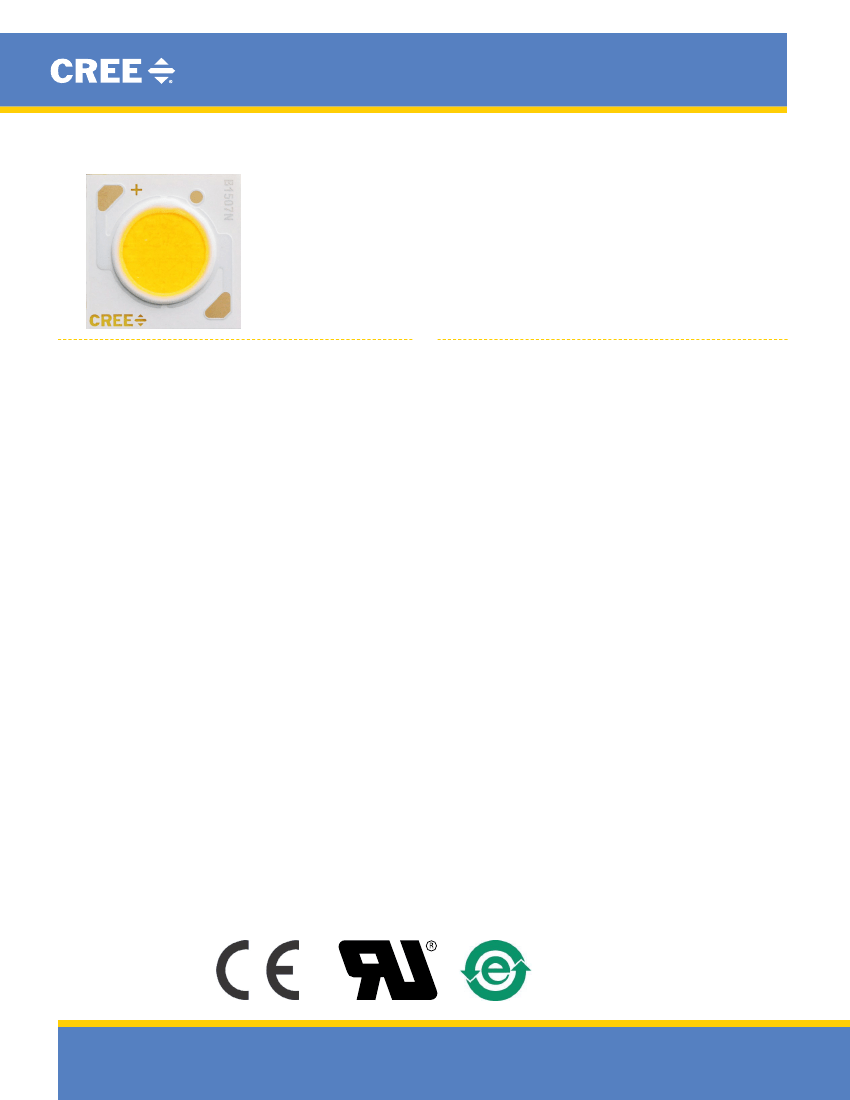

CXB1507 LED
ProDuCt DEsCriPtion
XLamp
®
CXA2 LED Arrays lead the industry in efficacy and
reliability for ceramic‑based COB LEDs. Cree CXA2 LEDs easily
deliver TM-21 lifetimes well beyond L90 60,000 hours under a
wide range of operating conditions. CXA2 LED Arrays share the
same physical design as XLamp CXA and CMA LED families,
allowing lighting manufacturers to leverage the existing optical,
mechanical and electrical design elements to accelerate time to
market without additional cost.
CXA2 Standard Density LeD Arrays are now available in two
different versions: Standard and eTone™ LEDs. The eTone
version delivers beautiful 90 CRI light quality at the same efficacy
as today’s standard 80 CRI LEDs.
fEaturEs
•
•
•
•
•
•
•
•
•
•
•
•
•
•
9‑mm optical source
Mechanical and optical design consistent with other CXA15
and CXB15 LEDs
Cree easyWhite
®
2-, 3- and 5-step binning
Premium Color 2- and 3-step binning
Standard & Premium Color LeDs available in 70, 80, 90 and
95 CRI minimum options
eTone™ LeDs available in 90 CRI minimum option
Forward voltage options: 18‑V class & 36‑V class
85 °C binning and characterization
Extremely uniform color over viewing angle
Top‑side solder connections
Thermocouple attach point
NEMA SSL‑3 2011 standard flux bins
RoHS and REACh compliant
UL
®
recognized component (E349212)
WWW.CREE.Com/XLAmp
