CA12665_LXB2-D

Description
LED Lighting Lenses Assemblies Lens Assembly 1 position
CategoryLED optoelectronic/LED
File Size90KB,1 Pages
ManufacturerLedil
Websitehttp://www.ledil.com
Download Datasheet Parametric View All

CA12665_LXB2-D Online Shopping

Suppliers Part Number Price MOQ In stock
CA12665_LXB2-D - - View Buy Now

CA12665_LXB2-D Overview

LED Lighting Lenses Assemblies Lens Assembly 1 position

CA12665_LXB2-D Parametric

Parameter NameAttribute value
Product CategoryLED Lighting Lenses Assemblies
ManufacturerLedil
RoHSDetails
TypeLens Assembly
For Use WithCree XB-D
Viewing Angle12 deg
Diameter21.6 mn
Height14.6 mm
Length21.6 mn
ShapeRound
Factory Pack Quantity112
StyleDiffused
Termination StyleAdhesive
Width21.6 mn

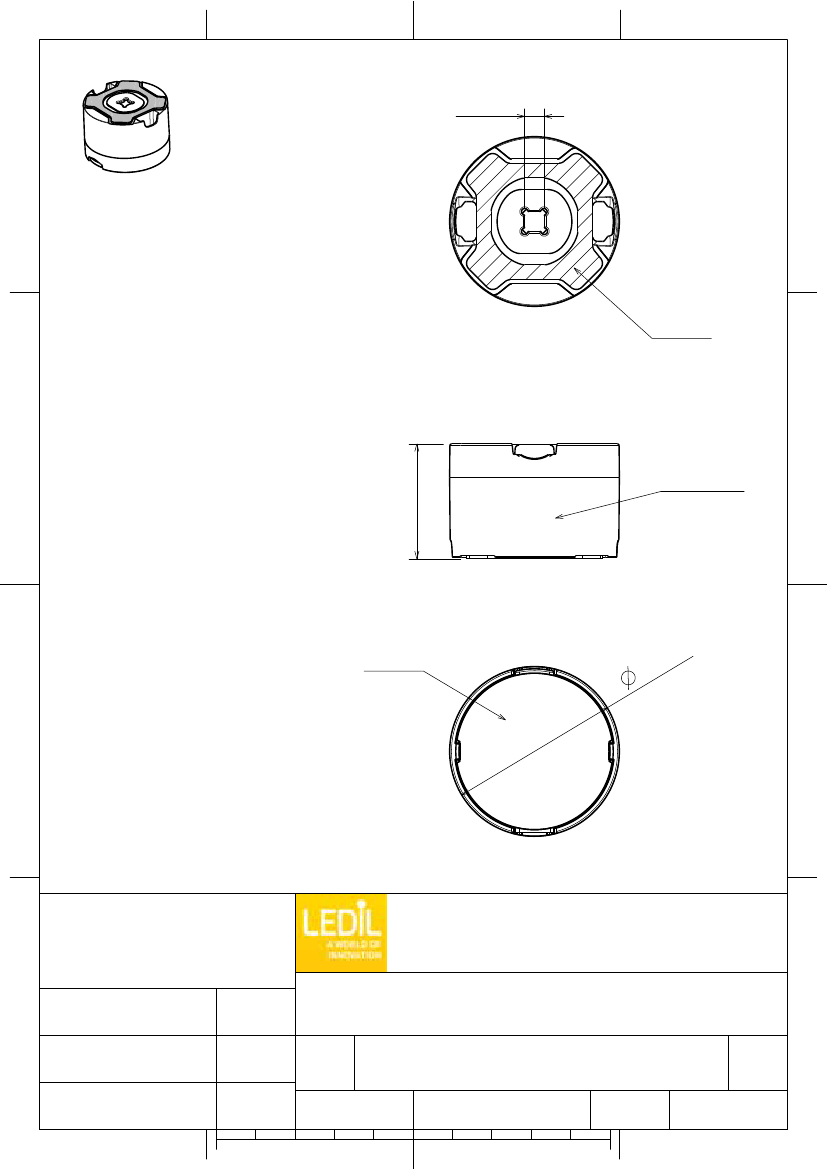

D
C
B
2.5
A
4
Isometric view
Scale: 1:1
4
Tape
3
14.6
Holder
3
Lens
Materials:
Lens PMMA
Holder PC, Black
Tape PU foam with PSA
Tolerances for dimensions:
0-20mm tolerance value +-0.1mm
21-45mm tolerance value +-0.2mm
46-90mm tolerance value +-0.3mm
91-100mm tolerance value +-0.4mm
101-mm tolerance value +-0.5mm
2
.6
1
2
2
This drawing is our property.
It can't be reproduced
or communicated without
our written agreement.
Ledil Oy
Salorankatu 10
FIN 24240 SALO
Finland
DRAWN BY
pv
DATE
11.04.2012
DRAWING TITLE
1
Datasheet LXB2 Tape Assy
SIZE
DRAWING NUMBER
CHECKED BY
sn
DATE
19.01.2012
DESIGNED BY
pv
DATE
19.01.2012
A4
SCALE
2:1 WEIGHT(g)
-
SHEET
REV
1
1
1/1
A
