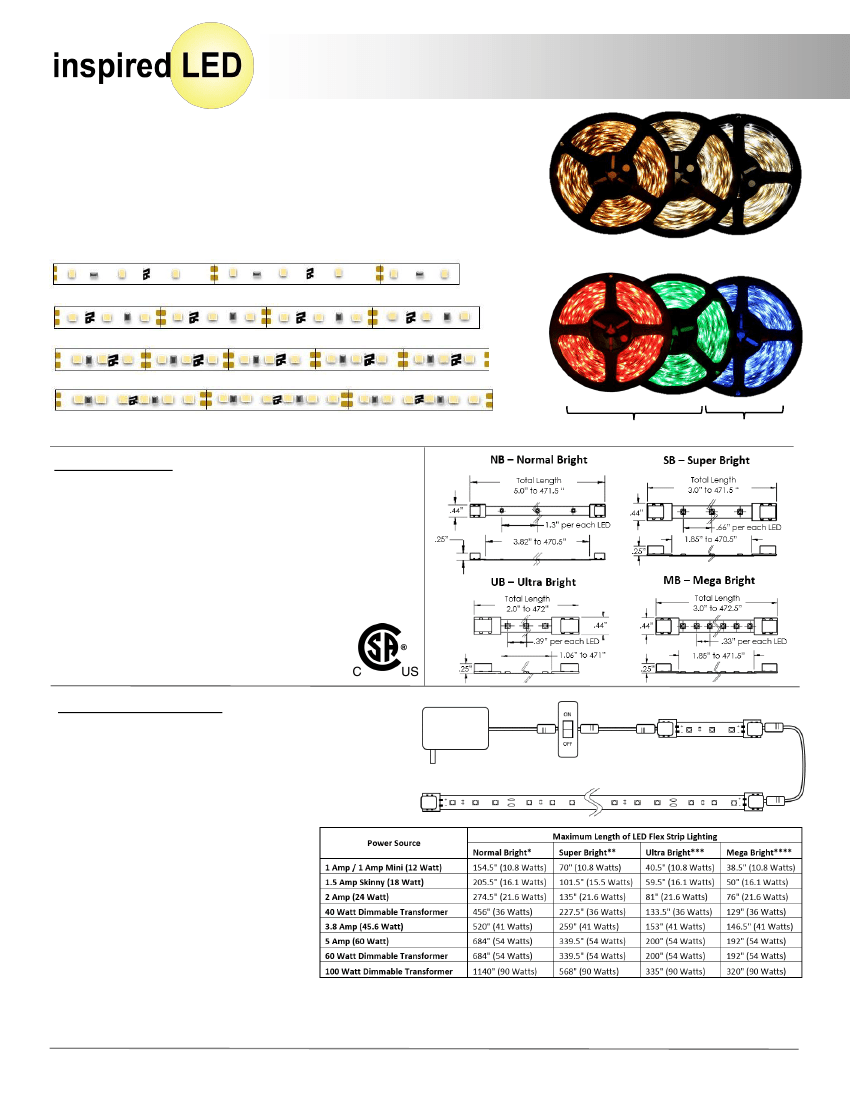

Flexible LED Strip Lights
Inspired LED
Flexible Strip Lights
are a simple, customizable
solution for all of your LED lighting needs. These unique strips can
be cut to length and terminated with solderless end connectors
for easy DIY installation. Energy efficient, with a wide range of
options for brightness and color, LED Flex Strips are the perfect
option for any lighting application.
NB – Normal Bright
≈ 9 LEDs per foot, 90 lumens per foot, 1 watt per foot
SB – Super Bright
≈ 18 LEDs per foot, 170 lumens per foot, 2 watts per foot
UB – Ultra Bright
≈ 30 LEDs per foot, 295 lumens per foot, 3.25 watts per foot
Red
Green
Blue
NB, SB & UB Only
Warm White
3000K
Pure White
4200K
Cool White
6000K
MB – Mega Bright
≈ 36 LEDs per foot, 335 lumens per foot, 3.5 watts per foot
Available in NB & SB Only
Product Features
Minimal Heat Production- No IR or UV
Available in various colors and brightness levels
Custom pre-cut lengths or full 12m reels
Adhesive mounts to almost any clean flat surface
Class 2 DC plug in connectors (3.5 x 1.3 mm) or
screw terminal end-connectors available
Dimmable with compatible components
Rated to last up to 100,000 hours
To be installed in accordance with NEC,
using Class 2 12V DC power supply only
Plug-in System
Installation Instructions
1.
Clean desired mounting surface(s) and test
Class 2
all products prior to installation
Flex Interconnection
In-line Control
2.
Temporarily mount LED flex strips in
desired location using scotch or painter’s tape
3.
Connect LED strips using compatible
interconnect cables, or tiger paw screw
terminals with bulk 18-22 AWG wire
4.
If using class 2 plug-in power supply
connect first string of lights to controller,
then connect to power
5.
If using hardwire transformer connect
first string of lights directly to transformer,
then connect to high voltage wall switch
(see transformer spec for more detail)
6.
When satisfied with placement,
*Individual strips over 200" should be powered from the center of the strip, individual strips should not exceed 400" in length.
peel adhesive backing from strips and
**Individual strips over 150" should be powered from the center of the strip, individual strips should not exceed 300" in length.
*** Individual strips over 105” should be powered from the center of the strip, individual strips should not exceed 210” in length.
press firmly to secure LEDs in place
**** Individual strips over 100” should be powered from the center of the strip, individual strips should not exceed 200” in length.
12V DC
Inspired LED 1733 E. McKellips Rd. Suite #112 Tempe, AZ 85281 ● (480) 941-4286 ● www.inspiredled.com
