H-302CR-1-180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> H-302CR-1-180

H-302CR-1-180: DescriptionLED Mounting Hardware LED Holder 3mm 2 Level Black; CategoryLED optoelectronic/LED; File Size38KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric View All

H-302CR-1-180 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H-302CR-1-180	-	-	View	Buy Now

H-302CR-1-180 Overview

LED Mounting Hardware LED Holder 3mm 2 Level Black

H-302CR-1-180 Parametric

Parameter Name	Attribute value
Product Category	LED Mounting Hardware
Manufacturer	Bivar
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

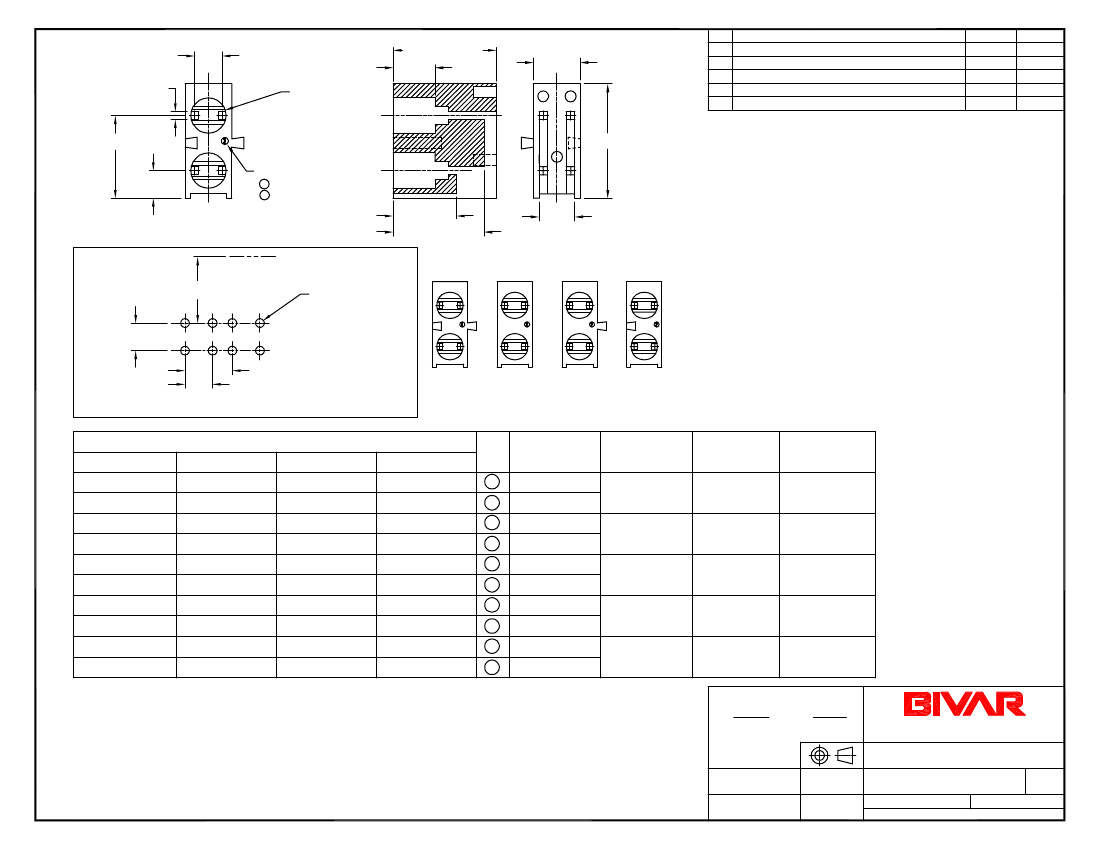

0.100 [2.5mm]

TYP.

0.030 [0.8mm] SQ.

TYP.

0.375 [9.5mm]

0.152 [3.9mm]

DIA

TYP.

Cathode I.D.

Mark

1 (H-30XCR-1-XXX)

2 (H-30XCR-2-XXX)

0.230 [5.8mm]

0.330 [8.4mm]

Holder Faces

0.130 [3.3mm]

0.170 [4.3mm]

Engineering Update w/o Changes

02/27/04

M. C.

C/L 2

C/L 1

0.240 [6.1mm]

Ø.032+.003

-.002

TYP.

0.100 [2.5mm]

0.172 [4.4mm] Holder Pitch

0.100 [2.5mm] LED Lead

H-300CR

H-301CR

H-302CR

H-303CR

Recommended Mounting Holes

MARK

H-300CR SERIES H-301CR SERIES H-302CR SERIES H-303CR SERIES

H-300CR-1-100

H-300CR-2-100

H-300CR-1-120

H-300CR-2-120

H-300CR-1-140

H-300CR-2-140

H-300CR-1-160

H-300CR-2-160

H-300CR-1-180

H-300CR-2-180

H-301CR-1-100

H-301CR-2-100

H-301CR-1-120

H-301CR-2-120

H-301CR-1-140

H-301CR-2-140

H-301CR-1-160

H-301CR-2-160

H-301CR-1-180

H-301CR-2-180

H-302CR-1-100

H-302CR-2-100

H-302CR-1-120

H-302CR-2-120

H-302CR-1-140

H-302CR-2-140

H-302CR-1-160

H-302CR-2-160

H-302CR-1-180

H-302CR-2-180

H-303CR-1-100

H-303CR-2-100

H-303CR-1-120

H-303CR-2-120

H-303CR-1-140

H-303CR-2-140

H-303CR-1-160

H-303CR-2-160

H-303CR-1-180

H-303CR-2-180

PART NO.

DIA

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.180 [4.6mm]

.380 [9.7mm]

.495 [12.6mm]

C/L 1

C/L 2

.100 [2.5mm]

.300 [7.6mm]

.415 [10.6mm]

.120 [3.0mm]

.320 [8.1mm]

.435 [11.0mm]

.140 [3.6mm]

.340 [8.6mm]

.455 [11.6mm]

.160 [4.1mm]

.360 [9.1mm]

.475 [12.1mm]

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

2. MATERIAL: NYLON 6/6, 94V-0, BLACK. BIVAR MATERIAL CODE 22-BK.

RTP POLYAMIDE NYLON 6/6, 0200 FR, BLACK OR MODIFIED PLASTICS MN6/6-SE BK.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

TITLE:

DATE:

FAX: (949) 951-3974

BI-LEVEL T-1 (3mm) LED HOLDER

INTERLOCKING, VARIABLE CENTERLINE

RECESSED CAVITY

REVISION:

PART NO:

Ty Yin

CHECKED:

02/27/04

DATE:

H-300XCR-X-XXX

CAGE CODE : 32559

D. Green

02/27/04

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
