550-1204-004F

Description
LED Circuit Board Indicators 5 MMQUAD CBI
CategoryLED optoelectronic/LED    photoelectric
File Size122KB,1 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance

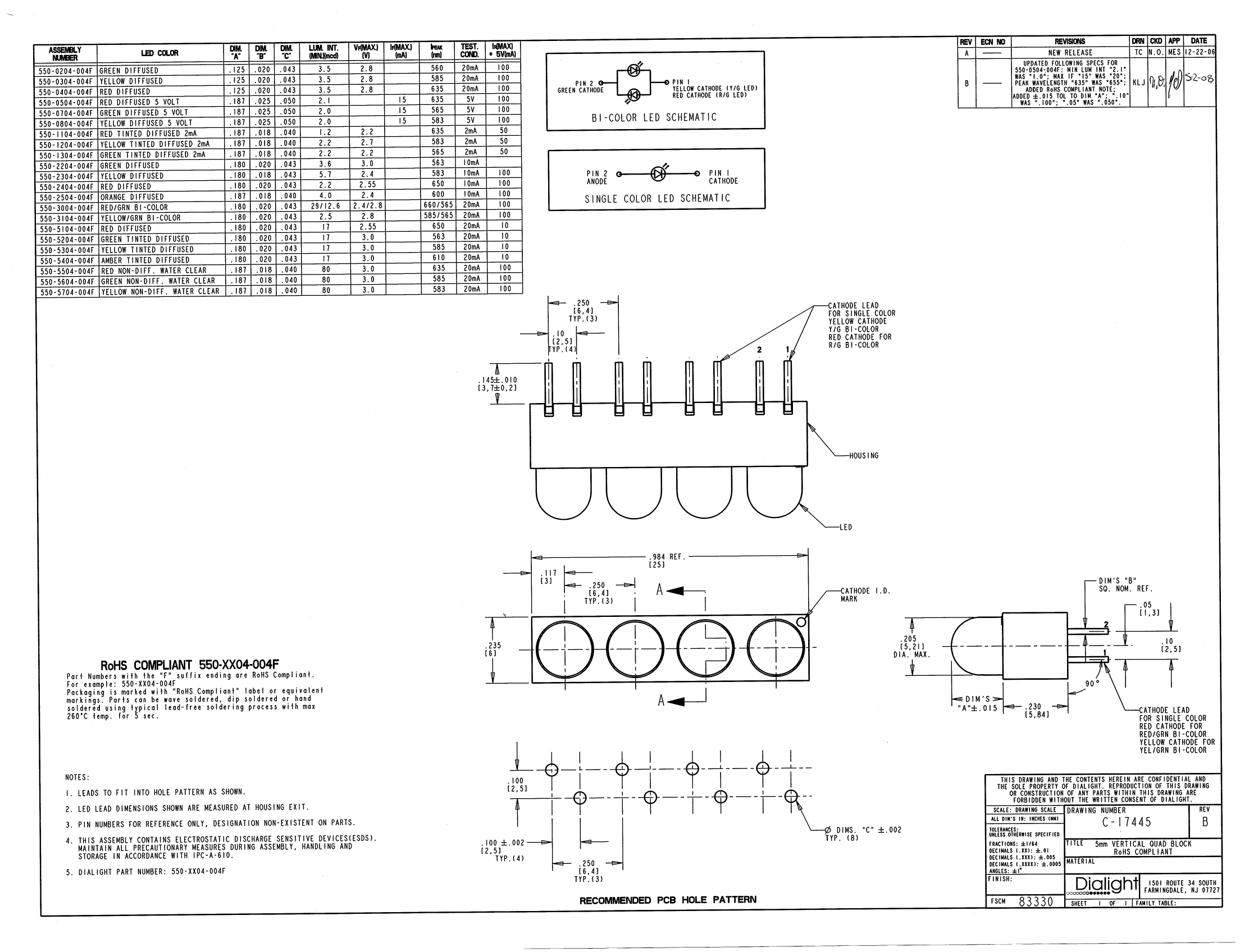

Download Datasheet Parametric Compare View All

550-1204-004F Online Shopping

Suppliers Part Number Price MOQ In stock
550-1204-004F - - View Buy Now

550-1204-004F Overview

LED Circuit Board Indicators 5 MMQUAD CBI

550-1204-004F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
colorYELLOW
color@wavelengthYellow
ConfigurationSEPARATE, 4 ELEMENTS
Maximum forward current0.007 A
Maximum forward voltage2.7 V
JESD-609 codee1
minimum luminous intensity0.0012 cd
Nominal luminous intensity1.8 mcd
Installation featuresRADIAL MOUNT
Number of functions4
Number of LEDs in the array4
Number of terminals8
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesSINGLE COLOR LED ARRAY
total height10.84 mm
method of packingBULK
peak wavelength583 nm
shapeROUND
size5 mm
surface mountNO
T codeT-1 3/4
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch2.54 mm
perspective50 deg
Base Number Matches1

550-1204-004F Related Products

550-1204-004F 550-0704-004F 550-3104-004F
Description LED Circuit Board Indicators 5 MMQUAD CBI LED Circuit Board Indicators 5 MMQUAD CBI LED Circuit Board Indicators 5MM QUAD BICOLOR CBI
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code compliant compliant compliant
color YELLOW GREEN YELLOW/GREEN
color@wavelength Yellow Green Green/Yellow
Configuration SEPARATE, 4 ELEMENTS SEPARATE, 4 ELEMENTS WITH BUILT-IN RESISTOR 4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current 0.007 A 0.015 A 0.02 A
JESD-609 code e1 e1 e4
Nominal luminous intensity 1.8 mcd 8.0 mcd 8.7 mcd
Installation features RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT
Number of functions 4 4 4
Number of LEDs in the array 4 4 4
Number of terminals 8 8 8
Maximum operating temperature 100 °C 85 °C 100 °C
Minimum operating temperature -55 °C -20 °C -55 °C
Optoelectronic device types SINGLE COLOR LED ARRAY SINGLE COLOR LED ARRAY DUAL COLOR LED ARRAY
total height 10.84 mm 10.84 mm 10.84 mm
method of packing BULK BULK BULK
peak wavelength 583 nm 565 nm 585/565 nm
shape ROUND ROUND ROUND
size 5 mm 5 mm 5 mm
surface mount NO NO NO
T code T-1 3/4 T-1 3/4 T-1 3/4
Terminal surface Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
perspective 50 deg 60 deg 50 deg
Base Number Matches 1 1 1
Maximum forward voltage 2.7 V 3 V -
minimum luminous intensity 0.0012 cd 0.0016 cd -
