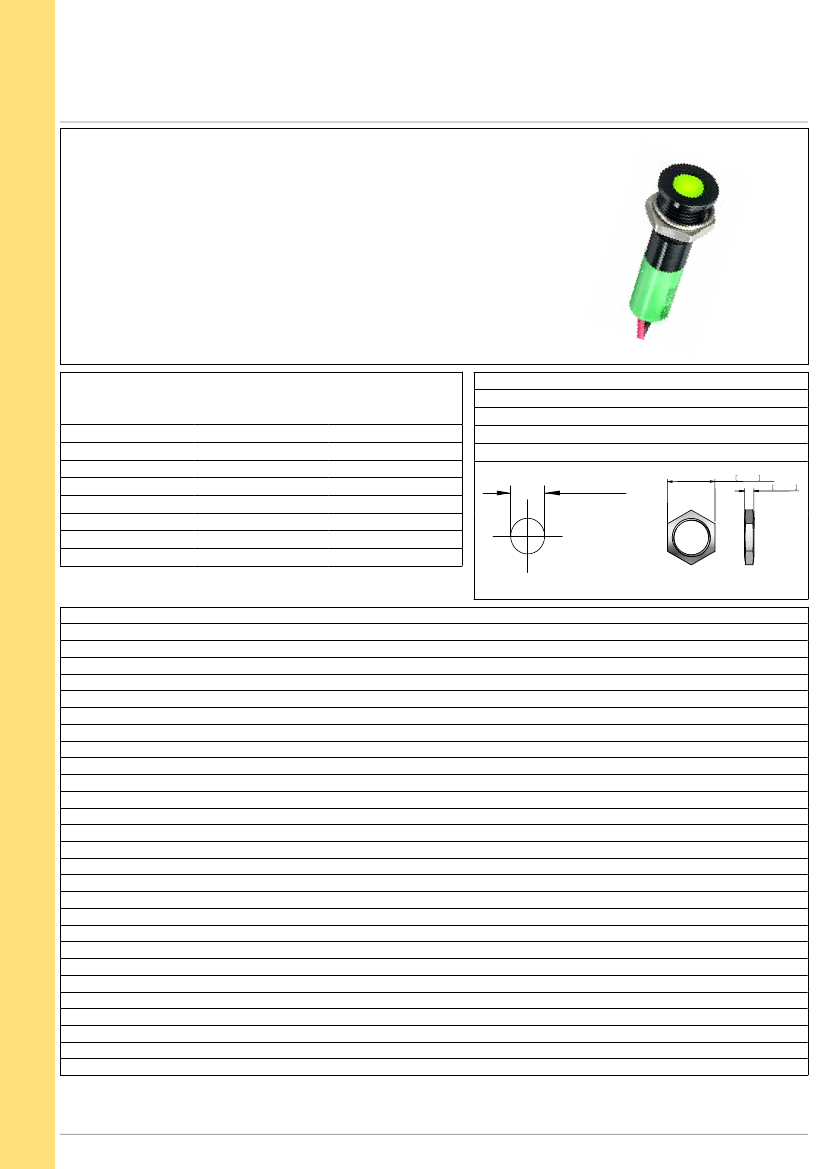

Q SERIES Ø8mm (.315") Panel Mount LED Indicators
Q8_VOY1705R3US
Features
• 8mm panel mounting LED indicator
• 5mm colored diffused epoxy lens or 5mm water clear super bright LEDs
• Plated brass bezel finished in bright chrome,
black chrome or satin grey and moulded polycarbonate rear body
• Prominent, recessed and flush bezel styles
• 2VDC – 220VAC
• (2.8 x 0.8) solder lug/faston terminals, pins or (200mm long) wire terminations
(2.0 x 0.5) solder lug/faston terminals on tricolor versions
• IP67 sealing option (EN60529)
• Supplied with fixing nut and spring washer
NB: UL Recognized Component
TECHNICAL SPECIFICATIONS
Voltage
02 (No Resistor)
6VDC
12VDC
24VDC
28VDC
110VAC
220VAC
Operating Voltage
(Min to Max)
1.8 to 3.3VDC
5.4 to 6.6VDC
10.8 to 13.2VDC
21.6 to 26.4VDC
25.2 to 30.8VDC
99 to 121VAC
207 to 253VAC
Operating Current
(Typical All Types)
20mA max*
20mA
20mA
20mA
20mA
6mA
3mA
Max Reverse Voltage:
5V
Viewing Angle:
30–100°
(dependant on model)
Life Expectancy:
100,000 hours
Temperature Range:
–40 to +85°C
(operating & storage)
Torque:
20 to 25cNm
Ø 8.00 +0.15/-0.0
10,00 0,394
AF
2,00 0,079
PANEL CUTOUT
M8 x 0,75 THREAD
Standard LED Intensity
Prominent and Recessed
Flush
Forward Voltage
HE Red
80mcd
8mcd
2.0V
Green
60mcd
6mcd
2.2V
Yellow
50mcd
6mcd
2.1V
Blue
1600mcd
50mcd
3.3V
White
1600mcd
500mcd
3.3V
Orange
60mcd
110mcd
2.2V
Bi-color (Typical) (Red/Green)
14/30mcd
15/10mcd
2.0V/2.2V
Tri-color (Typical) (Red/Green/Yellow)
60/15/13mcd
15/10/6mcd
2.0V/2.2V/2.1V
Bi-color - The color is changed by reversing the polarity of the supply voltage.
Tri-color - The indicator has red and green LEDs, when both connected yellow is produced.
Super Bright LED
HE Red
Green
Yellow
Blue
White
Orange
Hyper Bright LED
HE Red
Green
Yellow
Orange
Prominent and Recessed
5,000mcd
10,000mcd
4,000mcd
2,200mcd
2,500mcd
4,000mcd
Prominent and Recessed
6,000mcd
1,900mcd
1,600mcd
2,400mcd
Flush
1,300mcd
1,200mcd
350mcd
280mcd
950mcd
500mcd
Flush
980mcd
300mcd
250mcd
110mcd
Forward Voltage
2.2V
3.3V
2.0V
3.3V
3.3V
2.2V
Forward Voltage
2.2V
3.3V
2.0V
2.2V
Luminous intensity will be reduced with lower operating current.
Note: The operating voltage must not be exceeded by more that 10% as this will result in reduced life expectancy.
The company reserves the right to change specifications without notice.
* Customer to supply resistor for desired operating current.
Luminous intensity is measured at 20mA on a discrete LED unless otherwise stated.
Luminous intensities and color shades of white LEDs may vary within a batch.
LED characteristics are dependent upon environmental conditions. Therefore published data should be considered nominal.
APEM
www.apem.com
1
Q SERIES Ø8mm (.315") Panel Mount LED Indicators
Overview

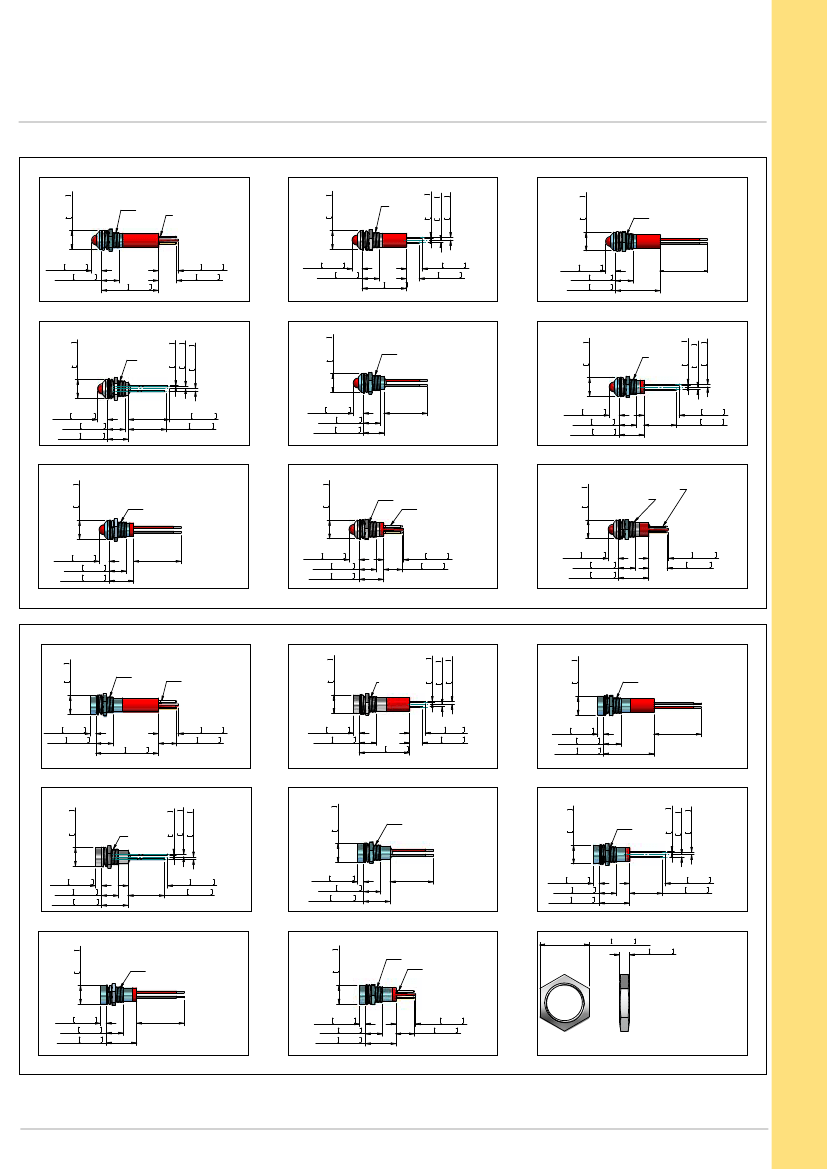

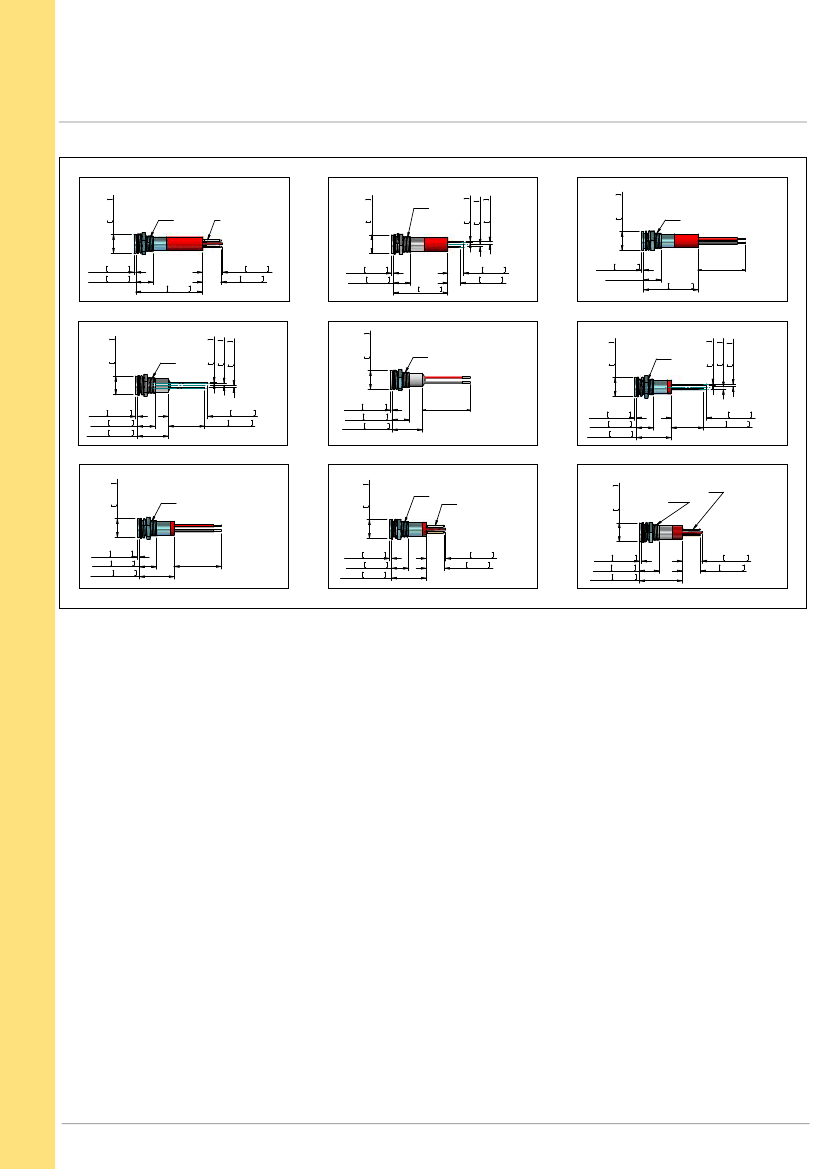

STANDARD OPTIONS
The Q8 Series is available with a range of standard options, to specify your LED, simply choose one option from each
column. An example is shown below.
Q
SERIES
Q
8
MOUNTING
HOLE
8 = Ø8mm
P
BEZEL
STYLE
P = Prominent
R = Recessed
F = Flush
8
TERMINALS
1 = Solder
Lug/ Fastons
(2.8 x 0.8)
2 = Pins
3 = Wires
4 = Rear epoxy
Pins
5 = Rear epoxy
Wires
6 = Short body
Pins
7 = Short body
Wires
8 = Short body
Lug/ Fastons
(2.8 x 0.8)
9 = Extended
short body solder
Lug/ Fastons
(2.8 x 0.5)
G
BEZEL FINISH
C = Bright Chrome
B = Black Chrome
G = Satin Grey
XX
TYPE OF
ILLUMINATION
XX = Fixed Light
KK = Flashing Light
(12V – 28VDC)
YY = Bi-color
ZZ = Tri-color
Y
LED COLOR
R = Red
G = Green
Y = Yellow
B = Blue
W = White
O = Orange
HR = Hyper Bright Red
HG = Hyper Bright Green
HY = Hyper Bright Yellow
HO = Hyper Bright Orange
SR = Super Bright Red
SG = Super Bright Green
SY = Super Bright Yellow
SB = Super Bright Blue
SW = Super Bright White
SO = Super Bright Orange
RG = Red/Green
RY = Red/Yellow
GY = Green/Yellow
12
VOLTAGE
02 = no resistor
*
06 = 6VDC
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
28 = 28VDC
28A = 28VAC/DC
110 = 110VAC
220 = 220VAC
E
SEALING
(Blank) = Unsealed
E = IP67
Example Q8P3CXXY02E
Ø8mm, prominent bezel, 200mm wire termination
bright chrome finish, fixed light, yellow
2VDC LED, IP67 panel sealed
RYG = Red/Yellow/Green
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 24AWG UL1061, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• For LEDs with alternative voltages consult APEM
• 110VAC and 220VAC, short body terminal options, 5, 6, 7 and 8 please consult the factory
• Bi-color LEDs, by connecting the gold Faston (+) one color is produced, by reversing the supply voltage
another color is produced – Bi-colors are available up to 28VDC. [AC products not available]
• Take care when soldering to the Faston terminals (recommended solder temperature 300°C - 3 sec)
• Terminal options 6,7 & 9 are only available up to 28V (DC Only) tri-color not available with terminal 9
• Terminal code 8 is only available without integral resistor, see forward voltage values.
• Maximum panel thickness 7mm
• We recommend using Hyperbright orSuperbright LEDs for use at 110VAC and 220VAC
• Mains voltage product is not recommended for use on 3 phase appliances
• The Tri-color LED has red and green LEDs when both are connected yellow is produced
• Standard Tri-color Faston terminals are two Anodes (+) and one Cathode (-)
• Tri-color wires are one red (+) and one green (+) Anode and one black (-) Cathode
• Tri-color pins are center (–) Cathode, shortest (+) Anode pin green, longest (+) Anode pin red
* = For resistorless versions (02) please refer to the forward voltage on page 1
