LedEngin,
Inc.
High Luminous Efficacy
Cool White LED Emitter
LZ4-00CW10
Key Features
High Luminous Efficacy 10W Cool White LED
Ultra-small foot print – 7.0mm x 7.0mm x 4.3mm
Surface mount ceramic package with integrated glass lens
Very low Thermal Resistance (1.8°C/W)
Individually addressable die
Electrically neutral thermal path
Very high Luminous Flux density
Spatial color uniformity across radiation pattern
New industry standard for Lumen Maintenance (>90% at 100,000 Hours)
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on
Standard
or
Serially
connected MCPCB (optional)
Typical Applications
Architectural lighting
Street lighting
Stage and Studio lighting
Task and Accent lighting
Refrigeration lighting
Portable lighting
Description

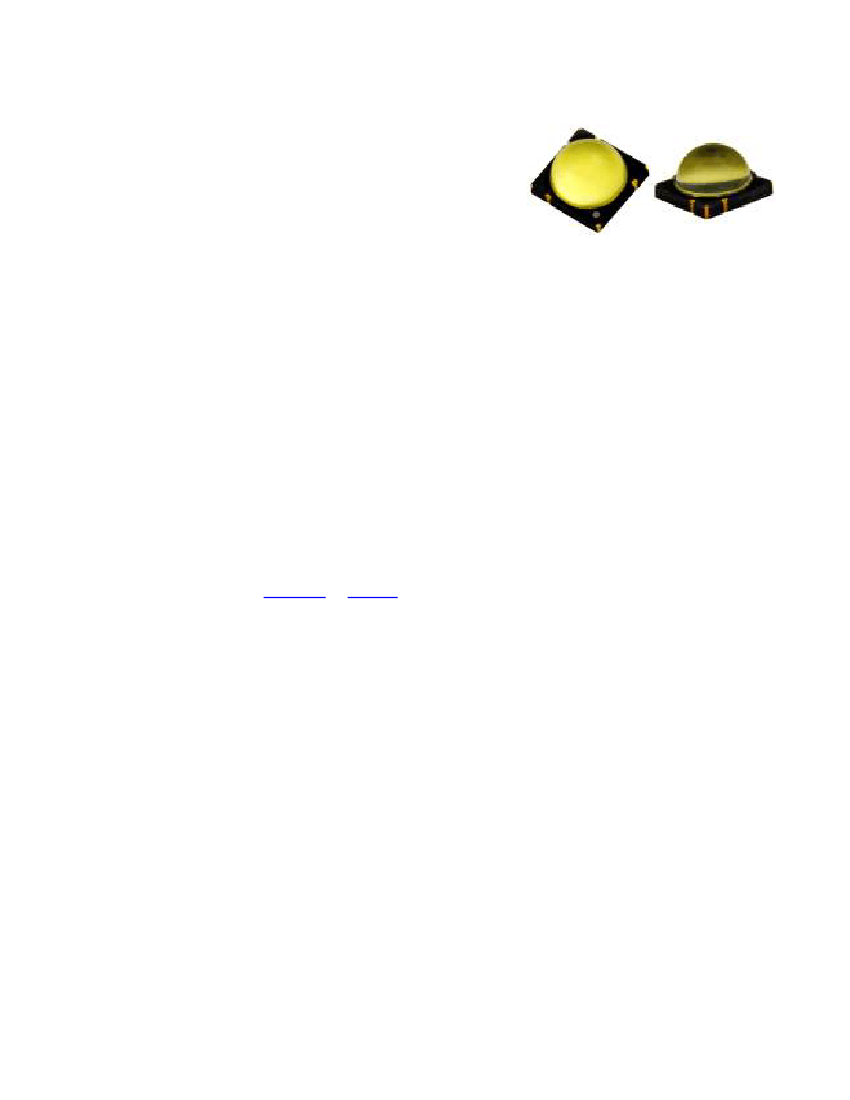

The LZ4-00CW10 Cool White LED emitter provides 10W power in an extremely small package.
With a 7.0mm x 7.0mm x 4.3mm ultra-small footprint, this package provides exceptional
luminous flux density. LedEngin’s patent-pending thermally insulated phosphor layer provides
spatial color uniformity across the radiation pattern and a consistent CCT over time and
temperature. LedEngin’s LZ4-00CW10 LED offers ultimate design flexibility with individually
addressable die. The high quality materials used in the package are chosen to optimize light
output and minimize stresses which results in monumental reliability and lumen maintenance.
The robust product design thrives in outdoor applications with high ambient temperatures and
high humidity.
Table of Contents
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Luminous Flux Binning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Forward Voltage Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cool White Chromaticity Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
IPC/JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Average Lumen Maintenance Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pin-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Recommended Solder Pad Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reflow Soldering Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Typical Relative Spectral Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical Relative Light Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Typical Relative Light Output over Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Current Derating Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emitter Tape & Reel Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LedEngin,
Inc.
2
LZ4-00CW10 (12/09)
Product Nomenclature
The LZ Series part number designation is defined as follows:
LZA–BCDEFG-HJKL
Base Part Number
Bin Code
Where:
A – designates the number of LED die in the package (“4” for 10W)
B – designates the package level (“0” for Emitter)
C – designates the radiation pattern (“0” for Lambertian)
D and E – designate the color (“CW” for Cool White: 4750 K < CCT < 7200 K)
F and G – designate the Power (“10” for 10W typical rating)
H – designates the Luminous Flux bin (See Table 1)
J and K – designate the CCT bin groups (see Figure 1 and Table 3)
L – designates the V
F
bin (See Table 2)
Luminous Flux Bins
Table 1:
Bin
Code
T
U
V
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
445
556
695
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
556
695
868
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA
[2]
(lm)
690
810
1010
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1500mA
[2]
(lm)
880
1030
1280
Notes for Table 1:
1. Luminous flux performance guaranteed within published operating conditions. LedEngin maintains a tolerance of
± 10% on flux measurements.
2. Future products will have even higher levels of luminous flux performance. Contact LedEngin Sales for updated
information.
Forward Voltage Bins
Table 2:
Bin
Code
F
G
H
J
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
12.80
13.76
14.72
15.68
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
13.76
14.72
15.68
16.64
Notes for Table 4:
1. Forward Voltage is binned with all four LED dice connected in series.
2. LedEngin maintains a tolerance of ± 0.16V for forward voltage measurements for the four LEDs.
LedEngin,
Inc.
3
LZ4-00CW10 (12/09)
Cool White Chromaticity Groups
0.43
4750 K
0.41
0.39
0.37
0.35
0.33
0.31
Planckian locus
7200 K
S2
6300 K
5300 K
R2
R3
y
T2
S3
R4
T3
T4
S4
0.29
0.27
0.29
0.31
0.33
x
0.35
0.37
Figure 1: Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in Table 3.
Cool White Chromaticity Coordinates
Table 3:
Bin
Code
x
y
Typical
CCT
(K)
Bin
Code
x
y
Typical
CCT
(K)
Bin
Code
x
y
Typical
CCT
(K)
T2
0.3205
0.3196
0.3008
0.3028
0.3221
0.3205
0.3028
0.3068
0.3230
0.3221
0.3068
0.3089
0.3481
0.3600
0.3400
0.3304
0.3261
0.3481
0.3304
0.3113
0.3140
0.3261
0.3113
0.3011
6750
S2
0.3376
0.3382
0.3196
0.3207
0.3366
0.3376
0.3207
0.3222
0.3361
0.3366
0.3222
0.3230
0.3616
0.3760
0.3600
0.3462
0.3369
0.3616
0.3462
0.3243
0.3251
0.3369
0.3243
0.3140
5800
R2
0.3551
0.3570
0.3382
0.3376
0.3515
0.3551
0.3376
0.3366
0.3498
0.3515
0.3366
0.3361
0.3760
0.3903
0.3760
0.3616
0.3487
0.3760
0.3616
0.3369
0.3360
0.3487
0.3369
0.3251
5000
T3
6750
S3
5800
R3
5000
T4
6750
S4
5800
R4
5000
LedEngin,
Inc.
4
LZ4-00CW10 (12/09)
IPC/JEDEC Moisture Sensitivity Level
Table 4 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Floor Life
Level
1
Time
Unlimited
Conditions
≤ 30°C/
85% RH
168
+5/-0
Soak Requirements
Standard
Accelerated
Time (hrs)
Conditions
85°C/
85% RH
Time (hrs)
n/a
Conditions
n/a
Notes for Table 4:
1. The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time
(MET) between bake and bag and includes the maximum time allowed out of the bag at the distributor’s facility.
Average Lumen Maintenance Projections
Lumen maintenance generally describes the ability of a lamp to retain its output over time. The
useful lifetime for solid state lighting devices (Power LEDs) is also defined as Lumen
Maintenance, with the percentage of the original light output remaining at a defined time period.
Based on long-term WHTOL testing, LedEngin projects that the LZ Series will deliver, on
average, 90% Lumen Maintenance at 100,000 hours of operation at a forward current of
700 mA per die. This projection is based on constant current operation with junction
temperature maintained at or below 125°C.
Typical Radiation Pattern
100
90
80
Relative Intensity (%)
70
60
50
40
30
20
10
0
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90
Angular Displacement (Degrees)
Figure 2: Typical representative spatial radiation pattern.
