25P-326B: DescriptionHeaders u0026 Wire Housings HSG 3P W/LKG RAMP UL94V-2; CategoryLED optoelectronic/LED; File Size106KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric Compare View All

25P-326B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	25P-326B	-	-	View	Buy Now

25P-326B Overview

Headers u0026 Wire Housings HSG 3P W/LKG RAMP UL94V-2

25P-326B Parametric

Parameter Name	Attribute value
Product Category	LED Lenses
Manufacturer	Visual Communications Company, LLC
RoHS	Details
Product	LED Lenses
LED Size	T-2, T-3 1/4
Color	Blue
Diameter	0.625 in
Material	Lexan, High Temperature
Height	0.438 in
Mounting Hole Size	0.688 in
Mounting Style	Through Hole
Packaging	Bulk
Panel Thickness Dimension	0.406 in
Shape	Dome
Factory Pack Quantity	1000
Style	Transparent

Preview

Download Datasheet

View All

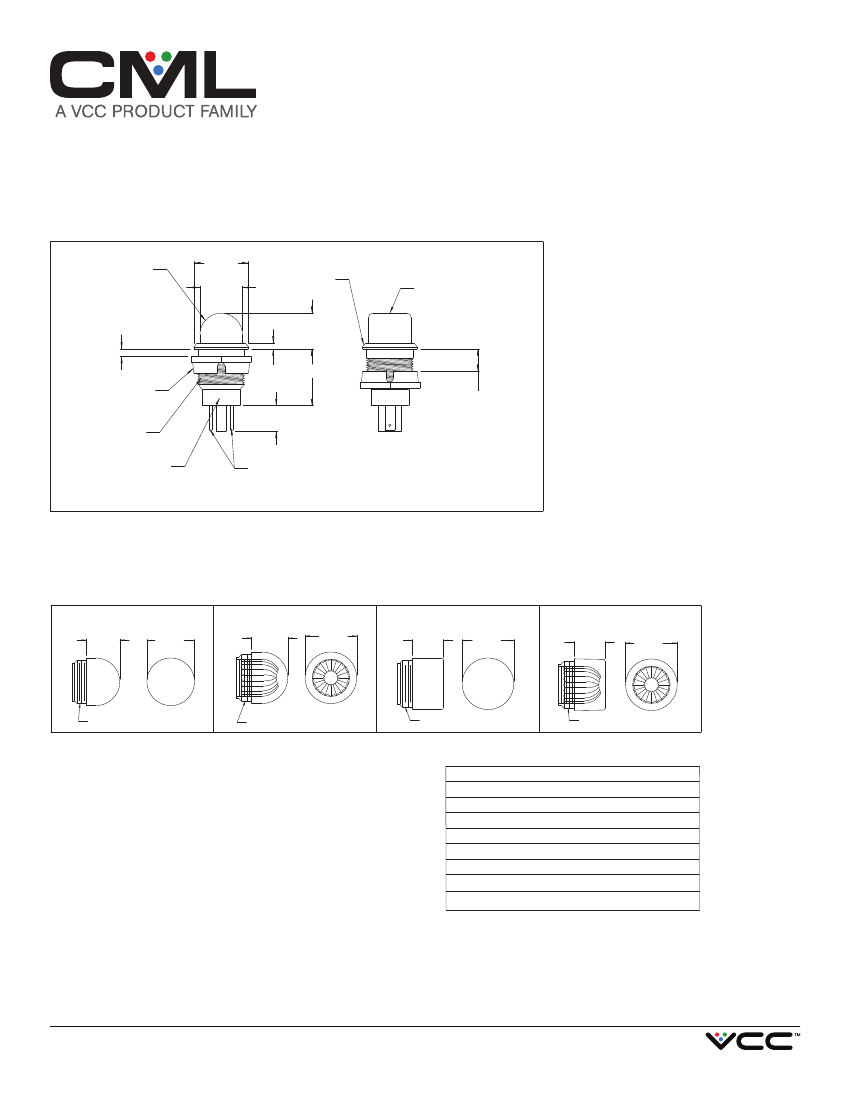

engineered to light up your design

www.vcclite.com

1.800.522.5546

2802 Series Relampable Incandescent Indicator Light

Description and Features

DOME LENS

0-.250THK.

PANEL WHEN HEX

NUT IS USED IN

THIS MANNER.

.810

.630

BEZEL

FLAT LENS

.530

.090

HEX NUT NYLON

.810

ACROSS FLATS

11/16-27

THREAD

BODY

BLACK POLYESTER

.840

.250-.340

THICK PANEL

WHEN HEX. NUT IS

REVERSED AS SHOWN

.380±.020

.187 QUICK CONNECT

TERMINALS, NICKLE PLATED

BRASS.

All dimensions in inches.

Lens Specifications

Dome

.438

Ø.625

Fluted Dome

.438

Ø.625

Cylindrical

.375

Ø.625

Fluted Cylindrical

.375

Ø.625

9/16-27 THD.

All dimensions in inches.

Ordering Information:

For use with T-2 Slide Base (standard) lamps.

Complete assembly consists of socket (2802),

lamp, and lens (see chart below).

Items supplied unassembled.

Lamp, lens and socket must be ordered

separately.

Mounting: Supplied with polyester hex nut.

Lens: Polycarbonate-threaded

Body: Black polyester

Terminals: Nickel plated brass

Bezel: Black

Lens Part No: Description

Transparent dome

25P-306*

Translucent dome

25P-307**

Transparent fluted dome

25P-326*

Transparent cylindrical

25P-606*

25P-607**

Translucent cylindrical

25P-626*

Transparent fluted cylindrical

(*) R=Red, A=Amber, G=Green, C=Clear

(**) R=Red, Y=Yellow, G=Green, W=White

Note: For 120 volt applications, CML recommends the use of

a slide base neon lamp, rather than an incandescent lamp.

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

25P-326B Related Products

	25P-326B	25P-607G-S	25P-607G
Description	Headers u0026 Wire Housings HSG 3P W/LKG RAMP UL94V-2	LED Lenses GREEN TRANSLUCENT FITS 5100 5200 BODY
Product Category	LED Lenses	LED Lenses	LED Lenses
Manufacturer	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC
RoHS	Details	Details	Details
Product	LED Lenses	LED Lenses	LED Lenses
Packaging	Bulk	Bulk	Bulk
Factory Pack Quantity	1000	1000	1000
LED Size	T-2, T-3 1/4	-	T-2, T-3 1/4
Color	Blue	-	Green
Diameter	0.625 in	-	0.625 in
Material	Lexan, High Temperature	-	Lexan, High Temperature
Height	0.438 in	-	0.375 in
Mounting Hole Size	0.688 in	-	0.688 in
Mounting Style	Through Hole	-	Through Hole
Panel Thickness Dimension	0.406 in	-	0.406 in
Shape	Dome	-	Round
Style	Transparent	-	Translucent
