GCE250-1-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> GCE250-1-0

GCE250-1-0: DescriptionPanduit Ground "E" Style Connector, 1/0 STR 25; Categoryunclassified; File Size69KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

GCE250-1-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GCE250-1-0	-	-	View	Buy Now

GCE250-1-0 Overview

Panduit Ground "E" Style Connector, 1/0 STR 25

GCE250-1-0 Parametric

Parameter Name	Attribute value
Product Category	Panduit
Manufacturer	Panduit

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

.94 23.9

.66 16.8

MAIN

1.05 26.7

MAIN

1.00 25.4

1.08 27.4

1.00 25.4

1.36 34.5

MAIN

1.32 [33.4]

MAIN

1.00 25.4

MAIN

1/0-250

1/2-5/8 ROD

#3-#4 REBAR

250-500

1/2-3/4 ROD

#5-#6 REBAR

1/0-250

1/2-5/8 ROD

#3-#4 REBAR

6-1/0

250-500

1/2-3/4 ROD

#5-#6 REBAR

PANDUIT

GCE250-1/0

PANDUIT

GCE500-250

PANDUIT

GCE250-250

PANDUIT

GCE500-1/0

PANDUIT

GCE1/0-1/0

1.72 43.7

PG10

2.18 55.4

PG25

2.66 67.6

PG25

2.64 67.1

2.85 72.3

PG50

1/0-250

PG50

6-1/0

1/0-250

6-1/0

TAP

GCE1/0-1/0

TAP

GCE250-1/0

TAP

GCE250-250

TAP

GCE500-1/0

TAP

GCE500-250

PANDUIT

PART NUMBER

GCE1/0‐1/0

GCE250‐1/0

GCE250‐250

GCE500‐1/0

GCE500‐250

MAIN ‐ AWG [mm]

COPPER CABLE

#6 SOL ‐ 1/0 STR.

[16‐50 SQ. mm]

1/0 STR. ‐ 250 kcmil

[70‐120 SQ. mm]

1/0 STR. ‐ 250 kcmil

[70‐120 SQ. mm]

250 ‐ 500 kcmil

[150‐240 SQ. mm]

250 ‐ 500 kcmil

[150‐240 SQ. mm]

GROUND ROD

N/A

1/2"‐5/8" ROD

[12.7‐15.9 mm]

1/2"‐5/8" ROD

[12.7‐15.9 mm]

1/2"‐3/4" ROD

[12.7‐19.1 mm]

1/2"‐3/4" ROD

[12.7‐19.1 mm]

REBAR

N/A

3/8"‐1/2"; #3‐#4 REBAR

[9.5‐12.7mm; #10M‐#13M REBAR]

3/8"‐1/2"; #3‐#4 REBAR

[9.5‐12.7mm; #10M‐#13M REBAR]

5/8"‐3/4"; #5‐#6 REBAR

[15.9‐19.1mm; #16M‐#19M REBAR]

5/8"‐3/4"; #5‐#6 REBAR

[15.9‐19.1mm; #16M‐#19M REBAR]

TAP ‐ AWG [mm]

COPPER CABLE

#6 SOL ‐ 1/0 STR

[16‐50 SQ mm]

#6 SOL ‐ 1/0 STR

[16‐50 SQ mm]

1/0 STR ‐ 250 kcmil

[70‐120 SQ mm]

#6 SOL ‐ 1/0 STR

[16‐50 SQ mm]

1/0 STR ‐ 250 kcmil

[70‐120 SQ mm]

PANDUIT

COLOR CODE

RED

PANDUIT

DIE INDEX NO.

PG10

STD.

PKG QTY

BLACK

PG25

BLUE

PG50

NOTES

1. DIMENSIONS IN PARENTHESIS ARE MILLIMETERS.

2. UL 467 LISTED AND CSA 22.2 CERTIFIED FOR GROUNDING

& BONDING SUITABLE FOR DIRECT BURIAL IN EARTH OR

CONCRETE WHEN CRIMPED WITH PANDUIT OR INDUSTRY

STANDARD CRIMPING TOOLS & PANDUIT DIES.

3. ENHANCED CRIMP PROCESS WITH PATENTED TECHNOLOGY

MEETS IEEE STD 837 - 2002.

4. PRE-APPLIED ANTIOXIDANT COMPOUND ENSURES A HIGH

QUALITY MECHANICAL AND ELECTRICAL BOND, SPEEDING INSTALLATION.

5. CABLE TIES ARE PROVIDED WITH THE TAPS TO RETAIN WIRES IN POSITION

DURING CRIMPING.

12/10 JHNU JHNU ADDED AGENCY LOGOS

3/09

4/08

JHNU RGB

TO REFLECT REBAR MARKINGS, REMOVED * NOTE

JHNU RGB

DRAWING RELEASED

REVISED VIEWS FOR GCE250-250 & GCE500-250

467

LISTED

RATED

CERTIFIED

CORP.

UNLESS OTHERWISE SPECIFIED

DIMENSIONAL TOLERANCES ARE:

(.X)

(.XXX)

.005

---

(.XX)

.03

ANGLES

DRAWN BY

DATE

TINLEY PARK, ILLINOIS

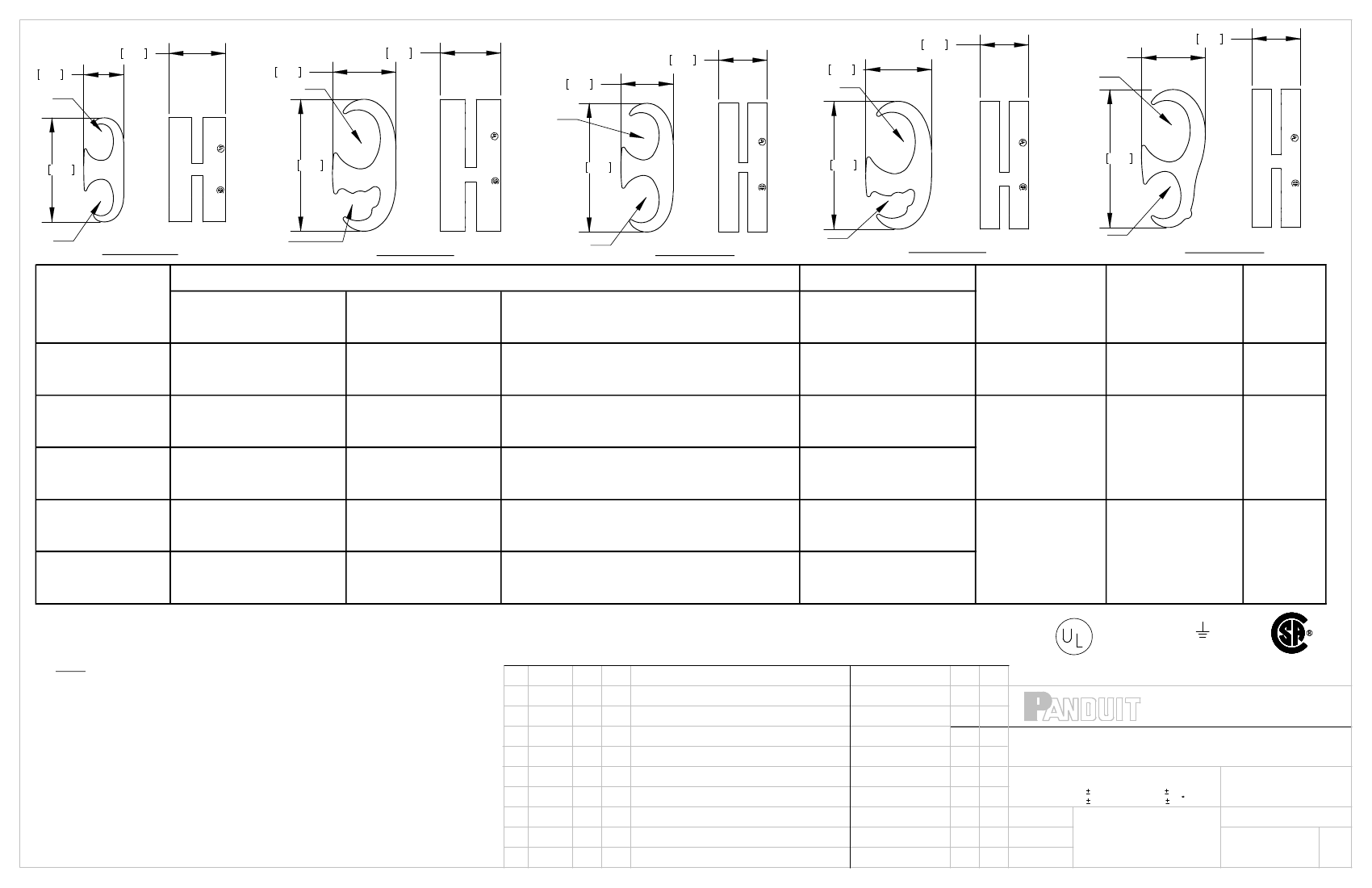

E-TAP GROUNDING CONNECTORS

CUSTOMER DRAWING

N10652AK-C41748

FLD

UNLESS OTHERWISE SPECIFIED,

ALL DIMENSIONS ARE GIVEN IN

INCHES, THIRD ANGLE PROJECTION

JHNU

MAT'L:

SCALE

NONE

DWG

12/10

REV

DATE

CHK

DESCRIPTION

ECN

-R

SUP

CHK'D

HIGH CONDUCTIVITY

COPPER

DRAWING NO / CAD FILE

C41748_02

SIZE
