Module carrier - TC-2KS50-DO32-EX-PR-CS - 2905199
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

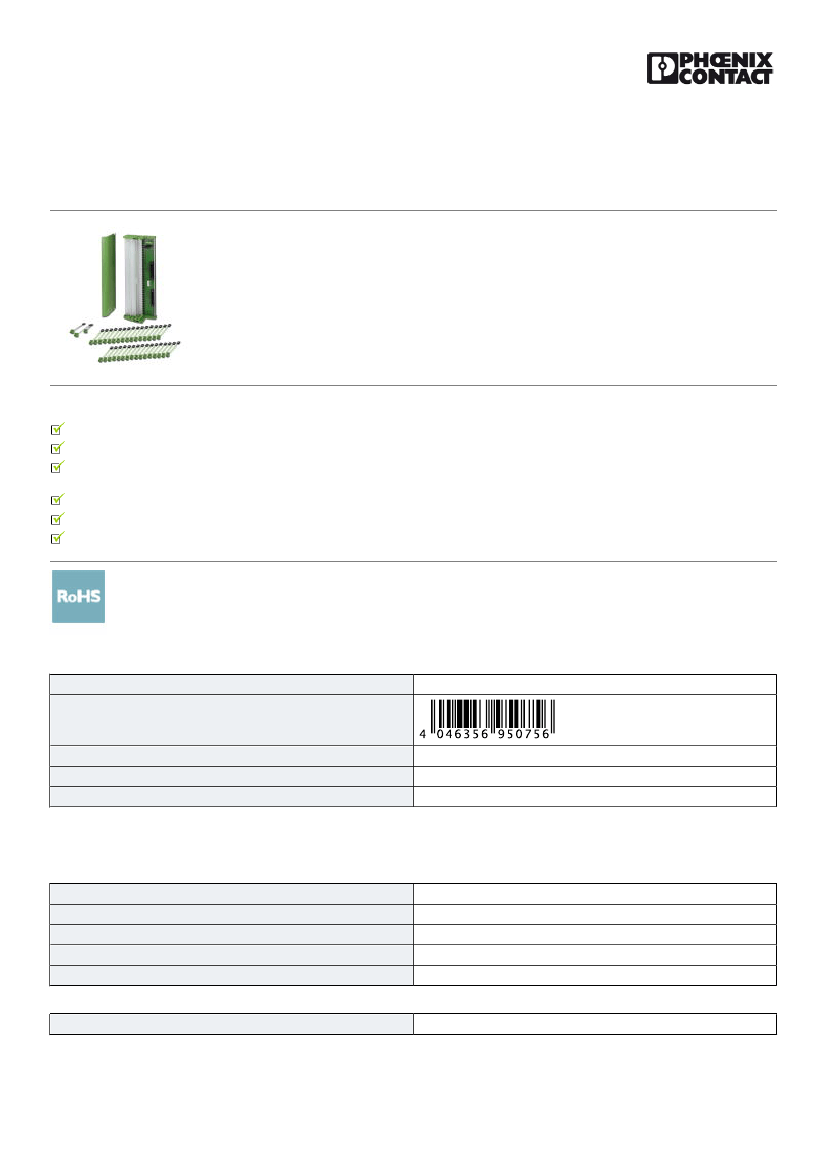

Termination Carrier for redundantly connecting 32 MACX Analog Ex i solenoid drivers to digital output cards
of the Yokogawa Centum VP controller, via two KS50 connectors, 50-pos. Suitable for Yokogawa ADV551
and ADV561 cards.
Why buy this product
Mechanically decoupled, passive PCB
Redundant system connection, 50-pos. (KS/AKB-compatible)
Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN
rail module
Robust aluminum profile with integrated DIN rail
Side parts with integrated end clamps
Cable sets for signal connection are supplied as standard and do not have to be ordered separately
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356950756
85369010
Made to Order (non-returnable)
1 STK
Technical data
General
Nominal voltage U
N
Max. permissible current
Degree of protection
Degree of pollution
Overvoltage category
< 30 V DC (Per signal/channel)
1 A (Signal/channel)
IP00
2
II
Supply
Designation
Power module
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/2905199
Module carrier - TC-2KS50-DO32-EX-PR-CS - 2905199
Technical data
Supply
Note
Input voltage
Input voltage range
Input current
Redundant supply
Polarization and surge protection
Output name
Contact type
Maximum switching voltage
Fuse
Status display
Supply and error message via 2904673 TC-MACX-MCR-PTB
24 V DC
19.2 V DC ... 30 V DC
≤2A
yes, decoupled from diodes
Yes
Switching output
1 N/C contact (alarm = open)
50 V DC (0.3 A)
2x 2.5 A on PCB, slow-blow (replaceable)
1 x red LED (error)
2x green LEDs (PWR1 and PWR2)
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Shock
Vibration (operation)
Maximum altitude
-20 °C ... 60 °C (Please observe module specifications)
-40 °C ... 80 °C
5 % ... 95 % (non-condensing)
15g, according to IEC 60068-2-27
2g, according to IEC 60068-2-6
≤ 2000 m
Dimensions
Width
Height
Depth
448 mm
170 mm
160 mm
Standards and Regulations
Shock
Designation
Standards/regulations
Rated insulation voltage
Rated surge voltage
Insulation
Flammability rating according to UL 94
Vibration (operation)
UL, USA/Canada
15g, according to IEC 60068-2-27
Air clearances and creepage distances
DIN EN 50178
50 V
0.5 kV
Basic insulation
V0
2g, according to IEC 60068-2-6
UL 61010 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/2905199
Module carrier - TC-2KS50-DO32-EX-PR-CS - 2905199

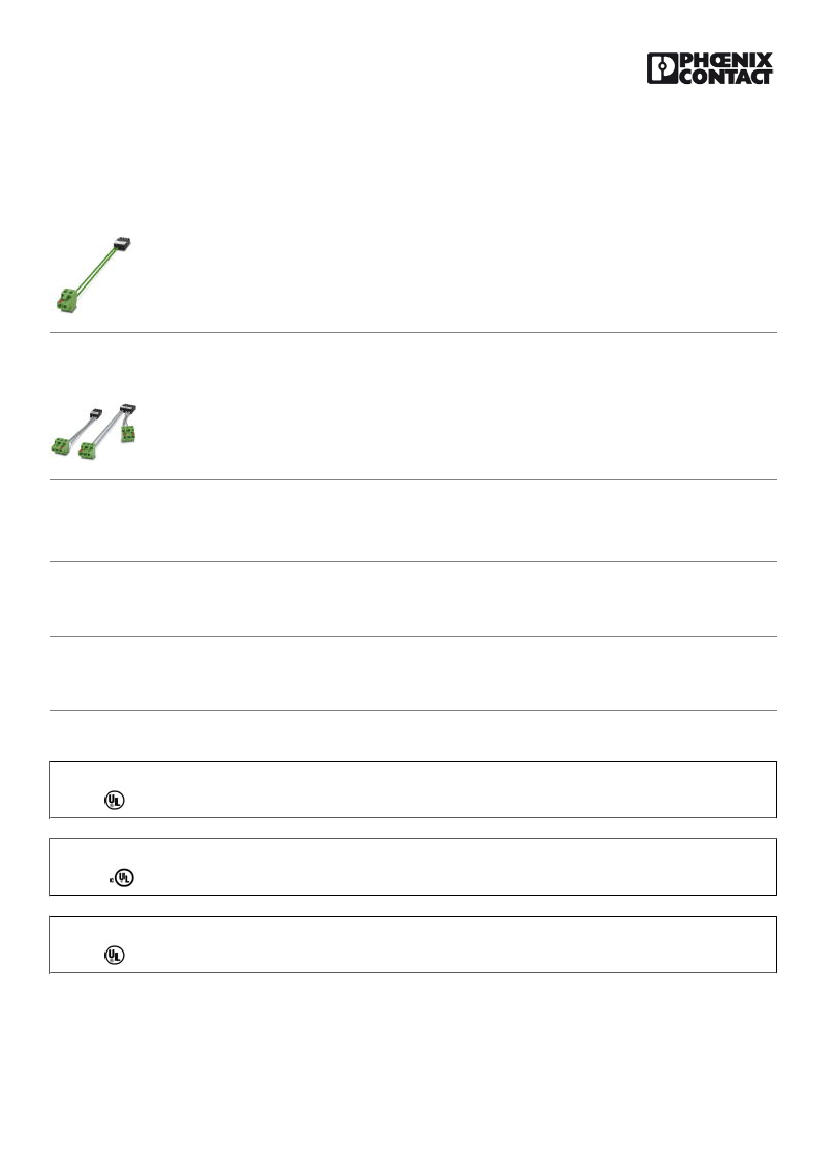

Articles in set
Cable set - TC-C-MAX2-SC-31320000 - 2902425
Cable set for signal transmission on the termination carrier for signal conditioners from the MACX MCR(-EX)-SL-...
series. Connection of terminal points 3.1 and 3.2 (signal transmission) with screw connection to the signal PCB via a
4-pos. PTSM connector.
Cable set - TC-C-PTB3-SC-SET1 - 2905216
Cable set for TC-MACX-MCR-PTB power and error message module (Order No. 2904673), for use on the
termination carrier for signal conditioners from the MACX MCR(-EX)-SL-... series.
Approvals
Approvals
Approvals
UL Listed / cUL Listed / UL Listed / cUL Listed / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 330267
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 330267
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/2905199
Module carrier - TC-2KS50-DO32-EX-PR-CS - 2905199
Approvals
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
cULus Listed
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
