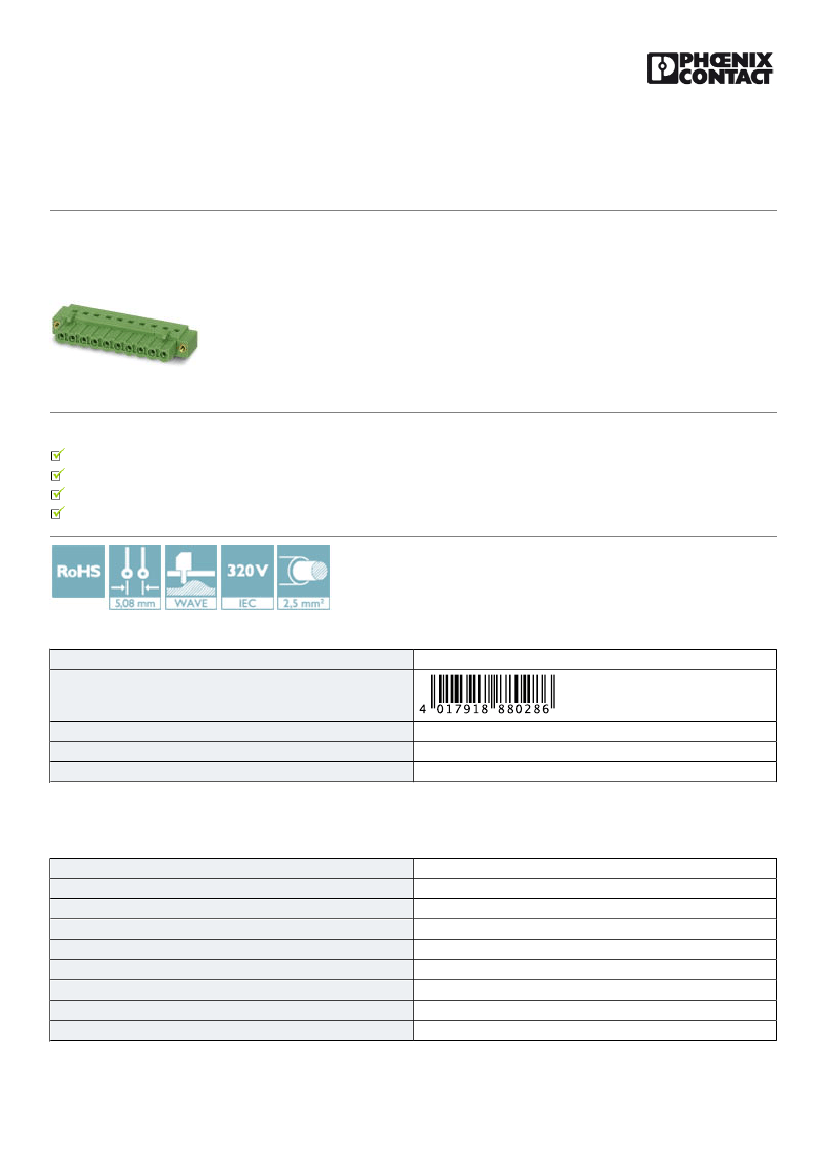

Base strip - IC 2,5 HC/12-GF-5,08 - 1943522
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 16 A, Rated voltage (III/2): 320 V, Number of positions: 12, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Mounting: Wave soldering, COMBICON connectors may only be activated under
no load conditions. If for operating reasons small loads must be switched, experimental values are available
upon request.
The figure shows a 10-position
version of the product
Why buy this product
Well-known mounting principle allows worldwide use
Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections
Screwable flange for superior mechanical stability
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918880286
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
Length of the solder pin
Pin dimensions
Pin spacing
19 mm
5.08 mm
55.88 mm
71.08 mm
10.2 mm
13.7 mm
3.5 mm
0,48 x 1,14
5.08 mm
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1943522
Base strip - IC 2,5 HC/12-GF-5,08 - 1943522
Technical data
Dimensions
Hole diameter
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
IC 2,5 HC/..-GF
I
4 kV
4 kV
4 kV
320 V
320 V
630 V
EN-VDE
16 A
16 A
PA
V0
green
12
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Drilling diagram
a
5,08
5,08
7,6
Dimensional drawing
37,1
19
2,4
2,81
a+15,2
5,08
3,5
10,2
5,08
7,6
a
5,08
2,81
8,3
5,08
1,4
Approvals
Approvals
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1943522
Base strip - IC 2,5 HC/12-GF-5,08 - 1943522
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
16 A
250 V
D
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40004701
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
16 A
250 V
cUL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
16 A
250 V
D
10 A
300 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-56062-B1B2
16 A
250 V
EAC B.01742
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1943522
Base strip - IC 2,5 HC/12-GF-5,08 - 1943522
Approvals
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 4 / 4
