RTN_150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> RTN_150

RTN_150: DescriptionLED Light Pipes Round Lightpipe LPC020CTP; CategoryLED optoelectronic/LED; File Size55KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric View All

RTN_150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RTN_150	-	-	View	Buy Now

RTN_150 Overview

LED Light Pipes Round Lightpipe LPC020CTP

RTN_150 Parametric

Parameter Name	Attribute value
Product Category	LED Mounting Hardware
Manufacturer	Visual Communications Company, LLC
RoHS	Details
Product	LED Mounting Rings
LED Size	3 mm, 5 mm
Material	Polyethylene (PE)
Color	Clear
Body Length	3.81 mm
Packaging	Bulk
Outside Diameter	4.45 mm
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

NOTES:

1) U.S. & Foreign Pat. Issued & Pend.

REVISIONS

ECN #

REV

N/A

001

145

002

DESCRIPTION

INITIAL RELEASE

REVISED PER ECR11109AZ01

CHANGE IN MATERIAL

DATE

6/16/99

2/1/10

7/12/10

INITIALS

.15

(3.81mm)

.160

(4.064mm)

.24

(6.10mm)

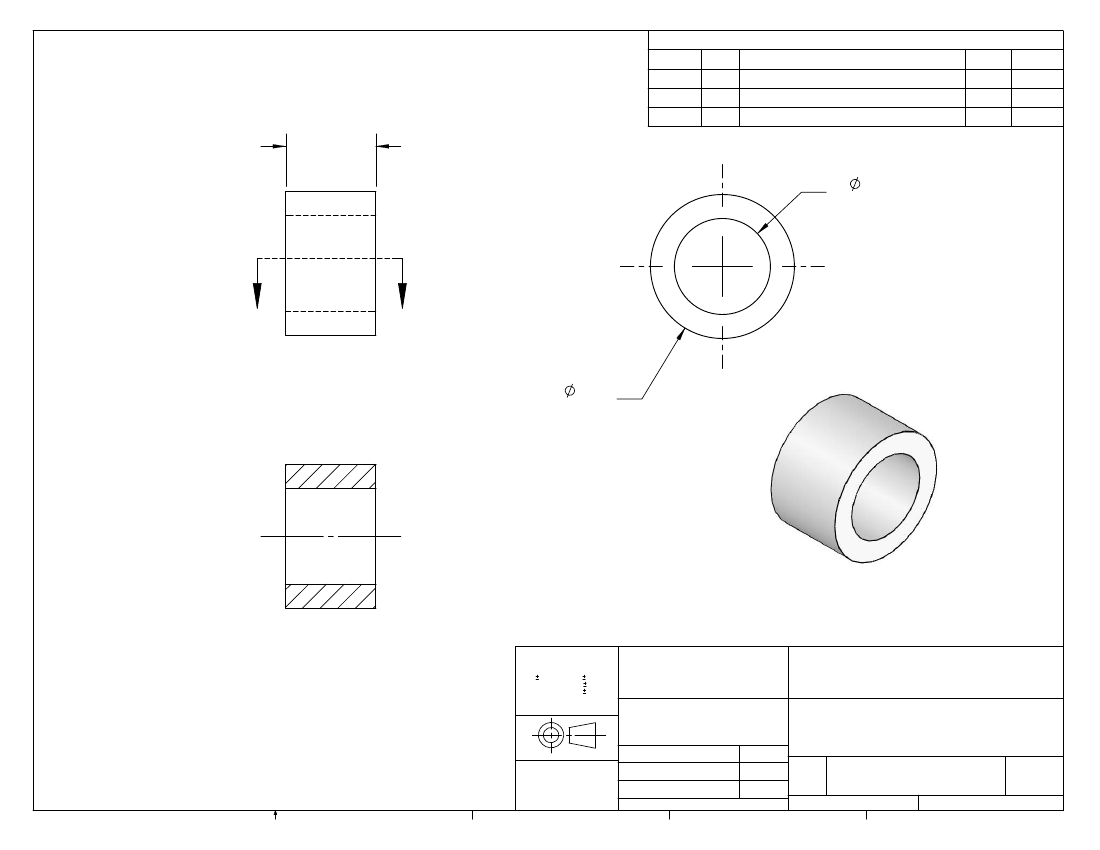

ISOMETRIC VIEW

SECTION A-A

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES:

MATERIAL

ANGLES

FINISH

DECIMALS

.020

.XX .010

.XXX .005

TPE,

BLACK

FINISH

VISUAL COMMUNICATIONS COMPANY

190 Bosstick Boulevard, Suite 101 San Marcos, CA 92069 USA

Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

CLIPLITE RTN 150

DATE

2/1/10

2/22/10

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS A

WHOLE WITHOUT THE WRITTEN PERMISSION

OF VISUAL COMMUNICATIONS COMPANY, INC

IS PROHIBITED.

APPROVALS

DRAWN

CHECKED

K.HOWARD

DPZ

SIZE

DWG. NO.

REV

SCALE: 6:1

RTN 150

002

SHEET 1 OF 1

DO NOT SCALE DRAWING
