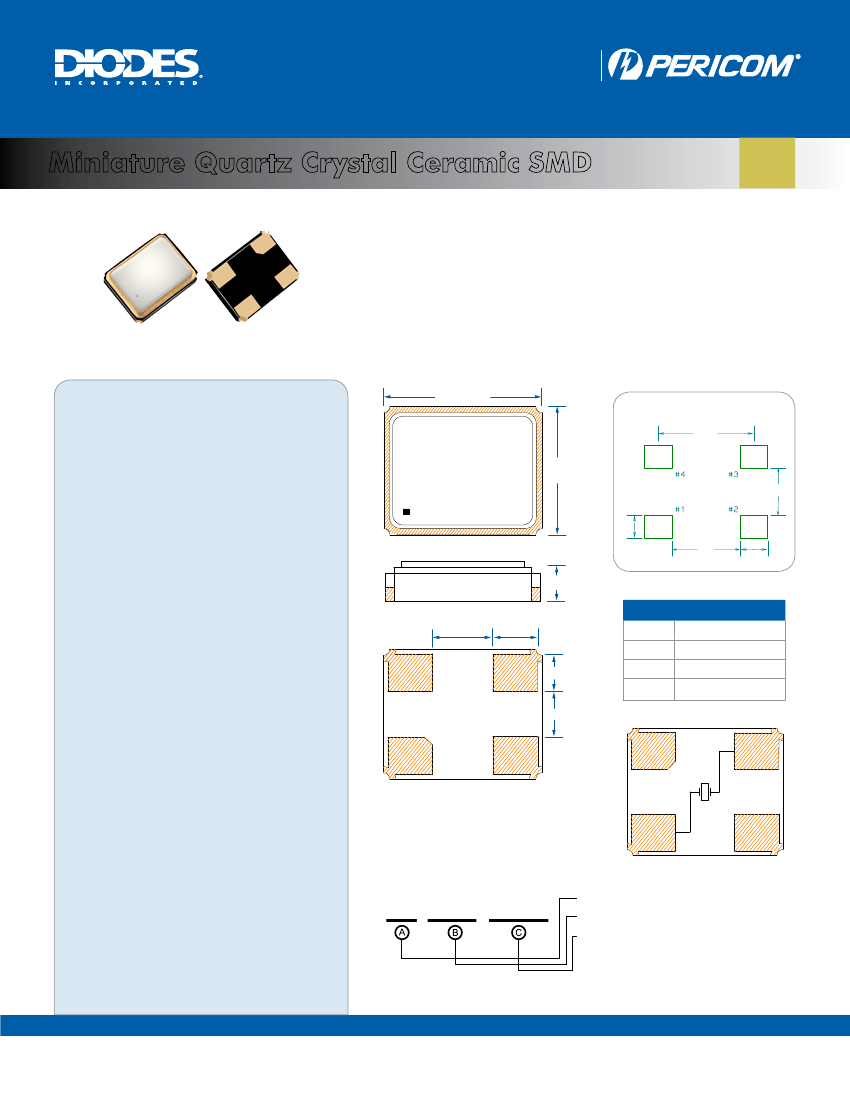

ADVANCED INFORMATION
A product Line of
Diodes Incorporated
FW Series Quartz Crystal
2.0 x 1.6mm
Miniature Quartz Crystal Ceramic SMD
FW
2.0 x 1.6mm Ceramic SMD
Package:
(Scale: none; Dimensions are in mm)
2.0 ± 0.2
Product Description
The 4-pad FW Series seam seal devices incorporate
a ultra-miniature AT-cut crystal resonator housed in
a standard 2.0 x 1.6mm ceramic package. These
compact crystals are ideal for surface mounting
in densely populated or small form-factor PCB
applications.
1.6 ± 0.2
Recommended Land Pattern:
1.4
0.3
0.8
0.5
0.9
Product Features
•
Rugged AT-cut crystal construction
•
Miniature 2.0 x 1.6mm ceramic package
•
Available on tape & reel; 8mm tape,
3000 units per reel
•
Pb-free and RoHS/Green compliant
1
0.7
0.575
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
0.45 ± 0.1
Pin Functions:
Pin
Function
1
2
0.475
Xtal
Case
Xtal
Case
2
3
4
Typical Applications
•
Portable / Hand-held PCs
•
PCMCIA Cards
•
Notebook PC
•
Bluetooth
•
Wireless LAN
•
UWB
•
ZigBee
•
USB
•
GPS
•
HDD
•
GSM, CDMA, GPRS
4
3
0.5
Top View:
4
1
3
2
Part Ordering Information:
FW XXX YYYY
A: Product½Family
B: XXX = Frequency½Code
C: YYYY = Specification½Code
Following the above format, Saronix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
© Diodes Incorporated
FW
Document Number DS40235 Rev 1-2
•
US: +1-408-232-9100 TW: +886-3-4518888
•
www.diodes.com
July 2017
© Diodes Incorporated
1
www.diodes.com
All specifications are subject to change without notice.
Miniature Quartz Crystal Ceramic SMD
A product Line of
Diodes Incorporated
FW
FW Series Quartz Crystal
2.0 x 1.6mm
Frequency Range:
•
16 MHz to 66.0000 MHz (Fundamental)
•
Frequency Calibration Tolerance: ±10ppm, ±20ppm, or ±30ppm
•
Load Capacitance: 8 to 20pF or Series Resonance
•
Effective Series Resistance (ESR):
120Ω max (16 to 26.0000 MHz)
100Ω max (26 to 32.0000 MHz)
80Ω max (32 to 66.0000 MHz)
•
Drive Level: 10µW typ. (100µW max)
•
Shunt Capacitance: 3pF Max
Characteristics at 25°C ±2°C:
Temperature Range:
•
Operating: –20 to +70°C or –30 to +85°C or –40to +125°C
•
Storage: –40 to +125°C
Frequency Stability (Reference to the Frequency at 25
o
C):
•–20
to +70°C: ±10ppm to ±50ppm
•–30
to +85°C: ±20ppm to ±50ppm
•–40to
+125°C: ±50ppm to ±70ppm
Aging at 25°C, First Year:
•±3ppm
Max
•±5ppm
Max
Reflow Temperature:
Mechanical
•260°C
Max, 10 seconds Max
•Shock:
JESD22-B104 Condition B
•Solderability:
J-STD-002
•Terminal
Strength: MIL-STD-883 Method 2004
•Vibration:
JESD22-B103
•Solvent
Resistance: JESD22-B107
•Resistance
to Soldering Heat: J-STD-020C Table 5-2 Pb-free devices (3 cycles max)
Environmental
•Gross
Test Leak: JESD22-A109, Condition C
•Fine
Test Leak: JESD22-A109, Condition A1
•Moisture
Resistance: JESD22-A113
•Insulation Resistance: 500 MΩ min (100 VDC)
© Diodes Incorporated
FW
Document Number DS40235 Rev 1-2
•
US: +1-408-232-9100 TW: +886-3-4518888
•
www.diodes.com
July 2017
© Diodes Incorporated
2
www.diodes.com
All specifications are subject to change without notice.
