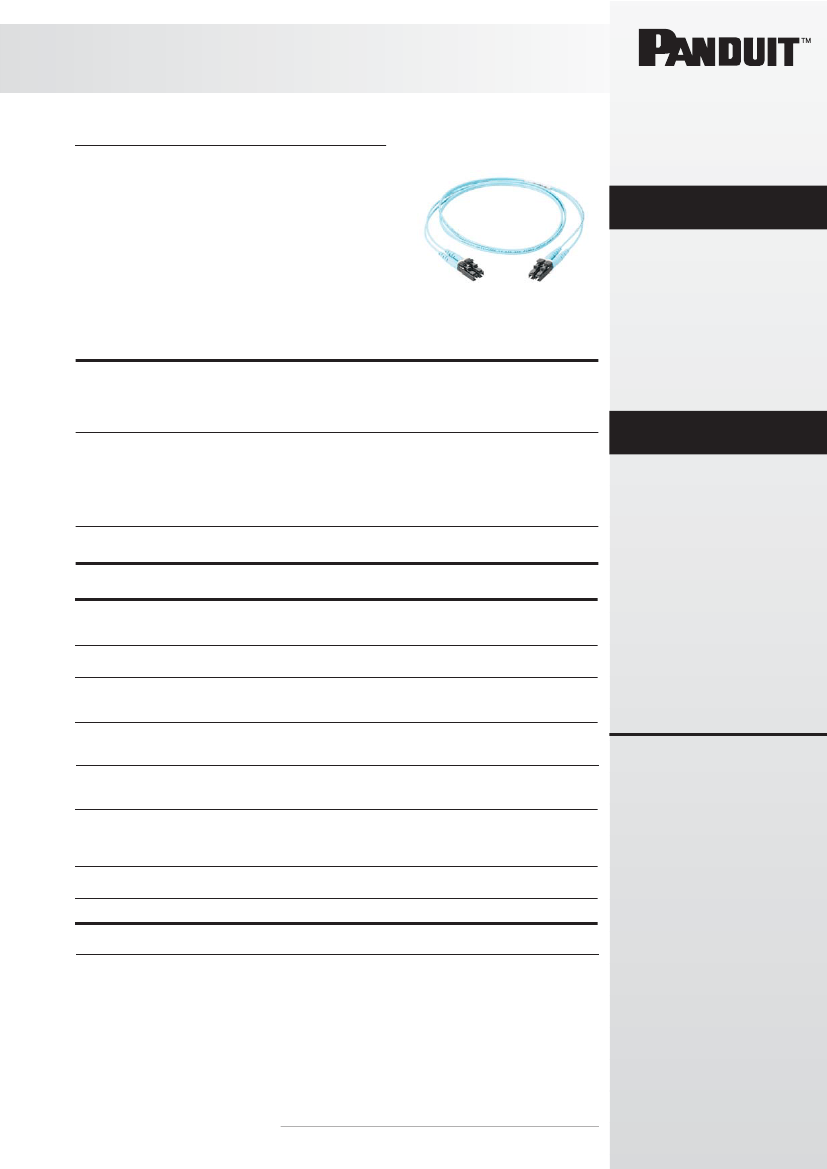

Opti-Core
™
Fibre Optic Patch Cords –
Low Smoke Zero Halogen (LSZH) Rated
specifications
RoHS compliant fibre optic patch cords shall include simplex or
duplex LC, SC, ST or MT-RJ connectors, or FJ or keyed FJ plugs or
jacks on both ends. RoHS compliant fibre optic pigtails shall include
simplex or duplex LC, SC, ST, or MT-RJ connectors, or FJ or keyed
FJ plugs or jacks on one end and open (unterminated) on the other
end. Patch cords and pigtails shall include laser optimised OM4, OM3
fibre or OM2, OM1 or OS1/OS2 fiber in 900µm tight-buffered fibre,
1.6mm or 3.0mm simplex or duplex zipcord jacketed cable, or 1.8mm
duplex zipcord jacketed cable. Jacketed cable shall be compliant with
IEC-60332-3 (LSZH) flame ratings. Patch cords and pigtails shall meet
or exceed requirements of TIA/EIA-568-C.3. The fibre connectors shall
be FOCIS compliant or compatible, and exceed the requirements of
TIA/EIA-455-21A for 500 mating cycles.
S P E C I F I C AT I O N S H E E T
technical information
Standards
requirements:
All connectors exceed TIA/EIA-455-21A: 500 mating cycles
Compliant with:
TIA/EIA-568-C.3 and ISO/IEC 11801
IEC-61754-7 (International)
TIA-604-5 (FOCIS-5)
IEC-60332-3 (LSZH) flame rating
Per connection:
0.10dB typical (multimode), 0.25db max. (OM1, OM2
and Standard OM3, OM4)
0.15db max. (optimized OM3 and Optimized OM4) for SC and LC
0.30db max. for other connectivity
0.50dB max. (MT-RJ multimode);
0.25dB typical singlemode, 0.35dB max., (SM-UPC) for LC,
0.50dB max. (SM-UPC) for other connectivity
Insertion
loss:
Return loss:
20dB min. (multimode); 26dB min. (10Gig
™
multimode);
55dB min. (singlemode)
key features and benefits
Factory terminated and 100%
tested for insertion loss (all)
and return loss (10Gig
™
and SM)
Low smoke zero halogen
rated jacket
Singlemode endface
geometry 100%
factory inspected
Singlemode endface
UPC polished
(55dB min. return loss)
Singlemode patch cords
include low water peak fibre
Certified 10 GbE performance
Assures high performance for increased up-time and lower
cost of ownership
Meets IEC-60332-3 (LSZH) flame rating for standard
compliant safety
Every singlemode endface is inspected in compliance with
Telcordia GR-326-CORE, Issue 3 requirements to assure
high performance
Ensure a high quality endface for higher return loss to meet
application requirements
Eliminates high attenuation in the E-band and allows
operation over the entire 1260nm – 1625nm wavelength
range; excellent for CWDM and DWDM applications
10Gig
™
Patch Cords and Pigtails are tested per IEEE 802.3ae 10
GbE to support network transmission speeds up to 10 Gb/s for link
lengths up to 300m for OM3 and up to 550 meters for OM4 at
850nm to assure high performance and reliability
Establishes a performance reference to streamline
maintenance and troubleshooting
Quality control reference provides lifetime traceability of test data
Opti-Core
™
Low Smoke Zero
Halogen (LSZH) Fibre Optic
Patch Cords
Duplex LC to LC
1.6mm
jacketed cable:
F^LE10-10M‡
Duplex SC to SC
3mm
jacketed cable:
F^LD3-3M‡
Duplex ST to ST
3mm
jacketed cable:
F^LD2-2M‡
Duplex MT-RJ to
MT-RJ 1.8mm
jacketed cable:
F^LZ12-12M‡
™
Opti-Core Low Smoke Zero
Halogen (LSZH) Hybrid
Fibre Optic Patch Cords
Duplex SC to LC
1.6mm
jacketed cable:
F^LE3-10M‡
Duplex ST to LC
1.6mm
jacketed cable:
F^LE2-10M‡
Duplex ST to SC
3mm
jacketed cable:
F^LD2-3M‡
Duplex SC to
MT-RJ 1.8mm
jacketed cable:
F^LZ3-12M‡
Duplex ST to
MT-RJ 1.8mm
jacketed cable:
F^LZ2-12M‡
™
Duplex FJ Plug
to MT-RJ 1.8mm
jacketed cable:
F^LZ6P-12M‡
Substitute for fibre type:
Z = OM4 – 10Gig
™
50/125µm
ZO = Optimized OM4 – 10Gig
™
50/125µm
X = OM3 – 10Gig
™
50/125µm
XO = Optimized OM3 – 10Gig
™
50/125µm
5 = OM2 – 50/125µm,
6 = OM1 – 62.5/125µm, or
9 = OS1 – 9/125µm
‡Substitute for length in metres:
Patch cords 1m – 10m, 15m, 20m, 25m
or 30m; pigtails – 1, 2, or 3.
Contact Customer Service for other
available lengths.
Test data supplied with each
patch cord
Q.C. identification label
applications
Opti-Core
™
Fibre Optic Patch Cords provide
interconnect and cross-connect of applications
over installations in entrance facilities,
telecommunications rooms, data centres and at
the desk. They support network applications to
interconnect pre-terminated cassettes in main
distribution, horizontal distribution, and equipment
distribution areas. These low smoke zero halogen
(LSZH) rated patch cords support installations
that require these flame ratings in specific
environments. Opti-Core
™
Fibre Optic Patch Cords
and Pigtails are available in OM4, OM3 fibre or
OM2, OM1 or OS1/OS2 fibre types to meet the
demands of Gigabit Ethernet, 10 Gigabit Ethernet
and high speed Fibre Channel systems while
maintaining compatibility with Ethernet, Fast
Ethernet, FDDI and ATM. If application requires
riser (OFNR) or Plenum (OFNP) rated fibre optic
patch cords or pigtails, refer to Opti-Core
™
Fibre
Optic Patch Cords or Pigtails – Riser (OFNR) and
Plenum (OFNP) Rated specification sheet.
w w w. p a n d u i t . c o m
Opti-Core
™
Fibre Optic Patch Cords (LSZH)
Fibre Optic Patch Cord Detail
4
2
3
5
7
Patch cord length in metres
Part Number Configurator
Example:
F
1
XL
2
E
3
10
4
—
10
5
M
6
5
7
Y
8
FXLE10-10M5 =
Opti-Core
™
10Gig
™
LC to LC Duplex Fibre Optic Patch Cord, OM3/OM4 – 10Gig
™
50/125µm multimode
low smoke zero halogen rated cable, LC duplex connectors on each end, and 5m in length.
4
and
5
Connector Styles
Select one style for each end, listing lower number
first, or 6P first.
2 = ST, 3 = SC, 6P = FJ
™
Plug, 10 = LC,
12 = MT-RJ or 16 = E-2000
6
Unit of Measure (M = Metres)
7
Length
Patch Cords: 1-10, 15, 20, 25 and 30 metre lengths.
Pigtails: 1, 2, and 3 metre lengths.
8
RoHS Compliance
All patch cords and pigtails are RoHS compliant.
2
Fibre Type and Jacket Flame Rating
Low Smoke Zero Halogen (LSZH) rated cable:
ZL = OM4 – 10Gig
™
50/125µm
ZOL = Optimized OM4 – 10Gig
™
50/125µm
XL = OM3 – 10Gig
™
50/125µm
XOL = Optimized OM3 – 10Gig
™
50/125µm
5L = OM2 – 50/125µm,
6L = OM1 – 62.5/125µm, or
9L = OS1 – 9/125µm
3
Cable Type
D = 3mm duplex zipcord jacketed cable
S = 3mm simplex jacketed cable
E = 1.6mm duplex zipcord jacketed cable
F = 1.6mm simplex jacketed cable
Z = 1.8mm duplex zipcord jacketed cable
Note:
Not all cable types and connector combinations are available. Contact customer service for availability and other lengths.
^Substitute for fibre type: Z = OM4 – 10Gig
™
50/125µm, X(OM3 – 10Gig
™
50/125µm), 5(OM2 – 50/125µm), 6(OM1 – 62.5/125µm) and 9(OS1/OS2 – 9/125µm).
*MTP is a registered trademark of US Conec Ltd.
