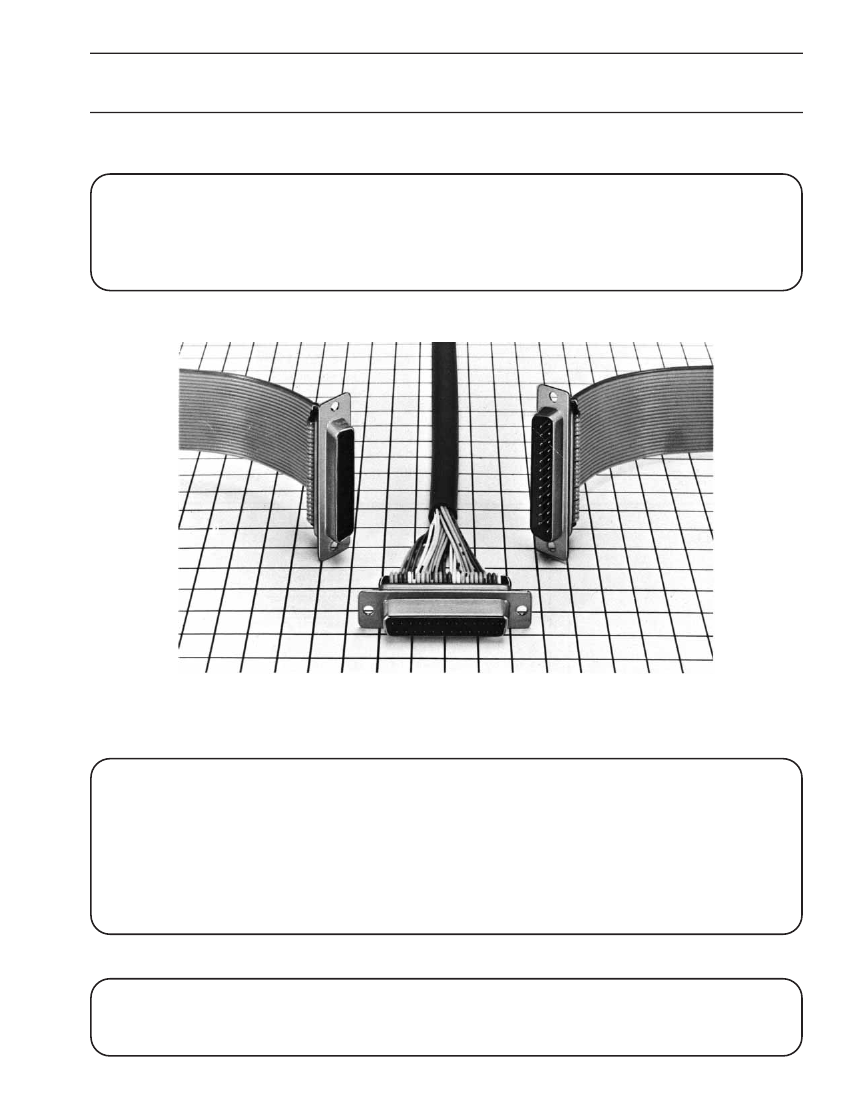

RIBBON-CABLE LOW-PROFILE FD CONNECTORS
General
The low-profille FD series are rectangular multi-contact
connectors for ribbon-cable IDC termination. The FD
Series are most useful for labor-saving in connection
work and enhancing wiring reliability.
The profile has been minimized to meet the customer
needs for smaller devices. 9, 15, 25 and 37-contact
models are available.
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
Features
(1) Compact and sturdy due to metal shell.
(2) Can be mounted on the front or back of a panel or
chasis as necessary.
(3) Much lower Profile to permit miniaturization.
(4) Fixes the cable securely by fitting the ribbon cable
clamp with a metal plate in the connector.
(5) Cables, including standard pitch (1.27mm) ribbon
cables, as well as those with 1.38mm pitch (equal
to the D sub), can be connected by replacing the
jig (a jig is required for slit cables).
(6) Discrete cables can be connected by using a multi-
core cable IDC terminator.
Application
Computers, peripherals and terminals, radio equipment, and control equipment.
04/2009
73
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Electrical and Environmental
Electrical and Environmental Characteristics
Current rating
Voltage rating
Insulation
resistance
Contact
resistance
Withstand
voltage
1A
200V AC
1,000MΩ min.
at 500V DC
25mΩ max.
at 100mA DC
650Vr.m.s. AC
for one minute
Shell
Insulator
Contacts
Steel
PBT
Material and Finish
Nickel plating
Black
Beryllium Copper Nickel plating + gold plating
※UL94V-0
Cable specifications
1.38 or 1.27 (N-1)
0.9±0.1
N: No. of cores
Core: AWG♯28 (7/0.127)
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
1.38 or 1.27
1.38 or 1.27×N

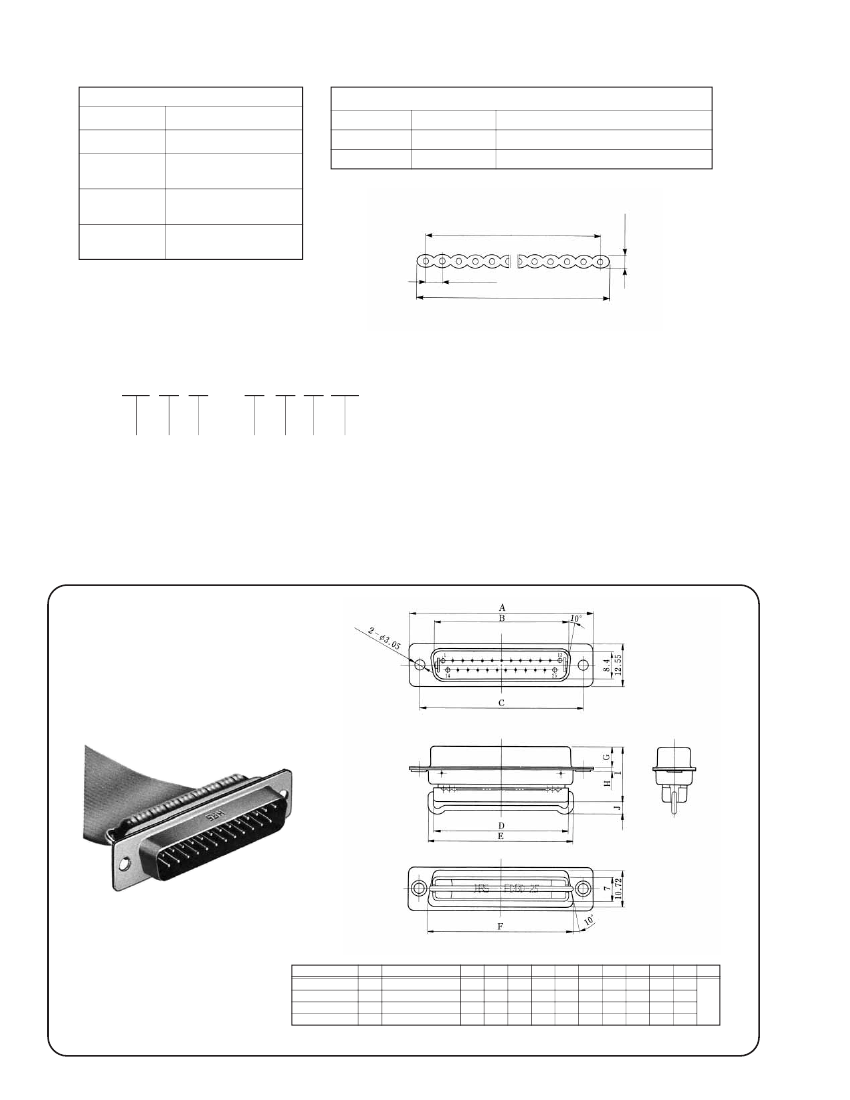

Ordering Informations
FD
B
D
−
25
P
F
（55）
(1) Series Name FD: Insulation displacement
termination
(2) Shell size E, A, B, C
(3) Serial sign for series
(4) No. of pin 9, 15, 25, 37
(5) Type of contacts
P: Male contact
S: Female contact
(6) F: Shell dimpled (male connector only)
(7) (55) Nickel-plated shell
(1) (2) (3)
(4) (5) (6) (7)

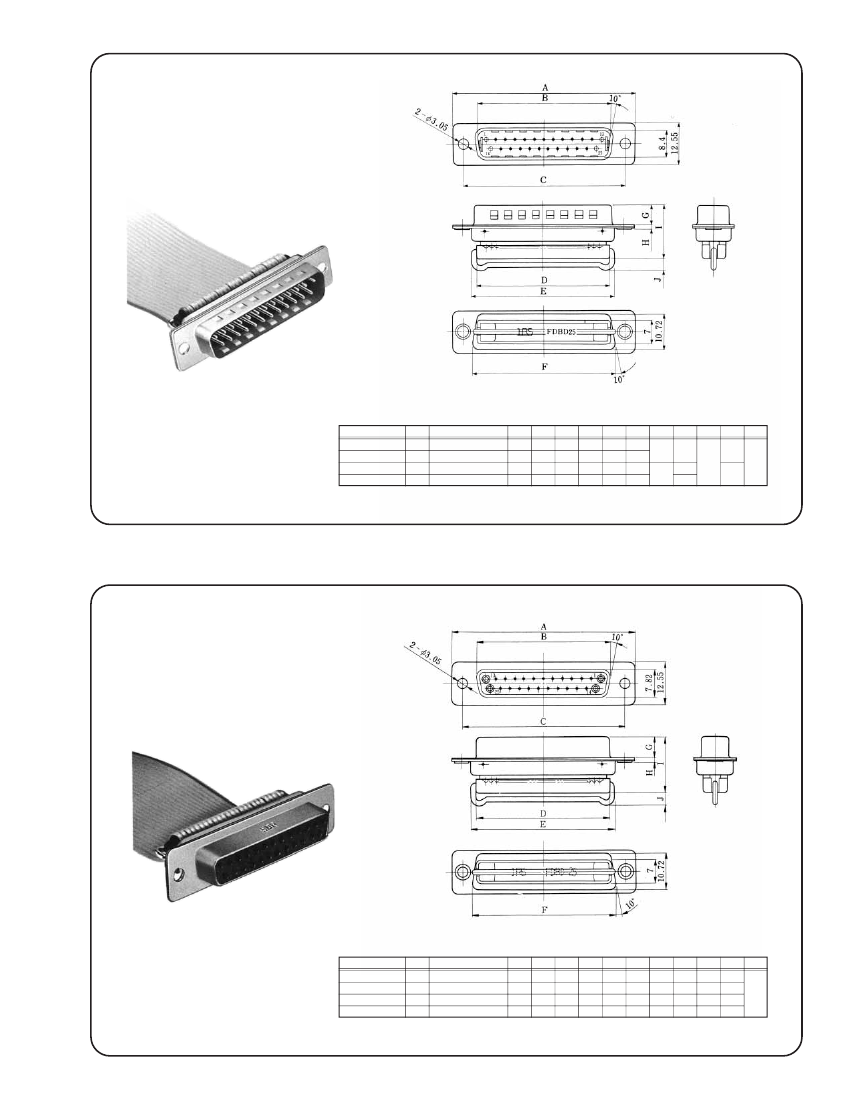

Pin Connector
FDBD-25P
（55）
Unit: mm
HRS No
CL211-0444-4-55
CL211-0446-0-55
CL211-0448-5-55
CL211-0450-7-55
No.of pin
9
15
25
37
Part No.
FDED-9P
（55）
FDAD-15P
（55）
FDBD-25P
（55）
FDCD-37P
（55）
A
30.81
B
C
D
E
19
27.2
41.4
57.9
F
19.28
27.55
41.28
57.71
G
5.99
5.99
5.87
5.87
H
1.2
1.2
1.3
1.4
I
15.67
15.67
15.67
15.67
J
2.7
2.7
3.2
3.2
YES
RoHS
16.9 24.99 16.9
39.14 25.24 33.32 25.27
53.04 39.01 47.04 39
69.32 55.47 63.5 55.4
74
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
FDBD-25PF
（55）
HRS No
CL211-0604-9-55
CL211-0605-1-55
CL211-0606-4-55
CL211-0607-7-55
No.of pin
9
15
25
37
Part No.
FDED-9PF
（55）
FDAD-15PF
（55）
FDBD-25PF
（55）
FDCD-37PF
（55）
A
B
C
D
E
19.0
27.2
41.4
57.9
F
19.28
27.55
41.28
57.71
G
5.99
5.87
H
1.2
1.3
1.4
15.67
I
J
30.81 16.9 24.99 16.9
39.14 25.24 33.32 25.27
53.04 39.01 47.04 39.0
69.32 55.47 63.5 55.4
Unit: mm
RoHS
2.7
YES
3.2
Female Connector
FDBD-25S
（55）
HRS No
CL211-0445-7-55
CL211-0447-2-55
CL211-0449-8-55
CL211-0451-0-55
No.of pin
9
15
25
37
Part No.
FDED-9S
（55）
FDAD-15S
（55）
FDBD-25S
（55）
FDCD-37S
（55）
A
30.81
B
16.4
C
24.99
D
16.9
E
19
27.2
41.4
57.9
F
19.28
27.55
41.28
57.71
G
6.17
6.17
6.17
6.17
H
1.2
1.2
1.2
1.2
I
15.67
15.67
15.67
15.67
J
Unit: mm
RoHS
2.7
2.7
3.2
3.2
YES
39.14 24.59 33.32 25.27
53.04 38.3 47.04 39
69.32 54.76
63.5
55.4
04/2009
75
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

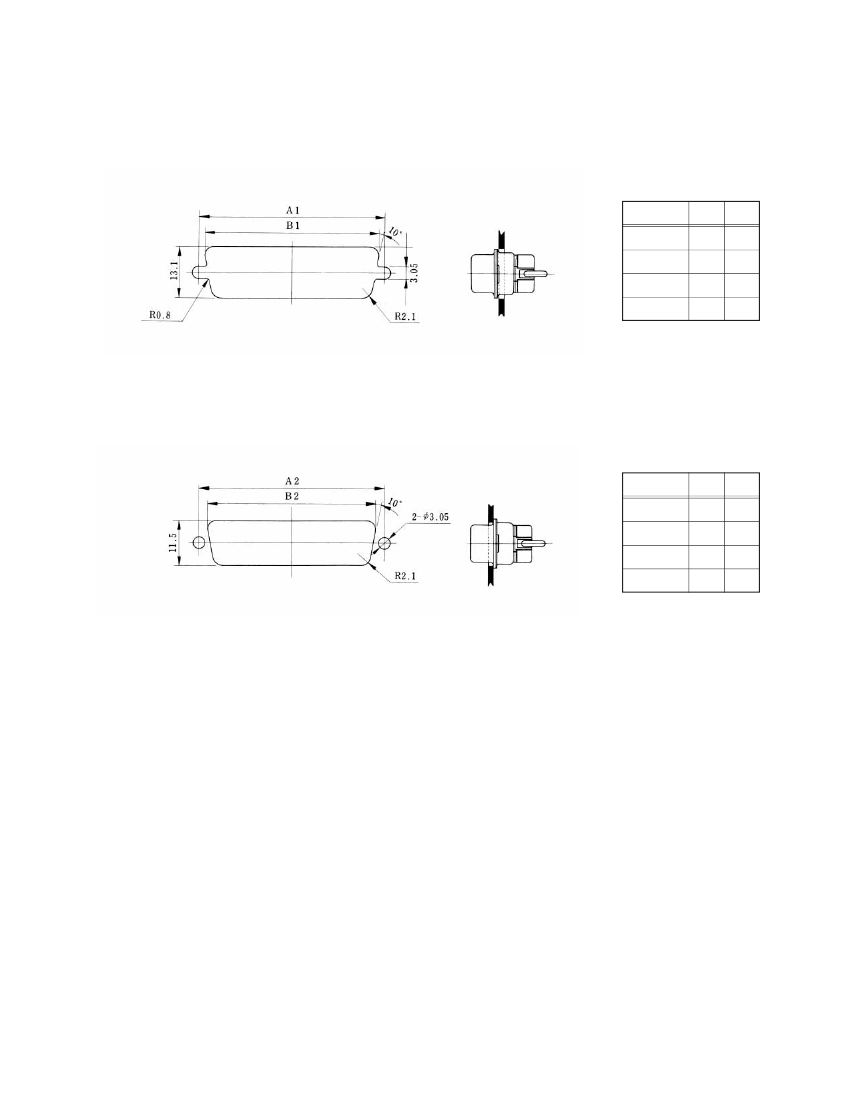

Connector Mounting Method and Mounting Dimensions
Connector mounted on the face of the panel (front mounting)
Note: A slight gap will appear between connector and panel since the
connector must be plugged to the back of the panel.
Unit: mm
Shell size
E
A1
24.99
33.32
47.04
63.5
B1
22
30.3
44
60.5
Dec.1.2017
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2017
A
B
C
Connector mounted on the back of the panel (rear mounting)
Unit: mm
Shell size
E
A
B
C
A2
24.99
33.32
47.04
63.5
B2
20.2
28.6
42.5
59.2
76
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

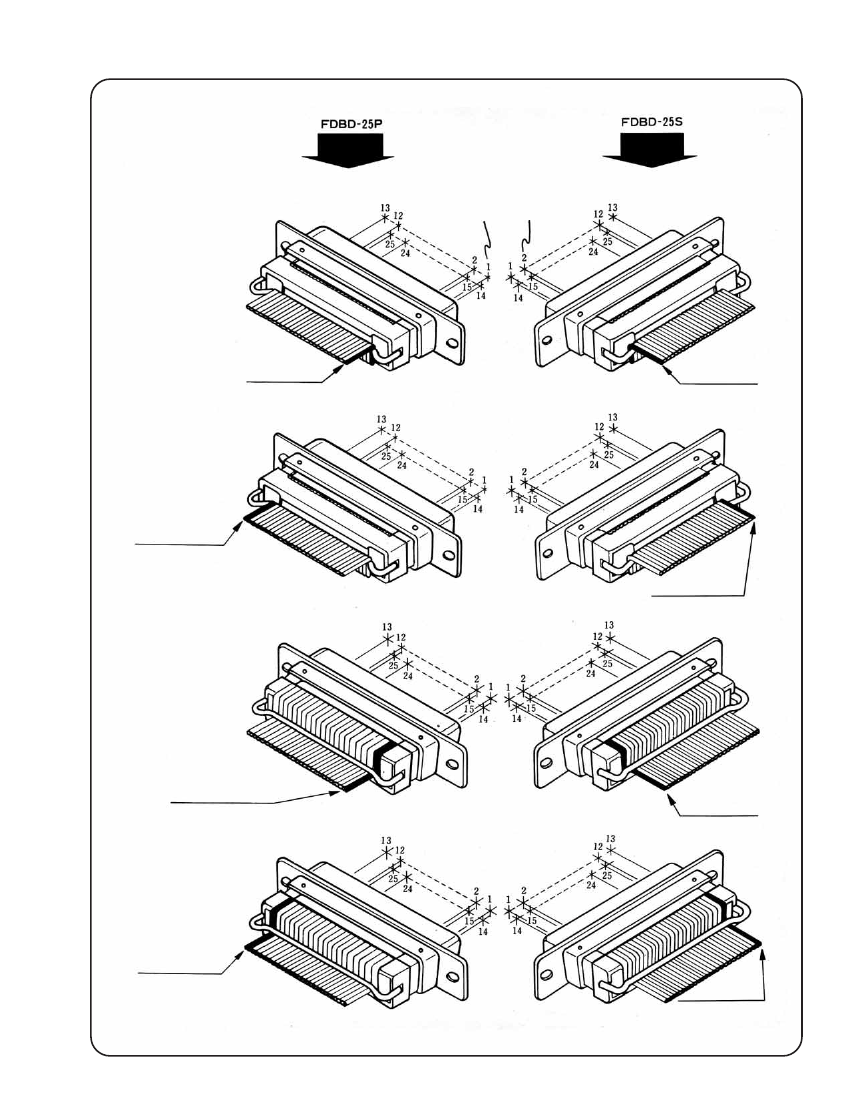

Cabling Variations
s
Connecting Type
A Type
Dec.1.2017
