Preview

SDS850R-563M: DescriptionFixed Inductors 56uH 20% .38ohm Shield SMT Pwr Induc; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SDS850R-563M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SDS850R-563M	-	-	View	Buy Now

SDS850R-563M Overview

Fixed Inductors 56uH 20% .38ohm Shield SMT Pwr Induc

SDS850R-563M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
package instruction	4132
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4132
structure	RECTANGULAR PACKAGE
core material	FERRITE
DC Resistance	0.38 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	4.8 mm
Package length	10.5 mm
Package form	SMT
Package width	8 mm
method of packing	TR, 13 Inch
Maximum rated current	0.68 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

er

w

Po

ST

TE

SERIES

Y

NC

UE

EQ

FR

NG

TI )

RA A

T (m

EN UM

RR IM

CU AX

M

CE

AN )

ST S

SI HM

RE M (O

DC MU

XI

MA

CE

AN

CT

DU

IN

SDS850R

s

or

ct

du

In

SH

DA

E

MB

NU

E

NC

RA

LE

TO

)

Hz

(k

H)

(µ

Surface Mount Shielded Power Choke

R*

-222N

-392N

-562N

-822N

-103M

-123M

-153M

-183M

-223M

-273M

-333M

-393M

-473M

-563M

-683M

-823M

-104M

-124M

-154M

-184M

-224M

-274M

-334M

-394M

-474M

-564M

-684M

-824M

-105M

Actual Size

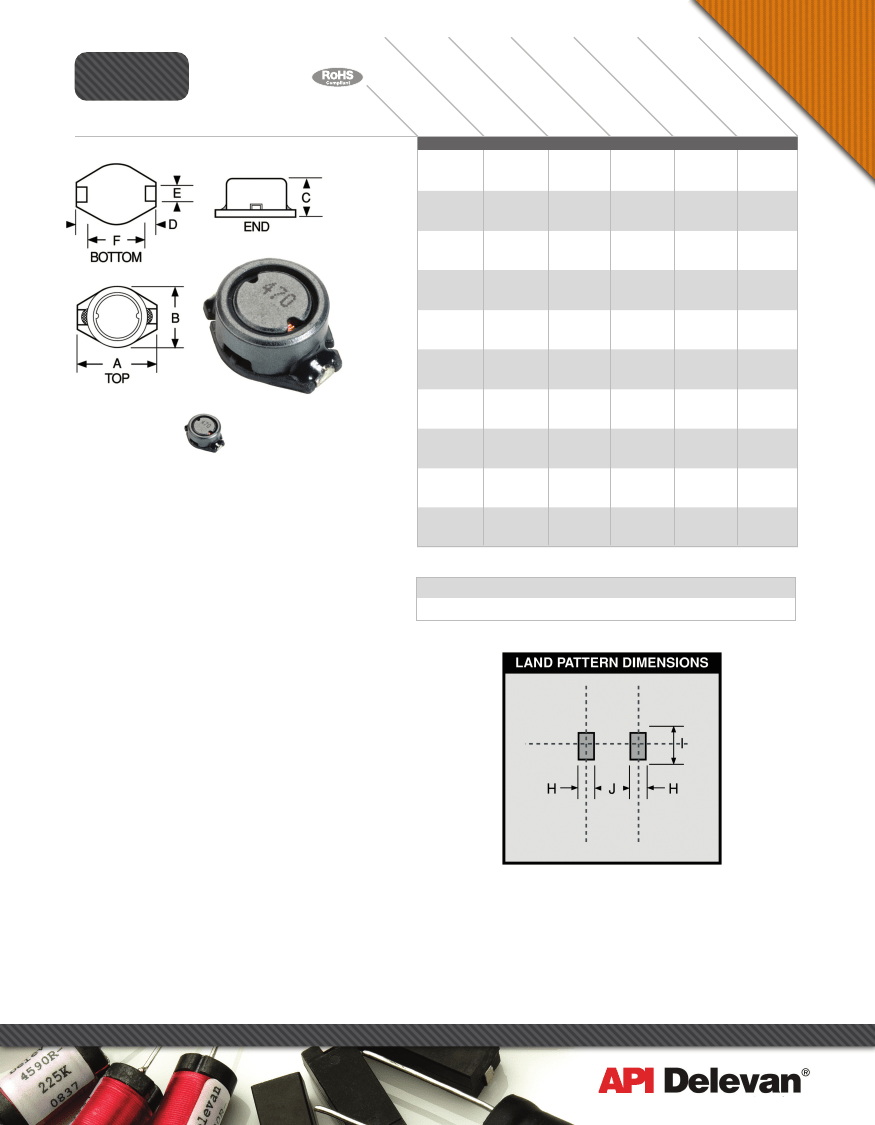

Physical Parameters

Inches

A

0.413 ±0.008

B

0.315 ±0.008

C

0.190 Max.

D

0.083 ±0.008

E

0.079 ±0.008

F

0.236 ±0.012

G

0.224 Ref.

H

0.094 Ref.

I

0.087 Ref.

Millimeters

10.5 ±0.2

8.0 ±0.2

4.8 Max.

2.1 ±0.2

2.0 ±0.2

6.0 ±0.3

5.7 Ref.

2.4 Ref.

2.2 Ref.

SERIES SDS850 FERRITE CORE & SLEEVE

2.2

±30%

100

0.040

3.9

±30%

100

0.055

5.6

±30%

100

0.065

8.2

±30%

100

0.080

10

±20%

1

0.100

12

±20%

1

0.120

15

±20%

1

0.140

18

±20%

1

0.160

22

±20%

1

0.180

27

±20%

1

0.200

33

±20%

1

0.240

39

±20%

1

0.260

47

±20%

1

0.280

56

±20%

1

0.380

68

±20%

1

0.440

82

±20%

1

0.550

100

±20%

1

0.600

120

±20%

1

0.750

150

±20%

1

0.900

180

±20%

1

1.050

220

±20%

1

1.180

270

±20%

1

1.40

330

±20%

1

1.80

390

±20%

1

2.10

470

±20%

1

2.25

560

±20%

1

3.00

680

±20%

1

3.40

820

±20%

1

4.00

1000

±20%

1

5.00

2500

2100

1950

1750

1500

1400

1300

1200

1100

1000

920

840

750

680

600

540

500

450

400

350

300

270

240

220

200

180

170

160

150

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Current rating at 25°C Ambient

40°C Max. Rise

Operating Temperature Range

-40°C to +85°C

Weight Maximum

0.95 grams

Marking

For values lower than 10

μ

H the R indicates a

decimal point and the remaining digits indicate the

inductance in

μ

H. For values 10

μ

H and above, the ﬁrst

two digits indicate the inductance in

μ

H and the third digit

indicates the number of trailing zeros where a zero

indicates that there are no trailing zeros.

Example: SDS850R-392N (3.9

μ

H)

3R9

Example: SDS850R-105M (1,000

μ

H)

102

Packaging

Tape & Reel (16mm): 13" reel

1000 pieces max.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
