PD 1.043
PVT422P
Microelectronic
HEXFET Power MOSFET Photovoltaic Relay
Power IC Relay
Dual Pole, Normally Open 0-400V, 120mA AC/DC
®
General Description
The PVT422P Series Photovoltaic Relay is a dual-
pole, normally open solid-state relay that can
replace electromechanical relays in many applica-
tions. It utilizes International Rectifier’s HEXFET
power MOSFET as the output switch, driven by an
integrated circuit photovoltaic generator of novel
construction. The output switch is controlled by
radiation from a GaAiAs light emitting diode (LED)
which is optically isolated from the photovoltaic
generator.
PVT422P is ideally suited for PCMCIA card
applications. Its extremely low profile allows it to be
used in Type II cards whose outer shells are only
5mm thick.
Series PVT422P Relays are packaged in an 8-pin,
molded ‘Thin-Pak’ DIP package with ‘gull-wing’
surface mount terminals. It is available in plastic
shipping tubes or on tape-and-reel. Please refer to
Part Identification (opposite) for details.
PVT422P Features
HEXFET Power MOSFET output
Bounce-free operation
3,750 V
RMS
I/O isolation
Linear AC/DC operation
Solid-State reliability
UL recognized
s
s
s
s
s
s
Applications
On/Off Hook switch
s
Dial-Out relay
s
Ring injection relay
s
General switching
s
PVT422P
‘Thin-Pak’
Part Identification
PVT422P surface-mount, plastic shipping tube
PVT422P-T
surface-mount, tape-and-reel
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
Series PVT422P HEXFET
®
Photovoltaic Relay
Electrical Specifications
(-40°C
≤
T
A
≤
+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Minimum Control Current
(See figure1)
Maximum Control Current for Off-State Resistance
@TA=+25°C
Control Current Range
(Caution: current limit input LED, see figure 5)
Maximum Reverse Voltage
Limits
2.0
0.4
2.0 to 25
7.0
Units
mA
mA
mA
V
OUTPUT CHARACTERISTICS
Operating Voltage Range
Maximum Load Current
@ T
A
=+40°C
5mA Control (See figure 1) (single and dual channel operation)
Maximum Peak Load Current
(10ms maximum duration)
(single and dual channel operation)
Maximum On-State Resistance
@T
A
=+25°C
For 50mA Pulsed load, 5mA Control (see figure3)
Maximum Off-State Leakage
@T
A
=+25°C, ±320V (see figure 4)
Maximum Turn-On Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Turn-Off Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Output Capacitance
@ 50V
DC
Limits
0 to ±400
120
350
35
1.0
2.0
2.0
12
Units
V
(DC or AC peak)
mA
mA
Ω
µA
ms
ms
pF
GENERAL CHARACTERISTICS
Minimum Dielectric Strength, Input-Output
Minimum Dielectric Strength, Pole-to-Pole
Minimum Insulation Resistance,
Input-Output, @T
A
=+25°C, 50%RH, 100V
DC
Maximum Capacitance, Input-Output
Maximum Pin Soldering Temperature
(10 seconds maximum)
Ambient Temperature Range:
Operating
Storage
Limits
4000
1000
10
12
1.0
+260
-40 to +85
-40 to +100
Units
V
RMS
V
DC
Ω
pF
°C
Connection Diagram
2
Series PVT422P HEXFET
®
Photovoltaic Relay

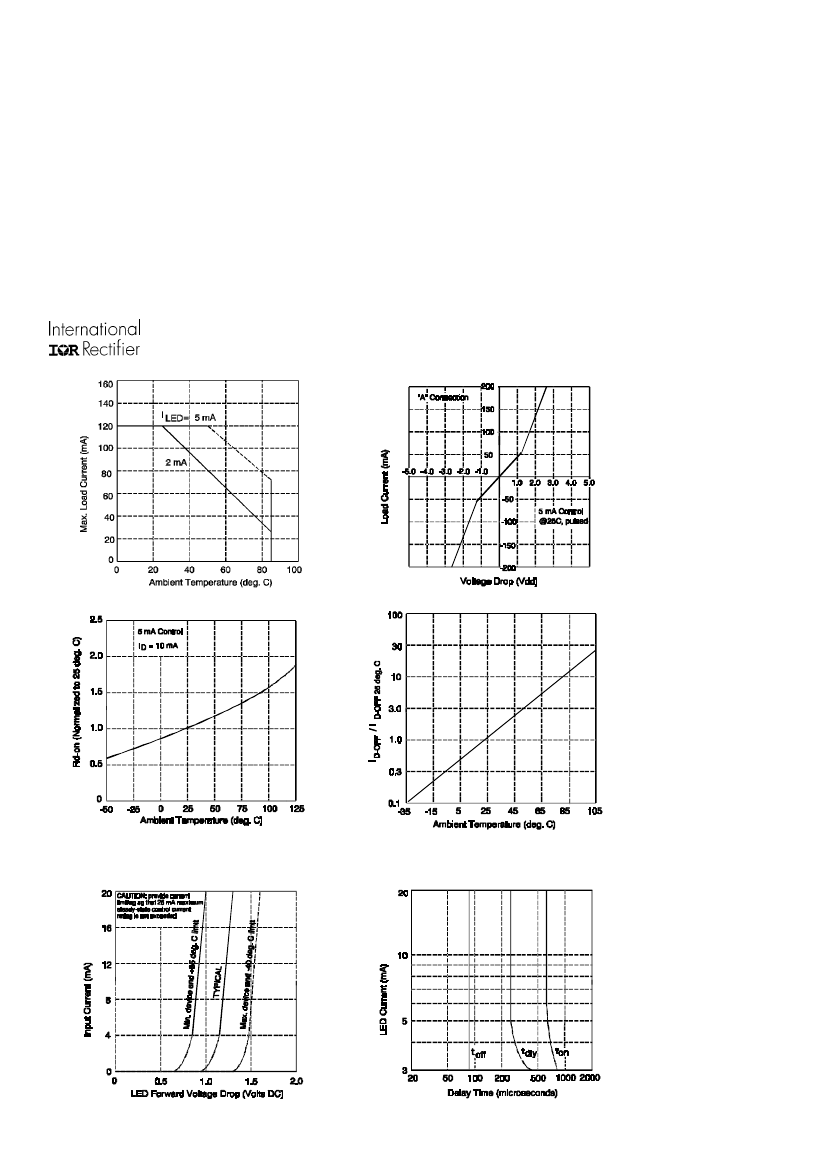

Figure 1. Typical Current Derating Curve
Figure 2. Linearity Characteristics
Figure 3. Typical Normalized On-Resistance
Figure 4. Typical Normalized Off-State Leakage
Figure 5. Input Characteristics (Current Controlled)
Figure 6. Typical Delay Times
3
Series PVT422P HEXFET
®
Photovoltaic Relay

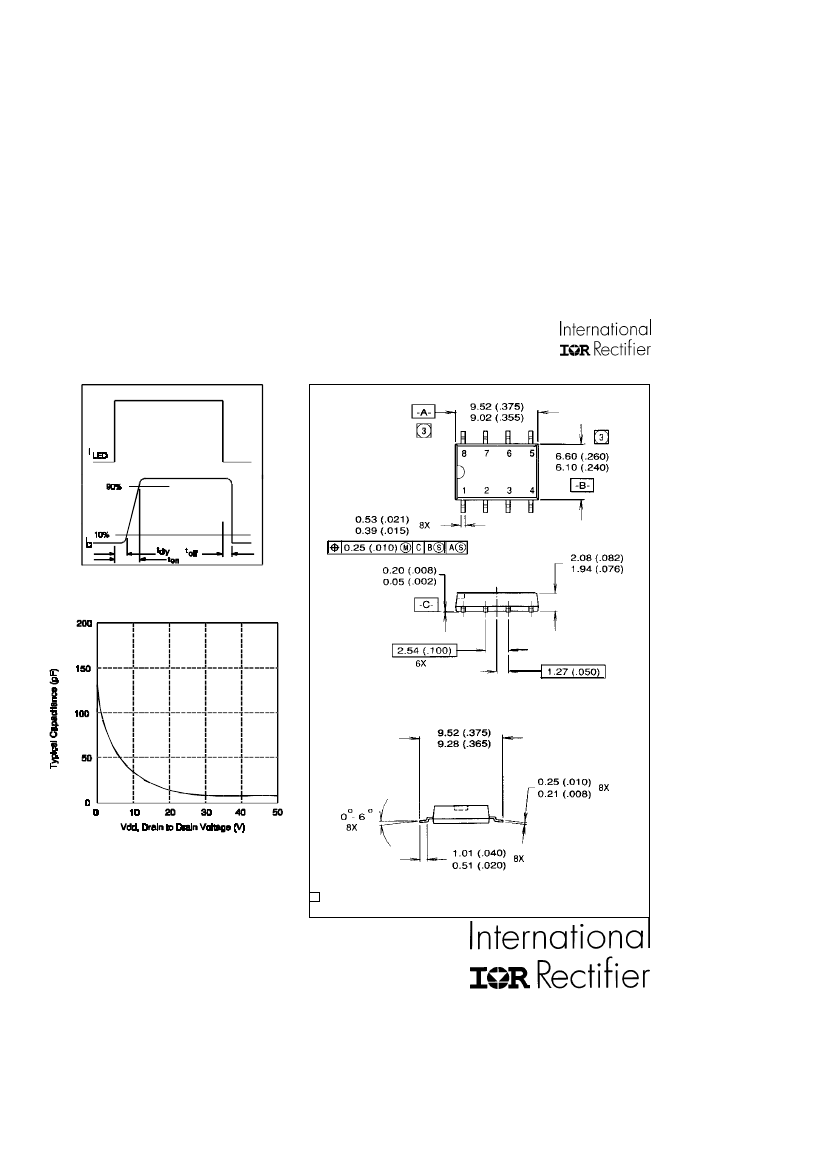

Mechanical Specifications
Dimensions in millimeters (inches)
Figure 7. Delay Time Definitions
Figure 8. Typical Output Capacitance
1. CONTROLLING DIMENSION: INCH
DIMENSION DOES NOT INCLUDE MOLD PROTRUSIONS. MOLD
PROTRUSIONS SHALL NOT EXCEED 0.25 (.010).
WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS:
Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 713215
IR CANADA:
7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY:
Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY:
Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST:
171 (K&H Bldg.), 30-4 Nishi-ikebukuro 3-Chome, Toshima-ku, Tokyo, Japan Tel: ++ 81 3 3983 0641
IR SOUTHEAST ASIA:
315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: ++ 65 221 8371
http://www/irf.com/
Data and specifications subject to change without notice.
1/97
4
