Data Sheet No. 1.042
Series PVT322A
HEXFET POWER MOSFET PHOTOVOLTAIC RELAY
®
Microelectronic
Power IC Relay
Dual Pole, Normally Open
0-250V, 170mA AC/DC
General Description
The PVT322A Series Photovoltaic Relay is a dual-
pole, normally open solid-state relay that can
replace electromechanical relays in many applica-
tions. It utilizes International Rectifier’s HEXFET
power MOSFET as the output switch, driven by an
integrated circuit photovoltaic generator of novel
construction. The output switch is controlled by
radiation from a GaAlAs light emitting diode (LED)
which is optically isolated from the photovoltaic
generator.
Series PVT322A Relays are packaged in an 8-pin,
molded DIP package with either through-hole or
surface mount (gull-wing) terminals. It is available
in standard plastic shipping tubes or on tape-and-
reel. Please refer to Part Identification information
opposite.
PVT322A Features
HEXFET Power MOSFET output
s
Bounce-free operation
s
4,000 V
RMS
I/O isolation
s
Linear AC/DC operation
s
Solid-State reliability
s
UL recognition pending
s
Applications
On/Off Hook switch
n
Tip and Ring Line switching
n
General switching
n
Part Identification
PVT322A
through-hole
PVT322AS
SMT
PVT322AS-T SMT, T&R
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
Series PVT322A HEXFET
®
Photovoltaic Relay
Electrical Specifications
(-40°C
≤
T
A
≤
+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Minimum Control Current
(See figure1)
Maximum Control Current for Off-State Resistance
@TA=+25°C
Control Current Range
(Caution: current limit input LED, see figure 5)
Maximum Reverse Voltage
Limits
2.0
0.4
2.0 to 25
7.0
Units
mA
mA
mA
V
OUTPUT CHARACTERISTICS
Operating Voltage Range
Maximum Load Current
@ T
A
=+40°C
5mA Control (See figure 1) (single and dual channel operation)
Maximum Peak Load Current
(10ms maximum duration)
(single and dual channel operation)
Maximum On-State Resistance
@T
A
=+25°C
For 50mA Pulsed load, 5mA Control (see figure 3)
Maximum Off-State Leakage
@T
A
=+25°C, ±250V (see figure 4)
Maximum Turn-On Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Turn-Off Time
@T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Output Capacitance
@ 50V
DC
Limits
0 to ±250
170
500
8
1.0
3.0
0.5
50
Units
V
(DC or AC peak)
mA
mA
Ω
µA
ms
ms
pF
GENERAL CHARACTERISTICS
Minimum Dielectric Strength, Input-Output
Minimum Dielectric Strength, Pole-to-Pole
Minimum Insulation Resistance,
Input-Output, @T
A
=+25°C, 50%RH, 100V
DC
Maximum Capacitance, Input-Output
Maximum Pin Soldering Temperature
(10 seconds maximum)
Ambient Temperature Range:
Operating
Storage
Limits
4000
1000
10
12
1.0
+260
-40 to +85
-40 to +100
Units
V
RMS
V
DC
Ω
pF
°C
Connection Diagram
2
Series PVT322A HEXFET
®
Photovoltaic Relay
200
250
200
ILED = 5 mA
150
100
50
-3 . 0 -2 .5 -2 .0 -1 .5 -1 .0 -0 .5
0 .5
-5 0
2 mA
1 .0
1 .5
2 .0
2.5
3 .0
150
100
50
-1 0 0
-1 5 0
0
0
20
40
60
80
100
-2 0 0
-2 5 0

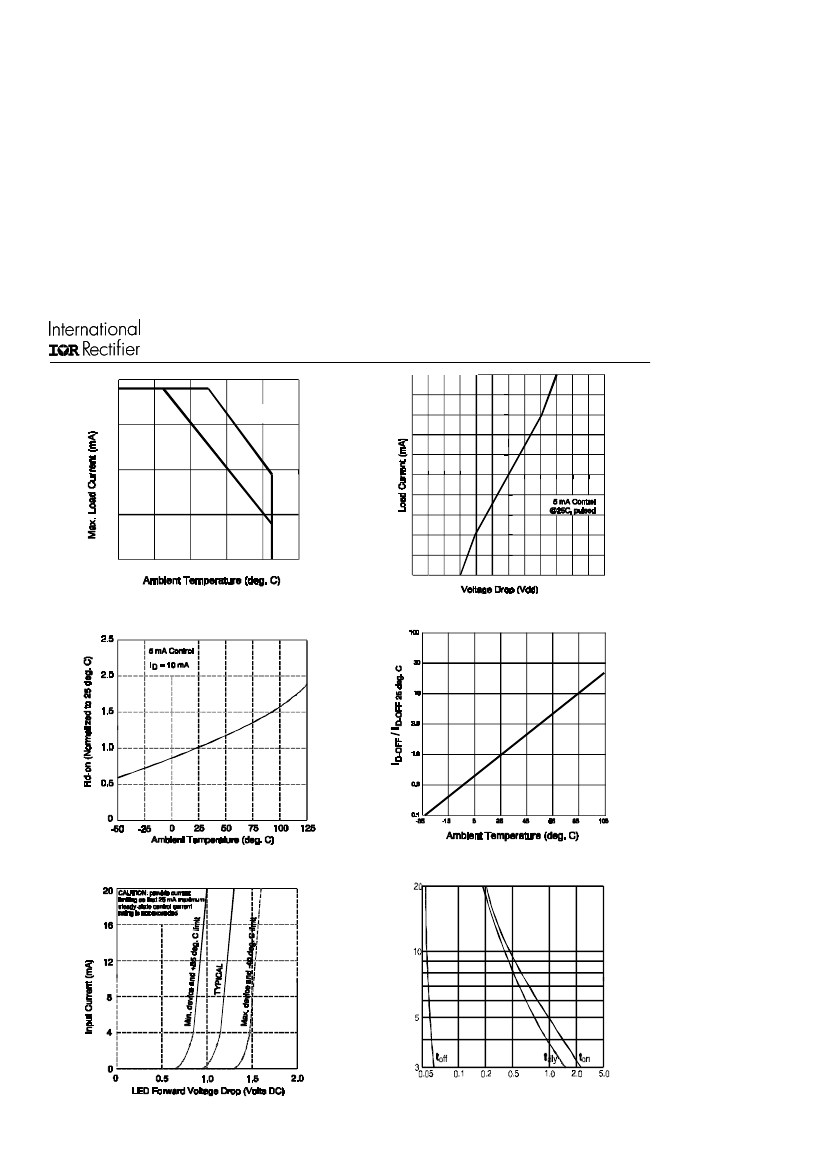

Figure 1.Typical Current Derating Curve
Figure 2. Linearity Characteristics
Figure 3. Typical Normalized On-Resistance
Figure 4. Typical Normalized Off-State Leakage
LED Current (mA)
Delay Time (milliseconds)
Figure 5. Input Characteristics (Current Controlled)
Figure 6. Typical Delay Times
3
Series PVT322A HEXFET
®
Photovoltaic Relay
Mechanical Specifications
Dimensions in millimeters (inches)

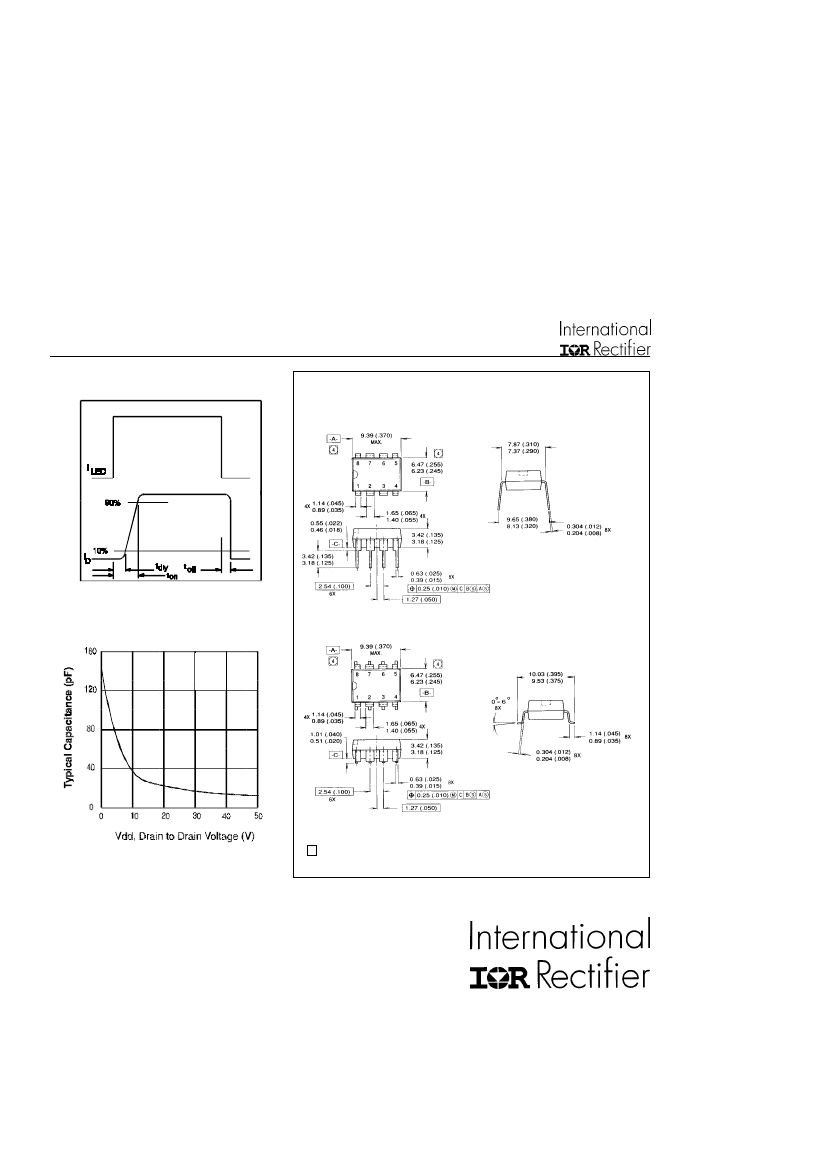

Figure 7. Delay Time Definitions
Figure 8. Typical Output Capacitance
1. Dimensioning and tolerancing per ANSI Y14.5M-1982
2. Controlling dimension: INCH
Dimension does not include mold protrusions.
Mold protrusions shall not exceed 0.25 (.010).
WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS:
Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 713215
IR CANADA:
7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY:
Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY:
Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST:
171 (K&H Bldg.), 30-4 Nishi-ikebukuro 3-Chome, Toshima-ku, Tokyo, Japan Tel: ++ 81 3 3983 0641
IR SOUTHEAST ASIA:
315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: ++ 65 221 8371
http://www/irf.com/
Data and specifications subject to change without notice.
1/97
