RR0510P-2740-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> RR0510P-2740-D

RR0510P-2740-D: DescriptionThin Film Resistors - SMD 1/16W 274ohm 0.5% 25ppm; CategoryPassive components; File Size568KB，1 Pages; ManufacturerSUSUMU

Download Datasheet Parametric View All

RR0510P-2740-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RR0510P-2740-D	-	-	View	Buy Now

RR0510P-2740-D Overview

Thin Film Resistors - SMD 1/16W 274ohm 0.5% 25ppm

RR0510P-2740-D Parametric

Parameter Name	Attribute value
Product Category	Thin Film Resistors - SMD
Manufacturer	SUSUMU
RoHS	Details
Resistance	274 Ohms
Power Rating	62.5 mW (1/16 W)
Tolerance	0.5 %
Temperature Coefficient	25 PPM / C
Voltage Rating	25 V
Operating Temperature Range	- 55 C to + 125 C
Case Code - in	0402
Case Code - mm	1005
Packaging	Reel
Height	0.35 mm
Length	1 mm
Package / Case	0402 (1005 metric)
Product	Thin Film Resistors SMD
Factory Pack Quantity	10000
Termination Style	SMD/SMT
Width	0.5 mm
Unit Weight	0.000023 oz

Preview

Download Datasheet

View All

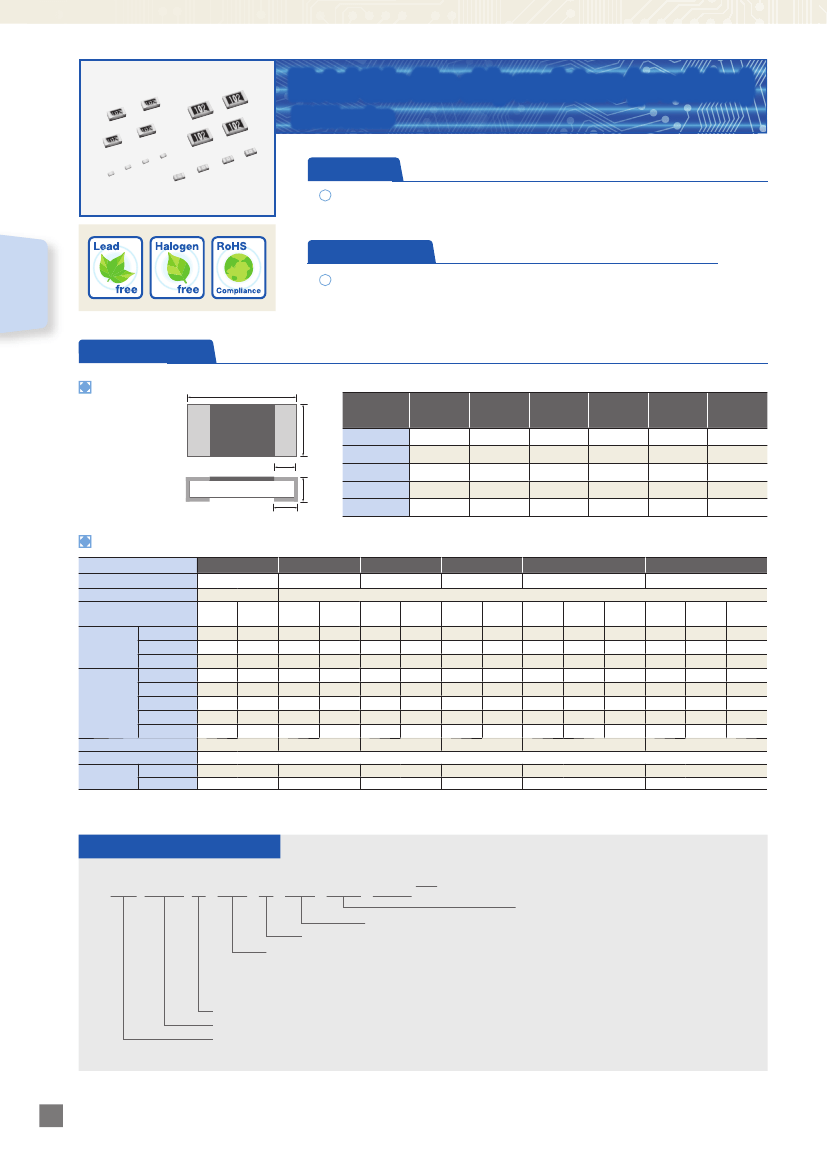

Metal thin film chip resistors (precision)

■

RR series

Features

●

Excellent characteristics in resistance tolerance, temperature coefficient

of resistance, current noise, and linearity

Thin film surface

mount resistors

Applications

●

Any electronics applications that require accuracy and reliability such

as automotive electronics, industrial test and measurement, consumer

electronics and many others.

RR series

Specifications

Dimensions

＊Stocked items: E-24 series (TCR P and Q, resistance tolerance D), other E-24 and E-96 series are made to order.

unit：mm

Dimension

（inch）

RR0306

（0201）

RR0510

（0402）

RR0816

（0603）

RR1220

（0805）

RR1632

（1206）

RR2632

（1210）

0.60±0.05 1.00±0.05 1.60±0.20 2.00±0.20 3.20±0.20 3.20±0.20

0.30±0.05 0.50±0.05 0.80±0.20 1.25±0.20 1.60±0.20 2.60±0.20

0.12±0.05 0.20±0.10 0.30±0.20 0.40±0.20 0.50±0.20 0.50±0.20

0.12±0.05 0.25±0.05 0.30±0.20 0.40±0.20 0.45±0.20 0.45±0.20

0.23±0.03 0.35±0.05 0.40±0.10 0.40±0.10 0.40±0.10 0.40±0.10

Electrical characteristics

Series name

power

E series offered

RR0306

RR0510

RR0816

RR1220

RR1632

RR2632

1/20Ｗ

1/16Ｗ

1/10Ｗ

1/8W

1/4W

E-24

E-24, E-96

10 〜

33 〜

10 〜

100 〜 10 〜

51 〜

100 〜 10 〜

51 〜

100 〜

Resistance range

（Ω）

22k

91 100k

91 360k

1M 200k

ー

○

ー

○

Resistance

±0.1%（B）

tolerance

±0.5%（D）

ー

○

ー

○

ー

（％）

ー

±1.0%（F）

○

ー

○

ー

○

±5（V）

Temperature

±10（N）

ー

○

ー

○

coefficient of

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

±25（P）

resistance

ー

○

ー

○

ー

○

ー

○

ー

±50（Q）

（ppm/℃）

ー

○

ー

±100（R）

○

Maximum voltage

15V

25V

75V

100V

150V

200V

Operating temperature

−55℃〜 125 ℃

5,000pcs

○

ー

○

Packaging

10,000pcs

ー

○

ー

Part numbering system

RR 0816 P - 102 - D -

(

)

(

)

(

***

)

Only given to 3 digit codes for RR0816 E-96 series

Taping quantity RR1632, RR2632

5000pcs : T5

Letter M is added for RR1220 E-96 series 4 digit codes.

RR0306, RR0510, RR0816,

Resistance tolerance

RR1220：no code is given

Resistance value RR0306, RR0510, RR0816, RR1220 E-24 series : 3digit

RR0306, RR0510, RR0816, RR1220 E-96 series : 4digit

RR1632, RR2632 : 4digit

Rated power

Temperature coeﬃcient of resistance

Size

Series code

Complete Product Catalogue

Thin Film Product
