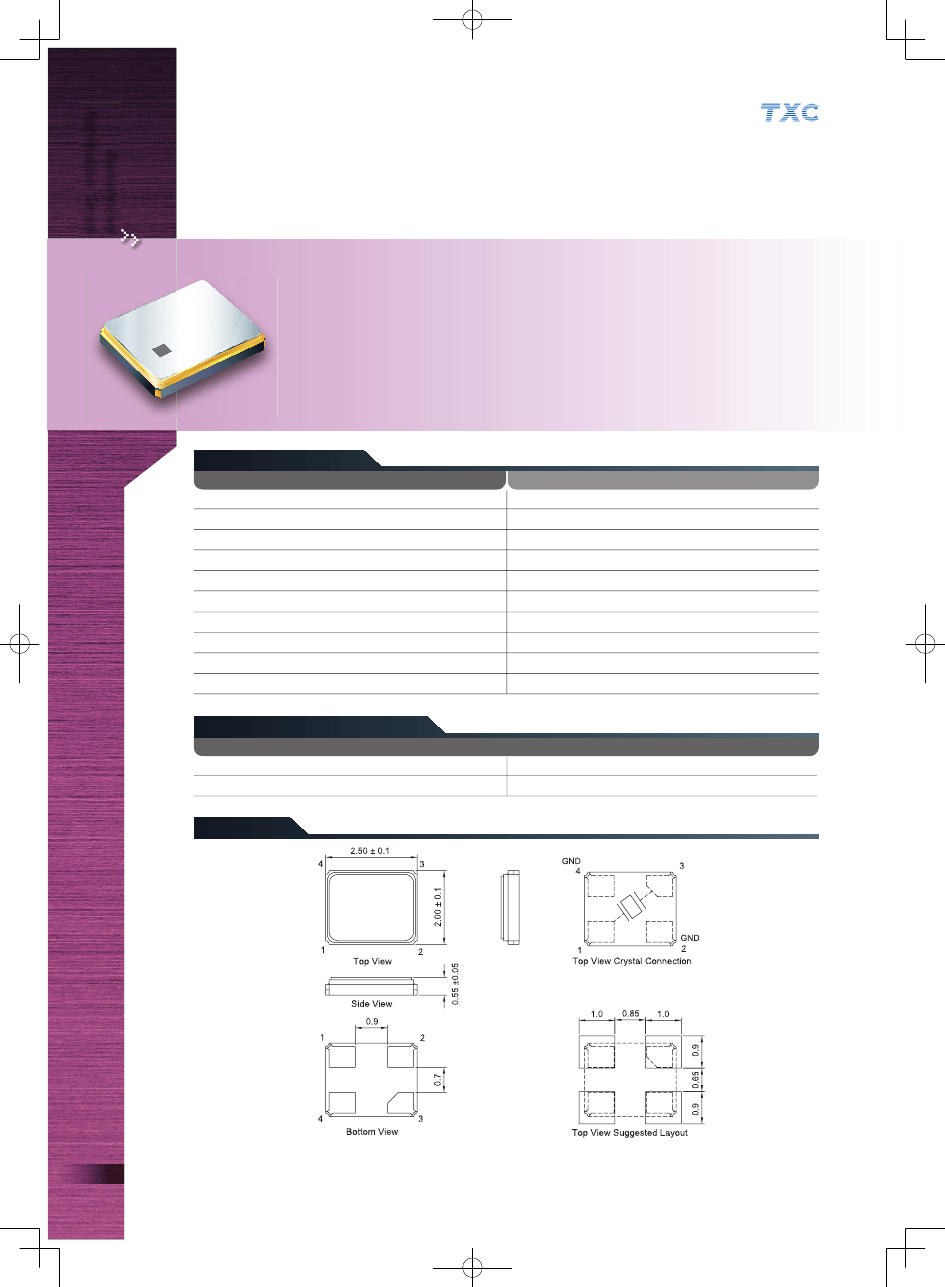

Automotive
Application Series
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
SMD Seam
Sealing Crystals
2.5 x 2.0 x 0.55 mm AZ Series
Features
．
Reliable seam sealed ceramic package.
Think of Frequency Think of
come visit our site http://www.txccorp.com
0
48 01
T
Mu
．
Wide operating temperature range.
．
Superior performance and stringent reliability in harsh environment.
．
Application: TPMS, ECM, ABS and sensor modules.
．
Compact size.
．
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Frequency Range
Frequency Tolerance (at 25
℃
)
Frequency Stability Over Operating Temperature Range
Operating Temperature Range
Shunt Capacitance (C0)
Drive Level
Load Capacitance
Aging (at 25
℃
)
Storage Temperature Range
Reliability Standard
AZ
16 ~ 50 MHz
±
10 ppm,
±
30 ppm, or specify
±
50 ppm, or specify
-40 ~ +125
℃
3 pF Max.
1 ~200
μ
W Max. (100uW typical)
8 pF, 10 pF, 12 pF, or specify
±
3 ppm / year Max.
- 40 ~ + 125
℃
AEC-Q200
Equivalent Series Resistance(ESR)
Fundamental
16 ~ 30 MHz 100
Ω
Max.
30 ~ 50 MHz
80
Ω
Max.
Dimensions
Units: mm
24
