VVA1, VVA2, VVA3 Full Size VCXO
Package Option

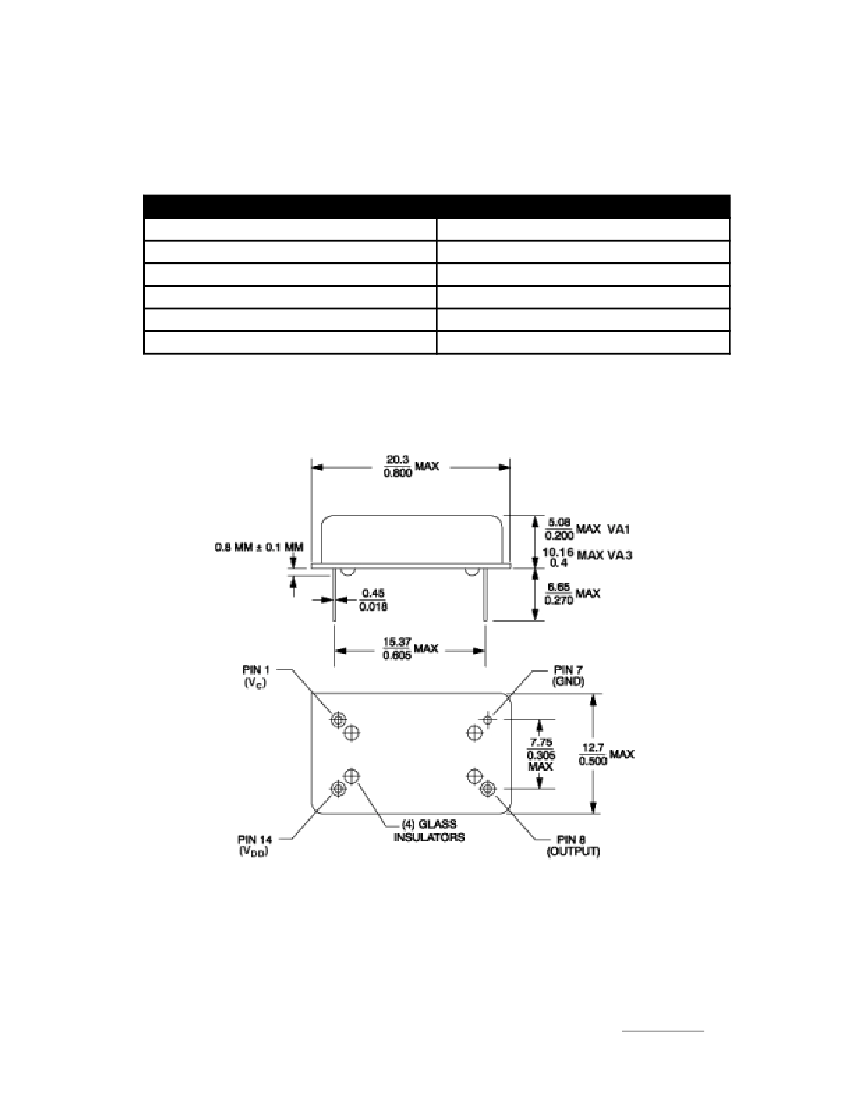

A1 = 0.8” x 0.5” x 0.2” 14 pin DIP

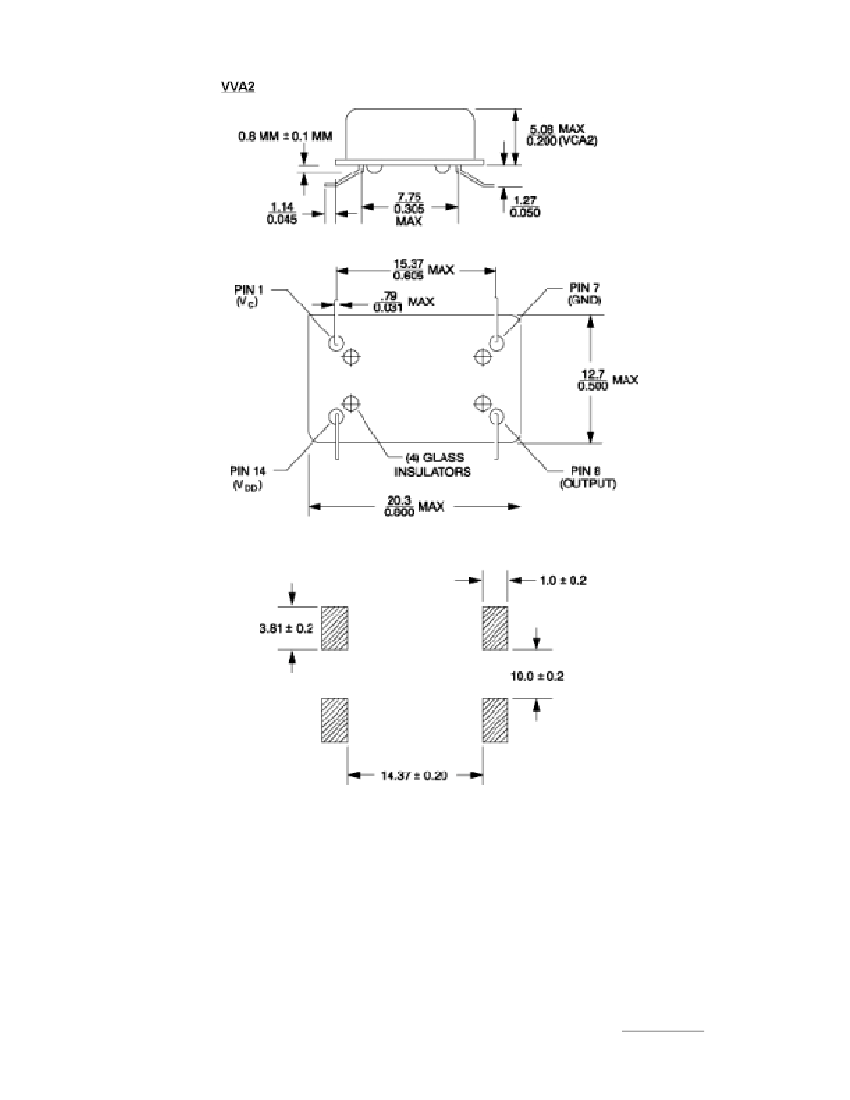

A2 = 0.8” x 0.5” x 0.2” 14 pin Gull Leaded Surface Mount
A3 = 0.8” x 0.5” x 0.4” 14 pin DIP
1.0 to 40 MHz (Fundamental <80ps/pk-pk Jitter)
40 to 160 MHz uses a low jitter internal multiplier
IC (<150ps/pk-pk Jitter) which improves aging
and pullability but will also increase phase noise
A = +5.0 Vdc
±
20% Linearity
B = +3.3 Vdc
±
20% Linearity
E = +5.0 Vdc
±
10% Linearity
F = +3.3 Vdc
±
10% Linearity
1 =
±50
PPM Minimum
2 =
±100
PPM Minimum
3 =
±150
PPM Minimum
4 =
±200
PPM Minimum
A =
±100
PPM
B =
±50
PPM
C =
±100
PPM
D =
±50
PPM
E =
±25
PPM
G =
±20
PPM
H =
±10
PPM
I =
±20
PPM
0C to +70C
0C to +70C
-40C to +85C
-40C to +85C
0C to +70C
0C to +70C A3 Package
0C to +70C A3 Package
-40C to +85C A3 Package
Frequency Range
Electrical Options
Voltage Control Range
Slope Positive
Stability Options
(Inclusive of Operating
Temperature, Supply
Voltage and Load)
Tight Stability Options
Calibration Tolerance
Duty Cycle
Start-Up
Aging
±25
PPM at +25
±2C
at Center Voltage
40/60
10 ms Maximum
<5.0 PPM/First year at +40C dynamic A1 and A2 Package
<2.0 PPM/First year at +40C dynamic A3 Package
15 pF HCMOS or 5 TTL Maximum
20 mA Maximum
≤20
MHz
40 mA Maximum
≤30MHz
50 mA Maximum >30MHz
Load
Current
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
1
STD Package
A1, A3 Anti Static Tubes
A2 Tape & Reel 250 pcs/reel
Environmental and Mechanical Compliance
Parameter
Mechanical Shock
Mechanical Vibration
Lead Solderability
Gross Leak
Fine Leak
Storage Temperature
Conditions
MIL-STD-883, 2002.3 B
MIL-STD-883, 2007.1 B
MIL-STD-883, 2003.5
MIL-STD-883, 1014.7
MIL-STD-883, 1014.7
-55C to 125C
VVA1, VVA3
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
2
