514MCC001740BAG datasheet, PDF

Datasheet> All Categories > Passive components> 514MCC001740BAG

514MCC001740BAG: DescriptionProgrammable Oscillators PROGRAMMABLE XO 0.7 ps RMS JTR; CategoryPassive components; File Size1MB，36 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric Compare View All

514MCC001740BAG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	514MCC001740BAG	-	-	View	Buy Now

514MCC001740BAG Overview

Programmable Oscillators PROGRAMMABLE XO 0.7 ps RMS JTR

514MCC001740BAG Parametric

Parameter Name	Attribute value
Product Category	Programmable Oscillators
Manufacturer	Silicon Laboratories
RoHS	Details
Product	XO

Preview

Download Datasheet

View All

Si514

N Y

-F

REQUENCY

C P

R OG R A MM A B L E

X O ( 1 0 0 k H

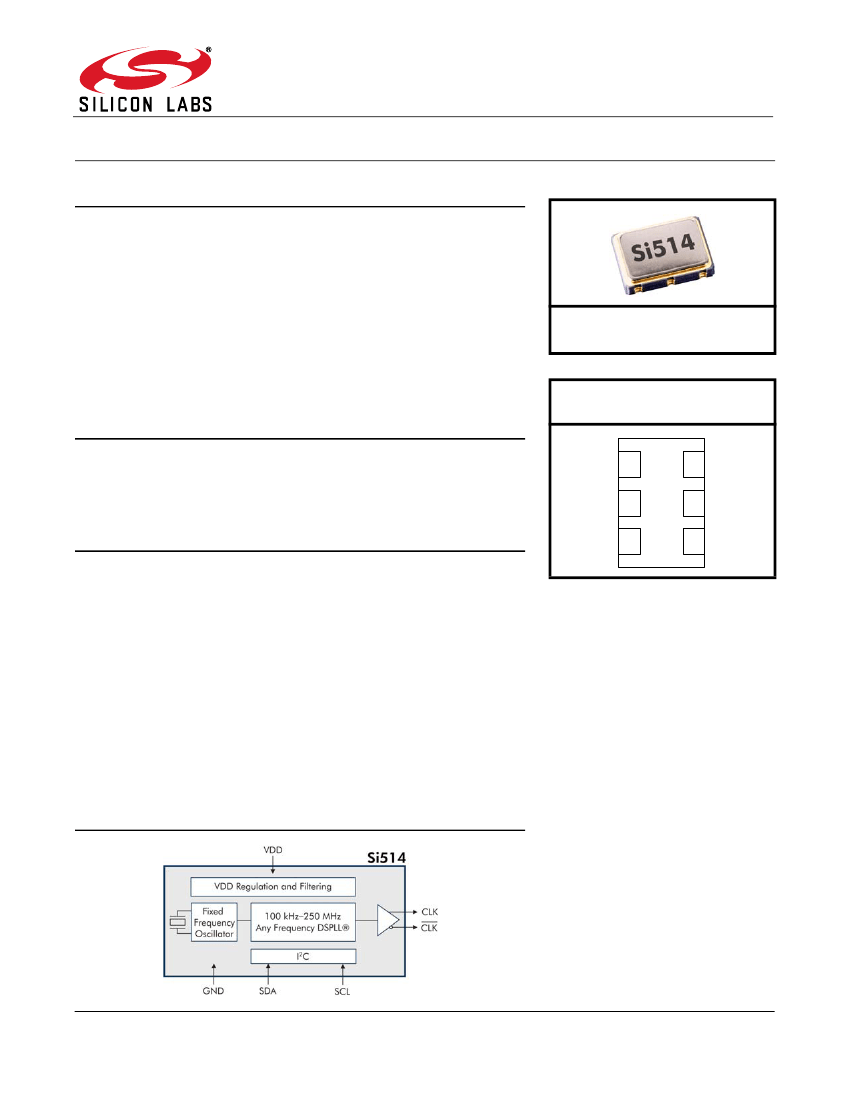

Features



250 M H

)

Programmable to any frequency



from 100 kHz to 250 MHz

0.026 ppb frequency tuning



resolution



Glitch suppression on OE, power

on and frequency transitions



Low jitter operation

2- to 4-week lead times



Total stability includes 10-year

aging



Comprehensive production test

coverage includes crystal ESR and

DLD

On-chip LDO for power supply

noise filtering

3.3, 2.5, or 1.8 V operation

Differential (LVPECL, LVDS,

HCSL) or CMOS output options

Optional integrated 1:2 CMOS

fanout buffer

Industry standard 5 x 7 and

3.2 x 5 mm packages

–40 to 85

C operation

Si5602

Ordering Information:

See page 28.

Pin Assignments:

See page 27.

Applications

All-digital PLLs



DAC+ VCXO replacement



SONET/SDH/OTN



3G-SDI/HD-SDI/SDI



Datacom



Industrial automation



FPGA/ASIC clock generation



FPGA synchronization



SDA

SCL

GND

CLK–

CLK+

Description

The Si514 user-programmable I

C XO utilizes Silicon Laboratories' advanced PLL

technology to provide any frequency from 100 kHz to 250 MHz with programming

resolution of 0.026 parts per billion. The Si514 uses a single integrated crystal and

Silicon Labs’ proprietary DSPLL synthesizer to generate any frequency across this

range using simple I

C commands. Ultra-fine tuning resolution replaces DACs and

VCXOs with an all-digital PLL solution that improves performance where

synchronization is necessary or in free-running reference clock applications. This

solution provides superior supply noise rejection, simplifying low jitter clock

generation in noisy environments. Crystal ESR and DLD are individually

production-tested to guarantee performance and enhance reliability.

The Si514 is factory-configurable for a wide variety of user specifications, including

startup frequency, I

C address, supply voltage, output format, and stability. Specific

configurations are factory-programmed at time of shipment, eliminating long lead

times and non-recurring engineering charges associated with custom frequency

oscillators.

Functional Block Diagram

Rev. 1.0 5/12

Si514

Si514

ABLE

Section

ONTENTS

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.1. Programming a New Output Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2. Programming a Small Frequency Change (sub ±1000 ppm) . . . . . . . . . . . . . . . . . . 13

2.3. Programming a Large Frequency Change (> ±1000 ppm) . . . . . . . . . . . . . . . . . . . . 14

3. All-Digital PLL Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4. User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1. Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.2. Register Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3. I

C Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5. Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.1. Dual CMOS (1:2 Fanout Buffer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7. Package Outline Diagram: 5 x 7 mm, 6-pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8. PCB Land Pattern: 5 x 7 mm, 6-pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

9. Package Outline Diagram: 3.2 x 5.0 mm, 6-pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

10. PCB Land Pattern: 3.2 x 5.0 mm, 6-pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

11. Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

11.1. Si514 Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

11.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Rev. 1.0
