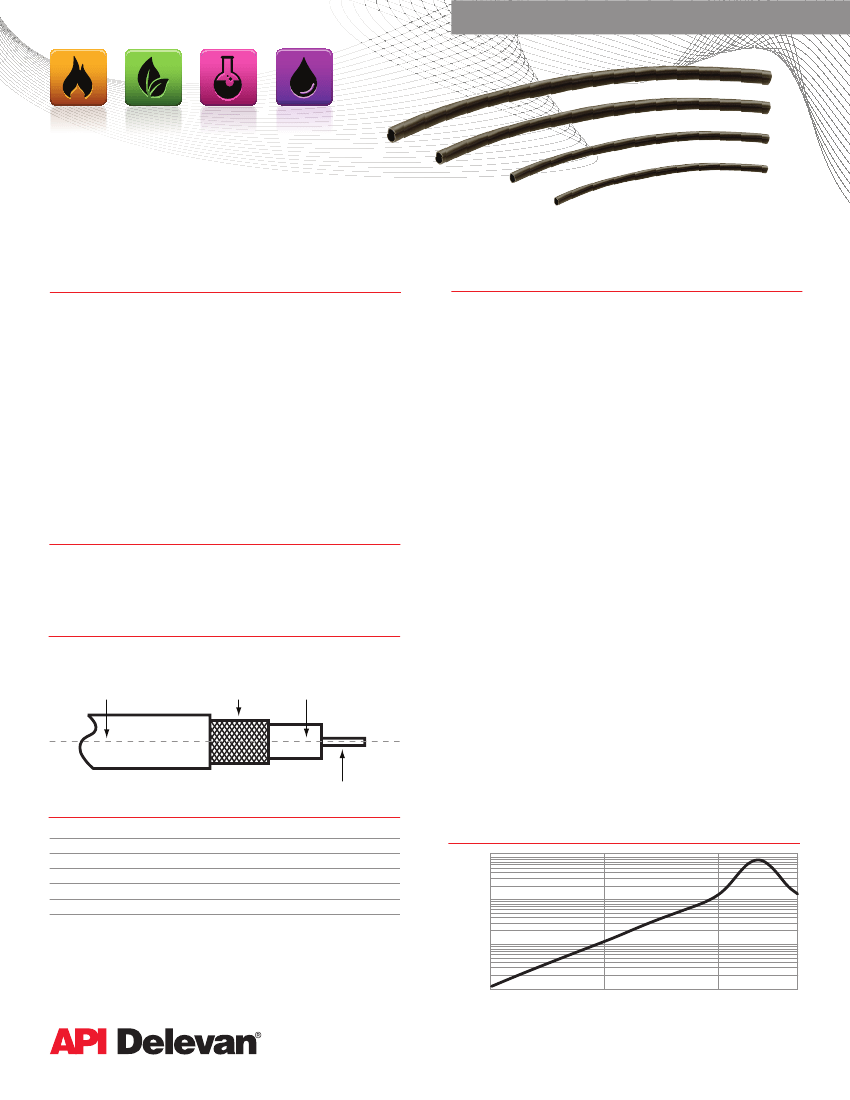

FFAT Series
Features and Benefits
Flexible Ferrite Absorbent Tubing
Commercial Applications
Cable Reference Table
Cable
RG-8A/U
RG-9B/U
RG-55
RG-58
RG-58A
RG-59
RG-62
RG-62A
RG-71
RG-140
RG-141
RG-141A
RG-142
RG-174
RG-178
RG-179
RG-179B/U
RG-180
RG-187
RG-187A/U
RG-188
RG-188A/U
RG-195
RG-196
RG-210/U
RG-213/U
RG-214/U
RG-223
RG-303
RG-316
RG-316 DS
O.D. Jack
0.405
0.42
0.176
0.15
0.195
0.191
0.191
0.242
0.208
0.176
0.146
0.19
0.171
0.08
0.054
0.084
0.1
0.124
0.084
0.11
0.081
0.11
0.124
0.054
0.242
0.405
0.425
0.176
0.146
0.081
0.102
•
Provides effective EMI Suppression in a wide
Frequency Range (10MHz
to 3GHz).
•
High electrical resistance (106 to
108).
•
Easy and fast to process.
•
Extremely flexible and can freely be arranged in space.
•
Can be incorporated into the over-molding process on
cable assemblies.
•
Eliminates the task of soldering braid.
•
Effectively eliminates EMI and RFI problems on internal and
external power, data and signal lines.
•
Five sizes available.
Parameters
Manufactured Length
39.37 inches ± 0.50, 1 meter ±
12.7 mm
Operating Temperature Range
–55°C to +125°C
Testing
Impedance Testing using HP4191A.
JACKET
BRAID
DIELECTRIC
Dimensions
FFAT-32
FFAT-54
FFAT-96
FFAT-117
FFAT-1410
CENTER CONDUCTOR
Impedance (Ohms)
Outside Diameter
Inches Millimeters
0.116
2.9
0.196
5
0.354
9
0.43
11
0.55
14
Inside Diameter
Inches Millimeters
0.072
1.8
0.157
4
0.236
6
0.275
7
0.393
10
Impedance vs. Frequency
(See Above Table For Specific Values)
1000
100
10
1.0
1
10
Frequency (MHz)
100
500
