CM05ED200J03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CM05ED200J03

CM05ED200J03: CategoryPassive components; File Size527KB，7 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric Compare View All

CM05ED200J03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM05ED200J03	-	-	View	Buy Now

CM05ED200J03 Parametric

Parameter Name	Attribute value
Product Category	Mica Capacitors
Manufacturer	Cornell Dubilier
RoHS	No
Termination Style	Radial
Capacitance	20 pF
Voltage Rating	500 V
Tolerance	5 %
Temperature Coefficient	- 20 PPM / C, + 100 PPM / C
Operating Temperature Range	- 55 C to + 125 C
Product	Mica Standard Dipped Capacitors
Factory Pack Quantity	25

Preview

Download Datasheet

View All

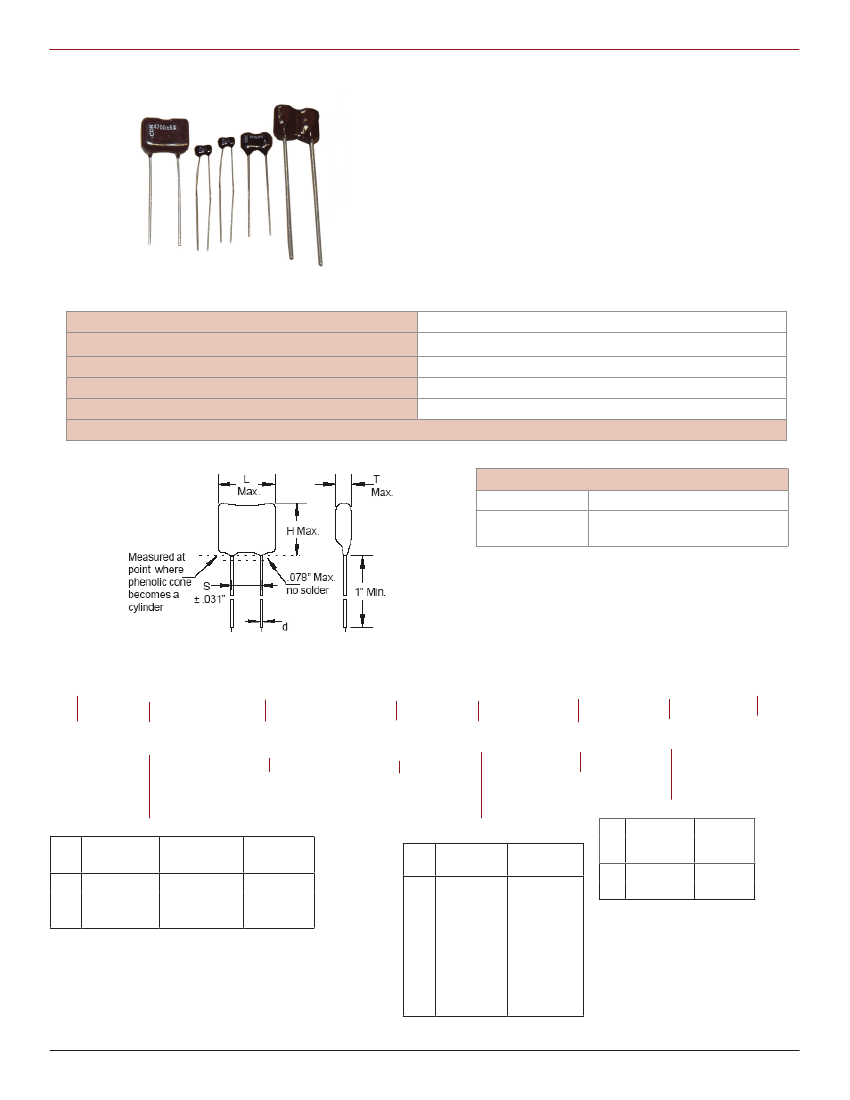

Mica Capacitors, Standard Dipped

Types CD10, D10, CD15, CD19, CD30, CD42, CDV19, CDV30

Stability and mica go hand-in-hand when you need to count

on stable capacitance over a wide temperature range. CDE’s

standard dipped silvered mica capacitors are the first choice for

timing and close tolerance applications. These standard types

are widely available through distribution.

Highlights

- Reel packaging available

- High temperature – up to +150 ºC

- Dimensions meet EIA RS153B specification

- 100,000 V/µs dV/dt pulse capability minimum

- Non-flammable units that meet IEC 695-2-2 are available

1 pF to 91,000 pF

±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)

100 Vdc to 2500 Vdc

–55 ºC to +125 ºC (O) –55 ºC to +150 ºC (P)*

200% of rated voltage

RoHS Compliant

* P temperature range available for types CD10, CD15, CD19, CD30 and CD42

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Dielectric Strenght Test

Dimensions

Construction Details

Case Material

Terminal Material

Epoxy

Copper clad steel, nickle undercoat,

100% tin finish

Ordering Information

Order by complete part number as below. For other options,

write your requirements on your purchase order or request

for quotation.

Part Numbering System

(Radial-Leaded Silvered Mica Capacitors, except D10*)

CD15

Characteristic

Code

Voltage

(Vdc)

100

Capacitance

(pF)

Capacitance

Tolerance

Temperature

Range

Vibration

Grade

Blank =

Not Specified

F= RoHS

Compliant

Series

Characteristics

Code

Temp. Coeff.

ppm/ ºC

–200 to +200

–20 to +100

0 to +70

F = 1000 Vdc

A = 100 Vdc H = 1500 Vdc

C = 300 Vdc J = 2000 Vdc

D = 500 Vdc K = 2500 Vdc

Standard Cap.

Range

1–18 pF

20–82 pF

Drift

Capacitance

±(0.5% +0.1pF)

±(0.1% +0.1 pF)

010 = 1 pF

O = –55 ºC to +125 ºC

100 = 10 pF

P = –55 ºC to +150 ºC

(1.5) = 1.5 pF

361 = 360 pF

122 = 1200 pF

Capacitance Tolerance

Tol.

Code

Tolerance

±1 pF

±1⁄2 pF

±1⁄2 %

±1 %

±2 %

±3 %

±5 %

Capacitance

Range

1– 9 pF

1–99 pF

100 pF and up

50 pF and up

25 pF and up

18 pF and up

10 pF and up

Vibration Grade

Vibration

Condition

No. MIL-STD-202

(Hz)

Method 204

Condition D

10 to 2,000

±(0.05% +0.1 pF) 91 pF and up

Options Available

- Non-flammable units per IEC 695-2-2 are available for standard

dipped capacitors. Specify IEC 695-2-2 on your order.

- Tape and reeling, specify per application guide.

Standard tolerance is ±1/2 pF for less

* Order type D10 using the catalog numbers

than 10 pF and ±5% for 10 pF and up

shown in ratings tables.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

CM05ED200J03 Related Products

	CM05ED200J03	CM05FD301J03	D105F331J03	CD19FD511JO3-F
Description		Mica Capacitors 300pF 500V 5%		Mica Capacitors MICA 510PF 500V 5%
Product Category	Mica Capacitors	Mica Capacitors	Mica Capacitors	Mica Capacitors
Manufacturer	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier	Cornell Dubilier
RoHS	No	No	No	Details
Termination Style	Radial	Radial	Radial	Radial
Capacitance	20 pF	300 pF	330 pF	510 pF
Voltage Rating	500 V	500 V	500 V	500 V
Tolerance	5 %	5 %	5 %	5 %
Operating Temperature Range	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C
Product	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors	Mica Standard Dipped Capacitors
Factory Pack Quantity	25	100	100	50
Temperature Coefficient	- 20 PPM / C, + 100 PPM / C	0 PPM/ C, 70 PPM / C	-	0 PPM / C, 70 PPM / C
Capacitance - nF	-	0.3 nF	0.33 nF	0.51 nF
