TECHNICAL DATA SHEET
ADAPTOR
SMA PLUG – BNC 50
Ω
PLUG
32S151-S00E3

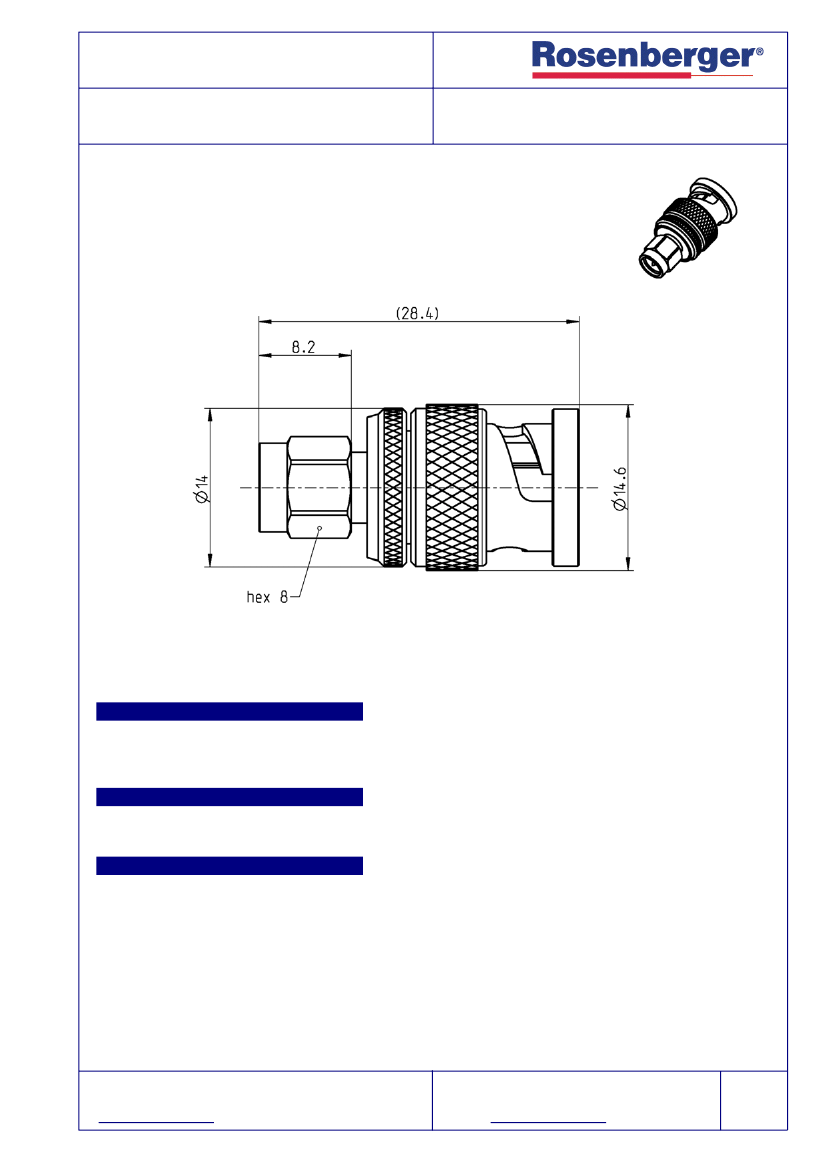

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMA side:
BNC side:
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact SMA side
Outer contact BNC side
Dielectric
Gasket
Coupling nut SMA side
Material
Brass
Stainless steel
Brass
PTFE
Silicone
Stainless steel
Plating
Gold, min. 1.27 µm, over chemical nickel
Gold, min. 0.8 µm, over nickel
Nickel, 2.5-5 µm
Gold, 0.1 µm min.
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
SMA PLUG – BNC 50
Ω
PLUG
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
50
Ω
DC to 6 GHz
≤
1.05 + 0.005 x f [GHz]
≤
0.05 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ, SMA side
≤
2 mΩ, SMA side
1000 V rms
400 V rms
≤
80 W @ 2 GHz
32S151-S00E3
≤
1.5 mΩ, BNC side
≤
1 mΩ, BNC side
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
SMA side
min. 500
≥
270 N
≥
27 N
max. 1.7 Nm
0.8 Nm to 1.1 Nm
BNC side
min. 500
N/A
≥
27 N
N/A
N/A
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pcs in bag
15.2 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
13/09/04
Approved
Rong Fang
Date
18/10/05
Rev.
b00
Engineering change number
05-0566
Name
Inge Mühlauer
Date
18/10/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
