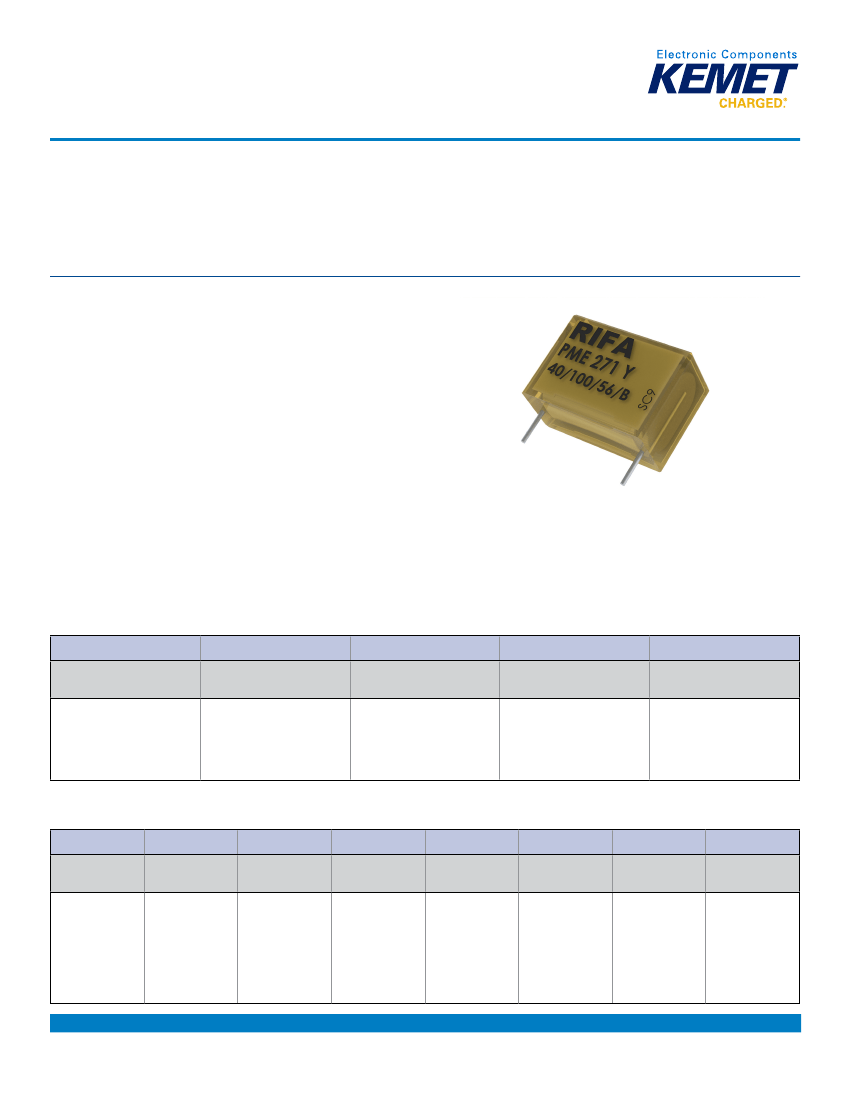

AC Line EMI Suppression and RC Networks
PME271Y, Metallized Impregnated Paper,
Class Y2, 250 VAC
Overview
The PME271Y is constructed of multilayer metallized paper
encapsulated and impregnated in self-extinguishing material
meeting the requirements of UL 94 V–0.
Applications
Typical applications include worldwide use as
electromagnetic interference suppressor in all Y2
applications, line-to-earth.
Benefits
• Approvals: ENEC, UL, cUL, CQC
• Rated voltage: 250 VAC 50/60 Hz
• Capacitance range: 0.001 – 0.1 µF
• Lead spacing: 10.2 – 25.4 mm
• Capacitance tolerance: ±20%
• Climatic category: 40/100/56/B, IEC 60068–1
• Tape and reel packaging in accordance with IEC 60286–2
• RoHS Compliant and lead-free terminations
• Operating temperature range of −40°C
to +100°C
• 100% screening factory test at 3,000 VDC
• Highest possible safety regarding active and passive
flammability
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Legacy Part Number System
PME271
Series
Y2, Metallized Paper
Y
Rated Voltage (VAC)
Y = 250
410
Capacitance Code (pF)
The last two digits
represent significant
figures. The first digit
specifies the total number
of digits.
M
Capacitance
Tolerance
M = ±20%
R30
Packaging
See Ordering
Options Table
New KEMET Part Number System
P
Capacitor Class
P = Paper
271
Series
Y2, Metallized
Paper
H
Lead Spacing
(mm)
H = 10.2
Q = 15.2
C = 20.3
E = 25.4
E
Size Code
See Dimension
Table
102
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of
zeros.
M
Capacitance
Tolerance
M = ±20%
250
Rated Voltage
(VAC)
250 = 250
A
Lead and
Packaging Code
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3016_PME271Y_Y2_250 • 6/23/2017
1
Film Capacitors – AC Line EMI Suppression and RC Networks
PME271Y, Metallized Impregnated Paper, Class Y2, 250 VAC
Benefits cont'd
• Excellent self-healing properties ensure long life, even
• Impregnated paper ensures excellent stability and
when subjected to frequent overvoltages
reliability properties, particularly in applications with
• Good resistance to ionization due to impregnated dielectric continuous operation
• High dV/dt capability
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – short leads
6+0/−1
30+5/−0
H
0
= 18.5+/−0.5
H
0
= 18.5+/−0.5
H
0
= 18.5+/−0.5
C
A
L
P
LAF3
R06
R30
R19T0
R19T1
R30XA
Bulk (Bag) – maximum length leads
Tape & Reel (standard reel)
Other Lead and Packaging Options
Tape & Reel (large reel)
Lead Length
(mm)
KEMET
Lead and
Packaging
Code
Legacy
Lead and
Packaging
Code
10.2
Native 10.2
formed to 7.5
Ammo Pack
Standard Lead and Packaging Options
Bulk (Bag) – short leads
6+0/−1
30+5/−0
H
0
= 18.5+/−0.5
H
0
= 18.5+/−0.5
C
A
L
P
R06
R30
R19T0
R19T1
15.2
Bulk (Bag) – maximum length leads
Tape & Reel (standard reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Bulk (Tray) – short leads
6+0/−1
30+5/−0
H
0
= 18.5+/−0.5
H
0
= 18.5+/−0.5
C
A
L
P
R06
R30
R19T0
R19T1
20.3
Bulk (Bag) – maximum length leads
Tape & Reel (standard reel)
Other Lead and Packaging Options
Tape & Reel (large reel)
Standard Lead and Packaging Options
25.4
Bulk (Tray) – short leads
Bulk (Bag) – maximum length leads
6+0/−1
30+5/−0
C
A
R06
R30
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3016_PME271Y_Y2_250 • 6/23/2017
2
Film Capacitors – AC Line EMI Suppression and RC Networks
PME271Y, Metallized Impregnated Paper, Class Y2, 250 VAC
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
p
Nominal
10.2
10.2
10.2
15.2
15.2
15.2
20.3
20.3
20.3
25.4
Tolerance
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
Nominal
3.9
4.1
5.1
5.2
5.5
7.3
7.6
9
11.3
12.1
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
7.5
8.2
10.5
10.5
11
13
14
15
16.5
19
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
13.5
13.5
13.5
18.5
18.5
18.5
24
24
24
30.5
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
1
d
Tolerance
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3016_PME271Y_Y2_250 • 6/23/2017
3
Film Capacitors – AC Line EMI Suppression and RC Networks
PME271Y, Metallized Impregnated Paper, Class Y2, 250 VAC
Performance Characteristics
Rated voltage
Capacitance range
Capacitance tolerance
Temperature range
Climatic category
Approvals
Dissipation factor
250 VAC 50/60 Hz
0.001 – 0.1 µF
±20%
−40°C
to +100°C
40/100/56/B
ENEC, UL, CSA, CQC
Maximum Values at +23°C
1 kHz
1.3%
The 100% screening factory test is carried out at 3,000 VDC. The
voltage level is selected to meet the requirements in applicable
equipment standards. All electrical characteristics are checked
after the test. It is not permitted to repeat this test as there is a
risk to damage the capacitor. KEMET is not liable in such case
for any failures.
Minimum Value Between Terminals
12,000 MΩ
Recommended voltage ≤ 1,000 VDC
Test voltage between terminals
Insulation resistance
In DC applications
Environmental Test Data
Test
Vibration
Bump
Solderability
Active flammability
Passive flammability
Humidity
IEC Publication
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068–2–20 Test Ta
IEC 60384–14
IEC 60384–14
IEC 60068–2–3 Test Ca
Needle-flame test
+40°C and 90 – 95% RH
Procedure
3 directions at 2 hours each 10 – 500 Hz at 0.75 mm or 98 m/seconds
2
4,000 bumps at 390 m/seconds
2
Solder globule method
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3016_PME271Y_Y2_250 • 6/23/2017
4
Film Capacitors – AC Line EMI Suppression and RC Networks
PME271Y, Metallized Impregnated Paper, Class Y2, 250 VAC
Approvals
Mark
Specification
EN/IEC 60384–14
File Number
SE/0140–27D
UL 60384–14
CAN/CSA–E60384–14–09
E73869
CQC
14001107140
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
Table 1 – Ratings & Part Number Reference
Capacitance
Value (µF)
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.0100
0.0150
0.0220
0.0330
0.0470
0.0680
0.1000
Maximum Dimensions in
mm
B
3.9
3.9
3.9
4.1
5.1
5.2
5.2
5.5
7.3
7.6
9.0
11.3
12.1
H
7.5
7.5
7.5
8.2
10.5
10.5
10.5
11.0
13.0
14.0
15.0
16.5
19.0
L
13.5
13.5
13.5
13.5
13.5
18.5
18.5
18.5
18.5
24.0
24.0
24.0
30.5
Lead
Spacing (p)
10.2
10.2
10.2
10.2
10.2
15.2
15.2
15.2
15.2
20.3
20.3
20.3
25.4
f
o
(MHz)
53
44
37
30
24
19
16
13
9.8
7.0
6.0
4.6
3.9
dV/dt
(V/µs)
2,000
2,000
2,000
2,000
2,000
1,400
1,400
1,400
1,400
1,000
1,000
600
400
New KEMET
Part Number
P271HE102M250(1)
P271HE152M250(1)
P271HE222M250(1)
P271HH332M250(1)
P271HL472M250(1)
P271QE682M250(1)
P271QE103M250(1)
P271QH153M250(1)
P271QM223M250(1)
P271CE333M250(1)
P271CJ473M250(1)
P271CP683M250(1)
P271EJ104M250(1)
Legacy Part
Number
PME271Y410M(1)
PME271Y415M(1)
PME271Y422M(1)
PME271Y433M(1)
PME271Y447M(1)
PME271Y468M(1)
PME271Y510M(1)
PME271Y515M(1)
PME271Y522M(1)
PME271Y533M(1)
PME271Y547M(1)
PME271Y568M(1)
PME271Y610M(1)
Capacitance
Value (µF)
B (mm)
H (mm)
L (mm)
Lead Spacing
(p)
f
o
(MHz)
dV/dt
(V/µs)
New KEMET
Part Number
Legacy Part Number
(1) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3016_PME271Y_Y2_250 • 6/23/2017
5
