IHLP-1212AB-11
www.vishay.com
Vishay Dale
IHLP
®
Commercial Inductors, Low DCR Series

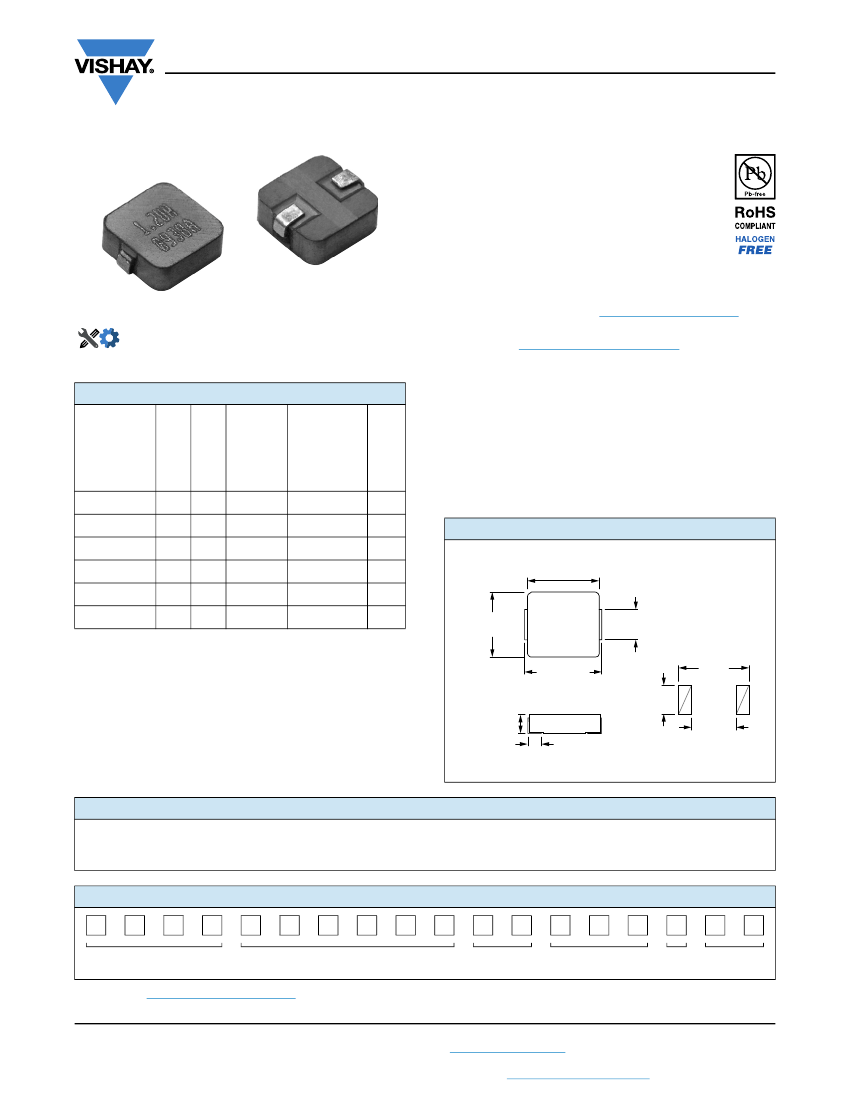

FEATURES
• Shielded construction
• Excellent DC/DC energy storage up to 1 MHz to
2 MHz. Filter inductor applications up to SRF
(see “Standard Electrical Specifications” table)
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite construction
• IHLP design. PATENT(S):
www.vishay.com/patents
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Design Tools
Available
APPLICATIONS
•
•
•
•
•
•
PDA/notebook/desktop/server applications
High current POL converters
Low profile, high current power supplies
Battery powered devices
DC/DC converters in distributed power systems
DC/DC converter for Field Programmable Gate Array
(FPGA)
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 %
AT 100 kHz,
0.25 V, 0 A
(μH)
0.22
0.33
0.47
0.56
0.68
1.0
HEAT
RATING SATURATION
CURRENT CURRENT
SRF
DC TYP.
DC TYP.
TYP.
(A)
(1)
(A)
(2)
(MHz)
9.3
7.2
6.4
5.1
4.0
4.0
9.3
8.7
7.0
6.7
5.5
5.0
220
175
140
135
110
90
DCR
TYP.
25 °C
(m)
9.5
12.0
16.3
18.7
22.5
32.7
DCR
MAX.
25 °C
(m)
11.4
14.3
19.5
22.0
25.0
37.5
DIMENSIONS
in inches [millimeters]
0.118 ± 0.008
[3.0 ± 0.2]
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
• Rated operating voltage (across inductor) = 40 V
(1)
DC current (A) that will cause an approximate
T
of 40 °C
(2)
DC current (A) that will cause L to drop approximately 20 %
0
0.118 ± 0.008
[3.0 ± 0.2]
0.020 ± 0.008
[0.5 ± 0.2]
Typical Pad Layout
0.144 [3.65]
Max.
0.047
[1.2]
0.165
[4.2]
0.047 [1.2]
Max.
0.031 ± 0.012
[0.8 ± 0.3]
0.047
[1.2]
DESCRIPTION
IHLP-1212AB-11
MODEL
0.22 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
1
2
1
SIZE
2
A
B
E
R
R
2
2
M
TOL.
1
1
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
SERIES
PATENT(S):
www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
Revision: 12-Oct-17
Document Number: 34299
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IHLP-1212AB-11
www.vishay.com
Vishay Dale

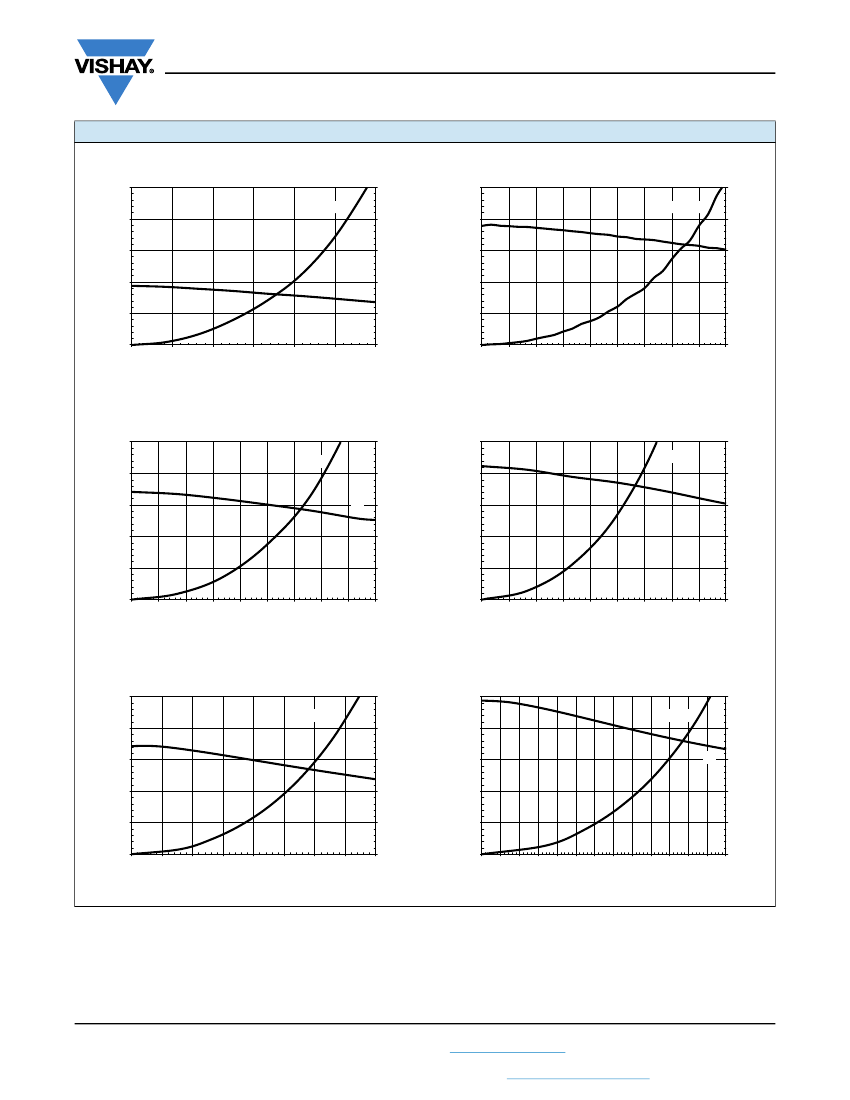

PERFORMANCE GRAPHS
0.22 μH
0.60
ΔT
°C
50
0.40
0.33 μH
50
40
30
20
L
0.08
0.00
10
0
ΔT
°C
TEMPERATURE (°C)
INDUCTANCE (μH)
0.36
0.24
L
0.12
0.00
INDUCTANCE (μH)
0.48
40
30
20
10
0
12
0.32
0.24
0.16
0
2
4
6
8
10
0
1
2
3
4
5
6
7
8
9
DC BIAS (A)
DC BIAS (A)
0.47 μH
0.60
ΔT
°C
50
0.60
0.56 μH
50
ΔT
°C
40
L
0.36
0.24
0.12
0.00
30
20
10
0
TEMPERATURE (°C)
INDUCTANCE (μH)
0.36
0.24
0.12
0.00
L
30
20
10
0
0
1
2
3
4
5
INDUCTANCE (μH)
0.48
40
0.48
6
7
8
9
0
1
2
3
4
5
6
7
8
9
DC BIAS (A)
DC BIAS (A)
0.68 μH
1.0
ΔT
°C
100
1.0
1.0 μH
100
80
L
60
40
20
ΔT
°C
TEMPERATURE (°C)
INDUCTANCE (μH)
0.6
L
0.4
0.2
0.0
INDUCTANCE (μH)
0.8
80
60
40
20
0
0.8
0.6
0.4
0.2
0
1
2
3
4
5
6
7
8
0.0
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5
DC BIAS (A)
DC BIAS (A)
Revision: 12-Oct-17
Document Number: 34299
2
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TEMPERATURE (°C)
TEMPERATURE (°C)
TEMPERATURE (°C)
IHLP-1212AB-11
www.vishay.com
Vishay Dale

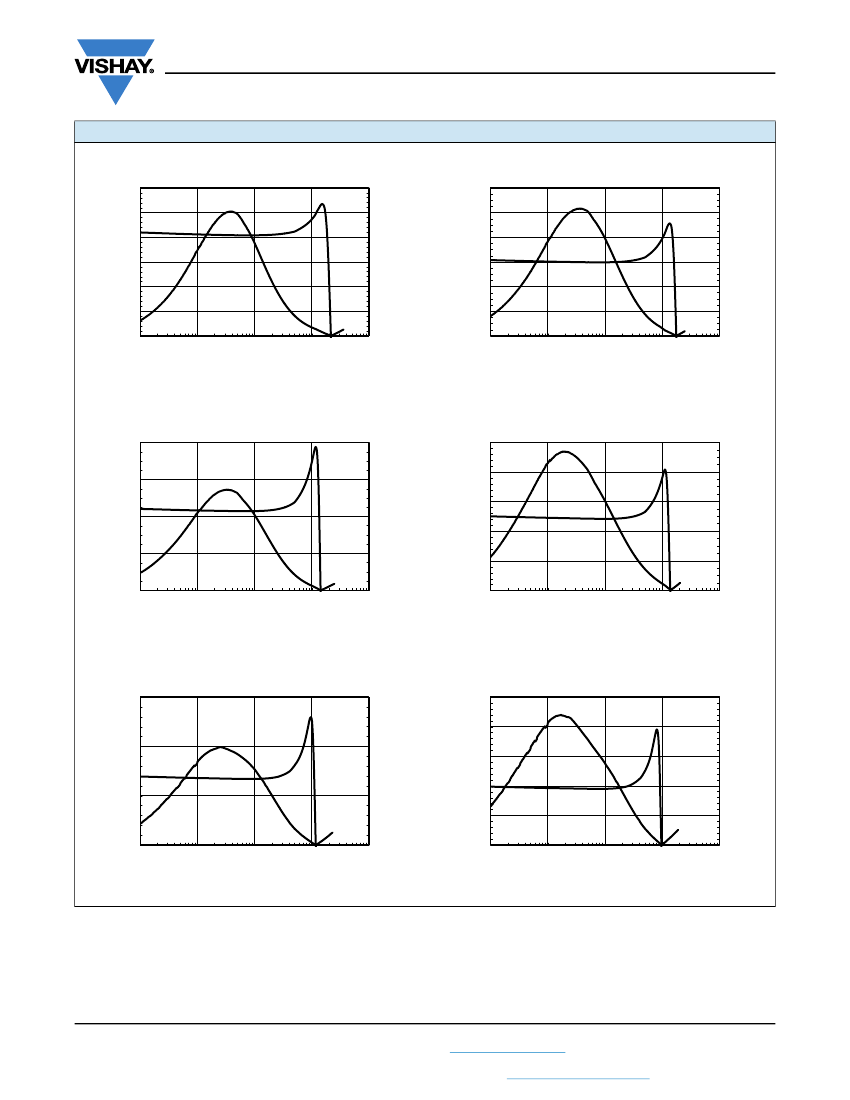

PERFORMANCE GRAPHS: INDUCTANCE AND Q VS. FREQUENCY
