CA052X104M4RAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CA052X104M4RAC

CA052X104M4RAC: DescriptionCapacitor Arrays u0026 Networks .100UF 16.0V; CategoryPassive components; File Size2MB，17 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

CA052X104M4RAC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CA052X104M4RAC	-	-	View	Buy Now

CA052X104M4RAC Overview

Capacitor Arrays u0026 Networks .100UF 16.0V

CA052X104M4RAC Parametric

Parameter Name	Attribute value
Product Category	Capacitor Arrays & Networks
Manufacturer	KEMET
Termination Style	SMD/SMT
Capacitance	0.1 uF
Voltage Rating	16 V
Tolerance	20 %
Number of Elements	2
Operating Temperature Range	- 55 C to + 125 C
Packaging	Reel
Capacitance - nF	100 nF
Capacitance - pF	100000 pF
Height	0.8 mm
Length	2.1 mm
Product	Ceramic Capacitor Arrays
Factory Pack Quantity	4000
Temperature Coefficient / Code	C0G (NP0)
Type	Capacitor Array, C0G Dielectric
Width	1.3 mm

Preview

Download Datasheet

View All

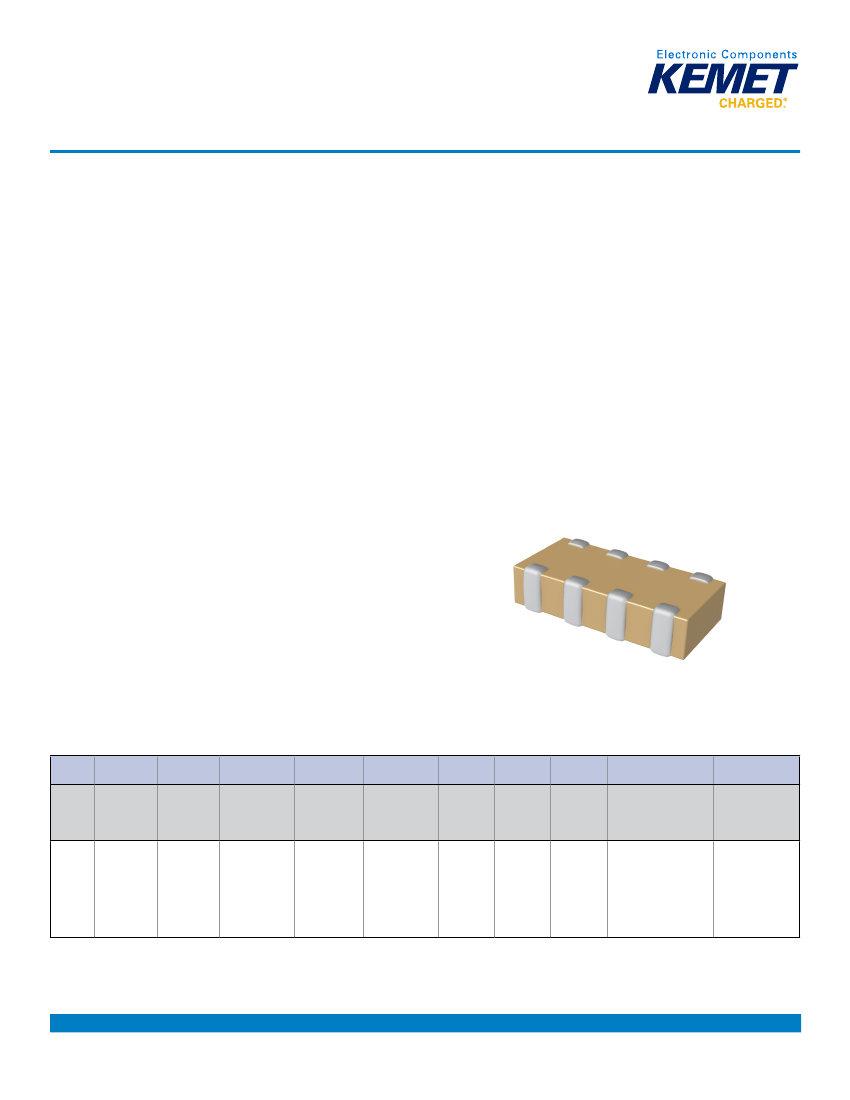

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Capacitor Array, C0G Dielectric, 10 – 200 VDC

(Commercial & Automotive Grade)

Overview

KEMET’s Ceramic Chip Capacitor Array in C0G dielectric is

an advanced passive technology, where multiple capacitor

elements are integrated into one common monolithic

structure. Array technology promotes reduced placement

costs and increased throughput. This is achieved by

alternatively placing one device rather than two or four

discrete devices. Use of capacitor arrays also saves board

space, which translates into increased board density and

more functions per board. Arrays consume only a portion

of the space required for standard chips, resulting in

savings in inventory and pick/place machine positions.

For added reliability, KEMET's Flexible Termination

technology has been incorporated in order to provide

superior flex performance. This technology was developed

to address flex cracks, which are the primary failure mode

of MLCCs and typically the result of excessive tensile

and shear stresses produced during board flexure and

thermal cycling. Flexible Termination technology inhibits

the transfer of board stress to the rigid body of the MLCC,

therefore mitigating flex cracks which can result in low IR

or short circuit failures.

KEMET’s C0G dielectric features a 125°C maximum

operating temperature and is considered “stable." The

Electronics Industries Alliance (EIA) characterizes C0G

dielectric as a Class I material. Components of this

classification are temperature compensating and are suited

for resonant circuit applications or those where Q and

stability of capacitance characteristics are required. C0G

exhibits no change in capacitance with respect to time and

voltage and boasts a negligible change in capacitance with

reference to ambient temperature. Capacitance change is

limited to ±30 ppm/°C from −55°C to +125°C.

KEMET automotive grade array capacitors meet the

demanding Automotive Electronics Council's AEC-Q200

qualification requirements.

Ordering Information

104

Rated

Voltage

(VDC)

8 = 10

4 = 16

3 = 25

5 = 50

1 = 100

2 = 200

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Dielectric

G = C0G

Failure

Rate/

Design

A = N/A

Termination Finish

C = 100% Matte Sn

L = SnPb

(5% minimum Pb

content)

Packaging/

Grade (C-Spec)

See

"Packaging

C-Spec

Ordering

Options Table"

below

Ceramic

Case Size

Number of

Specification/

Capacitance Capacitance

Series

Code (pF)

Tolerance

Array

(L" x W")

Capacitors

06 = 0612

4=4

X = Flexible

Termination

Two

significant

digits +

number of

zeros

J = ±5%

K = ±10%

M = ±20%

All previous reference to metric case dimension "1632" has been replaced with an inch standard reference of "0612". Please reference all new designs

using the "0612" nomenclature. "CA064" replaces "C1632" in the ordering code.

Additional termination finish options may be available. Contact KEMET for details.

SnPb termination finish option is not available on automotive grade product.

One world. One KEMET

C1016_C0G_ARRAY_SMD • 11/13/2017

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Capacitor Array, C0G Dielectric, 10 – 200 VDC, (Commercial & Automotive Grade)

Automotive C-Spec Information

KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council.

Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process

warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”

This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade

component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a

KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are

not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited

(see details below).

Product Change Notification (PCN)

The KEMET Product Change Notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit, function, and/or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

AUTO

Customer Notification due to:

Process/Product change

Yes (with approval and sign off)

Yes (without approval)

Obsolescence*

Yes

Days prior to

implementation

180 days minimum

90 days minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design record and specification requirements are properly

understood and fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part.

KEMET Automotive

C-Spec

KEMET assigned

AUTO

PPAP (Product Part Approval Process) Level

●

○

●

○

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

●

Part number specific PPAP available

○

Product family PPAP only

C1016_C0G_ARRAY_SMD • 11/13/2017
