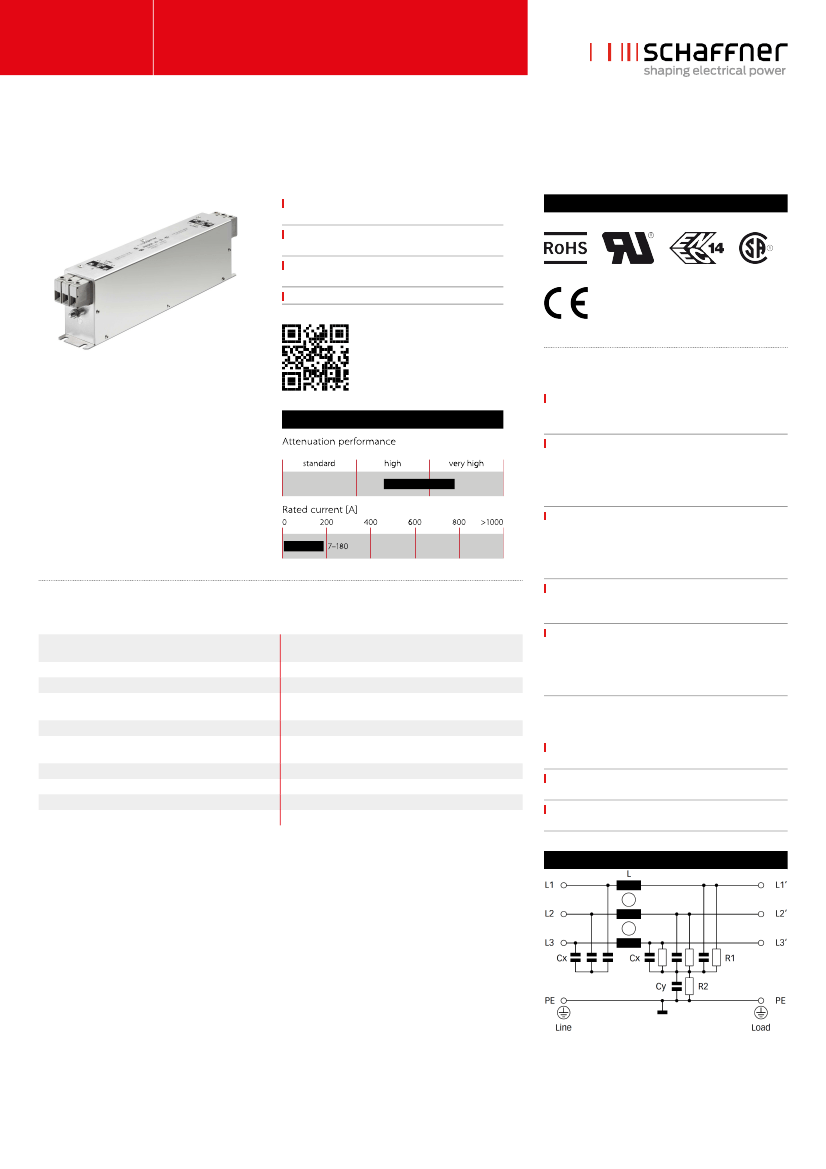

Ultra-compact EMC/RFI Filter for Motor Drives Applications
New: solid safety connector blocks available for
the whole range
Exceptional attenuation performance from 150
kHz to 30 MHz
Excellent saturation resistance up to 50 m
cable length
Most compact and slim filter design in its class
Approvals
Features and benefits
Performance indicators
The extremely compact and slim filter design allows
a trouble-free installation even where the available
mounting space is minimal
With new additional filter types providing safety
terminal blocks, the most preferred connection style
can be chosen fast and easy. This helps to stay in
line with the electrical connection concept of a
given application
FN 3258 filters ensure compliance with Class A limits
according to EN 55011 up to 50 m cable length and
beyond. Further they can contribute significantly to
meet conducted emission limits according to Class
B
Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
High potential test voltage
Protection category
Overload capability
Temperature range (operation and storage)
Flammability corresponding to
Design corresponding to
MTBF @ 50°C/400 V (Mil-HB-217F)
3x 480/277 VAC (FN 3258)
3x 520/300 VAC (FN 3258 H)
dc to 60 Hz
7 to 180 A @ 50°C
P –> E 2650 VDC for 2 sec
P –> P 2100 VDC for 2 sec
IP 20
1.5x rated current for 1 minute, once per hour
4x rated current at switch on,
-25°C to +100°C (25/100/21)
UL 94 V-2 or better
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
300,000 hours
Filter operation on the mains input side of
consumers increases their reliability and conducted
immunity significant
Chokes with exceptional saturation resistance and
excellent thermal behavior are a vital part of FN
3258 design. Thus, all filters retain the expected filter
performance even in very noisy applications and
under full load conditions
Typical applications
Three-phase variable speed motor drives, servo
drives, inverters and converters
Applications comprising energy conversion devices
like machines or process automation equipment
HVAC equipment, elevators, power supplies, UPS
and further three-phase applications
Typical electrical schematic
2
EMC/EMI Products
Schaffner Group
Datasheets
2016

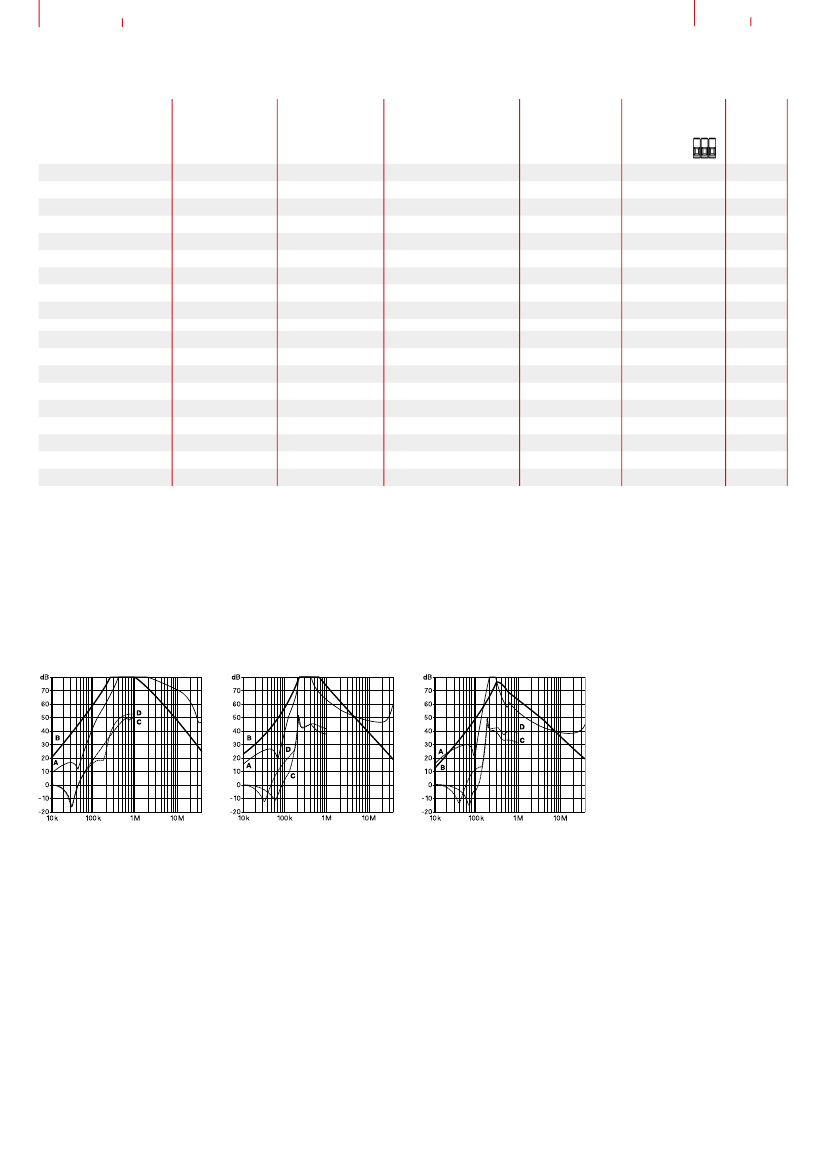

Filter selection table
Filter
Rated current
@ 50°C (40°C)
[A]
FN 3258-7-44
FN 3258-16-44
FN 3258-30-33
FN 3258-42-33
FN 3258-55-34
FN 3258-75-34
FN 3258-100-35
FN 3258-130-35
FN 3258-180-40
FN 3258 H-7-44
FN 3258 H-16-44
FN 3258 H-30-33
FN 3258 H-42-33
FN 3258 H-55-34
FN 3258 H-75-34
FN 3258 H-100-35
FN 3258 H-130-35
FN 3258 H-180-40
7 (7.7)
16 (17.5)
30 (32.9)
42 (46.0)
55 (60.2)
75 (82.2)
100 (109.5)
130 (142.4)
180 (197.1)
7 (7.7)
16 (17.5)
30 (32.9)
42 (46.0)
55 (60.2)
75 (82.2)
100 (109.5)
130 (142.4)
180 (197.1)
Typical drive
power rating*
[kW]
4
7.5
15
22
30
37
55
75
90
4
7.5
18.5
22
37
45
55
75
110
Leakage current**
@ 400 VAC/50 Hz
[mA]
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
Power loss
@ 25°C/50 Hz
[W]
3.8
6.1
11.8
15.7
25.9
32.2
34.5
43.1
58.3
3.8
6.1
11.8
15.7
25.9
32.2
34.5
43.1
58.3
-44
-44
-33
-33
-34
-34
-35
-35
-40
-44
-44
-33
-33
-34
-34
-35
-35
-40
Input/Output
connections
[kg]
0.5
0.8
1.2
1.4
2.0
2.7
4.3
4.5
6.0
0.5
0.8
1.2
1.4
2.0
2.7
4.3
4.5
6.0
Weight
* Calculated at rated current, 440 VAC (FN 3258)/480 VAC (FN 3258 H) and cos phi=0.8. The exact value depends upon the efficiency of the drive, the motor and the entire
application.
** Maximum leakage under normal operating conditions. Note: if two phases are interrupted, worst case leakage could reach 5.4 times higher levels.
