BPWXLD10-32U-035 datasheet, PDF

Datasheet> All Categories > Power/power management> BPWXLD10-32U-035

BPWXLD10-32U-035: DescriptionLED Power Supplies 10W 32V 350mA UNIV IN/OUT LED DIM; CategoryPower/power management; File Size663KB，2 Pages; ManufacturerBias Power

Download Datasheet Parametric Compare View All

BPWXLD10-32U-035 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPWXLD10-32U-035	-	-	View	Buy Now

BPWXLD10-32U-035 Overview

LED Power Supplies 10W 32V 350mA UNIV IN/OUT LED DIM

BPWXLD10-32U-035 Parametric

Parameter Name	Attribute value
Product Category	LED Power Supplies
Manufacturer	Bias Power
RoHS	Details
Output Current-Channel 1	0 mA to 350 mA
Output Voltage-Channel 1	30 VDC
Output Power	10 W
Input Voltage	100 VAC to 308 VAC
Dimming	With Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Length	2.3 in
Width	2.285 in
Height	1.25 in
Commercial/Medical	Commercial
Open Frame/Enclosed	Open Frame
Product	LED Power Supplies
Factory Pack Quantity	10

Preview

Download Datasheet

View All

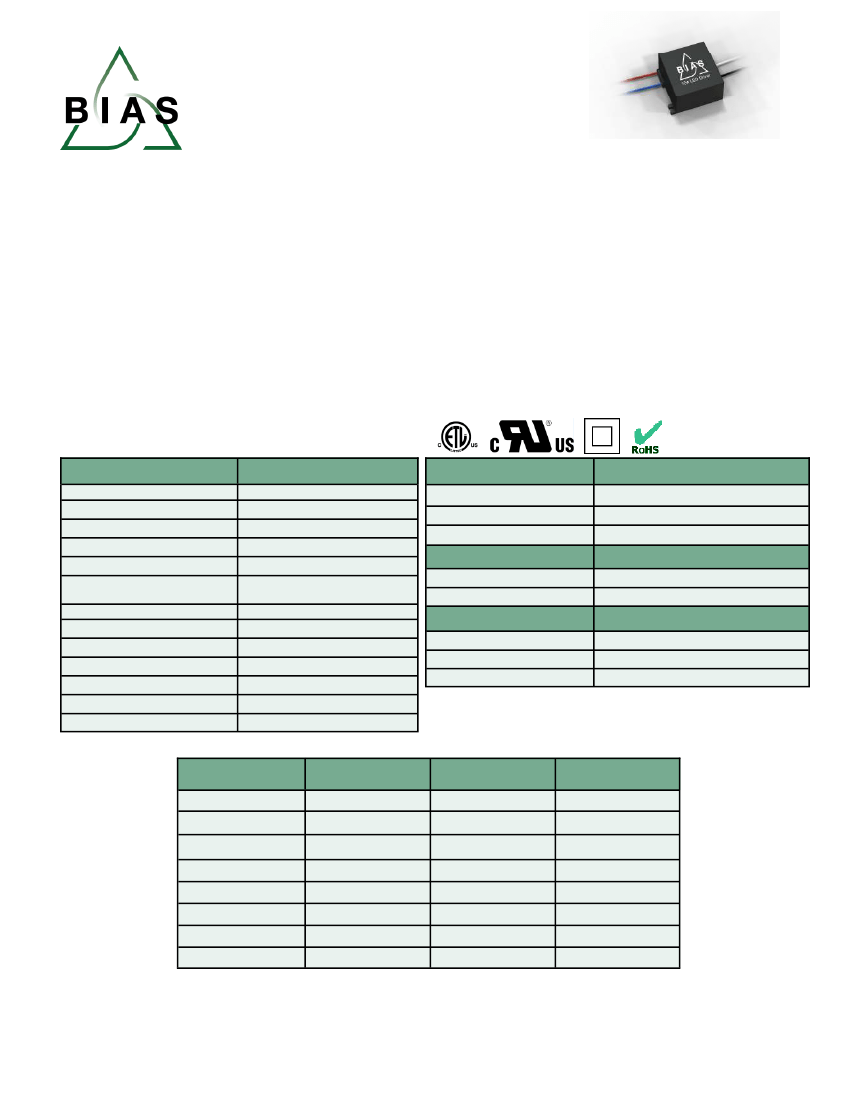

BIAS 10 Watt LED Drivers

Universal Input/Output with AOVC

BPWXL 10-14U-070 (700mA, constant current)

BPWXLD 10-14U-070 (700mA, 0-10 dimmable)

BPWXL 10-32U-035 (350mA, constant current)

BPWXLD 10-32U-035 (350mA, 0-10 dimmable)

BPWXL 10-42U-024 (240mA, constant current)

BPWXLD 10-42U-024 (240mA, 0-10 dimmable)

BPWXL 10-50U-020 (200mA, constant current)

BPWXLD 10-50U-020 (200mA, 0-10 dimmable)

Features

•

Universal Input (100-308 VAC, 50/60Hz)

•

Universal Output with AOVC

(3-14 VDC@700mA), (3-32VDC@350mA),

(3-42VDC@240mA) or (9-50VDC@200mA)

Benefits

•

Bias Adaptive Output Voltage Control, AOVC

technology (patent pend-

ing) provides the broadest range of applications with the fewest driver

SKUs

and

75%+ efficiency across all string lengths

•

Highly reliable, rugged construction for indoor or outdoor applications

•

True 0-10 volt dimming with 1000:1 range, IEC 60929 compliant

•

1% current regulation and no flicker

•

Color coded flying leads for simple assembly and installation

•

AC line or DC load switching without overshoot on startup

RECOGNIZED

•

Ingress protection to IP67

•

-40 to +85°C ambient, 90°C maximum

case temperature

•

Flying Leads for AC and LED connections

•

3000 VAC Isolation

•

82% efficiency

•

EN 55022, Class B; FCC Part 15, Class B

•

Meets UL/CSA and EN Product Safety

Requirements (UL 8750 Class 2)

•

Overcurrent, short circuit (shorted string),

open circuit (string break) and overload

protected

Operating Specifications

(@120VAC / 60 Hz / 25°C unless otherwise specified)

Electrical

Input Voltage Range

Output Power (Pmax)

String Voltage (Minimum)

Efficiency

Temperature Regulation Io (Peak)

Isolation

Short Circuit Protection

Reliability @ 25° C, MIL HDBK-217F

0-10 VDC Dimming, +/- 2% linearity

Line Regulation, Io (Pk)

AC Input Connections

DC Output Connections

Dimming (0-10 VDC) Connections

100-308 VAC (50/60Hz)

10 W nominal

3.0 VDC for all drivers

82% nom.

+/- 2%, Po < Pmax

3000 VAC (meets UL/CSA &

EN Product Safety)

Continuous, Pin ≤ 0.7 w @ 120 VAC

> 500 Khr MTBF

Per IEC 60929, Annex E

+/- 1%, Po < Pmax

Line BLK, Neutral WHT

Pos(+) RED, Neg (-) BLU

Adjust PUR/Com GRY

Environmental

Operating / Storage Temperature

Case Temperature, maximum

Ingress Protection

-40 to 85

C / -40 to 105

IP67

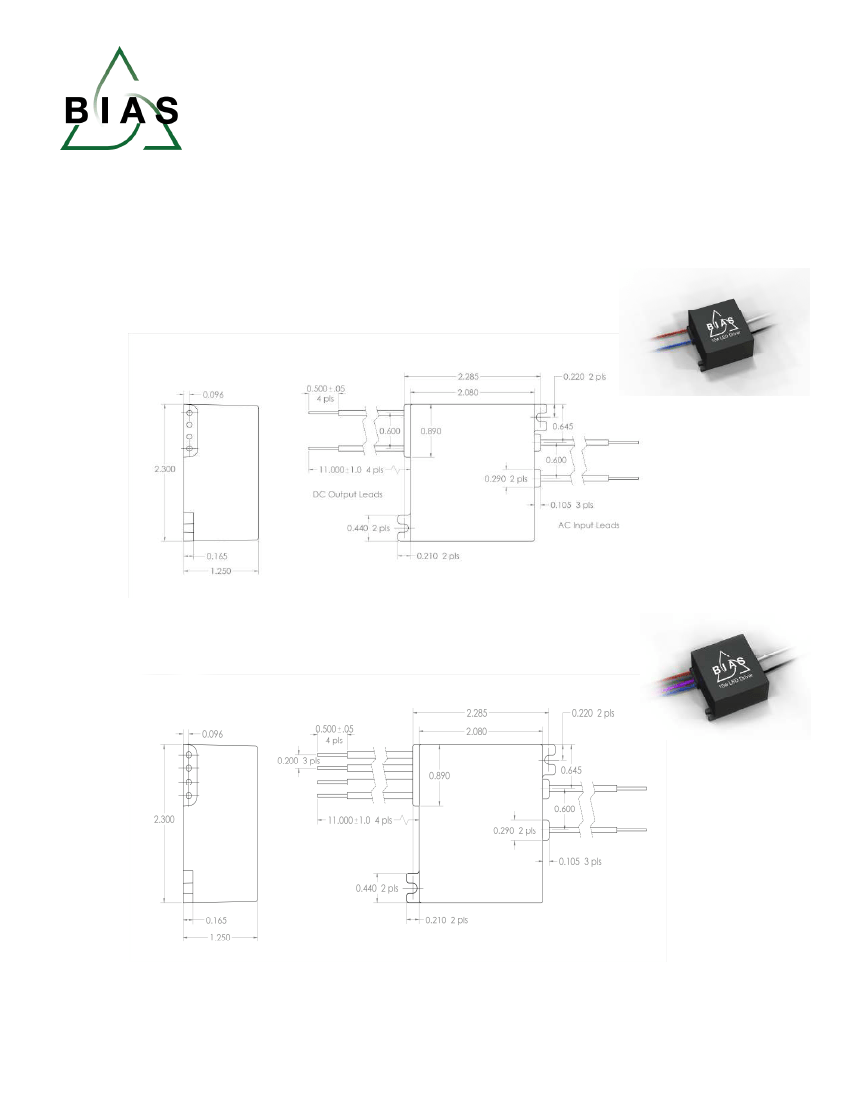

Mechanical

Package Size (L x W x H)

Lead Length

2.3 x 2.5 x 1.25 inches

11”, 18AWG 600V class

Safety and Standards

Safety Compliance

EMI Emissions

Standards Compliance

ETL/UL 8750 Class 2/CAN/CSA c22.2 (1)

EN 55022, Class B, FCC Part 15, Class B

IEC61347-1, IEC61347-2-3

Model Number

BPWXL 10-14U-070

BPWXLD 10-14U-070

BPWXL 10-32U-035

BPWXLD 10-32U-035

BPWXL 10-42U-024

BPWXLD 10-42U-024

BPWXL 10-50U-020

BPWXLD 10-50U-020

Maximum String

Voltage

14 VDC

32 VDC

42 VDC

50 VDC

Output Current

700 mA

0 to 700 mA

350 mA

0 to 350 mA

240 mA

0 to 240 mA

200 mA

0 to 200 mA

Dimming

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

N/A

0 –10 VDC, Vd

5 Year Warranty - see Bias Power published warranty for specifics

BIAS Power

BPWXL 10 Series Data Sheet, Page

1 of 2

+1 847 215 2427

Revised 04/12/2012

Specifications subject to change

www.biaspower.com
