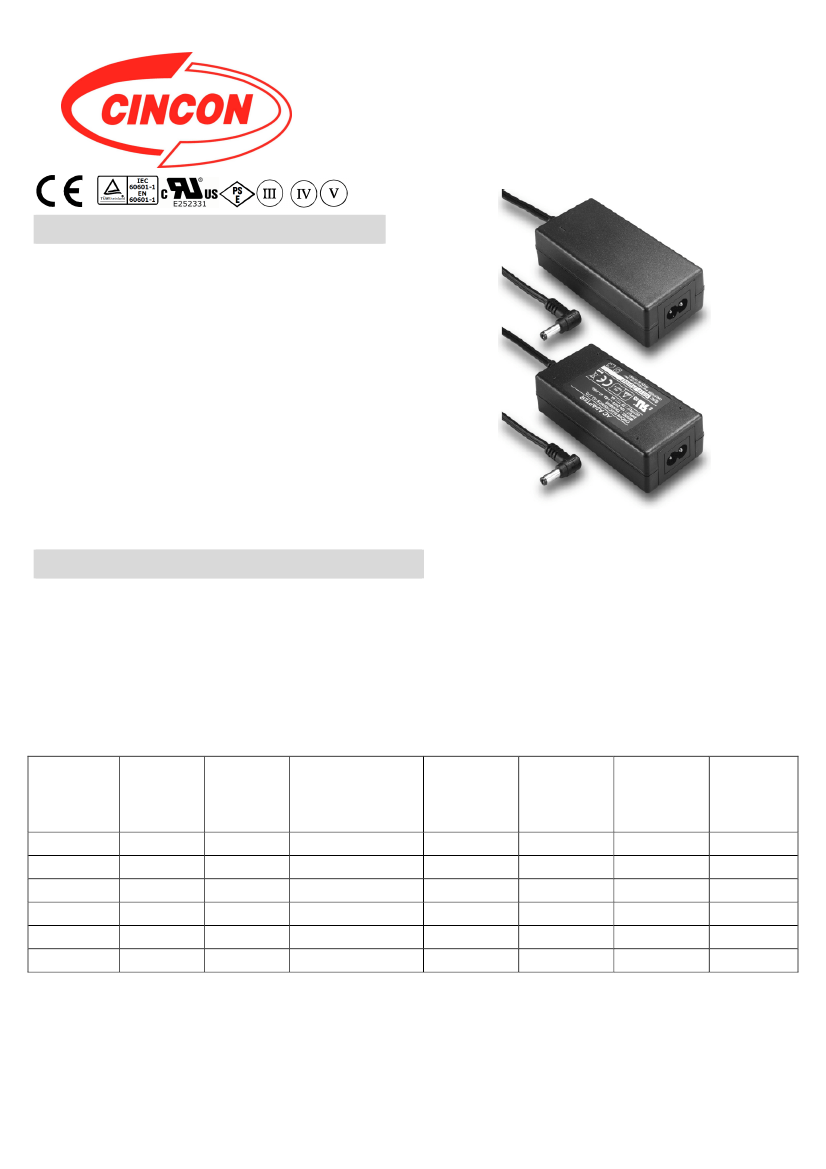

V15
︳
Features
TR30M SERIES
30W MEDICAL
SWITCHING ADAPTER
* Universal Input: 90~264Vac
* Meets EN60601-1 and EN55011 Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* CEC Level
Ⅳ
Compliant except TR30M050
Meets CEC Level
Ⅲ
(Output Cable Length
≦
1800mm)
(TR30M050: Output Cable Length
≦
720mm)
* Efficiency & Standby Power Meet Level V (Option)
(Output Cable Length
≦
1800mm)
(TR30M050: Output Cable Length
≦
720mm)
(TR30M090: Output Cable Length
≦
1220mm)
* Meets 2MOPP
Ordering information
TR30MXXX
Model No.
- XX
DC Plug Type
E XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / SPT1
MODEL
OUTPUT
VOLTAGE
5V
9V
12V
15V
18V
24V
OUTPUT
CURRENT
4A
3A
2.5A
2A
1.65A
1.25A
RIPPLE & NOISE
NOTE 1
50mVp-p
90mVp-p
120mVp-p
150mVp-p
180mVp-p
240mVp-p
VOLTAGE
ACCURACY
NOTE 2
±2%
±2%
±2%
±2%
±2%
±2%
LINE
REGULATION
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
NOTE 4
±6%
±4%
±3%
±3%
±2%
±2%
% EFF. (Typ.)
NOTE 5
76%
82%
82%
85%
85%
84%
TR30M050
TR30M090
TR30M120
TR30M150
TR30M180
TR30M240
Specifications are subject to change without notice.
1
V15
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Inrush Current ………………….………….................... 50A max. @240Vac
Input Current ………………….……………..................................... 0.6A max.
TR30M Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
0
10
20
30
40
Ambient Temperature(
o
C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 16ms typ. @115Vac
Short Circuit Protection …………….…………… Continuous(Auto Recovery)
Over Voltage Protection ………………............... TVS Component to Clamp
Temperature Coefficient ……………………............................… ±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 5,656VDC
Operating Temperature ................................... 0 ~ 60℃(see derating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity …………………...….......…......... . 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ………………………………………….. 70KHz Typical
MTBF ………..… MIL-HDBK-217F, GB, 25℃/115VAC ……. 300K hrs min.
Altitude …………………………………………………………………… 3000m
Dimensions ……….. 4.331x1.969x1.181Inches (110.00x50.00x30.00mm)
Weight ……………………………………………………… 220g(0.49 Pounds)
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Typical efficiency at 230VAC and full load at 25℃.
6. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
representative for details”.
EN61000-3-3
SAFETY AND EMC:
Emission and lmmunity …………..… EN55011, EN60601-1-2, EN61000-3-2
Safety ……….… IEC60601-1:2005, EN60601-1:2006, ANSI/AAMI ES60601-1:2005
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
4.331[110.00]
1.969[50.00]
70.866[1800.00]±1.969[50.00]
L E D
DC Plug type: V+ ─●)─ V-
DC
8 A
Plug:Right
m m
Angle (ψ5.5 /ψ2.1)L12mm
1
W G / 1 8 0 0
IEC320/C8
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.181[30.00]
