THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.

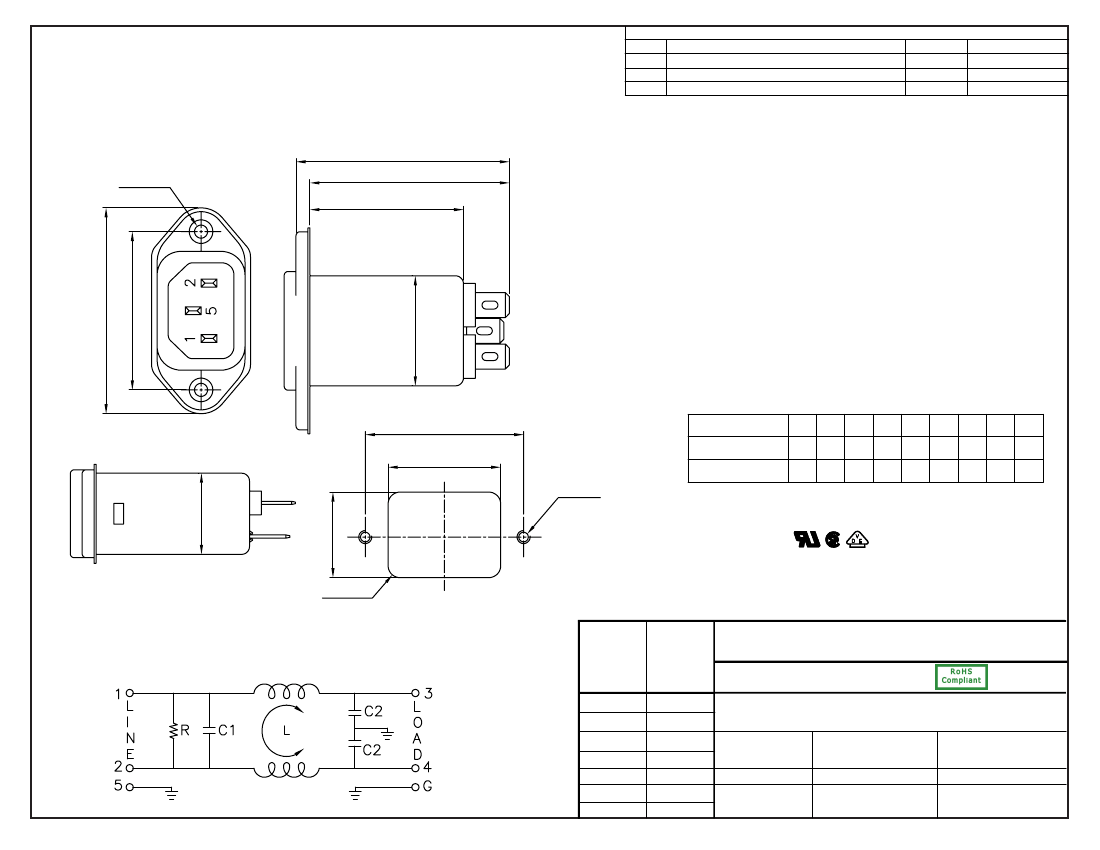

1. PHYSICAL DIMENSIONS
Ø3.3(2X)
54.0MAX
50.0MAX
39.5MAX
REVISION
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Specifications
DATE
06-01-06
01-20-09
APPROVED
DP
LY
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................3 A RMS MAX
B. @ 250 VAC.........................................3 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
12
1
.10
18
2
.15
20
4
.50
25
12
1.0
30
18
5.0
38
38
10
40
40
30
40
40
1-3.
1-4.
52.0 ± 0.5
40.0 ± 0.5
28.4MAX
1-5.
1-6.
40.0 ± 0.13
28.45 ±
0.5
0
21.3MAX
M3(2X)
21.6 ±
0.5
0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
1-7.
1-8.
1-9.
OPERATING TEMPERATURE.................-25° TO +100° C
SAFETY:
RoHS COMPLIANT
R3.0(4X)
PANEL CUTOUT
(MOUNTING FROM FRONT)
2. ELECTRICAL SCHEMATIC
L:
C1:
C2:
R:
2.5mH
0.1uF
2200pF
1MΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
858-03/013
EMI FILTER
UNIT: mm
REV. C
Approved / Date
JJH / 09-12-01
Drawn / Date
B.ZHANG
09-12-01
Checked / Date
09-12-01
