Applications
Power Protection and Conditioning

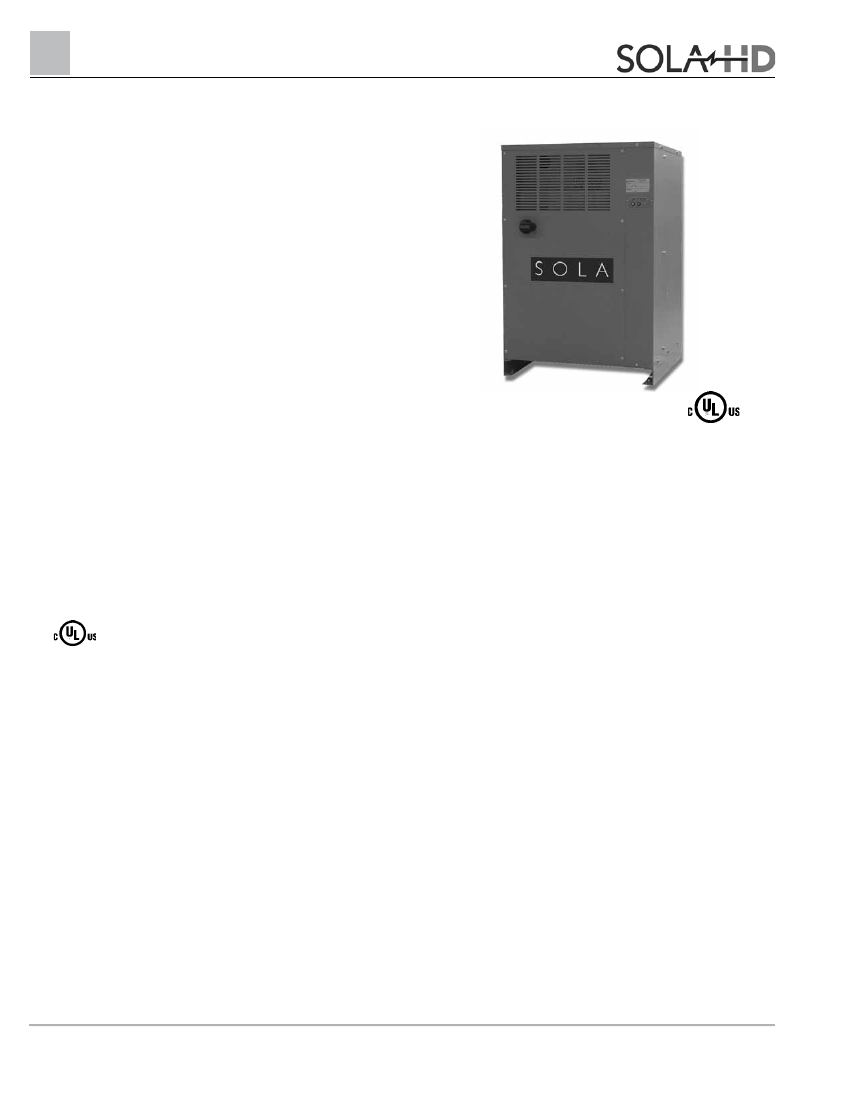

SOLATRON™ Plus Series - Three Phase Power Conditioners
• Automatic Packaging Machinery
•
Large Machine Tool Equipment
• UPS Bypass Circuits
• Retail Store
• Process Equipment
Features
• Rugged, industrial design
• High overload capability
• High MTBF - No fans used
• No power factor restriction on loads
• Tight regulation for protection against
sag (-25%) and swell (+10%) conditions
• Fail-safe, no-break, auto-bypass
• Status indicating lights
• Shielded, copper wound isolation transformer
• Surge protection to ANSI/IEEE and IEC Standards
• High efficiency (96%) microprocessor controlled
tap switcher
• Automatic under voltage protection
•
Two year limited warranty
Certifications and Compliances
•
Listed
- UL 1012
- UL 1449, 3rd Edition
- CSA C22.2 No.125
• FCC Rules: complies with Part 15 Subpart J for a Class
A computing device
E224896
Related Products
• STV 100K
•
Isolation Transformers
54
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
Power Protection and Conditioning
Selection Table
Output kVA
Catalog Number
Vac Input
208 Vac Input, 208Y/120 Vac Output, 60 Hz
20
30
50
75
63TAA320
63TAA330
63TAA350
63TAA375
208
208
208
208
480 Vac Input, 208Y/120 Vac Output, 60 Hz
20
30
50
75
63TCA320
63TCA330
63TCA350
63TCA375
480
480
480
480
480 Vac Input, 480Y/277 Vac Output, 60 Hz
20
30
50
75
63TCC320
63TCC330
63TCC350
63TCC375
480
480
480
480
600 Vac Input, 208Y/120 Vac Output, 60 Hz
20
30
50
75
63TDA320
63TDA330
63TDA350
63TDA375
600
600
600
600
208Y/120
208Y/120
208Y/120
208Y/120
600.0 (273.00)
750.0 (341.00)
950.0 (432.00)
1200.0 (545.00)
480Y/277
480Y/277
480Y/277
480Y/277
600.0 (273.00)
750.0 (341.00)
950.0 (432.00)
1200.0 (545.00)
208Y/120
208Y/120
208Y/120
208Y/120
600.0 (273.00)
750.0 (341.00)
950.0 (432.00)
1200.0 (545.00)
208Y/120
208Y/120
208Y/120
208Y/120
600.0 (273.00)
750.0 (341.00)
950.0 (432.00)
1200.0 (545.00)
Vac Output
1
Ship Weight lbs (kg)
Custom Voltages
240 Vac Input, 240Y/139 Vac Output, 60 Hz
480 Vac Input, 240Y/139 Vac Output, 60 Hz
600 Vac Input, 240Y/139 Vac Output, 60 Hz
Contact Technical Services for custom voltages.
Protection Specifications
Output voltage will switch to bypass mode
when input is less than 50% of nominal.
Regulated output voltage will be
re-established once input voltage is with
specifications.
Input circuit breaker
Amber lamp indication of over temperature
at approximately 180°C. Unit switches to
by-pass mode until internal temperature is
reduced to specified values.
Noise Suppression Performance Specifications
Common Mode Noise
Attenuation
Normal Mode Noise
Attenuation
Surge Protection
150 dB at 100 kHz
65 dB at 100 kHz
Tested to ANSI/IEEE standard C62.41 A&B
Under Voltage
Short Circuit Protection
Over Temperature Protection
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
55
1
Electrical Specifications
Power Ratings
Nominal Voltages
Input Voltage Range
Output Voltage
Range
Response Time
Technology
Operating Frequency
Load Power Factor
Insulation
Resistance
Efficiency
Overload Capability
EMI
Power Protection and Conditioning
Mechanical Specifications
Indicators
Connections
Size
in
mm
Indicating Lamps: 2 amber (over temperature and
bypass mode), 1 green (regulated output present)
Field wired, terminal blocks
H
42
1016
W
28
712
D
26
661
20, 30, 50, 75 kVA, Three Phase*
See Selection Table
-25% to +10% of nominal rated voltage
Regulated to ± 3% of nominal
voltage with an input voltage range of –25% to +10%.
Responds to any line variation in <1.5 cycles typical.
Enhance Voltage Regulation (EVR), Microprocessor
controlled electronic tap switching. 6 taps switched at
zero current crossing with no output interruption.
57-63 Hz
No Restriction
100 megohms from winding to core
measured at 500 Vdc
96% typical
Environmental Specifications
Audible Noise
Ambient Temperature
Operating Altitude
Operating Humidity
Less than 50 dBA at 3 feet
0° to 40°C Operating,
0° to 80°C Storage
10,000 feet without derating
95% relative (non-condensing)
1000% of rated load for 1 second
200% of rated load for 1 minute
Less than 0.2 gauss at a distance of 3 ft.
* Contact Technical Services for other ratings.
Design Style
56
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
