FN3270H-35-33 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN3270H-35-33

FN3270H-35-33: DescriptionFerrite Clamp On Cores BB Freq 43u002644 Mat 305Ohm @250MHz Round; CategoryAnalog mixed-signal IC filter; File Size349KB，4 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN3270H-35-33 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FN3270H-35-33	-	-	View	Buy Now

FN3270H-35-33 Overview

Ferrite Clamp On Cores BB Freq 43u002644 Mat 305Ohm @250MHz Round

FN3270H-35-33 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Certification	UL; CSA; ENEC-14
filter type	THREE PHASE EMI FILTER
high	68 mm
high potential	2250 V
Maximum leakage current	29.4 mA
length	130 mm
Installation type	PANEL MOUNT
working frequency	60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L130.0XB70.0XH68.0 (mm)/L5.118XB2.756XH2.677 (inch)
Rated current	35 A
Rated voltage	520 V
width	70 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

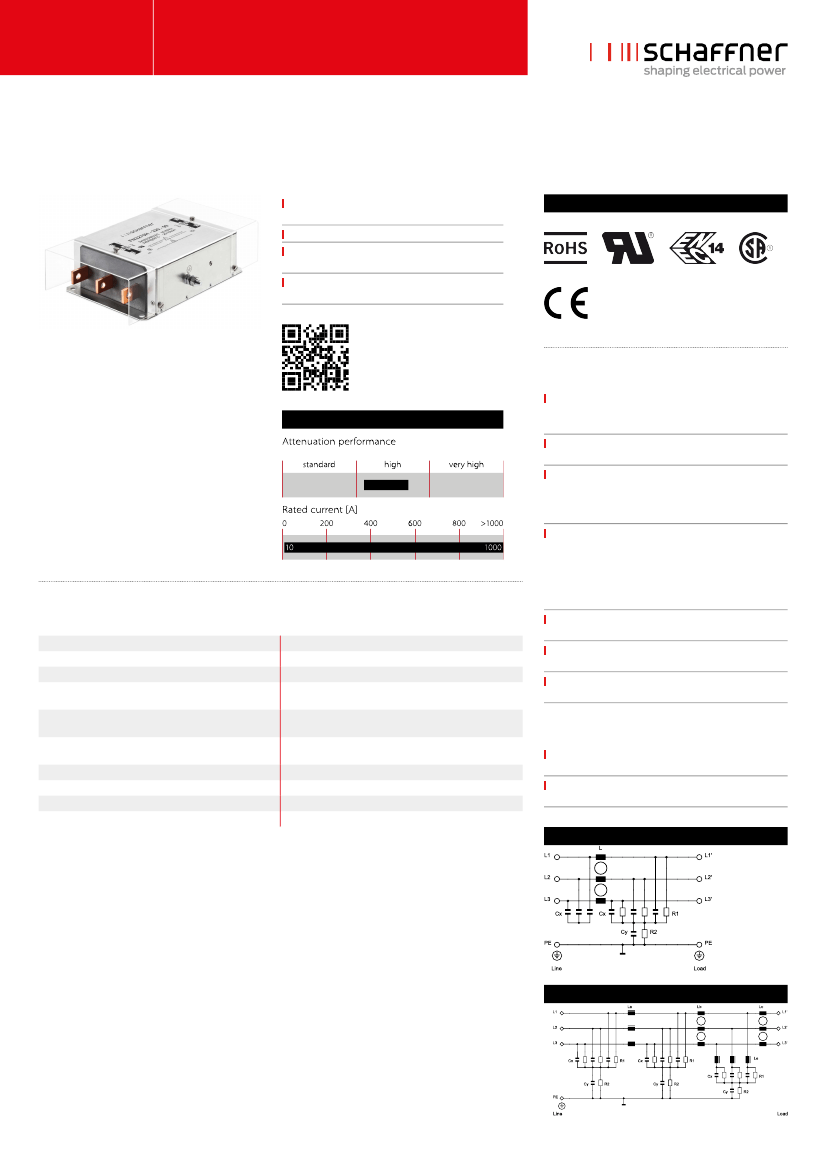

3-Phase Filters FN 3270

Compact EMC/RFI Filter for Industrial Motor Drive Applications

Very compact and light weight design

requiring minimum space

Easy, time-saving installation and contacting

Protective covers as optional accessory

available

Attenuation performance according to EN

61800-3/A11

Approvals

Features and benefits

Performance indicators

An extremely compact and light weight filter design

requiring minimum mounting space in installations

and cabinets

Simple and time-saving installation with good

accessibility for automatic and hand tools

Solid, touch-safe terminal blocks, for all filters from

10 to 100 A, offering sufficient contacting cross

section according to the EN 60204-1 installation

standard

Optionally available transparent protective covers

for all filters with busbars from 150 to 1000 A, to

protect the installer, operator or inspector from

accidental touching of live conductors. They can

easily be retrofitted even if the filter is already

installed and connected

These EMC filters provide the attenuation

performance needed to fulfill EN 61800-3/A11

Guaranteed filter performance under fullload

operating conditions

15 different filter models allow the specific choice

and deployment for most industrial applications

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

High potential test voltage

Protection category

Overload capability

Temperature range (operation and storage)

Flammability corresponding to

Design corresponding to

MTBF @ 50°C/400 V (Mil-HB-217F)

3x 520/300 VAC (480 VAC +10% possible)

dc to 60 Hz

10 to 1000 A @ 50°C

P –> E 2750 VDC for 2 sec

P –> P 2250 VDC for 2 sec

IP 20 (10 to 100 A)

IP 00 (150 to 1000 A)

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

-25°C to +100°C (25/100/21)

UL 94 V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

>320,000 hours

Typical applications

Variable speed electrical power drive systems/motor

drives for mainly industrial purpose

Various industrial applications comprising frequency

inverters, motor drives and servo drives

Typical electrical schematic (up to 100 A)

Typical electrical schematic (>100 A)

FN3270H-35-33 Related Products

	FN3270H-35-33	FN3270H-10-44	FN3270H-80-35	FN3270H-100-35	FN3270H-150-99	FN3270H-400-99	FN3270H-50-34	FN3270H-20-44	FN3270H-600-99
Description	Ferrite Clamp On Cores BB Freq 43u002644 Mat 305Ohm @250MHz Round		Power Line Filters 3PHASE 80A RFI - 520VAC	NTC Thermistors 10k 3988 2%	Power Line Filters 3PHASE 150A RFI - 520VAC	Power Line Filters 3PHASE 400A RFI - 520VAC	Heat Sinks MaxClip TO218/TO247 16.9lb .93x18mm	Headers u0026 Wire Housings 6 CKT R/A HEADER	Power Line Filters 3PHASE 600A RFI - 520VAC
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Certification	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	68 mm	58 mm	90 mm	90 mm	86 mm	86 mm	80 mm	58 mm	86 mm
high potential	2250 V	2250 V	2250 V	2250 V	2250 V	2250 V	2250 V	2250 V	2250 V
Maximum leakage current	29.4 mA	26.4 mA	29.4 mA	29.4 mA	59.5 mA	59.5 mA	29.4 mA	26.4 mA	59.5 mA
length	130 mm	120 mm	170 mm	200 mm	240 mm	240 mm	140 mm	120 mm	240 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz	60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L130.0XB70.0XH68.0 (mm)/L5.118XB2.756XH2.677 (inch)	L120.0XB58.0XH58.0 (mm)/L4.724XB2.283XH2.283 (inch)	L170.0XB95.0XH90.0 (mm)/L6.693XB3.74XH3.543 (inch)	L200.0XB95.0XH90.0 (mm)/L7.874XB3.74XH3.543 (inch)	L240.0XB200.0XH86.0 (mm)/L9.449XB7.874XH3.386 (inch)	L240.0XB200.0XH86.0 (mm)/L9.449XB7.874XH3.386 (inch)	L140.0XB85.0XH80.0 (mm)/L5.512XB3.346XH3.15 (inch)	L120.0XB58.0XH58.0 (mm)/L4.724XB2.283XH2.283 (inch)	L240.0XB200.0XH86.0 (mm)/L9.449XB7.874XH3.386 (inch)
Rated current	35 A	10 A	80 A	100 A	150 A	400 A	50 A	20 A	600 A
Rated voltage	520 V	520 V	520 V	520 V	520 V	520 V	520 V	520 V	520 V
width	70 mm	58 mm	95 mm	95 mm	200 mm	200 mm	85 mm	58 mm	200 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	-	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner	-	Schaffner	Schaffner
