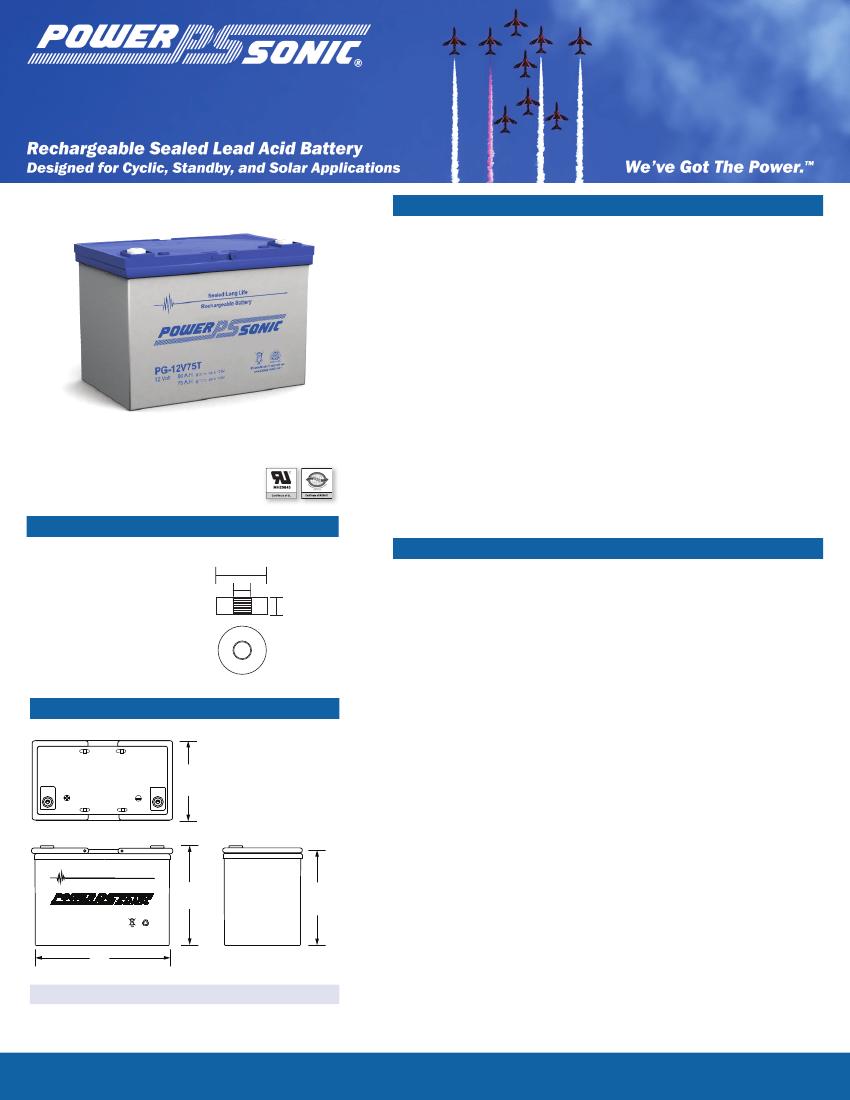

PG-12V75T
FR
12 Volt 80 AH
@ 20-hr. rate
75 AH
@ 10-hr. rate
Features
•
Long Service Life
- Thick plate design and efficient gas
recombination yield a service life expectancy of up to 10 years in
standby mode.
•
Low Internal Resistance
- Superb high-rate discharge
characteristics ensure reliable performance in UPS and Telecom
applications.
•
Maintenance-Free, Non-Spillable
- Proven VRLA technology
guarantees safe operation without maintenance and ‘non-
restricted article’ status for transportation.
•
Handles
- Integral carrying handles.
•
Low Self-Discharge
- Lead-calcium alloy grids and use of high
purity lead account for superior shelf-life characteristics permitting
storage for extended periods of time.
•
Designed-In Reliability
- Cutting-edge manufacturing and
process control combined with meticulous quality assurance
procedures guarantee consistent and dependable performance.
Terminals
(mm)
16mm
M6
Performance Specifications
N
ominal Voltage
........................................................................ 12 volts (6 cells)
6mm
• T6: Threaded insert w.
6 mm stud fastener
Nominal Capacity
20-hr.
10-hr.
8-hr.
5-hr.
(4.00A to 10.80 volts) .......................................................... 80.0 AH
(7.5A to 10.80 volts) ............................................................ 75.0 AH
(9A to 10.50 volts) ................................................................. 72.0 AH
(12.90A to 10.50 volts) ....................................................... 64.5 AH
(19.50A to 10.50 volts) ......................................................... 58.5 AH
(45.0A to 9.60 volts) ............................................................ 45.0 AH
Physical Dimensions: in (mm)
3-hr.
1-hr.
Approximate Weight
......................................................... 55.0 lbs. (24.95 kg)
W
Energy Density
(10-hr. rate) .................................. 1.61 W-h/in3 (98.11 W-h/l)
Specific Energy
(10-hr. rate) ............................. 16.36 W-h/lb (36.08 W-h/kg)
Internal Resistance
(approx.) ..................................................... 6.0 milliohms
Max Short-Duration Discharge Current
(10 Sec.) ................... 450 amperes
Shelf Life
(% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
Sealed Long Life
Rechargeable Battery
HT
PG-12V75T
12 Volt
TTE
RY
ST
B
E
R
MU
H
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case
........................................................ ABS Plastic (UL94 V-O flame retardant)
Power-Sonic Chargers
............................................................PSC-1210000A-C
YCL
ED
EC
80 A.H.
@ 20-hr. rate to 10.8V
75 A.H.
@ 10-hr. rate to 10.8V
Power-Sonic Corporation
www.power-sonic.com
L
L:
10.24 (260)
W:
6.61 (168)
H:
8.27 (210)
HT:
8.51 (216)
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
BA
Pb
NONSPILLABLE
www.power-sonic.com
®
PG-12V75T
FR
12 Volt 80 AH
@ 20-hr. rate
, 75 AH
@ 10-hr. rate

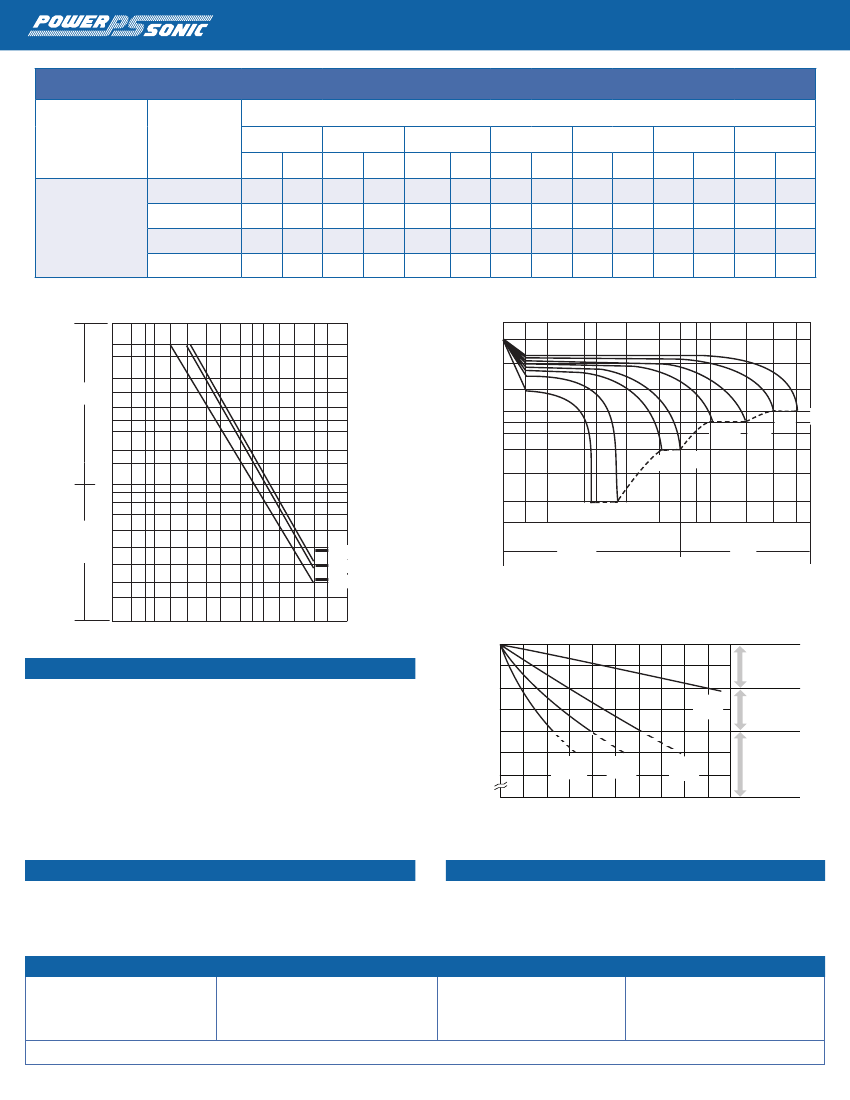

Constant Current & Power Discharge Ratings
AMPS/WATTS PER CELL @ 25° C
MODEL
FINAL
VOLTAGE
A
1.80
5 MIN
W
458
470
514
528
10 MIN
A
124
135
155
174
W
326
335
357
366
15 MIN
A
108
118
135.5
140
W
262
268
274
285
20 MIN
A
95
105
114
115
W
212
218
230
236
30 MIN
A
78
83
87.5
86.3
W
160
165
172
178
45 MIN
A
56
61
60.5
60
W
121
125
129
132
60 MIN
A
45
46
45
44.5
W
98
100
104
106
145
166
190
235
PG-12V75T FR
1.75
1.67
1.60
Discharge Time vs. Discharge Current
10
Discharge Characteristics
13
Ambient Temperature: 25°C(77°F)
8
7
6
5
4
(h)
Terminal Voltage (V)
9
12
11
10.8
10.5
10
9.6
9
7.6
0
3
Discharge Time
19.5A 12.9A
75A
45A
7.5A 4.0A
3
2
60
50
40
30
(min)
20
10
8
6
4
0
1 2 4
6
7
9 12
20 30 50 75 150 225 375
225A 150A
5 10
(min)
20
30
60 2 3
5
(h)
10
20
40°C (104°F)
25°C ( 77°F)
0°C ( 32°F)
Discharge Time
Shelf Life & Storage
Capacity Retention Ratio (%)
100
Charging is not
necessary unless
100% of capacity
is required.
Discharge Current (A)
Charging
Cycle Applications:
Limit initial current to 20.0A. Charge until battery voltage
(under charge) reaches 14.4 to 14.7 volts at 68°F (20°C). Hold at 14.4 to 14.7
volts until current drops to under 750mA. Battery is fully charged under these
conditions, and charger should be disconnected or switched to “float” voltage.
“Float” or “Stand-By” Service:
Hold battery across constant voltage source of
13.5 to 13.8 volts continuously. When held at this voltage, the battery will seek its
own current level and maintain itself in a fully charged condition.
Note:
Due to the self-discharge characteristics of this type of battery, it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation.
80
5
o
C
(41
o
F)
60
Charging before
use is necessary
to help recover
full capacity.
Charge may fail
to restore full
capacity. Do not
let batteries reach
this state.
40
0
0
2
4
40 C
(104
o
F)
6
8
o
30 C
o
(86 F)
o
20 C
(68
o
F)
12
14
16
18
20
o
10
Standing Period (Months)
Chargers
Power-Sonic offers a wide range of chargers suitable for batteries up to 100AH.
Please refer to the Charger Selection Guide in our specification sheets for “C-Series
Switch Mode Chargers” and “Transformer Type A and F Series”. Please contact our
Technical department for advice if you have difficulty in locating suitable models.
Further Information
Please refer to our website www.power-sonic.com for a complete range of useful
downloads, such as product catalogs, material safety data sheets (MSDS), ISO
certification, etc..
Contact Information
DOMESTIC SALES
Tel: +1-619-661-2020
Fax: +1-619-661-3650
national-sales@power-sonic.com
CUSTOMER SERVICE
Tel: +1-619-661-2030
Fax: +1-619-661-3648
customer-service@power-sonic.com
TECHNICAL SUPPORT
Tel: +1-619-661-2020
Fax: +1-619-661-3648
support@power-sonic.com
www.power-sonic.com
INTERNATIONAL SALES
Tel: +1-650-364-5001
Fax: +1-650-366-3662
international-sales@power-sonic.com
0111 1M
CORPORATE OFFICE
•
7550 Panasonic Way • San Diego, CA 92154 • USA • Tel: +1-619-661-2020 • Fax: +1-619-661-3650
© 2011. Power-Sonic Corporation. All rights reserved. All trademarks are the property of their respective owners.
