HPR100C

Description
Logic Gates Quad 2-Input
CategoryPower/power management    The power supply circuit
File Size383KB,4 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric Compare View All

HPR100C Online Shopping

Suppliers Part Number Price MOQ In stock
HPR100C - - View Buy Now

HPR100C Overview

Logic Gates Quad 2-Input

HPR100C Parametric

Parameter NameAttribute value
MakerMurata
Reach Compliance Codecompliant
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
www.murata-ps.com
FEATURES
n
n
n
n
n
n

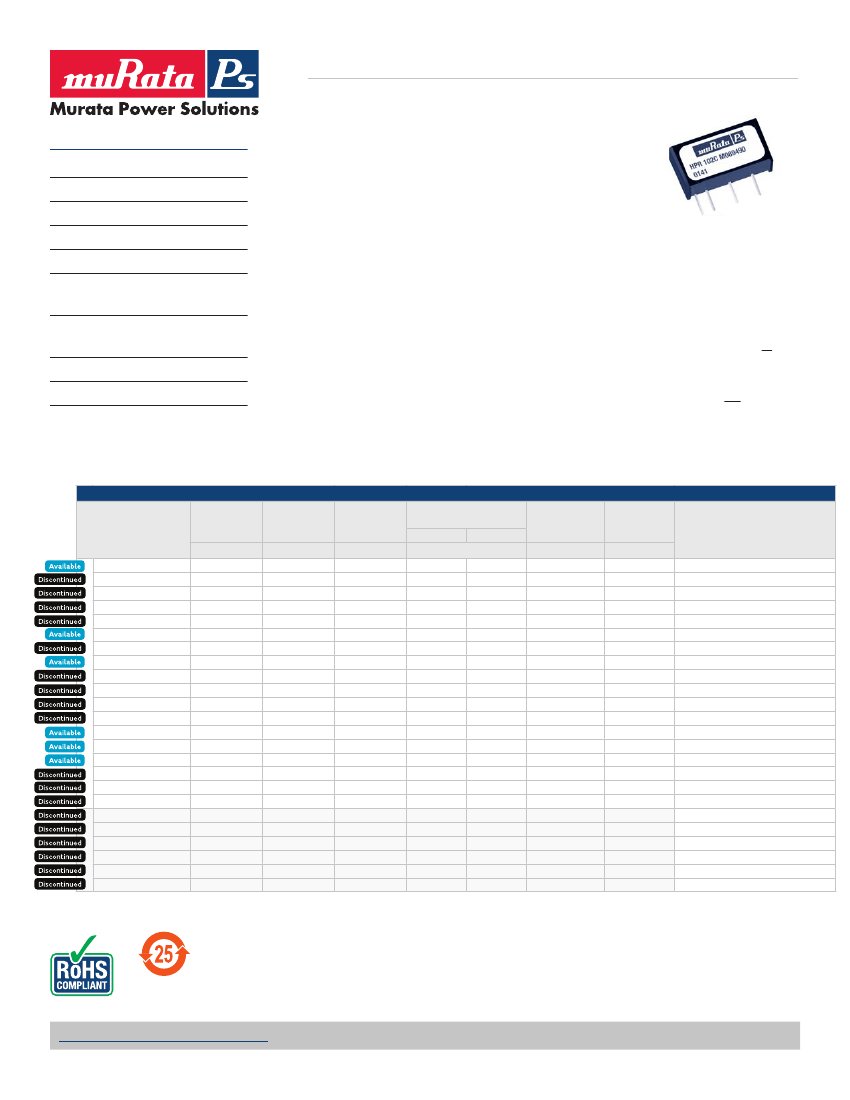

HPR1XXC
Series
0.75 Watt Single Output DC/DC Converters
Low Cost
Multiple Package Styles
Internal Input and Output
Filtering
Non-Conductive Case
High Output Power Density:
10 Watts/Inch
3
Extended Temperature Range:
-25°C to +85°C
Efficiency to 79%
RoHS Compliant
The HPR1XXC Series uses advanced circuit design and packaging technology to deliver superior reliability and
performance. A 170kHz push-pull oscillator is used in the input stage. Beat-frequency oscillation problems are
reduced when using the HPR1XXC Series with high frequency isolation amplifiers.
Reduced parts count and high efficiency add to the reliability of the HPR1XXC Series. The high efficiency of the
HPR1XXC Series means less internal power dissipation, as low as 190mW.
With reduced heat dissipation the HPR1XXC Series can operate at higher temperatures with no degradation. In
addition, the high efficiency of the HPR1XXC Series means the series is able to offer greater than 10 W/inch3 of
output power density. Operation down to no load will not impact the reliability of the series, although a >1mA
minimum load is needed to realize published specifications.
The HPR1XXC Series provides the user a low cost converter without sacrificing reliability. The use of surface mounted
devices and advanced manufacturing technologies make it possible to offer premium performance and low cost.
n
n
n
As of October 2016, ONLY the following part numbers will be available: HPR100C; HPR105C; HPR107C; HPR116C;
HPR117C; HPR118C
SPECIFICATIONS
All specifications are typical at T
A
= +25°C nominal input voltage unless otherwise specified.
PRODUCT SELECTION CHART
Model
HPR100C
HPR101C
HPR102C
HPR103C
HPR104C
HPR105C
HPR106C
HPR107C
HPR110C
HPR111C
HPR112C
HPR113C
HPR116C
HPR117C
HPR118C
HPR120C
HPR122C
HPR123C
HPR108C
HPR109C
HPR114C
HPR115C
HPR119C
HPR121C
Nominal Input
Voltage
V
DC
5
5
5
5
5
5
12
12
12
12
15
15
15
15
24
24
24
24
12
12
15
15
24
24
Rated Output
Voltage
V
DC
5
12
15
±5
±12
±15
5
12
±12
±15
5
12
±12
±15
5
15
±12
±15
15
±5
15
±5
12
±5
Rated Output
Current
mA
150
62
50
±75
±30
±25
150
62
±30
±25
150
62
±30
±25
150
50
±30
±25
50
±75
50
±75
62
±75
Input Current
No Load
20
20
20
20
20
20
10
10
10
10
8
8
8
8
8
8
8
8
10
10
8
8
8
8
Rated Load
mA
216
212
212
218
212
200
90
81
81
81
72
72
63
63
48
45
45
45
81
88
72
72
48
45
Reflected Ripple
Current
mAp-p
10
5
5
5
5
5
5
5
5
5
5
5
5
5
15
15
15
15
5
5
5
5
15
15
Efficiency
%
69
70
71
68
68
75
69
77
74
77
69
69
76
79
65
76
67
69
77
71
69
69
65
69
Recommended Alternatives
NMR100C / MER1S0505SC
NMR101C / MER1S0512SC
NMR102C / MER1S0515SC
NMA0505SC / MEA1D0505SC
NMA0512SC / MEA1D0512SC
NMA0515SC / MEA1D0515SC
NMR106C / MER1S1205SC
NMR107C / MER1S1212SC
NMA1212SC / MEA1D1212SC
NMA1215SC / MEA1D1215SC
MER1S1505SC
MER1S1512SC
MEA1D1512SC
MEA1D1515SC
MER1S2405SC
MER1S2415SC
MEA1D2412SC
MEA1D2415SC
NMR108C / MER1S1215SC
NMA1205SC / MEA1D1205SC
MER1S1515SC
MEA1D1505SC
MER1S2412SC
MEA1D2405SC
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
TDC_HPR1xxC.E02
Page 1 of 4
