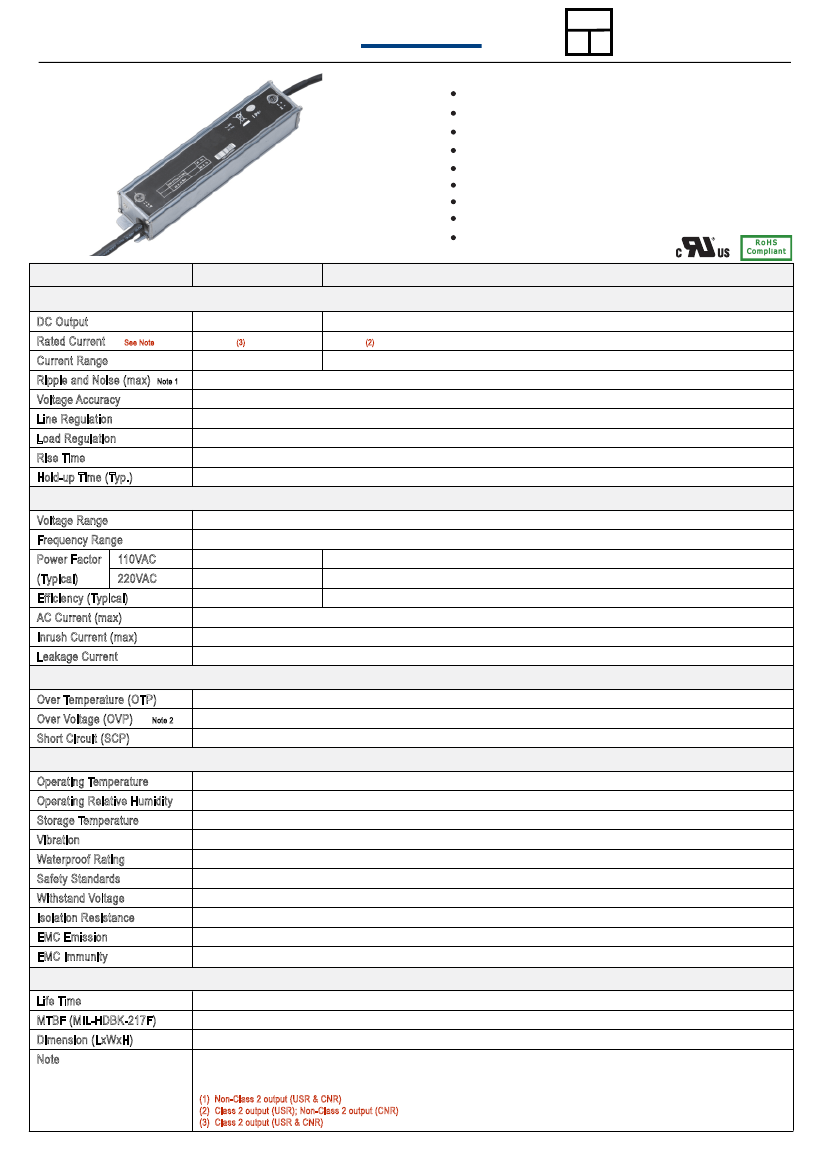

35Watts Single Output LED Driver
Q
ualtek
P
P C
Electronics Corporation
PLV-035 Series
Features:
Constant Voltage Design
Universal AC input/ Full Range
Built-in Active PFC function, PF 0.95 Typical
High Efficiency (Up to 86%)
Output Protections: OLP/OVP/SCP/OTP
Lightning Protection
Class 2 Power Unit
(See Note)
Waterproof (IP67)
5 Year Warranty
Model
DC Output
Rated Current
Current Range
Ripple and Noise (max)
Voltage Accuracy
Line Regulation
Load Regulation
Rise Time
Hold-up Time (Typ.)
Note 1
See Note
PLV-035S036
PLV-035S048
Output Characteristics
36V
0.97A
(3)
48V
0.73A
(2)
0~0.97A
±10% Vo
±5% Vo
±1% Vo
±3% Vo
20mS Max @ Rated Load
0~0.73A
8.5mS Min (110VAC input, full load), 10mS Min (220VAC input, full load)
90VAC~305VAC
47Hz-63Hz
>0.95
>0.92
86%
65A @ 230VAC, 25°C
0.50mA max @ 277VAC
110°C (Temperature of internal components); shut down, auto recover after the temperature decreases
1.2~1.4Vo
Long-term mode, auto recovery
-35°C~70°C
10% RH to 100% RH
-40°C~85°C, 5% to 100% RH non-condensing
10 to 300Hz sweep at constant acceleration of 1.0G(Breadth: 3.5mm) for 1 Hour for each of the perpendicular axes X, Y, Z
IP67
UL8750, Compliance to UL1012 UL935, IEC61347
L/N-GND: 4kV, L-N: 2kV
I/P-O/P: >100M Ohms / 500VDC / 25°C / 70% RH
Compliance to EN55022(CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3
Compliance to EN61000-3-2, 3 EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
More than 50,000Hrs (25°C, 80% Load)
More than 550,000Hrs (25°C, 80% Load)
199x42.5x34mm
1. Ripple & Noise: Measured by 20 MHz bandwidth oscilloscope and the output paralleled with a 0.1 uF ceramic capacitor and a 10 uF electrolytic capacitor.
2. Latch Mode: The power supply shall return to normal operation only after the power is turned on again
(1) Non-Class 2 output (USR & CNR)
(2) Class 2 output (USR); Non-Class 2 output (CNR)
(3) Class 2 output (USR & CNR)
Input Characteristics
Voltage Range
Frequency Range
Power Factor
(Typical)
110VAC
220VAC
>0.95
>0.92
86%
Efficiency (Typical)
AC Current (max)
Inrush Current (max)
Leakage Current
0.8A @ 100-277VAC Input Full Load
Protection
Over Temperature (OTP)
Over Voltage (OVP)
Short Circuit (SCP)
Operating Temperature
Operating Relative Humidity
Storage Temperature
Vibration
Waterproof Rating
Safety Standards
Withstand Voltage
Isolation Resistance
EMC Emission
EMC Immunity
Note 2
Environmental Characteristics
Characteristics
Life Time
MTBF (MIL-HDBK-217F)
Dimension (LxWxH)
Note
Rev. C
Page 1 of 2
